Volkswagen New Beetle. Manual - part 1324

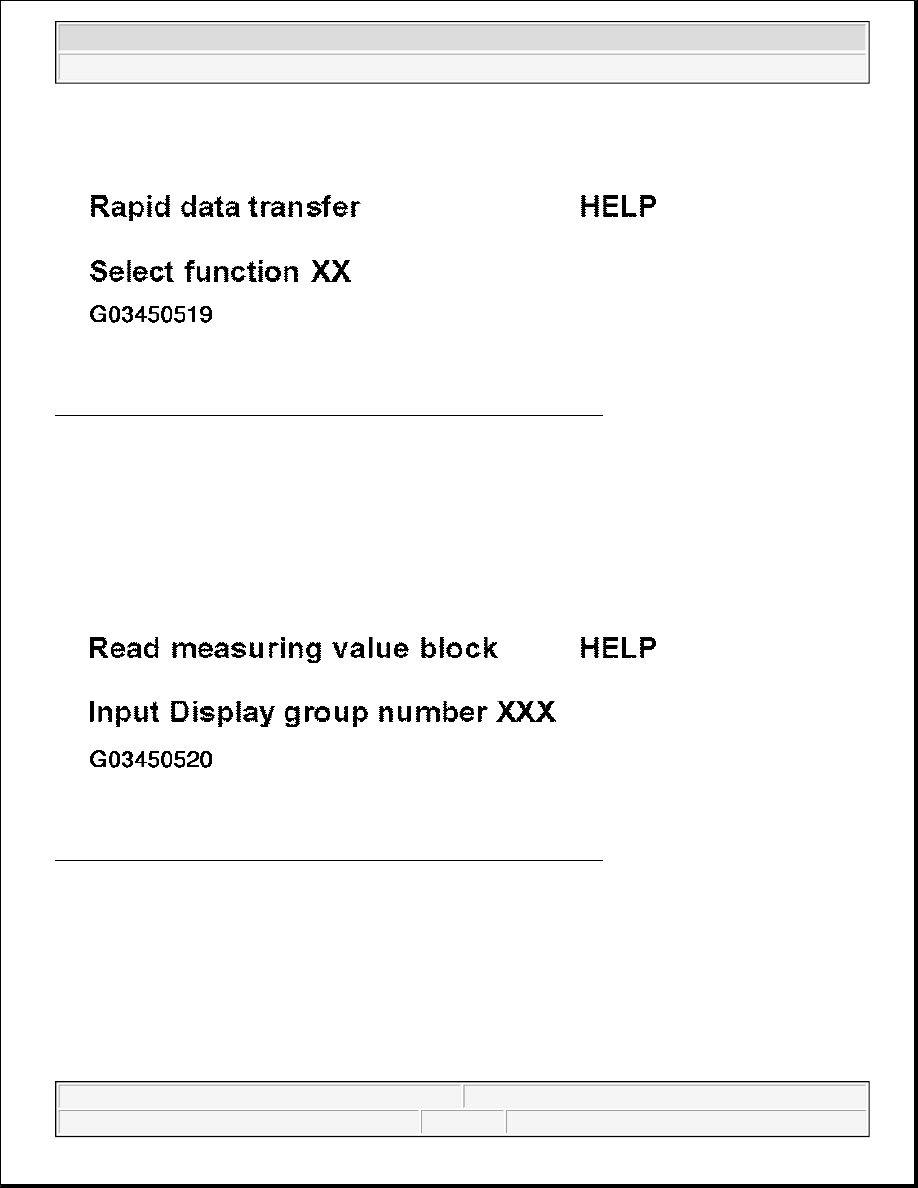

Fig. 59: Scan Tool Display - Clutch Vacuum Vent Valve Switch (2 Of 6)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press -0- and -8- buttons to select Function 08: "Read measuring value block".

z

Press -Q- button to enter input.

Display will appear as shown:

Fig. 60: Scan Tool Display - Clutch Vacuum Vent Valve Switch (3 Of 6)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0-, -0- and -6- to select "Display group 6".

z

Observe value in Display zone 2.

Specification: 0 0 0



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle

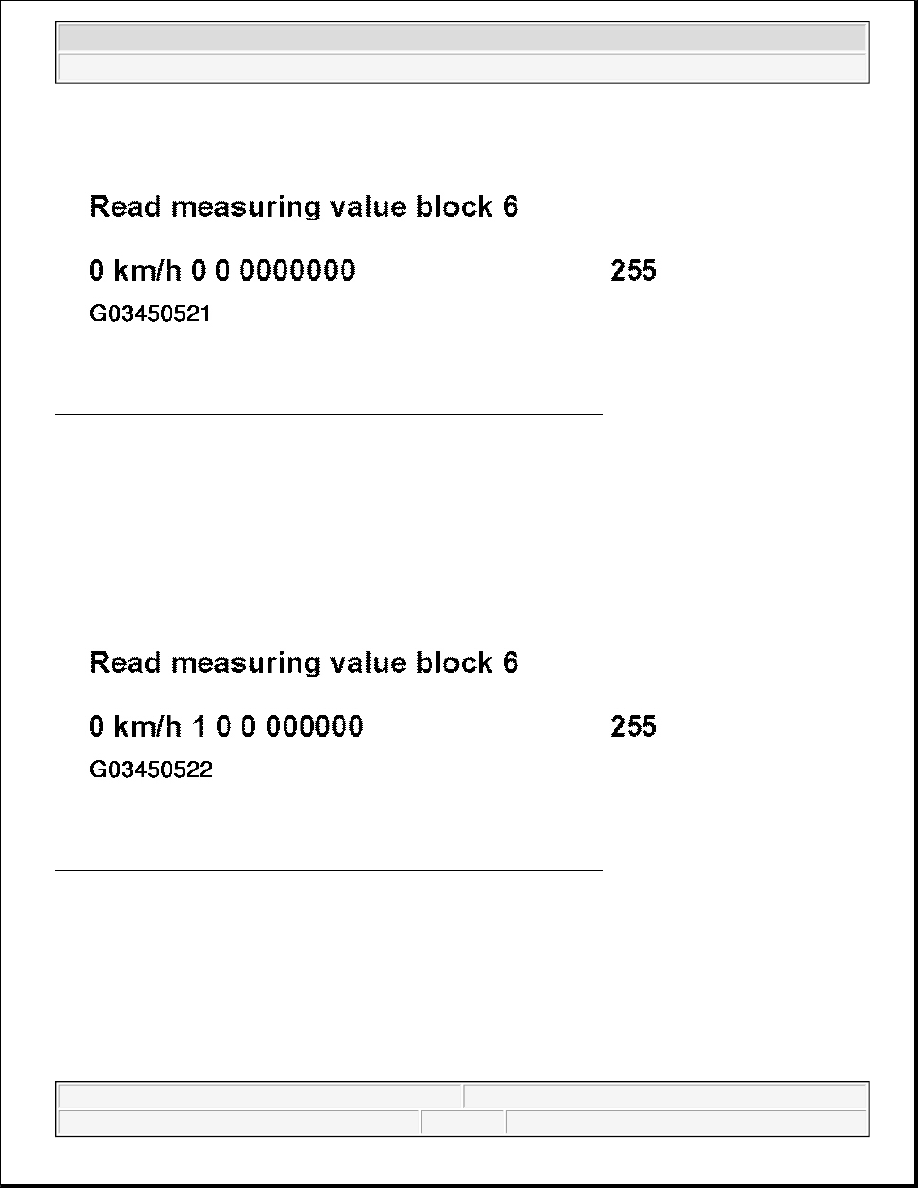

Fig. 61: Scan Tool Display - Clutch Vacuum Vent Valve Switch (4 Of 6)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Operate clutch pedal.

z

Left-hand position value must change to 1.

Specification: 1 0 0

Fig. 62: Scan Tool Display - Clutch Vacuum Vent Valve Switch (5 Of 6)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

If specifications not obtained:

z

Press --> button.

Display will appear as shown:



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle



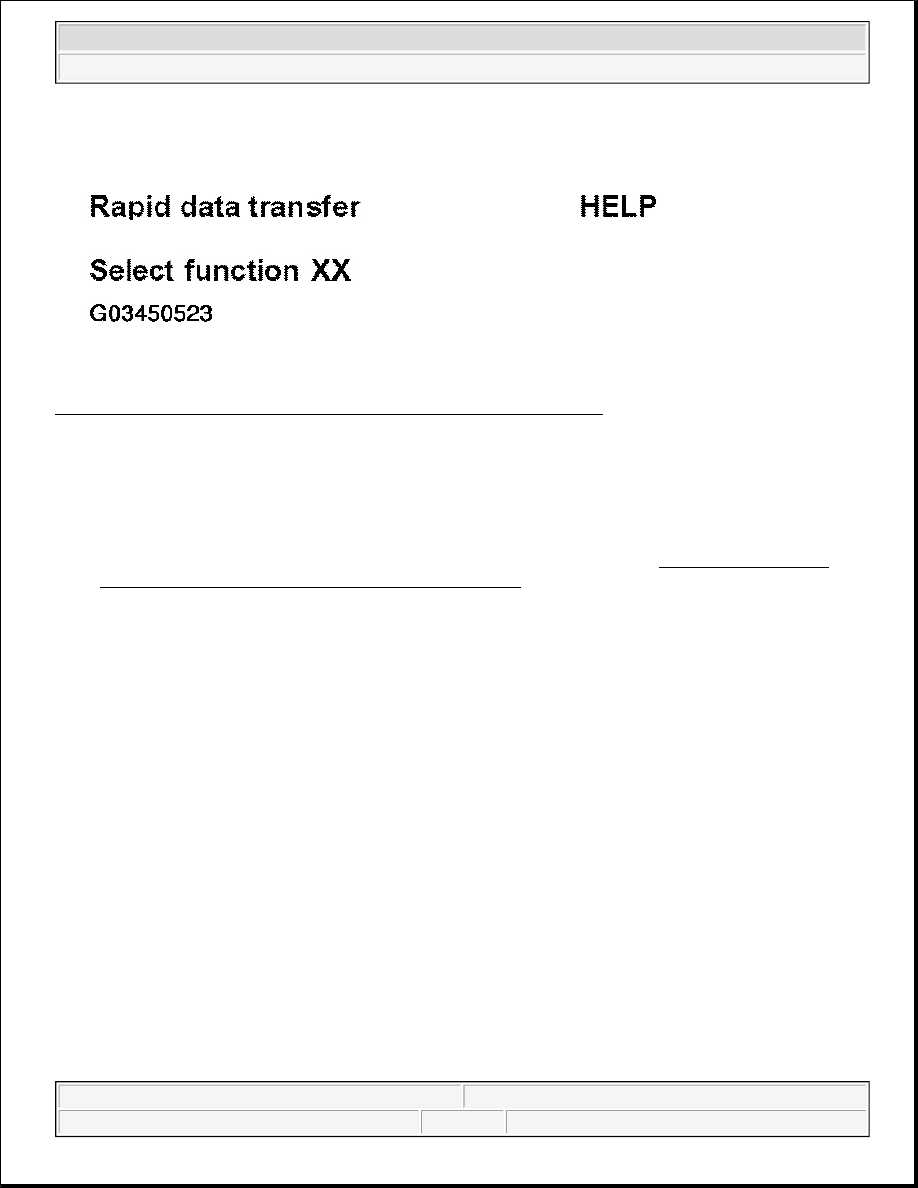

Fig. 63: Scan Tool Display - Clutch Vacuum Vent Valve Switch (6 Of 6)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press -0- and -6- buttons to select Function 06: "End output".

z

Press -Q- button to enter input.

z

Switch OFF ignition.

z

Disconnect Clutch Vacuum Vent Valve Switch -F36- harness connector. See DIESEL INJECTION
SYSTEM, COMPONENT LOCATIONS OVERVIEW .

z

Switch Fluke 83 multimeter to resistance range.

z

Measure resistance at switch terminals.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle



Fig. 64: Measuring Resistance At Clutch Vacuum Vent Valve Switch Terminals
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Specification:

z

Clutch not depressed: maximum 10 ohm

z

Clutch depressed: INFINITY ohm

If specifications not obtained:

z

Replace Clutch Vacuum Vent Valve Switch -F36-.

z

Display the Readiness code. See READINESS CODE, DISPLAYING .

If DTC memory has been erased:

z

Set the Readiness code again. See READINESS CODE, SETTING .

If specifications obtained:
