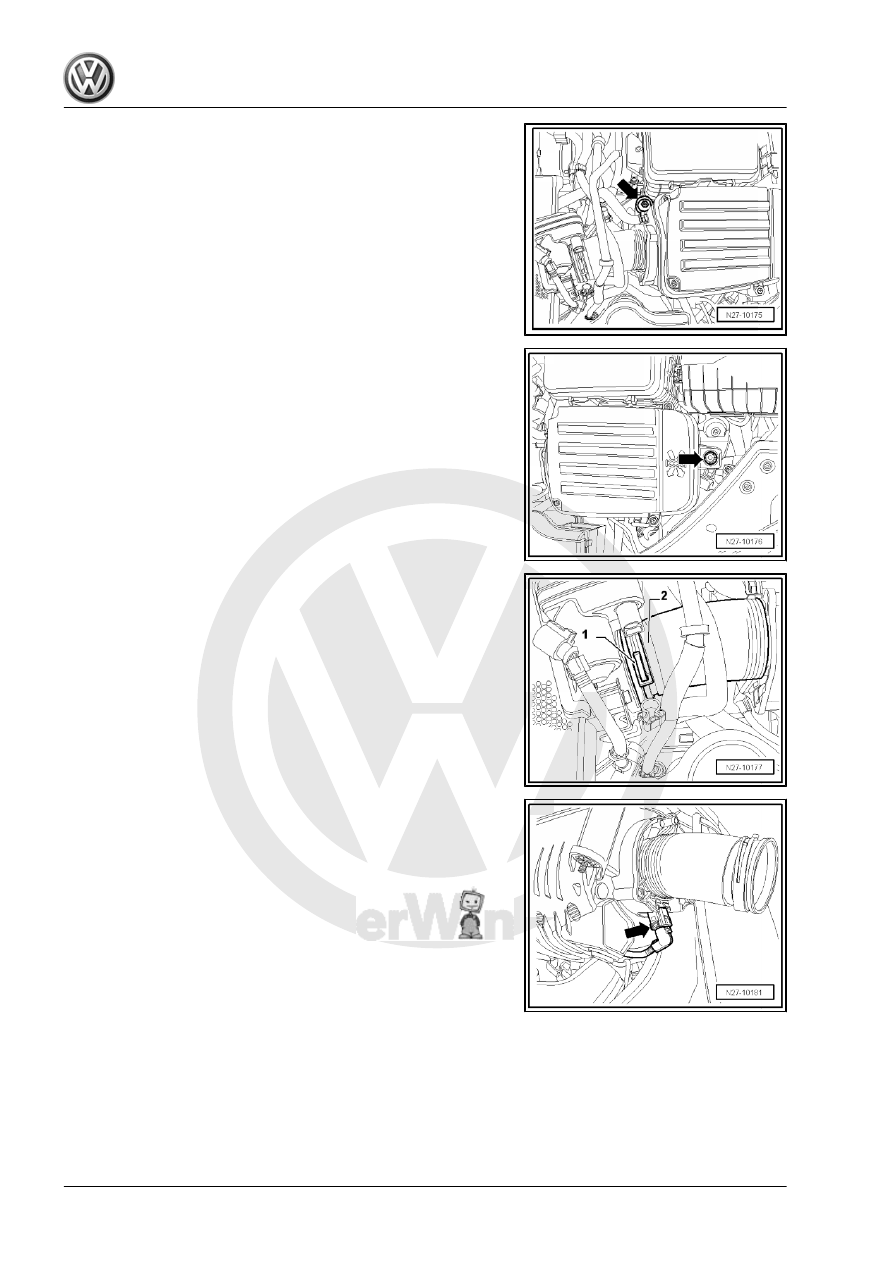

– Pull air filter housing upwards on right-hand side out of rubber

mounting -arrow-.

– Loosen spring-type clip -1- using spring-type clip pliers -VAS

5024A- .

– Pull hose -2- off connection.
– Carefully lift up air filter housing out of vehicle as far as wiring

allows.

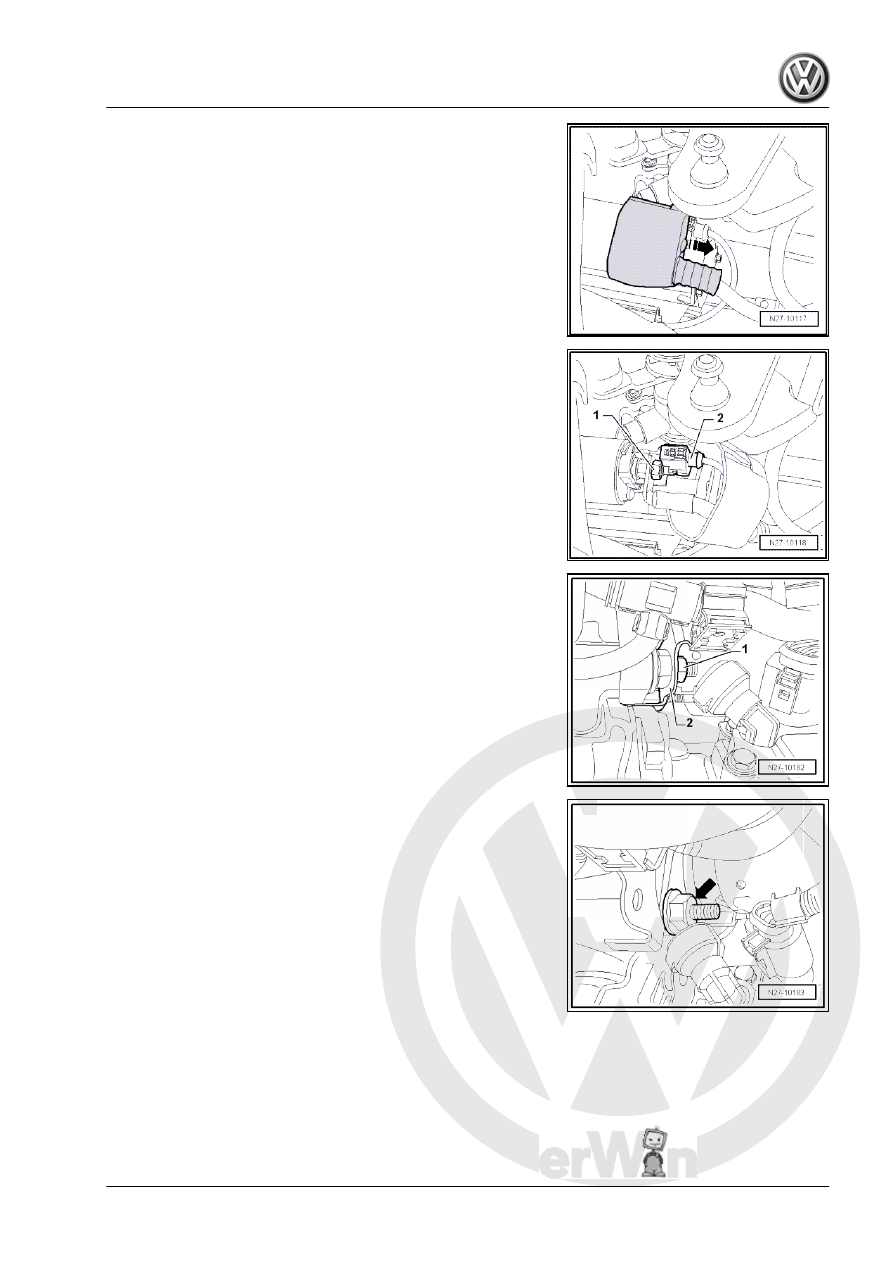

– Disconnect connector -arrow- on rear of air filter housing.

– Unscrew positive wire -1- and disconnect connector from ter‐

minal 50 -2-.

– Remove noise insulation ⇒ General body repairs, exterior;

Rep. gr. 50 .

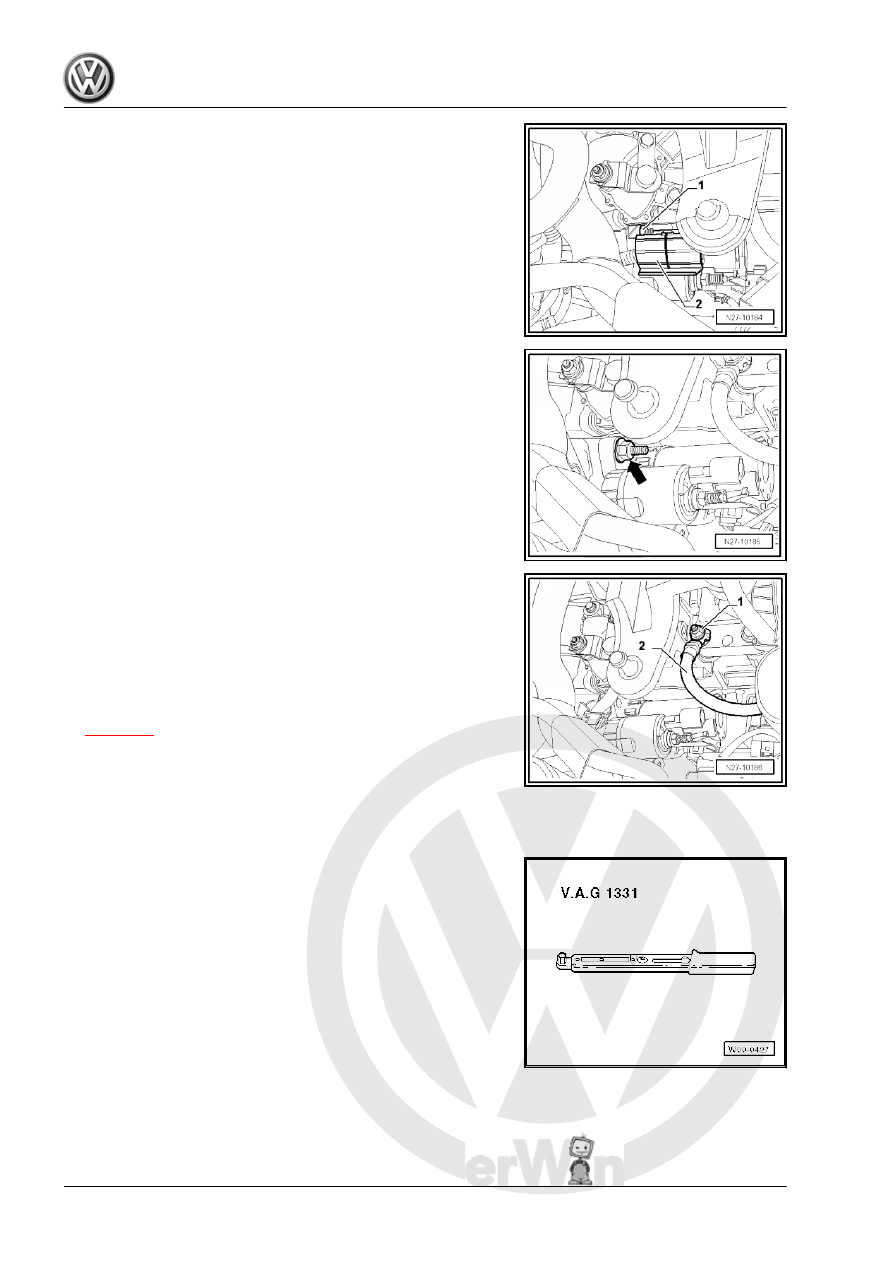

– Remove nut -1- from lower starter bolt.
– Remove wiring retainer -2-.

– Remove lower bolt -arrow- from starter.

6. Starter B

– Remove upper bolt -arrow- from starter.

– Remove nut of earth wire -1- and place end of earth wire -2-

to one side.

– Remove starter -B- from vehicle upwards.
Installing
Install in the reverse order of removal. When doing this, note the

following:
– Tighten threaded connections to specified torques

6.2.5

Vehicles with 2.5l petrol engine

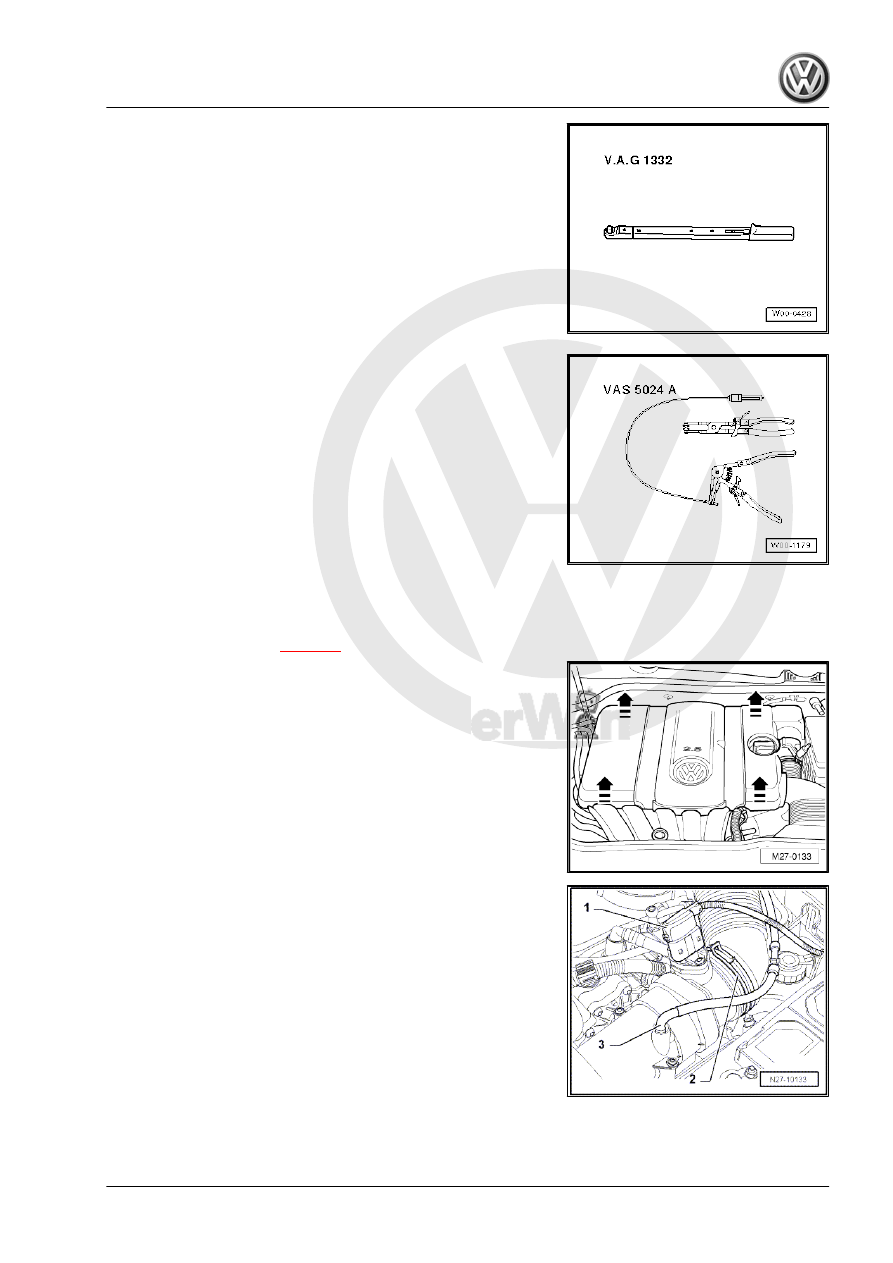

Special tools and workshop equipment required
♦ Torque wrench -V.A.G 1331-

♦ Spring-type clip pliers -VAS 5024A-

Carry out following procedures:
Removing
– Disconnect battery -A-

– Pull engine cover off upwards -arrows-.

– Separate connector -1-, release spring-type clip -2- with

spring-type clip pliers -VAS 5024A- and pull off vacuum hoses

-3-.

– Pull air filter housing upwards out of brackets and remove.

6. Starter B
