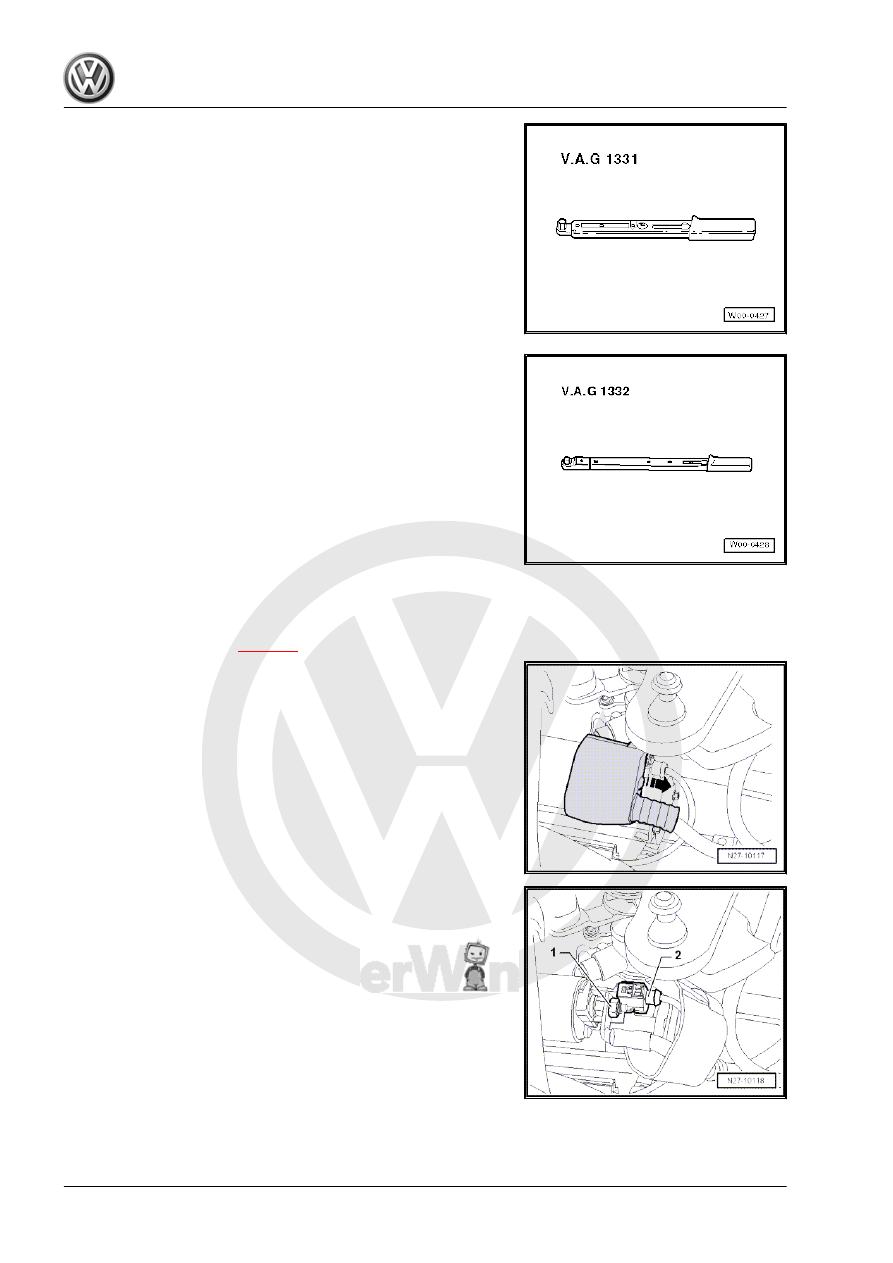

♦ Torque wrench -V.A.G 1332-

Carry out following procedures:
Removing
– Disconnect battery -A-

– Slide protective cap in direction of -arrow- off solenoid switch.

– Unscrew positive wire -1- and disconnect connector from ter‐

minal 50 -2-.

– Remove noise insulation ⇒ General body repairs, exterior;

Rep. gr. 50 .

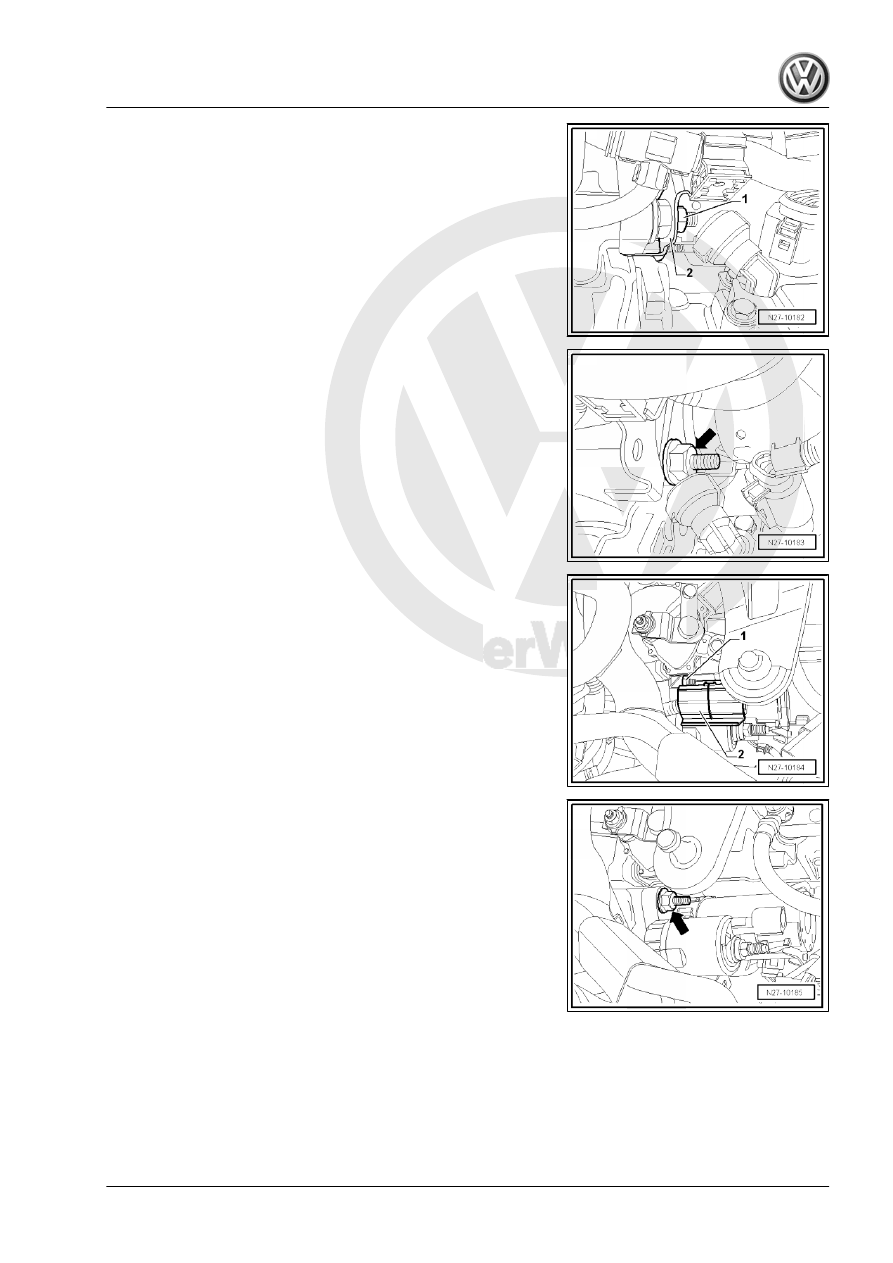

– Remove lower bolt -arrow- from starter.

– Remove nut -1- from upper starter bolt.
– Remove wiring retainer -2-.

– Remove upper bolt -arrow- from starter.

6. Starter B

to one side.

– Remove starter -B- from vehicle upwards.
Installing
Install in the reverse order of removal. When doing this, note the

following:
– Tighten threaded connections to specified torques

6.2.4

Vehicles with 2.0l FSI engine

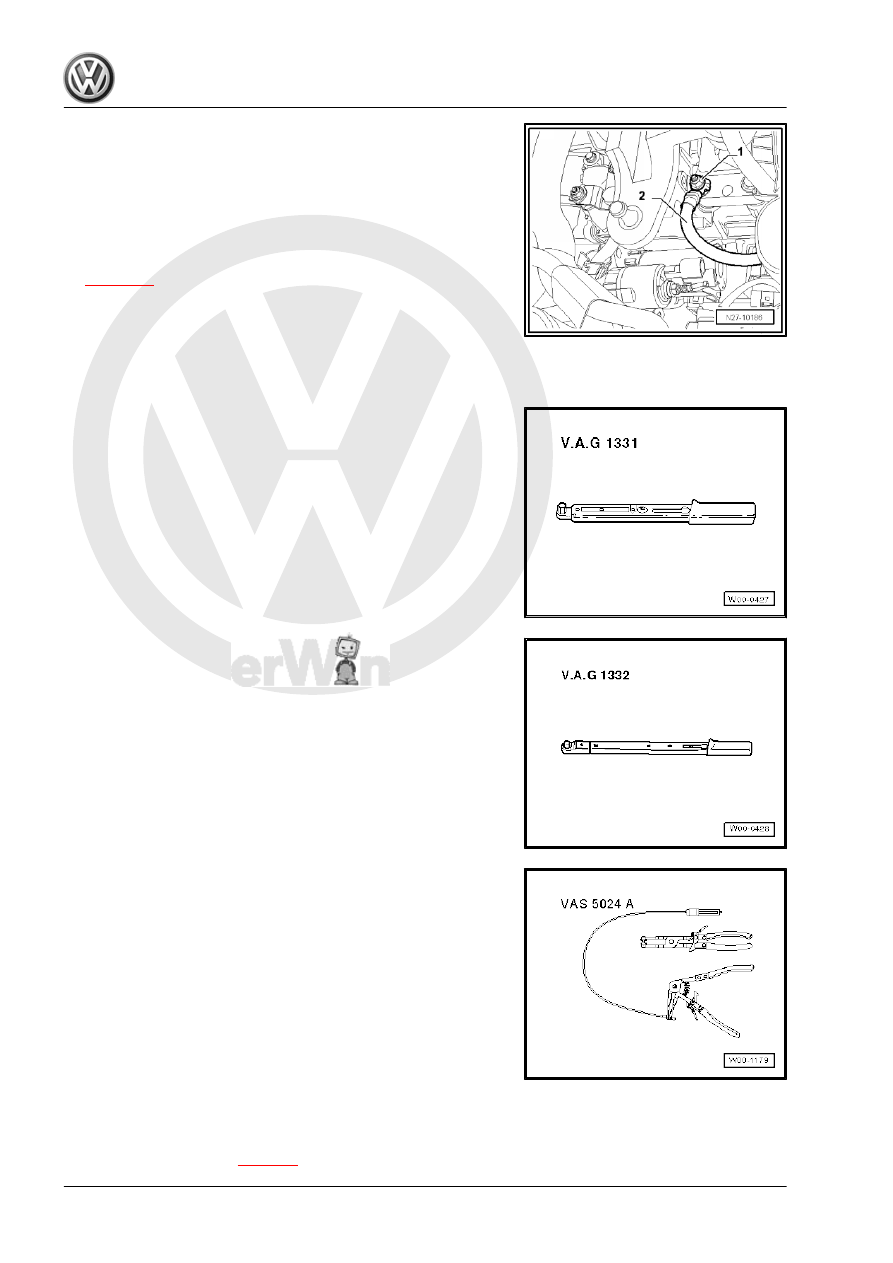

Special tools and workshop equipment required
♦ Torque wrench -V.A.G 1331-

♦ Torque wrench -V.A.G 1332-

♦ Spring-type clip pliers -VAS 5024A-

Carry out following procedures:
Removing
– Disconnect battery -A-

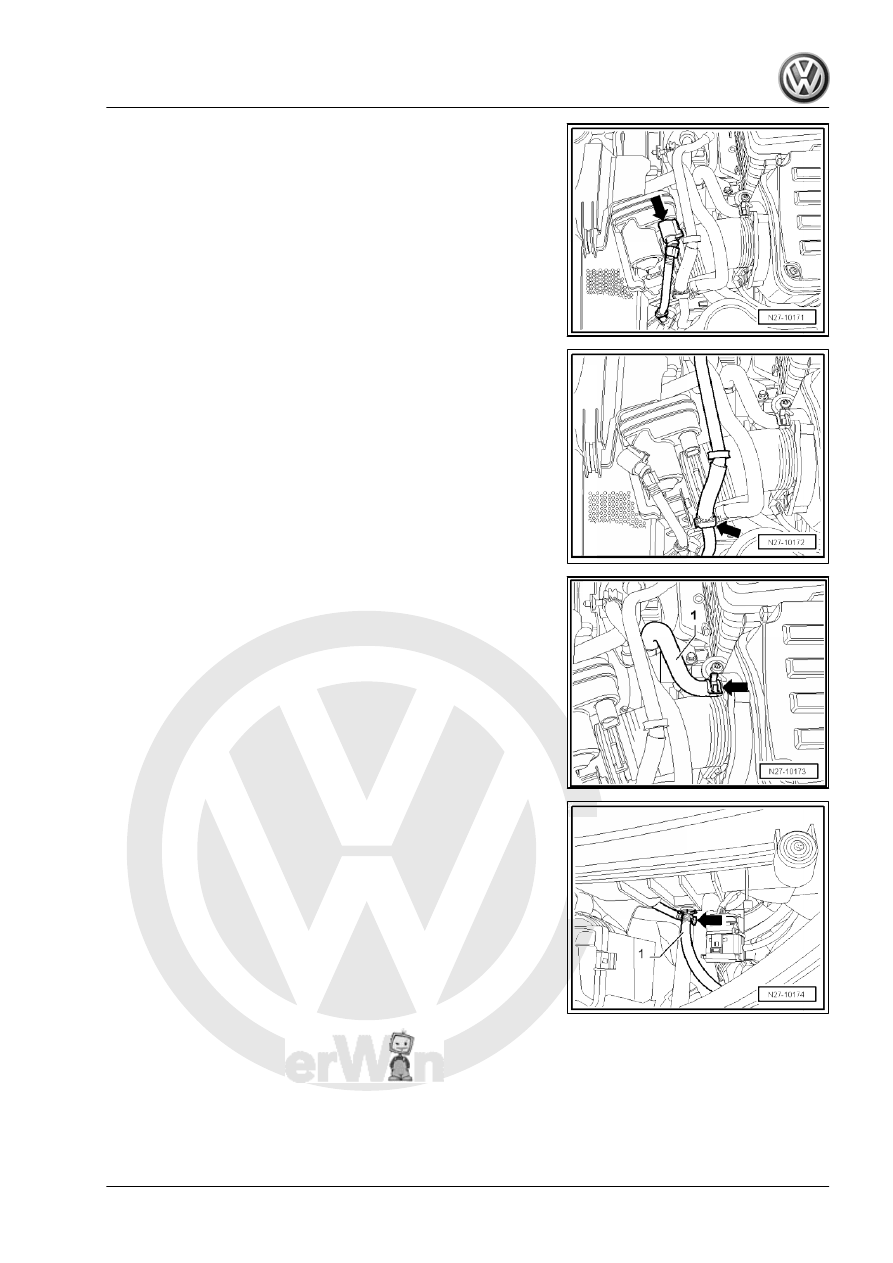

– Unclip vacuum hose out of retainer -arrow-.

– Loosen spring-type clip -arrow- from hose -1- using spring-

type clip pliers -VAS 5024A- .

– Pull hose -1- off air filter housing.

– Open retainer -arrow- on front of air filter housing and remove

line -1-.

6. Starter B
