Removing and installing starter -B- (au‐

tomatic gearbox)

6.2.1

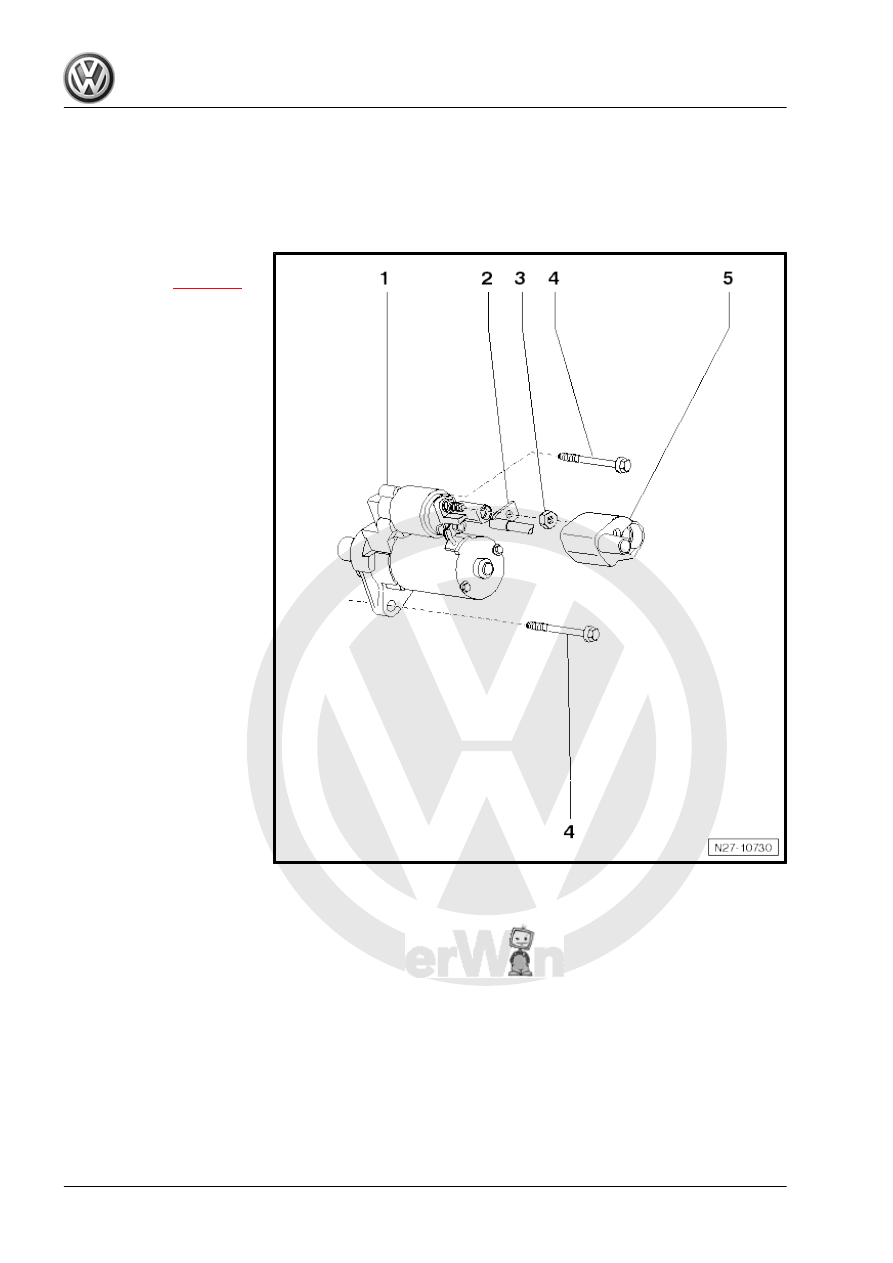

Assembly overview - starter -B-

1 - Starter -B-

❑ Checking

⇒ page 13

2 - Battery positive wire con‐

nection to starter -B-
3 - Nut

❑ 15 Nm

4 - Bolt

❑ 75 Nm

5 - Protective cap

Not illustrated
♦ Air filter housing bolt to body: 10 Nm
♦ Earth wire to automatic gearbox housing - 15 Nm

6.2.2

Vehicles with 1.6l petrol engine

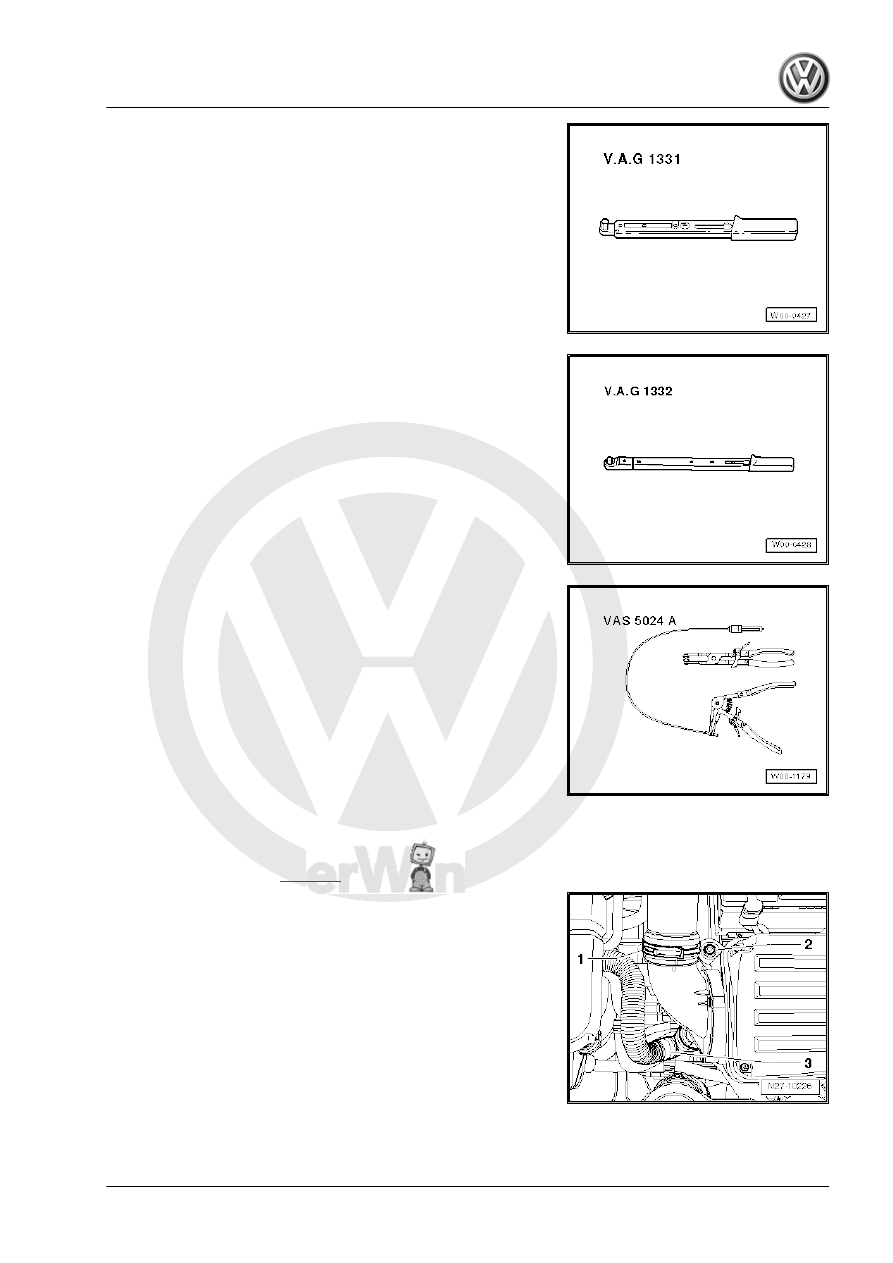

Special tools and workshop equipment required

14

♦ Torque wrench -V.A.G 1332-

♦ Spring-type clip pliers -VAS 5024A-

Carry out following procedures:
Removing
– Disconnect battery -A-

⇒ page 4

 .

– Loosen spring-type clip -1- using spring-type clip pliers -VAS

5024A- and remove bolt -2-.

– Release hose -3- and pull it off the air filter housing.

6. Starter B

15

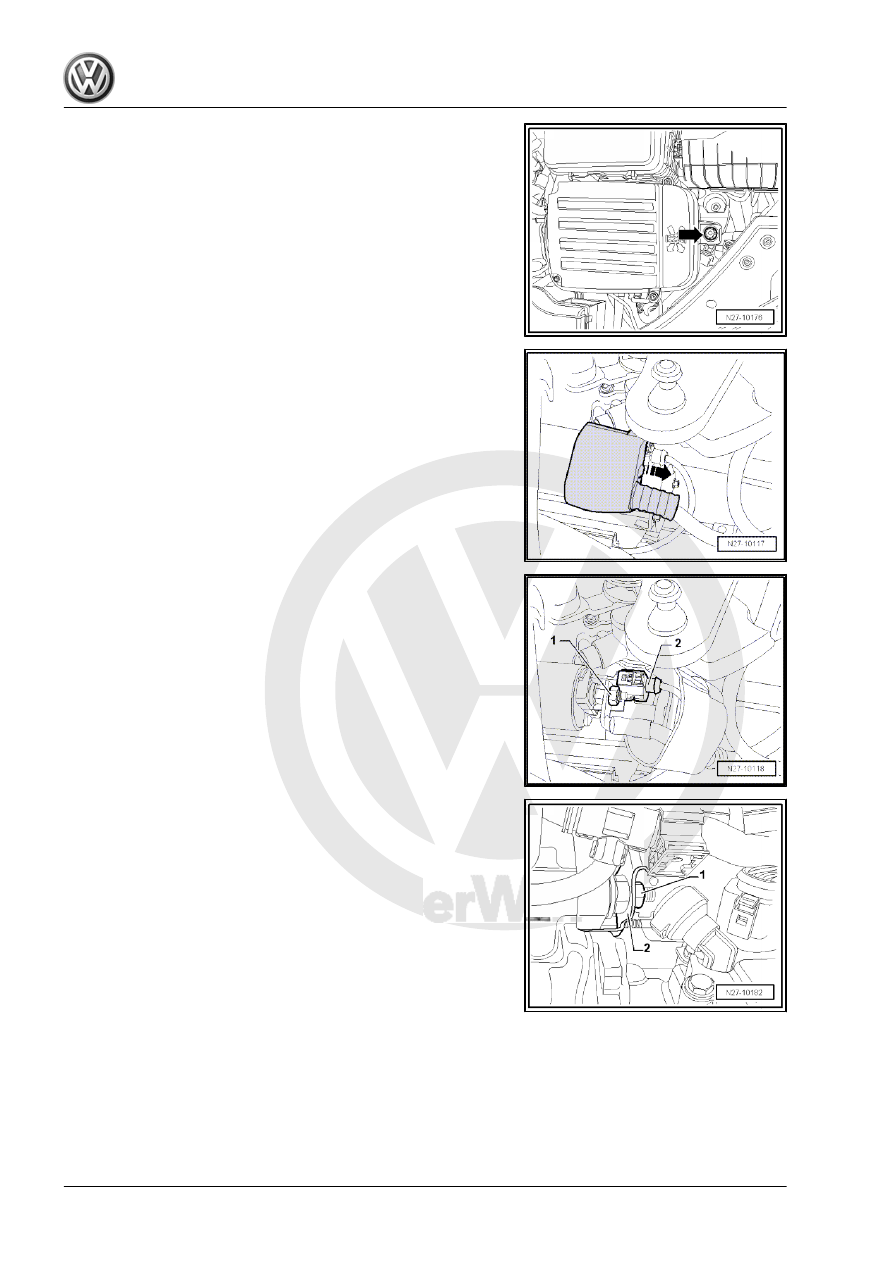

mounting -arrow-.

– Take air filter housing out of vehicle.

– Slide protective cap in direction of -arrow- off solenoid switch.

– Unscrew positive wire -1- and disconnect connector from ter‐

minal 50 -2-.

– Remove noise insulation ⇒  General body repairs, exterior;

Rep. gr.  50 .

– Remove nut -1- from lower starter bolt.
– Remove wiring retainer -2-.

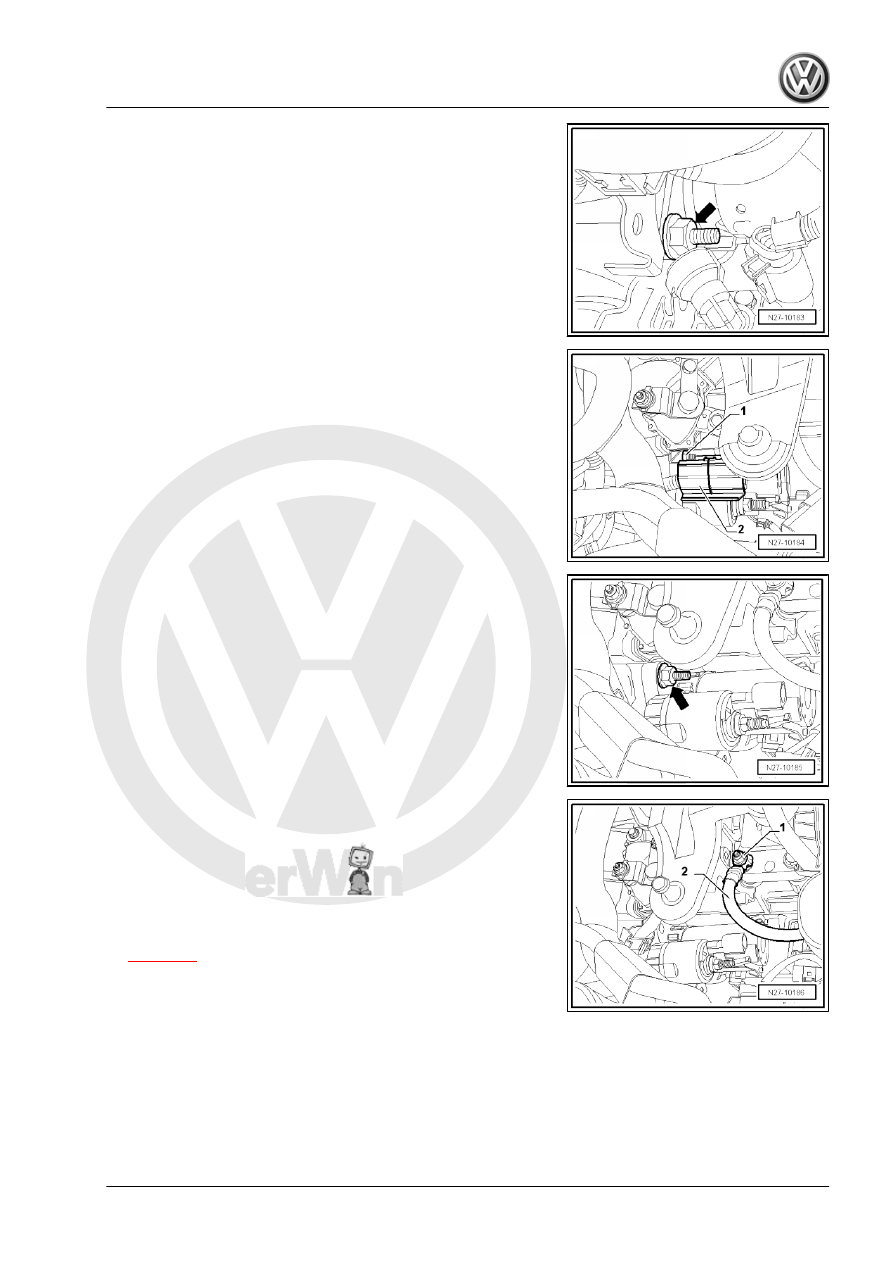

16

– Remove nut -1- from upper starter bolt.
– Remove wiring retainer -2-.

– Remove upper bolt -arrow- from starter.

– Remove nut of earth wire -1- and place end of earth wire -2-

to one side.

– Remove starter -B- from vehicle upwards.
Installing
Install in the reverse order of removal. When doing this, note the

following:
– Tighten threaded connections to specified torques

⇒ page 14

 .

6.2.3

Vehicles with 1.6l FSI engine

Special tools and workshop equipment required

6. Starter B

17
