"PHONE" MENU

"SETUP" MENU

DIAL NUMBER

SETTINGS

Select ring tone

Phone/Ring tone volume

Enter mailbox number

SYSTEM LANGUAGE *

Deutsch

English

Español

Français

Italiano

Nederlands

Polski

Portuguese

DATE & TIME *

Set date & time

Date format

Time format

Dark blue

MAP colour

Day mode for MAP

Night mode for MAP

Auto. Day/Night for MAP

VEHICLE *

Vehicle information

Alert log

Status of functions

DISPLAY

Brightness

Colour

Pop titanium

Toffee

Blue steel

Technogrey

UNITS

Temperature

Celsius

Fahrenheit

Metric/Imperial

Kilometres (Consumption: l/100)

Kilometres (Consumption: km/l)

Miles (Consumption: MPG)

SYSTEM

Factory reset

Software version

Automatic scrolling

* Available according to model.

DIAL FROM ADDRESS BOOK

CALL LISTS

CONNECT PHONE

Search phone

Phones connected

Disconnect phone

Rename phone

Delete pairing

Delete all pairings

Show details

295

sound quality between
the different audio

sources (radio, CD...).

Check that the audio settings (Volume, Bass,

Treble, Ambience, Loudness) are adapted to
the sources listened to. It is advisable to set

the AUDIO functions (Bass, Treble, Front-Rear

Balance, Left-Right Balance) to the middle
position, select the Linear musical ambience
and set the loudness correction to the "Active"

position in CD mode or to the "Inactive" position
in radio mode.

For optimum sound quality, the audio settings (Volume, Bass, Treble,

Ambience, Loudness) can be adapted to the different sound sources,

which may result in audible differences when changing source (radio,

CD...).

The CD is ejected
automatically or is not
played by the player.

- Check that the CD is inserted in the player the

right way up.

- Check the condition of the CD: the CD cannot

be played if it is too damaged.

- Check the content in the case of a recorded

CD: consult the advice in the Audio section.

- The audio equipment's CD player does not

play DVDs.

- Because of their quality level, certain writeable

CDs will not be played by the audio system.

The CD is inserted upside down, is unplayable, does not contain any audio
data or contains an audio format which the player cannot play.

The CD is protected by an anti-pirating protection system which is not

recognised by the audio equipment.

The CD player sound
is poor.

Insert good quality CDs and store them in
suitable conditions.

The CD used is scratched or of poor quality.

The audio equipment settings (bass, treble, ambiences) are unsuitable.

Set the treble or bass level to 0, without selecting
an ambience.

QUESTION

SOLUTION

ANSWER

FREQUENTLY ASKED QUESTIONS

296

SOLUTION

ANSWER

The quality of reception
of the radio station

listened to gradually
deteriorates or the
stored stations do
not function (no

sound, 87.5 Mhz is

displayed...).

The vehicle is too far from the transmitter used by the station listened to or

there is no transmitter in the geographical area through which the vehicle

is travelling.

The environment (hills, buildings, tunnels, basement car parks...) block

reception, including in RDS mode.

The aerial is absent or has been damaged (for example when going

through a car wash or into an underground car park).

Activate the RDS function to enable the system
to check whether there is a more powerful

transmitter in the geographical area.

This phenomenon is normal and does not
indicate a failure of the audio equipment.

Have the aerial checked by a PEUGEOT dealer.

Sound cut-outs of
1 to 2 seconds in radio
mode.

During this brief sound cut-out, the RDS searches for any frequency

permitting better reception of the station.

Deactivate the RDS function if the phenomenon
is too frequent and always on the same route.

With the engine off,
the audio equipment
switches off after a few
minutes of use.

When the engine is switched off, the audio equipment operating time

depends on the battery charge.
The switch-off is normal: the audio equipment switches to economy mode

and switches off to prevent discharging of the vehicle's battery.

Start the vehicle's engine to increase the battery

charge.

The stored stations do
not function (no sound,

87.5 Mhz is displayed...)

An incorrect waveband is selected.

Press the BAND AST button to return to the

waveband (AM, FM1, FM2, FMAST) on which the
stations are stored.

297

QUESTION

SOLUTION

ANSWER

The TA box is ticked.

However, certain trafﬁ c

jams along the route
are not indicated in real
time.

On starting, it is several minutes before the system begins to receive the

trafﬁ c information.

Wait until the trafﬁ c information is being received

correctly (displaying of the trafﬁ c information

symbols on the map).

In certain countries, only major routes (motorways...) are listed for the

trafﬁ c information.

The time taken to
calculate a route
sometimes seems

longer than usual.

This phenomenon is normal. The system is

dependent on the trafﬁ c information available.

The performance of the system may slow down temporarily if a CD is

being copied onto the Jukebox at the same time as a route is being
calculated.

Wait until the CD has been copied or stop the

copying before starting the guidance function.

The altitude is not
displayed.

On starting, the initialisation of the GPS may take up to 3 minutes to
receive more than 3 satellites correctly.

Wait until the system has started up completely.

Check that there is a GPS coverage of at least

3 satellites (long press on the SETUP button,

then select GPS coverage).

Depending on the geographical environment (tunnel...) or the weather, the

conditions of reception of the GPS signal may vary.

This phenomenon is normal. The system is
dependent on the conditions of reception of the

GPS signal.

The route is not
calculated successfully.

The exclusion criteria may conﬂ ict with the current location (exclusion of

toll roads on a motorway with tolls).

Check the exclusion criteria.

I receive a speed
camera alert for a
camera which is not on
my route.

The audible speed
camera alert is not

working.

The system announces all speed cameras located in a conical zone
forward of the vehicle. it may detect speed cameras on nearby or parallel
roads.

Audible alerts are not active.

The alert volume level is set to minimum.

Zoom the map to view the exact position of the
speed camera.

Activate audible alerts in Navigation Menu,

Settings, Set parameters for risk areas.

Increase the speed camera alert volume.

298

There is a long waiting

time after inserting a CD.

When a new medium is inserted, the system reads a certain amount of

data (directory, title, artist, etc.). This may take a few seconds.

This phenomenon is normal.

I cannot connect my
Bluetooth telephone.

A telephone connected
by Bluetooth is
inaudible.

The telephone's Bluetooth function may be deactivated or the equipment
may not be visible.

The volume level depends on both the system and the telephone.

- Check that your telephone's Bluetooth function

is activated.

- Check that your telephone is visible.

Increase the PC Nav volume setting, possibly to
maximum, and increase the telephone volume
level if necessary.

QUESTION

SOLUTION

ANSWER

299

PC Sound

CONTENTS

• 01 First steps

p . 300

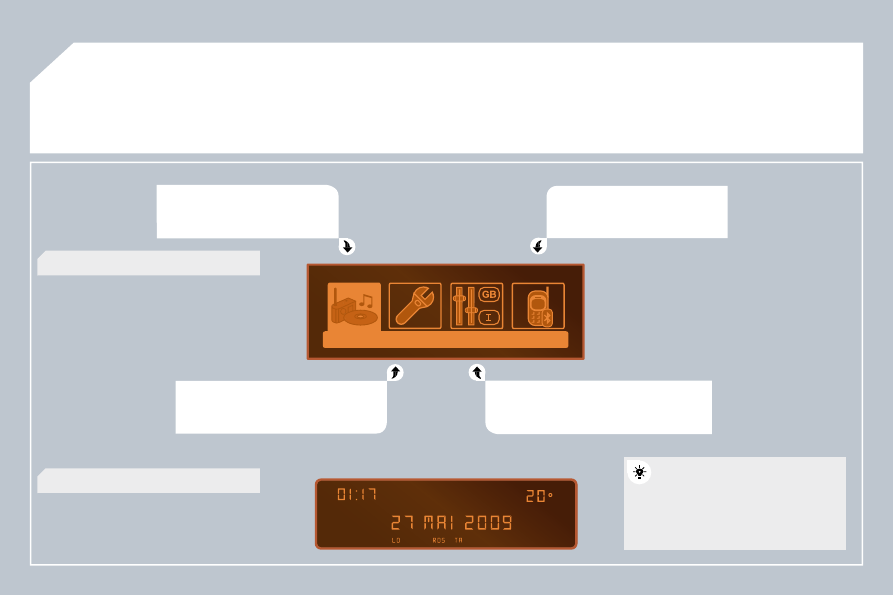

• 02 Main menu

p . 301

• 03 Audio

p . 302

• 04 USB reader

p . 305

• 05 Bluetooth functions

p . 308

• 06 Steering mounted controls p . 310

• 07 Conﬁ guration

p . 311

• 08 Screen menu map

p . 312

• Frequently asked questions p . 314

Your PC Sound is coded in such a way that it will only
operate in your vehicle. If it is to be installed in another

vehicle, contact a PEUGEOT dealer for conﬁ guration of
the system.

For safety reasons, the driver must carry out operations

which require prolonged attention while the vehicle is
stationary.

When the engine is switched off and to prevent

discharging of the battery, the audio system may switch
off after a few minutes.

AUDIO EQUIPMENT/BLUETOOTH SYSTEM

300

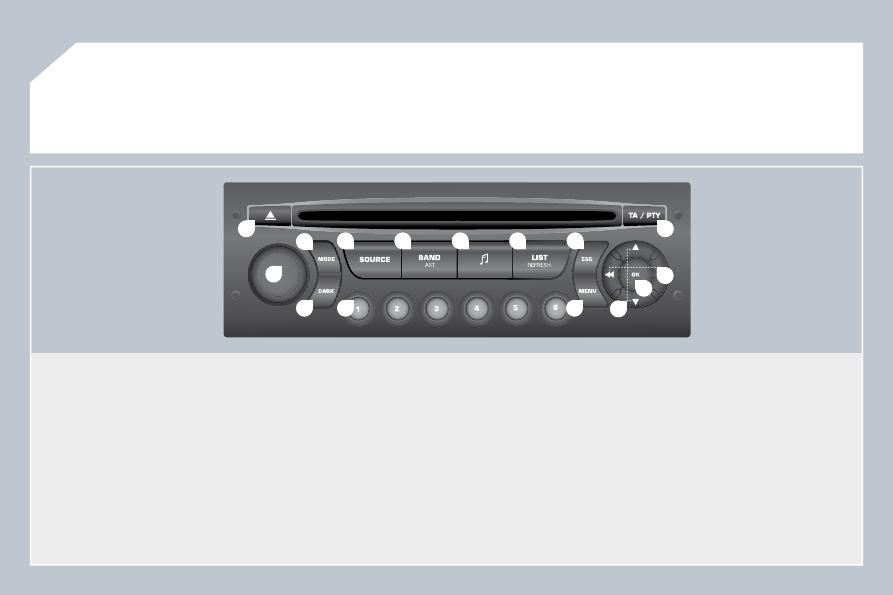

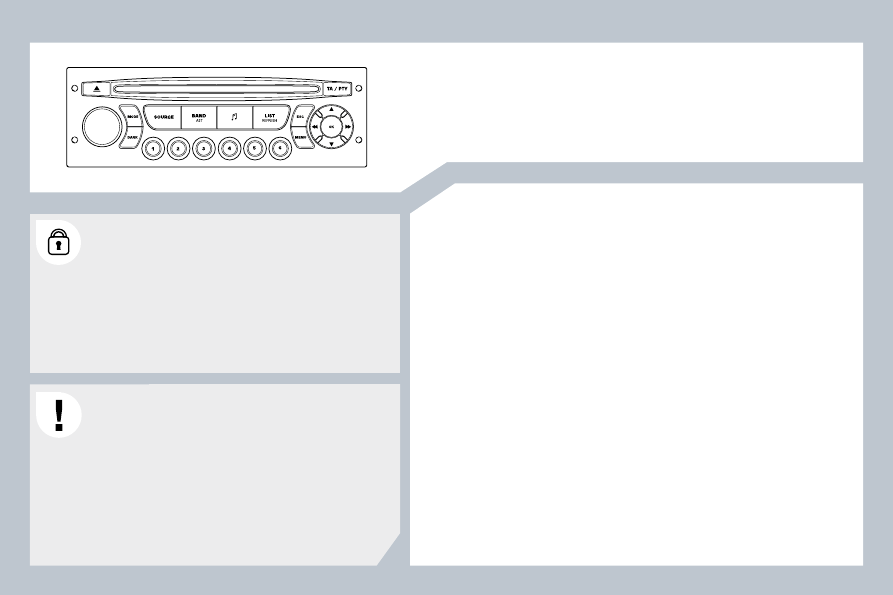

01 FIRST STEPS

1.   On/Off and volume adjustment.
2.   CD eject.
3.    Selection of the display on the screen from the modes:

Audio (AUDIO), Vehicle Diagnostics and Telephone (TEL)

functions.

4. Selection of the source:

radio, audio CD/MP3 CD, CD changer, USB, Jack

connection, Streaming.

5. Selection of the FM1, FM2, FMast and AM wavebands.
6. Setting audio options: front/rear balance, left/right balance,

loudness, sound ambiences.

7. Display the list of local stations, of the tracks on the CD or of

the MP3 directories.

8. Abandon current operation.

9. TA (Trafﬁ c Announcement) function on/off.

Long press: access to the PTY (Types of radio programme)

mode.

10. Conﬁ rmation.
11. Automatic search for a lower/higher frequency.

Selection of previous/next CD, MP3 or USB track.

12. Selection of a lower/higher radio frequency.

Selection of the previous/next CD.

Selection of the previous/next MP3 directory.

Selection of the previous/next USB equipment directory/genre/

artist/playlist.

13. Display the general menu.
14. Buttons 1 to 6:

Selection of a stored radio station..

Selection of a CD in the CD changer.

Long press: storing of a station.

15. The DARK button changes the display on the screen to

improve driving comfort at night.

1st press: lighting of the top banner only.

2nd press: displaying of a black screen.

3rd press: return to the standard display.

302

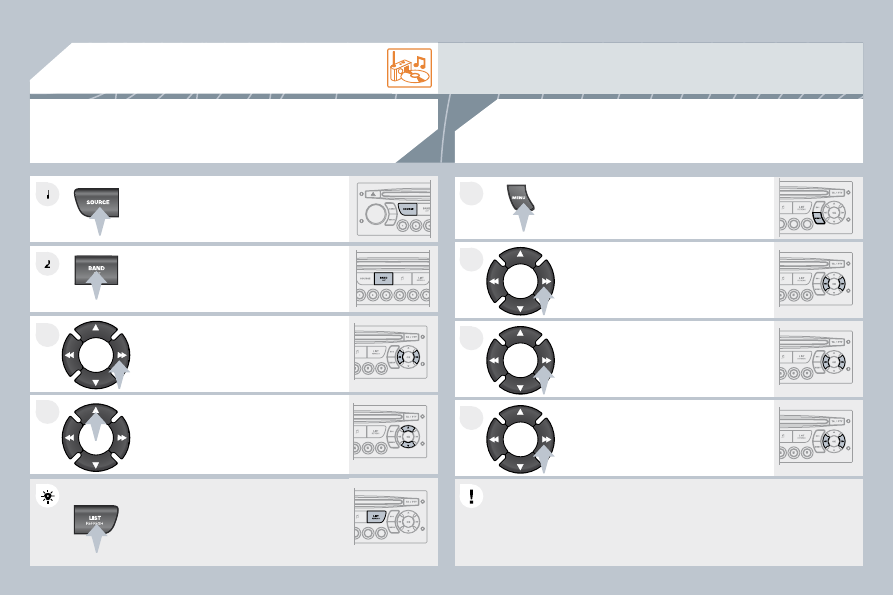

03 AUDIO

Press the SOURCE button several
times in succession and select the
radio.

Press the BAND AST button to select
a waveband: FM1, FM2, FMast, AM.

Brieﬂ y press one of the buttons to
carry out an automatic search of the
radio stations.

Press one of the buttons to carry out a
manual search of the radio stations.

Press the LIST REFRESH button to
display the list of stations received

locally (30 stations maximum).
To update this list, press for more than
two seconds.

Select ACTIVATE FREQUENCY

FOLLOWING (RDS) then press OK.

RDS appears on the display.

Select the FM WAVEBAND
PREFERENCES function then

press OK.

Select AUDIO FUNCTIONS then

press OK.

Press the MENU button.

The external environment (hills, buildings, tunnels, basement car parks) may block reception, including
in RDS mode. This is a normal effect of the way in which radio waves are transmitted and does not
indicate any failure of the audio equipment.

RDS

The RDS, if displayed, enables you to continue listening to the same

station by automatic retuning to alternative frequencies. However, in

certain conditions, coverage of an RDS station may not be assured

throughout the country as radio stations do not cover 100 % of the

territory. This explains the loss of reception of the station during a
journey.

RADIO

SELECTING A STATION

303

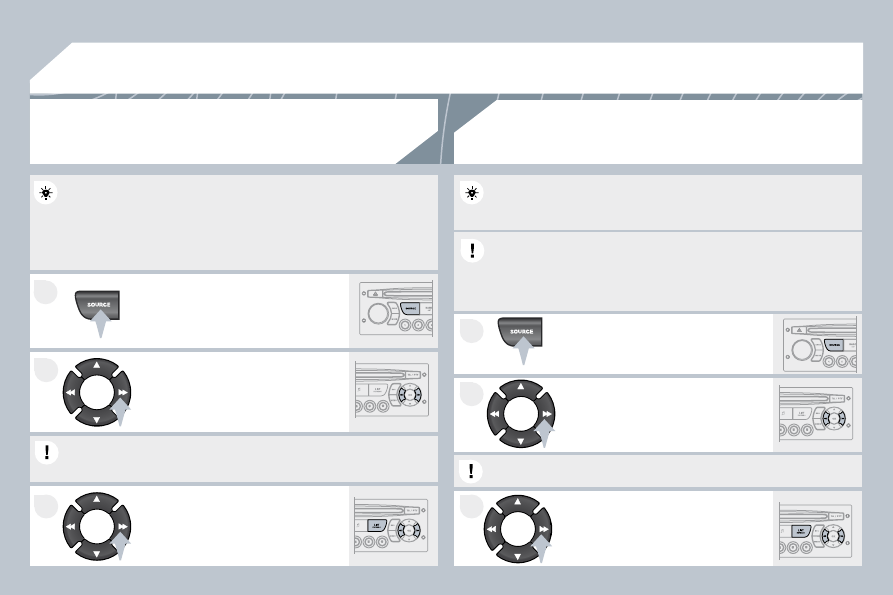

AUDIO

Insert circular compact discs only.

Some anti-pirating systems, on original discs or CDs copied using a

personal recorder, may cause faults which are no reﬂ ection on the

quality of the original player.

Without pressing the EJECT button, insert a CD in the player, play

begins automatically.

To play a disc which has already been
inserted, press the SOURCE button
several times in succession and select

CD.

Press and hold one of the buttons for
fast forward or backward.

Insert an MP3 compilation in the player.
The audio equipment searches for all of the music tracks, which may

take anything between a few seconds and several tens of seconds,

before play begins.

On a single disc, the CD player can read up to 255 MP3 ﬁ les spread
over 8 directory levels. However, it is advisable to keep to a limit of

two levels to reduce the access time before the CD is played.

While the CD is being played, the directory ﬂ ow chart is not followed.

All of the ﬁ les are displayed on a single level.

To play a disc which has already been
inserted, press the SOURCE button
several times in succession and

select CD.

Press and hold one of the buttons for
fast forward or backward play.

PLAYING A CD

MP3 CD

PLAYING AN MP3 COMPILATION

Press one of the buttons to select a

track on the CD.

Press the LIST REFRESH button to display the list of tracks on the CD.

Press one of the buttons to select a

track on the CD.

Press the LIST REFRESH button to display the list of directories of
the MP3 compilation.

304

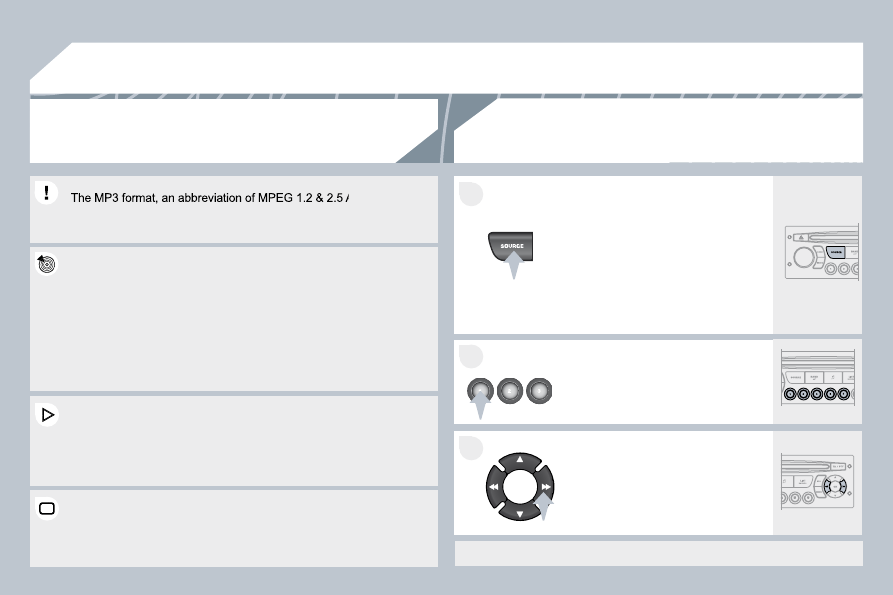

2.5 Audio Layer 3,

is an audio compression standard which permits the recording of

several tens of music ﬁ les on a single disc.

In order to be able to play a recorded CDR or CDRW, when recording

it is preferable to select standards ISO 9660 level 1.2 or Joliet.

it is preferable to select standards ISO 9660 level 1.2 or Joliet.
If the disc is recorded in another format, it may not be p

t be played

correctly.

It is recommended that the same recording standard is always used

for an individual disc, with as low a speed as possible (4x maximum)

for an individual disc, with as low a speed as possible (4x maximum)
for optimum sound quality.

In the particular case of a multi-session CD, the Joliet standard is

In the particular case of a multi-session CD, the Joliet standard is
recommended.

The audio equipment will only play ﬁ les with the extension ".mp3"

with a sampling rate of 22.05 KHz or 44.1 KHz. No other type of ﬁ le

(.wma, .mp4, .m3u...) can be played.

It is advisable to restrict ﬁ le names to 20 characters without using

special characters (e.g. " " ? ; ù) to avoid any playing or displaying

special characters (e.g. " " ? ; ù) to avoid any playing or displaying
problems.

MP3 CD

INFORMATION AND ADVICE

AUDIO

Insert the CDs in a multi-slot changer
one by one.

On a single slot changer, press

LOAD, select the number of the CD,

then insert the CD, or press and hold

LOAD and insert the CDs one by one.
Press the SOURCE button several
times in succession and select

CD CHANGER.

Press one of the buttons on the
numeric keypad to select the

corresponding CD.

Press one of the buttons to select a

track on the CD.
Press and hold one of the buttons for
fast forwards or rewind play.

PLAYING A CD

* according to availability on the vehicle.

AUDIO/MP3 CD CHANGER *

305

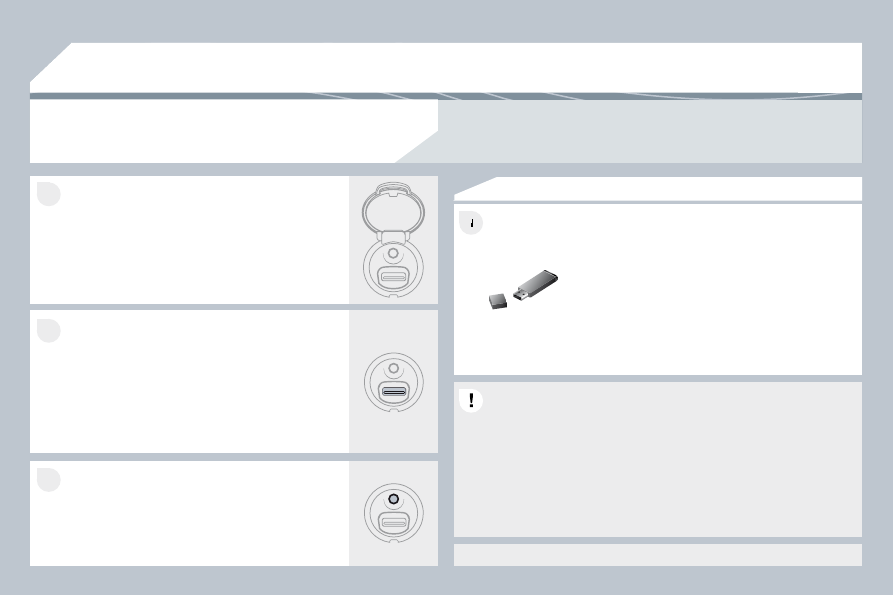

04 USB PLAYER - PLUG

The system puts together playlists (temporary memory) created over
a period which depends on the capacity of the USB equipment.

The other sources are available during this time.

The playlists are updated each time the ignition is switched off or
each time a USB memory stick is connected.

When connecting for the ﬁ rst time, the classiﬁ cation suggested is by

folder. When you reconnect, the classiﬁ cation selected previously is
retained.

Connect the memory stick to the port, directly or

using a lead. If the audio equipment is switched
on, the USB source is detected as soon as it

is connected. Play begins automatically after a
delay which depends on the capacity of the USB
stick.

The ﬁ le formats recognised are .mp3 (mpeg1

layer 3 only), .wma (standard 9 only, 128 kbits/

sec compression), .wav and .ogg.
The playlists types accepted are m3u, .pls, .wpl.

This unit consists of a USB port and a Jack

socket * . The audio ﬁ les are transmitted from

portable equipment such as a digital player or
a USB memory stick to your PC Sound to be
listened to via the vehicle's speakers.

USB key (1.1, 1.2 and 2.0) or Ipod

generation 5 or later:
- USB memory sticks should be formatted FAT

or FAT 32 (NTFS not supported),

- the Ipod

lead is essential,

- navigation through the ﬁ le database is by

means of the steering wheel controls,

- the IPod software should be regularly updated

for the best connection.

Other Ipod

players of earlier generations and

players using the MTP protocol * :

- play via Jack-Jack lead only (not supplied),

- navigation through the ﬁ le database is from the

portable equipment.

The list of compatible equipment and the compression rates supported are available from

PEUGEOT dealers.

USING THE USB PLAYER - PLUG

CONNECTING A USB MEMORY STICK

* According to vehicle.

306

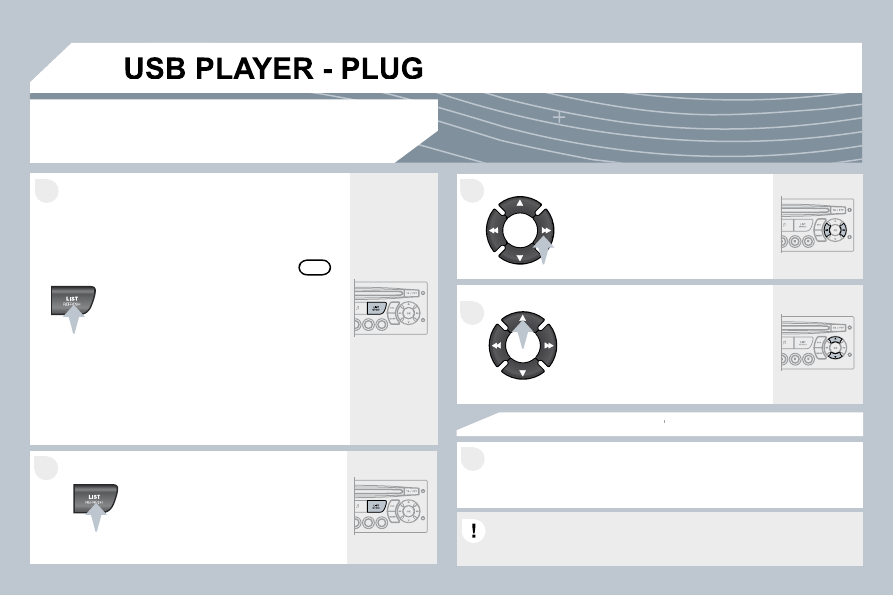

USING THE USB PLAYER - PLUG

Press LIST brieﬂ y to display the

previously selected classiﬁ cation.

Navigate through the list using the

left/right and up/down buttons.

Conﬁ rm the selection by pressing OK.

The lists available are Artist, Genre and Playlist (as deﬁ ned on the
iPod

Selection and Navigation are described in steps 1 to 5 above.

Do not connect a hard disk or USB devices other than audio

equipment to the USB port. This could damage your installation.

CONNECTING AN IPOD

CONNECTING AN IPOD VIA THE USB PORT

Press one of these buttons to gain
access to the previous/next track on

the classiﬁ cation list currently being
played.
Press and hold one of the buttons for
fast forward or backward play.

Press one of these buttons to gain
access to the previous/next Genre,
Folder, Artist or Playlist on the

classiﬁ cation list currently being
played.

Press and hold LIST to display the

different classiﬁ cations.
Select by Folder/Artist/Genre/Playlist,

press OK to select the classiﬁ cation

required, then press OK again to conﬁ rm.

- by Folder: all folders containing audio

ﬁ les recognised on the peripheral

device, classiﬁ ed in alphabetical order

without following the ﬂ ow chart.

- by Artist: all of the artist names

deﬁ ned in the ID3 Tags, classiﬁ ed in
alphabetical order.

- by Genre: all of the genres deﬁ ned in

the ID3 Tags.

- by Playlist: in accordance with the

playlists recorded on the USB device.

307

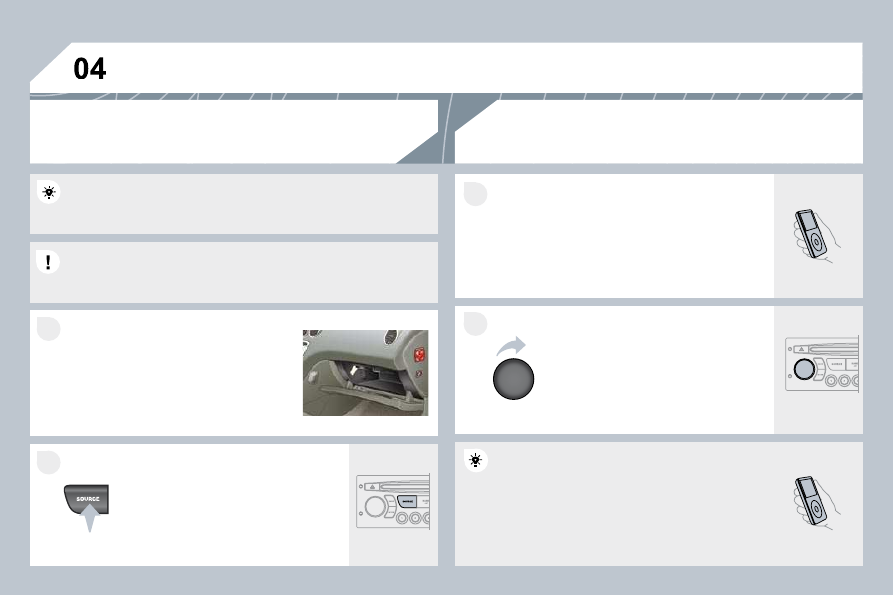

The controls are displayed and managed via the
portable equipment.

First adjust the volume of your portable equipment.

Then adjust the volume of your audio
equipment.

The auxiliary socket, JACK or RCA, permits the connection of

portable equipment (MP3 player...).

Connect the portable equipment (MP3

player…) to the JACK socket or to the

audio sockets (white and red, RCA type)

using a suitable cable (not supplied).

Press the SOURCE button several
times in succession and select AUX.

USING THE AUXILIARY SOCKET (AUX)

JACK SOCKET OR RCA SOCKET (according to vehicle)

ADJUSTING THE VOLUME

OF THE AUXILIARY SOURCE

Do not connect a single piece of equipment via the USB port and the

JACK socket at the same time.

USB Player - Plug

308

Saisir code authentiication

Del

2 3 4 5 6 7 8 9

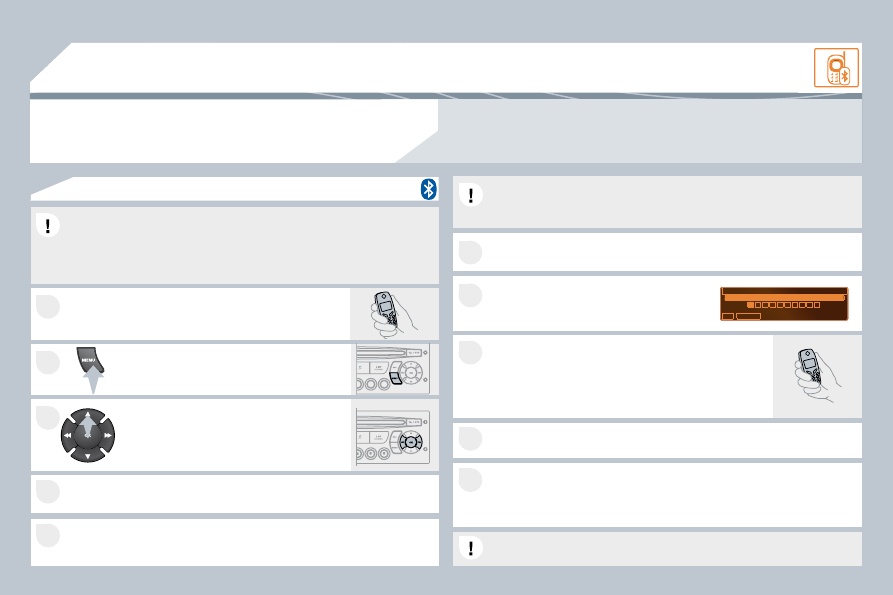

05 BLUETOOTH

For safety reasons and because they require prolonged attention

on the part of the driver, the operations for pairing of the Bluetooth
mobile telephone with the Bluetooth hands-free system of your audio
equipment must be carried out with the vehicle stationary and the

ignition on.

Press the MENU button.

A window is displayed with "Searching...".

Activate the telephone's Bluetooth function.

In the menu, select:
- Bluetooth telephone function - Audio

- Bluetooth conﬁ guration
- Perform a Bluetooth search

The services offered depend on the network, the SIM card and the compatibility of the Bluetooth
equipment used. Consult your telephone's manual and your operator to ﬁ nd out which services are
available to you. A list of mobile telephones which offer the best range of services is available from the
network. Consult a PEUGEOT dealer.

BLUETOOTH TELEPHONE

SCREEN C

The TELEPHONE menu permits access to the following functions in

particular: Directory * , Call list, Pairing management.

The ﬁ rst 4 telephones recognised are displayed in this window.

A virtual keypad is displayed on the screen:

enter a code with at least 4 digits.

Conﬁ rm by pressing OK.

If pairing fails, the number of attempts is not limited.

Select the telephone to be connected from the list. Only one
telephone can be connected at a time.

A message is displayed on the screen of the

telephone chosen: to accept the pairing, enter

the same code on the telephone, then conﬁ rm by

pressing OK.

"Pairing of Name_telephone successful" appears on the screen.
The automatic connection authorised is only active after the telephone has

been conﬁ gured.
The directory and the call list can be accessed after the synchronisation period.

PAIRING A TELEPHONE

* If your telephone is fully compatible.

The pairing can also be initiated from the telephone.

309

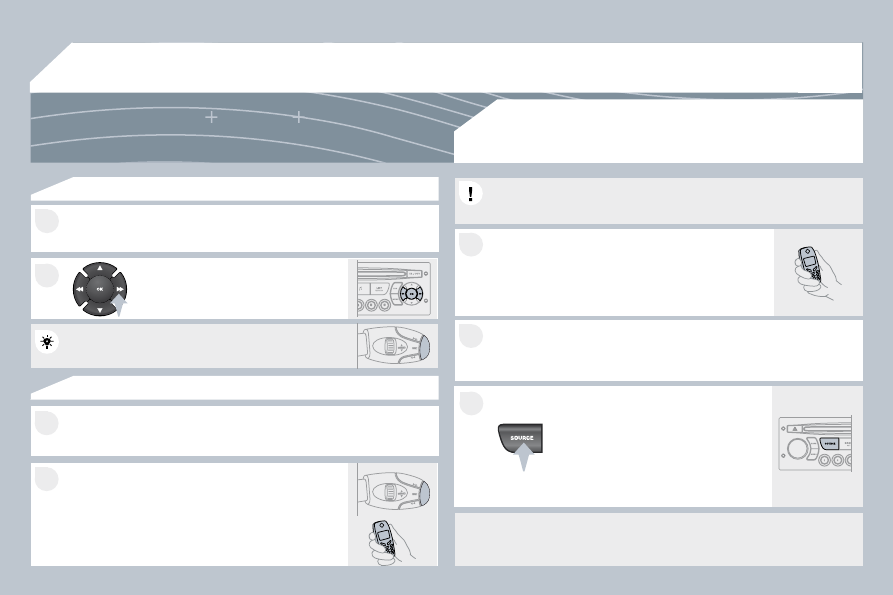

RECEIVING A CALL

An incoming call is announced by a ring and a superimposed display
on the multifunction screen.

Initiate the pairing between the telephone and

the vehicle. This pairing can be initiated from
the vehicle's telephone function menu or via the
telephone's keypad. See steps 1 to 10 on the

previous pages. During the pairing phase, the vehicle

must be stationary with the key in the ignition.

Select the telephone to be connected from the telephone function
menu.
The audio system connects to a newly paired telephone
automatically.

Select the YES tab on the display

using the buttons and conﬁ rm by

pressing OK.

Press the steering mounted control OK to accept
the call.

From the Bluetooth telephone function Audio menu, select Manage

the telephone call then Call, Call list or Directory.

Press the end of the steering mounted control for

more than two seconds to gain access to your
directory.
Or
To dial a number, use your telephone's keypad, with
the vehicle stationary.

MAKING A CALL

BLUETOOTH AUDIO STREAMING

(AVAILABLE DURING THE YEAR)

Wireless transmission of the telephone's music ﬁ les via the audio

equipment. The telephone must be able to manage the appropriate

bluetooth proﬁ les (Proﬁ les A2DP/AVRCP).

* In certain cases, playing of the Audio ﬁ les must be initiated from the

keypad.

** If the telephone supports the function.

Activate the streaming source by

pressing the SOURCE button * . The
tracks to be played can be controlled
as usual via the buttons on the Radio

control panel and the steering wheel

controls ** . The contextual information
can be displayed on the screen.

BLUETOOTH

Peugeot 308 SW BL Dag (2009.5). Manual - part 19
