Peugeot 308 SW BL Dag (2009.5). Manual

104

FITTINGS

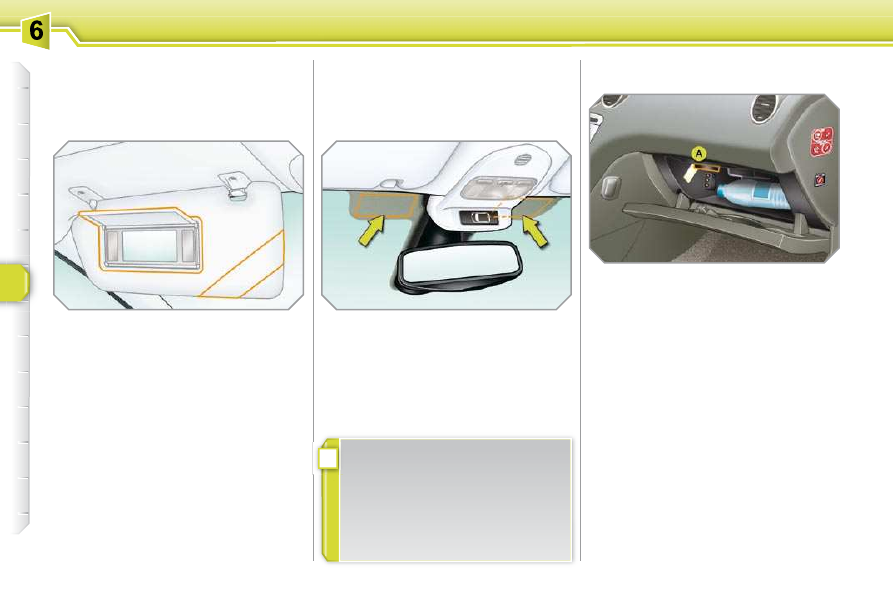

ILLUMINATED GLOVE BOX

This has areas for storing a bottle of water,
the vehicle's handbook pack...
Its lid has areas for storing a pen, a pair of
spectacles, tokens, cards, a can...

SUN VISOR

Component which protects against sunlight
from the front or the side, also equipped
with an illuminated courtesy mirror.

 With the ignition on, raise the

concealing ﬂ ap; the mirror is lit

automatically.

This sun visor is also equipped with a
ticket holder.

TOLL CARD/CAR PARK TICKET
WINDOWS

Facility for afﬁ xing toll cards and/or car

park tickets.

These windows are located on each
side of the base of the rear view mirror.
They are two non-reﬂ ective areas of the

athermic windscreen.

The athermic windscreen limits
heating of the passenger compart-
ment by reducing the effects of the
sun's rays (ultra-violet). It consists

of a reﬂ ective layer, which also

blocks certain radio-electric signals
(toll card payments, ...).



To open the glove box, raise the

handle.

The lamp comes on when the lid is
opened.

If your vehicle is ﬁ tted with air condition-

ing, the glove box has an air vent A ,

which can be opened or closed. This
distributes the same conditioned air as
the vents in the passenger compart-
ment.

105

FITTINGS

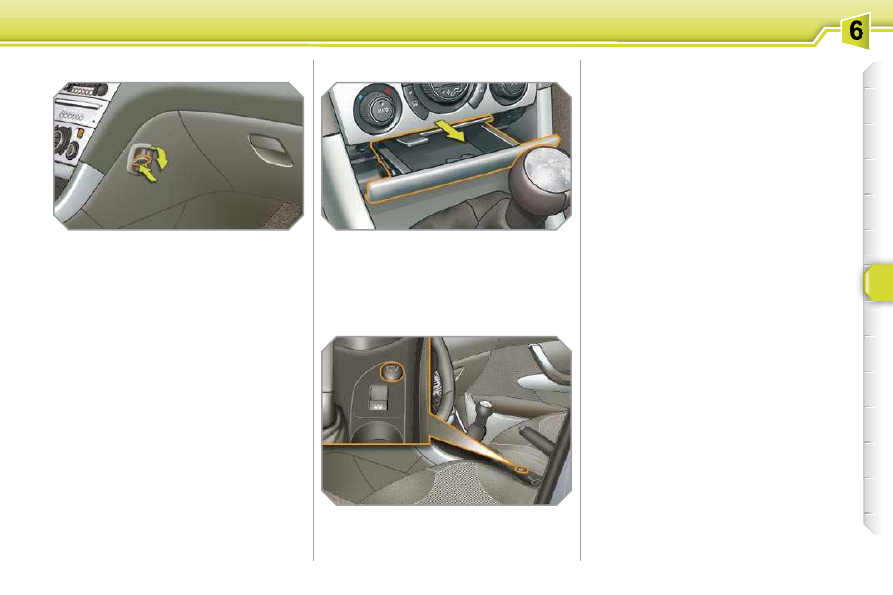

12 V ACCESSORIES SOCKET



To connect a 12 V accessory (max

power: 120 Watts), remove the cover
and connect a suitable adaptor.

ILLUMINATED ASHTRAY

 Pull the drawer for access to the

ashtray.

 To empty the ashtray, after opening,

press the tab and remove the
ashtray.

BAG HOOK

 Press the lower part of the hook to

unfold it.

 Hang the strap of your bag on the

hook to secure it.

USB PLUG - READER

This connection box, consisting of a USB

port, is located in the front armrest.
It permits the connection of portable
equipment, such as an iPod

digital au-

dio player of generation 5 or later or a

USB stick.

It reads the audio ﬁ le formats (mp3,

ogg, wma, wav...) which are transmitted
to your audio equipment and played via
the vehicle's speakers.
You can manage these ﬁ les using the

steering  wheel  controls  or  the  audio
equipment  control  panel  and  display
them on the multifunction screen.

When it is in use, the portable equipment
charges automatically.

For more information on the use of this
equipment, refer to the "PC Com 3D" or

"PC Sound" part of the "Audio and Tele-

matics" section.

106

FITTINGS

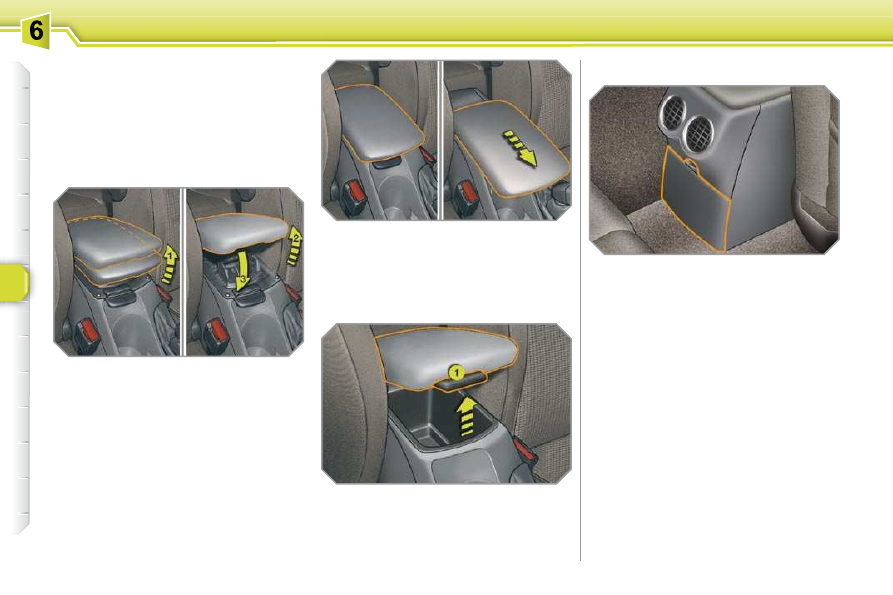

FRONT ARMREST

Comfort and storage device for the driver
and front passenger.

The height and length of the armrest
cover can be adjusted for greater com-
fort.

Height adjustment

 Raise the cover to the required

position (low, intermediate or high).

 If you raise the cover slightly beyond

the high position, guide it when
lowering it to the low position.

STORAGE BOX

Storage area, built into the rear of the

front armrest, for the rear passengers.


To empty the box, after opening,

press the tab and remove it.

Storage

The armrest's compartment can hold up
to 6 CDs.
 Raise the lever 1 .
 Raise the cover fully.

Longitudinal adjustment



Slide the cover fully forwards or

rearwards.

105

FITTINGS

12 V ACCESSORIES SOCKET



To connect a 12 V accessory (max

power: 120 Watts), remove the cover
and connect a suitable adaptor.

ILLUMINATED ASHTRAY

 Pull the drawer for access to the

ashtray.

 To empty the ashtray, after opening,

press the tab and remove the
ashtray.

BAG HOOK

 Press the lower part of the hook to

unfold it.

 Hang the strap of your bag on the

hook to secure it.

USB PLUG - READER

This connection box, consisting of a USB

port, is located in the front armrest.
It permits the connection of portable
equipment, such as an iPod

digital au-

dio player of generation 5 or later or a

USB stick.

It reads the audio ﬁ le formats (mp3,

ogg, wma, wav...) which are transmitted
to your audio equipment and played via
the vehicle's speakers.
You can manage these ﬁ les using the

steering  wheel  controls  or  the  audio
equipment  control  panel  and  display
them on the multifunction screen.

When it is in use, the portable equipment
charges automatically.

For more information on the use of this
equipment, refer to the "PC Com 3D" or

"PC Sound" part of the "Audio and Tele-

matics" section.

107

FITTINGS

To avoid any risk of jamming of the
pedals:
-

only use mats which are suited

to the ﬁ xings already present

in the vehicle; their use is

essential,

- never ﬁ t one mat on top of

another.

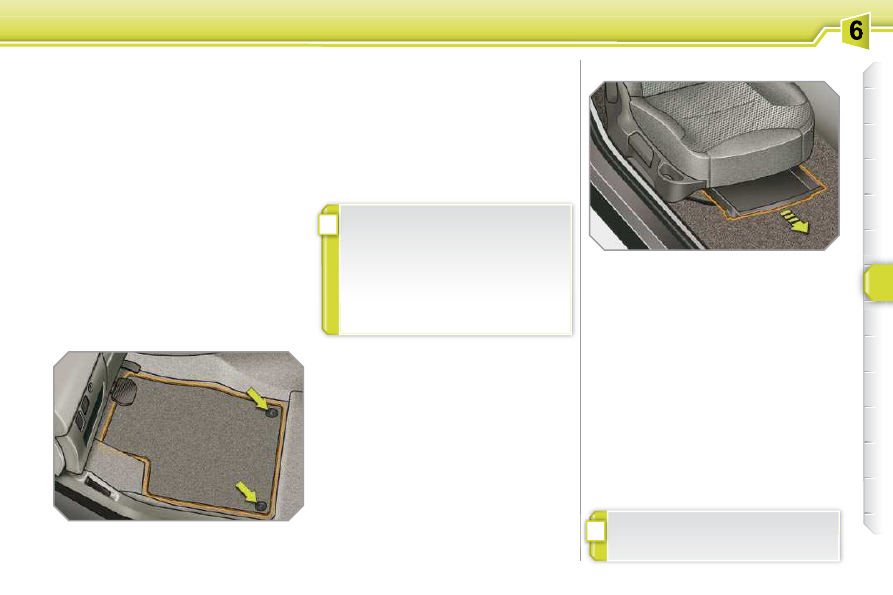

MATS

Removable carpet protection compo-
nent.

Refitting

To reﬁ t the mat on the driver's side:
 position the mat correctly,


reﬁ t the ﬁ xings by pressing,

 check that the mat is secured

correctly.

Fitting

When ﬁ tting the mat for the ﬁ rst time,

on the driver's side, use only the ﬁ xings

provided in the wallet attached.
The other mats are simply placed on
the carpet.

Removal

To remove the mat on the driver's side:
 move the seat as far back as

possible,



unclip the ﬁ xings,

 remove the mat.

STORAGE DRAWER

Opening

 Raise the front of the drawer and pull it.

Do not place heavy objects in the
drawer.

Removal



Bring the drawer to the end of its

travel.

 Press the ends of the slides.
 Raise the drawer and pull it fully.

Refitting

 Engage the drawer in its slides.


At the end of its travel, press on the

top of the drawer to secure it.

The storage drawer is located under the
front passenger's seat.

108

FITTINGS

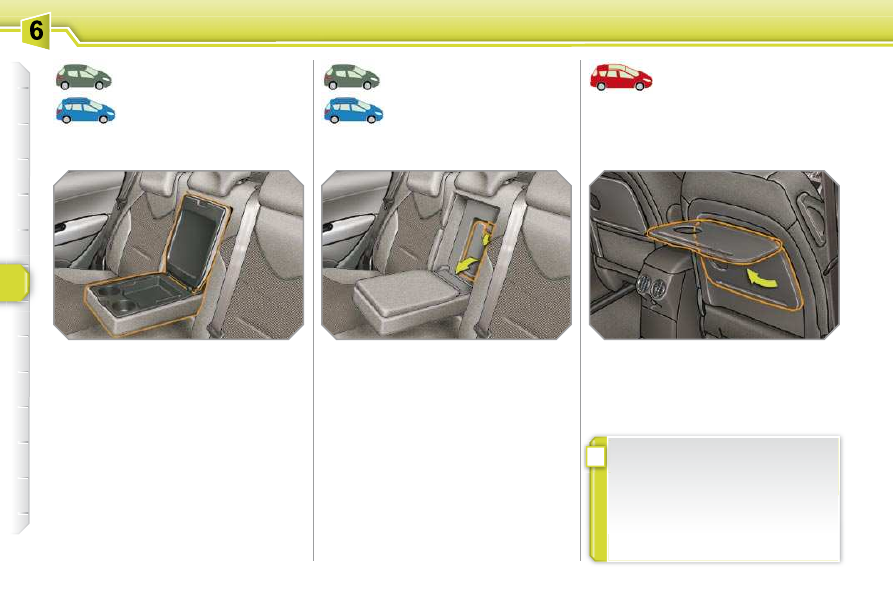

REAR ARMREST

SKI FLAP

Opening

 Lower the rear armrest.


Pull the ﬂ ap handle downwards.



Lower the ﬂ ap.

 Load the objects from inside the

boot.

 Lower the rear armrest for a more

comfortable position.

 Raise the cover to gain access to its

storage compartment.

This has a storage tray, two cup holders
and two pen holders.

"AIRCRAFT" TYPE
TABLES

 To use the table, raise it fully until it

locks in the high position.

 To store the table, lower it, passing

the point of resistance, to the low
position.

On the passenger side, do not for-
get  to  fold  the  "aircraft"  type  table
before placing the seat in the table
position.
Do not place hard or heavy objects
on  the  table.  They  could  become
dangerous  projectiles  in  the  event
of emergency braking or impact.

Comfort and storage device for the rear
passengers.

Device for storing and transporting long
objects.

Installed on the back of each front seat,
these allow you to set down objects and
each is equipped with a cup holder.

109

FITTINGS

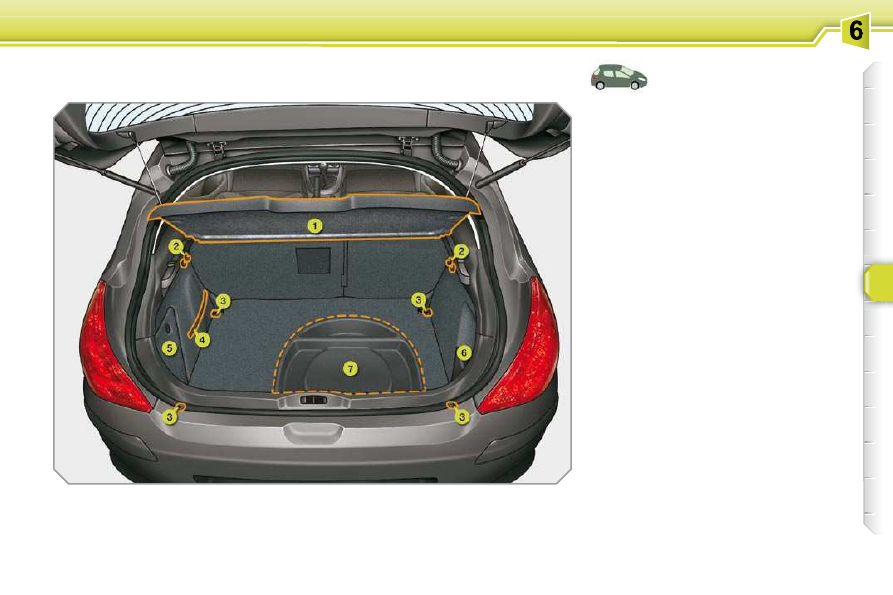

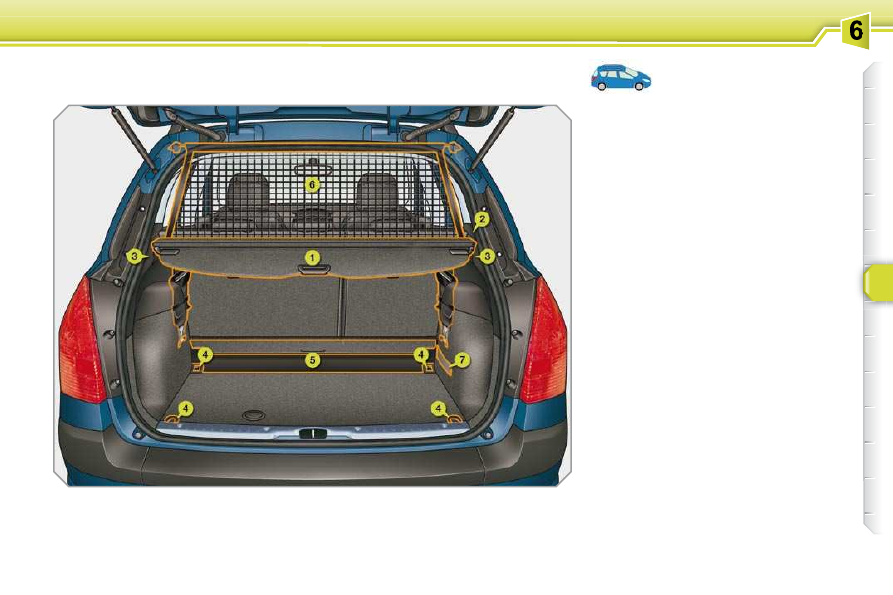

BOOT LAYOUT

1. Rear parcel shelf

(see details on following page)

2. Hooks

(see details on following page)

3. Stowing rings

4. Luggage retaining strap

5. Enclosed storage tray

6. Open storage tray

7. Storage box

(see details on following page)

110

FITTINGS

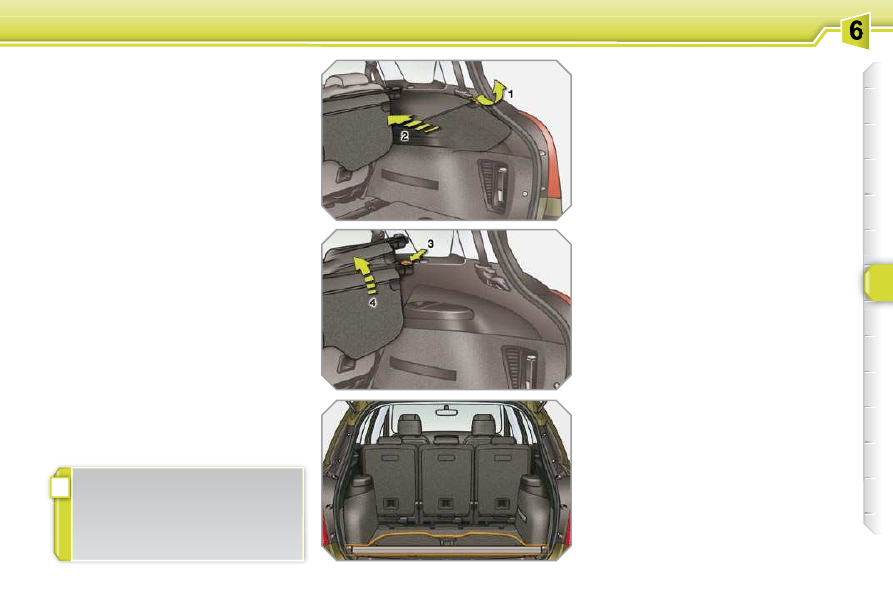

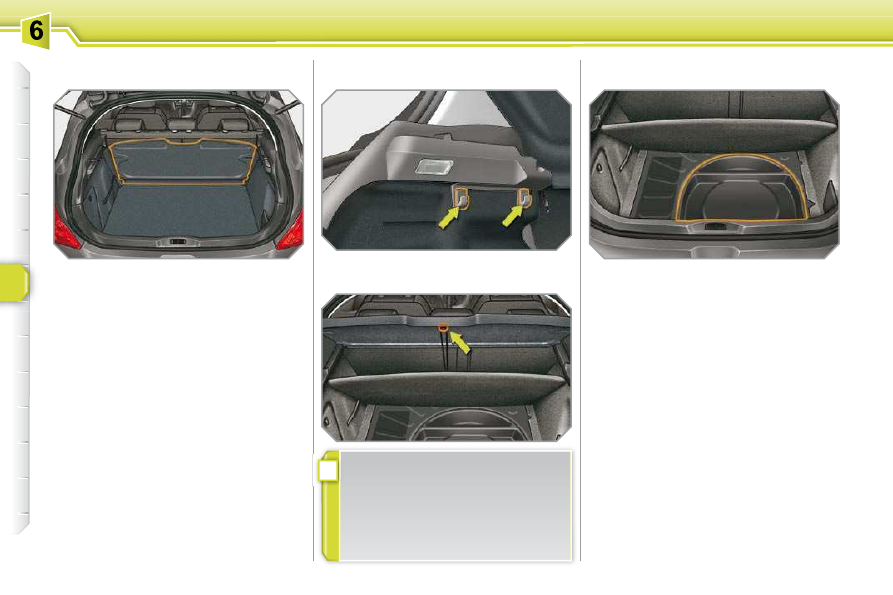

To remove the shelf:
 unhook the two cords,
 raise the shelf slightly, then remove it.

Rear parcel shelf

When changing a wheel
An additional hook, under the shelf,

permits  easy  access  to  the  spare
wheel  by  retaining  the  boot  carpet
by means of its cord.

The hooks permit the securing of shop-
ping bags.

Hooks

There are several options for storing the
shelf:
-

either upright behind the front
seats,

- or ﬂ at at the base of the boot.

 Raise the boot carpet to gain access

to the storage box.

This has areas for storing a box of spare

bulbs, a ﬁ rst aid kit, a temporary tyre re-

pair kit, two warning triangles...

Storage box

111

FITTINGS

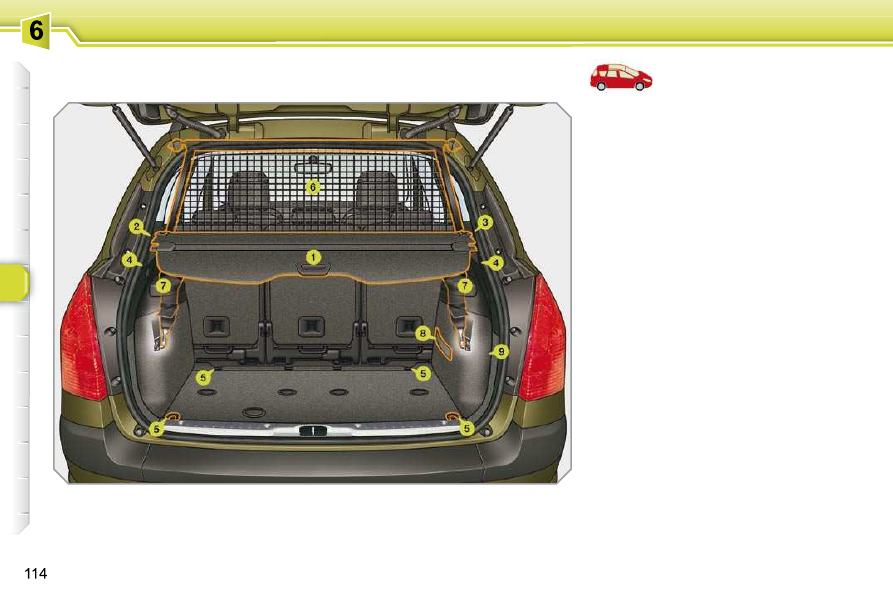

BOOT FITTINGS

1. Rear parcel shelf

(see details on following page)

2. 12 V accessories socket

(see details on following page)

3. Hooks

(see details on following page)

4. Stowing rings

5. Storage tray

6. High load retaining net

(see details on following page)

7. Luggage retaining strap

112

FITTINGS

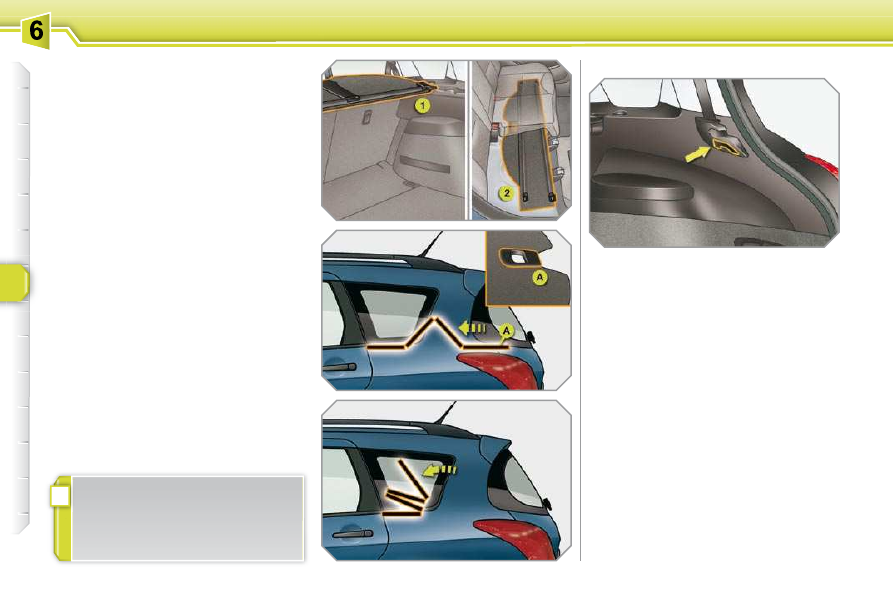

Rear parcel shelf

This consists of four sections three of
which can be folded back on each other.

There are several options for storing the
load space cover:
-

either folded back on itself near the
rear seats (1),

or folded back on itself and stored
in a location provided under the rear
seats (2).

To fold it from the boot:
 unclip the load space cover from its

side supports,

 take hold of the load space cover by

its handle A ,

 fold it concertina-style to the rear

seats.

To unfold it from the boot:
 take hold of the load space cover by

its handle A ,

 unfold it to the boot pillars,
 clip the load space cover on its side

supports.

Hooks

  Maximum loads
7.5  kg,  rear  parcel  shelf  unfold-
ed  with  high  load  retaining  net  at
row 2.

The hooks can be used to hold shop-
ping bags.

113

FITTINGS

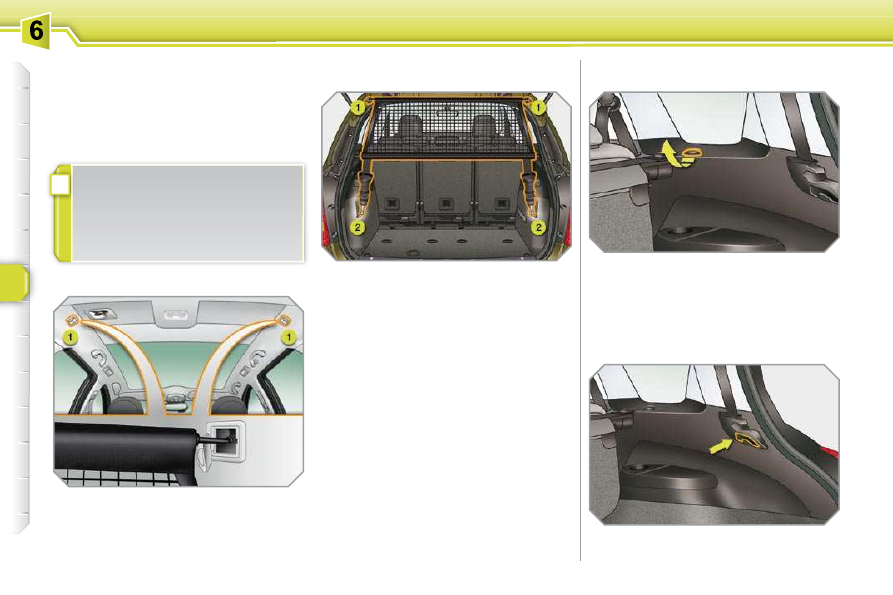

High load retaining net

Hooked onto the special upper and low-

er ﬁ xings, this permits use of the entire

loading volume up to the roof:
-

behind the rear seats (row 2),

behind the front seats (row 1) when
the rear seats are folded.

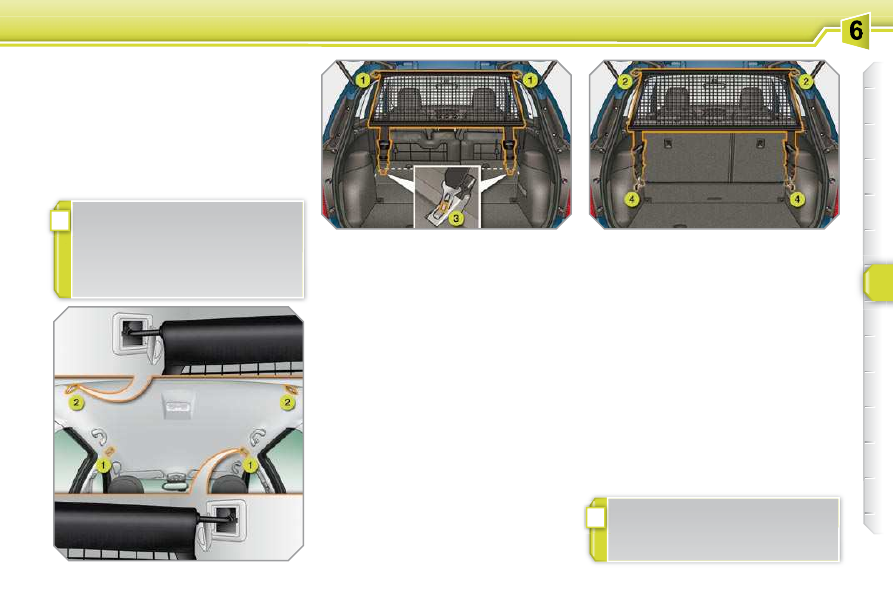

To use it in row 1:


open the covers of the upper ﬁ xings 1 ,

 unroll the high load retaining net,
 position one of the ends of the net's

metal bar in the corresponding upper

ﬁ xing 1 , then do the same with the

other end,

 slacken the straps fully,


ﬁ x the snap hook of each of the

straps on the corresponding bar 3 ,
located under the cushion of the
rear seats,

     fold the rear seats,
     tighten the straps,
     check  that  the  net  is  hooked  and

tightened correctly.

To use it in row 2:
 fold or remove the load space cover,


open the covers of the upper ﬁ xings 2 ,

 unroll the high load retaining net,
 position one of the ends of the net's

metal bar in the corresponding upper

ﬁ xing 2 , then do the same with the

other end,



ﬁ x the snap hook of each of the

straps in the corresponding ring 4 ,
located on the rear seats mechanism
support,

 tighten the straps,
 check that the net is hooked and

tightened correctly.

When positioning the net, check
that the strap loops are visible from

the boot; this will make slackening

or tightening easier.

This net can be stored in the storage

tray on the ﬂ oor.

FITTINGS

BOOT FITTINGS

1. Load space screen

(see details on following page)

2. Storage box
3. 12 V accessories socket

(see details on following page)

4. Hooks

(see details on following page)

5. Stowing rings
6. High load retaining net

(see details on following page)

  7.    Rear armrests with can holder
  8.    Luggage retaining strap
  9.    Location  for  torch  or  for  Hi-Fi

ampliﬁ er

(see details on following page)

115

FITTINGS

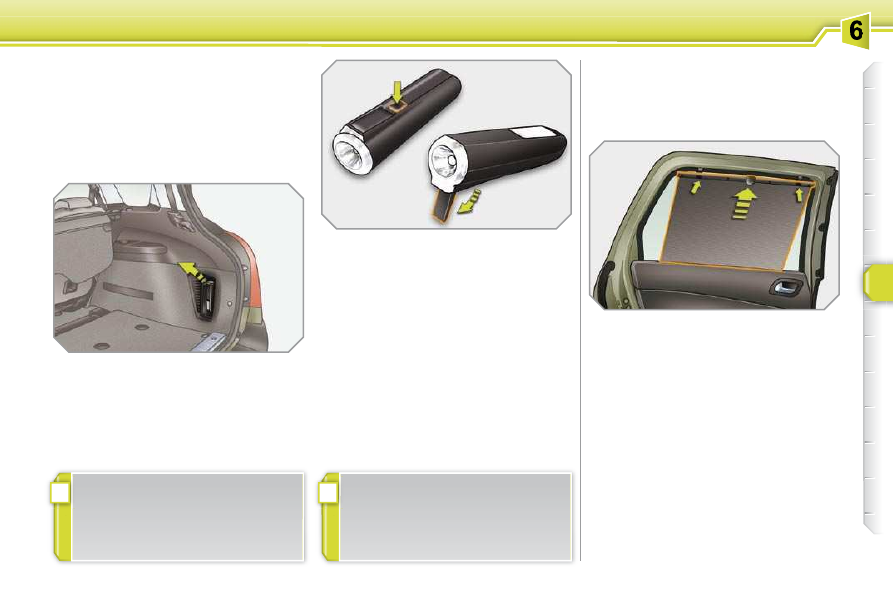

Load space screen

To install the load space screen:
 position one of the ends of the roller

in its support,



insert the second end in its support;

the catch locks automatically,

 unroll the load space screen to the

boot pillars,

 insert the load space screen guides

in the rails on the boot pillars.

To store the load space screen, place it

at the boot sill, roller uppermost and ﬂ ap

facing inwards.

To remove the load space screen:
 remove the load space screen

guides from the rails on the boot
pillars,

 roll up the load space screen in its

roller,

 pull and support the catch at one of

the ends of the roller to release it,

 remove the roller from its support

from the released end, then from the
second.

You can access the boot by open-
ing the rear screen and raising the

load space screen ﬂ ap.

116

FITTINGS

High load retaining net

Hooked onto the special upper and lower

ﬁ xings, this permits use of the entire load-

ing volume up to the roof behind the seats
of the 2nd row.

12 V accessories socket

 In order to connect a 12 V accessory

(max power: 120 Watts), remove

the cap and connect the appropriate
adaptor.

 Turn the key to the ignition position.

To use the net in the 2nd row (additional
seats folded or removed):
 roll up or remove the load space

screen,



open the covers of the upper ﬁ xings 1 ,

 unroll the high load retaining net,
 position one of the ends of the net's

metal bar in the corresponding upper

ﬁ xing 1 , then do the same with the

other end,

 attach the snap hook of each of the

net's straps in the corresponding
ring 2

, located on the lower ﬁ xing of

the rear side seat belt,

 tighten the straps,
 check that the net is hooked and

tightened correctly.

Hooks

The hooks permit the securing of shop-
ping bags.

When positioning the net, check
that the strap loops are visible from

the boot; this will make slackening

or tightening easier.

117

FITTINGS

Torch

This  is  a  removable  light,  incorporated
in  the  boot  wall,  which  can  be  used  to
light the boot or as a torch.
For  the  boot  lighting  function,  refer  to

the "Visibility - § Boot lighting" section.

Operation
This torch operates with NiMH type ac-
cumulators.
It has an operating autonomy of approxi-

mately 45 minutes and charges while
you are driving.

Use


Extract the torch from its location

pulling it upwards.

 Press the switch, located on the

back, to switch the torch on or off.



Unfold the support, located on the

back, to set down and raise the

torch; for example, when changing

a wheel.

Storing
 Put the torch back in place in its

location starting with the lower part.

If  you  have  forgotten  to  switch
off  the  torch,  this  switches  it  off
automatically.

Side blinds

Fitted on the rear windows of the 2nd
row, these protect your young children
from the sun.

 Pull the blind by the central tab.
 Position the blind attachments on

the corresponding hooks.

Observe the polarities when ﬁ tting

the accumulators.
Never replace the accumulators
with batteries.

It the torch is not engaged correctly,
it may not charge and may not come
on when the boot is opened.

118

CHILD SAFETY

  PEUGEOT recommends  that chil-
dren should travel in the  rear seats
of your vehicle:
   -

"rearwards-facing" up to the
age of 2,

"forwards-facing" over the
age of 2.

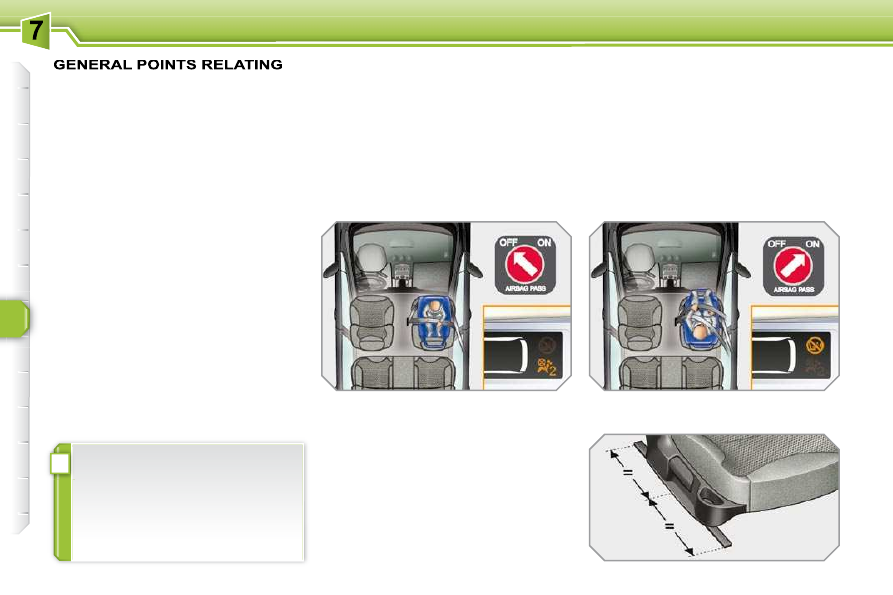

TO CHILD SEATS

CHILD SEAT IN THE FRONT

  "Forwards-facing"
When  a  "forwards-facing"  child  seat  is
installed on the  front passenger seat ,
adjust the vehicle's seat to the interme-
diate longitudinal position with the seat
back  upright  and  leave  the  passenger
airbag activated.

  "Rearwards-facing"
When a "rearwards-facing" child seat is
installed  on  the   front  passenger  seat ,
it is essential that the passenger airbag
is  deactivated.  Otherwise,  the  child
would risk being seriously injured or

killed if the airbag were to inﬂ ate.

* The rules for carrying children are

speciﬁ c to each country. Refer to the

current legislation in your country.

Although  one  of  PEUGEOT's  main  cri-
teria  when  designing  your  vehicle,  the
safety of your children also depends on
you.
For  maximum  safety,  please  observe
the following recommendations:
   -

accordance

with

European

regulations,  all children under the
age  of  12  or  less  than  one  and
a  half  metres  tall  must  travel  in
approved  child  seats  suited  to
their  weight

, on seats ﬁ tted with a

seat belt or ISOFIX mountings * ,

statistically, the safest seats in
your vehicle for carrying children
are the rear seats,

a  child  weighing  less  than  9  kg
must  travel  in  the  "rearwards-
facing" position both in the front
and in the rear.

Intermediate longitudinal

position

Peugeot 308 SW BL Dag (2009.5). Manual - part 7
