ACCESS

Lost keys

Visit a PEUGEOT dealer with the vehicle's V5 registration document and your

personal identiﬁ cation documents.
The PEUGEOT dealer will be able to retrieve the key code and the transponder
code required to order a replacement key.

Do not throw the remote control bat-
teries away, they contain metals which
are harmful to the environment.
Take them to an approved collection
point.

Remote control

The  high  frequency  remote  control  is  a  sensitive  system;  do  not  operate  it
while it is in your pocket as there is a possibility that it may unlock the vehicle,
without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and
out of sight of your vehicle. You run the risk of stopping it from working and the
remote control would have to be reinitialised.
The  remote  control  does  not  operate  when  the  key  is  in  the  ignition,  even
when the ignition is switched off, except for reinitialisation.

Locking the vehicle

Driving with the doors locked may make access to the passenger compart-

ment by the emergency services more difﬁ cult in an emergency.
As a safety precaution (with children on board), remove the key from the igni-
tion when you leave the vehicle, even for a short time.

Anti-theft protection

Do not make any modiﬁ cations to the electronic engine immobiliser system;

this could cause malfunctions.

When purchasing a second-hand vehicle

Have the key codes memorised by a PEUGEOT dealer, to ensure that the
keys in your possession are the only ones which can start the vehicle.

ACCESS

Deadlocking  renders  the  exterior
and  interior  door  controls  inopera-
tive.
It also deactivates the manual cen-
tral control button.
Therefore,  never  leave  anyone  in-
side  the  vehicle  when  it  is  dead-
locked.

Deadlocking using the remote
control

Deadlocking using the key

The  folding  and  unfolding  of  the
door  mirrors  using  the  remote
control  can  be  deactivated  by  a
PEUGEOT dealer.

 Press the closed padlock

to  lock  the  vehicle  com-
pletely or press the closed
padlock for more than two
seconds  to  close  the  win-
dows  automatically  in  ad-
dition to locking (according
to version).

 Press the closed padlock again

within ﬁ ve seconds to deadlock the

vehicle.

Deadlocking is conﬁ rmed by ﬁ xed light-

ing of the direction indicators for ap-
proximately two seconds.
According to version, the door mirrors
fold at the same time.

 Turn the key to the right in the

driver's door lock to lock the vehicle
completely  and  hold  it  in  this
position for more than two seconds
to  close  the  windows  automatically
in  addition  to  locking  (according  to
version).

 Turn the key to the right again

within ﬁ ve seconds to deadlock the

vehicle.

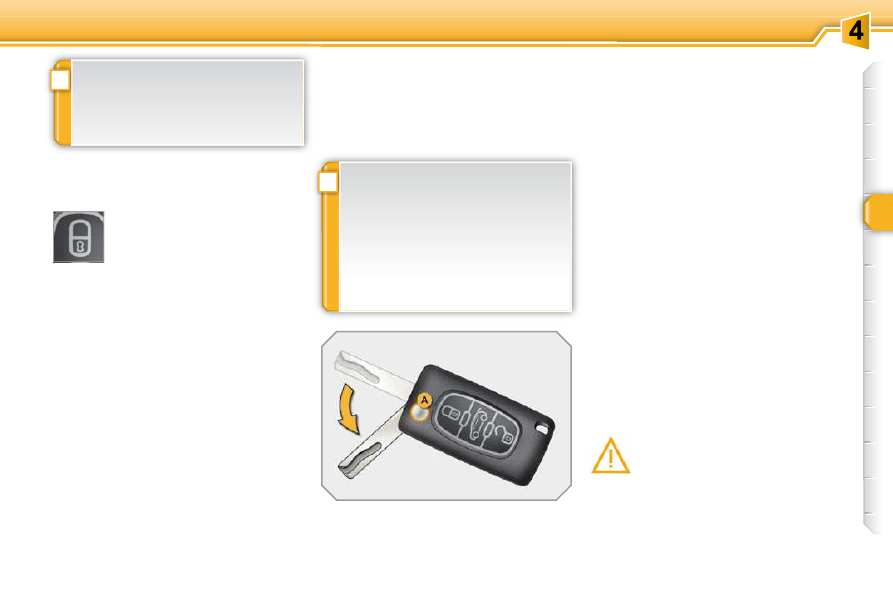

Folding the key
 First press button A to fold the key.

Locating your vehicle

This function allows you to identify your
vehicle from a distance, particularly in
poor light. Your vehicle must be locked.
 Press the closed padlock on the

remote control.

This will switch on the courtesy lamps

and the direction indicators will ﬂ ash for

a few seconds.

  Electronic engine immobiliser
The  key  contains  an  electronic  chip
which  has  a  special  code.  When  the
ignition  is  switched  on,  this  code  must
be recognised in order for starting to be
possible.
This electronic engine immobiliser locks
the  engine  management  system  a  few
minutes after the ignition is switched off
and  prevents  starting  of  the  engine  by
anyone who does not have the key.

Anti-theft protection

In  the  event  of  a  malfunction,
you  are  informed  by  lighting  of
this  warning  lamp,  an  audible
signal  and  a  message  on  the
multifunction screen.

In this case, your vehicle does not start;
contact a PEUGEOT dealer as soon as
possible.

ACCESS

Lost keys

Visit a PEUGEOT dealer with the vehicle's V5 registration document and your

personal identiﬁ cation documents.
The PEUGEOT dealer will be able to retrieve the key code and the transponder
code required to order a replacement key.

Do not throw the remote control bat-
teries away, they contain metals which
are harmful to the environment.
Take them to an approved collection
point.

Remote control

Locking the vehicle

Driving with the doors locked may make access to the passenger compart-

ment by the emergency services more difﬁ cult in an emergency.
As a safety precaution (with children on board), remove the key from the igni-
tion when you leave the vehicle, even for a short time.

Anti-theft protection

Do not make any modiﬁ cations to the electronic engine immobiliser system;

this could cause malfunctions.

When purchasing a second-hand vehicle

Have the key codes memorised by a PEUGEOT dealer, to ensure that the
keys in your possession are the only ones which can start the vehicle.

ACCESS

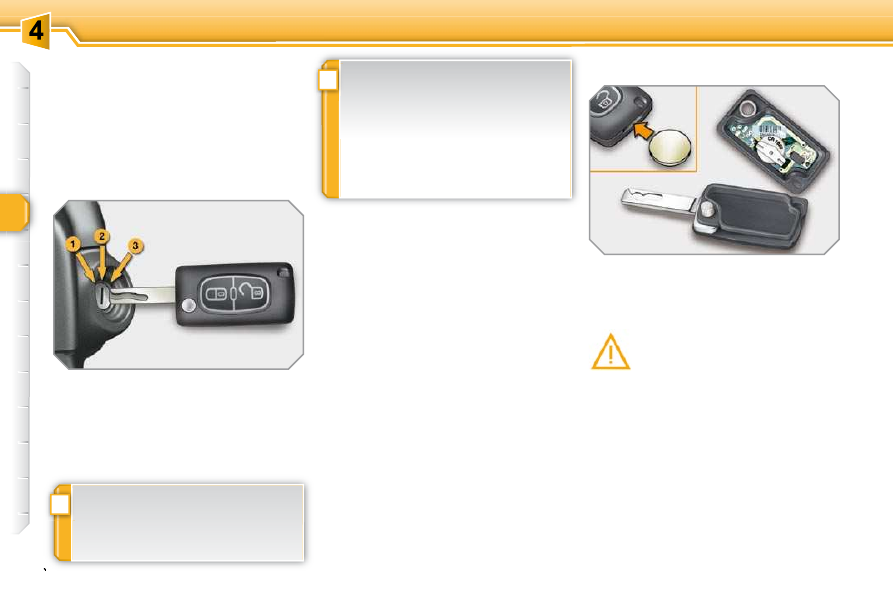

Starting the vehicle

 Insert the key in the ignition switch.

The system recognises the starting
code.

 Turn the key fully towards the

dashboard to position 3 (Starting) .

 When the engine starts, release the

key.

Switching the vehicle off

 Immobilise the vehicle.
 Turn the key fully towards you to

position 1 (Stop) .

 Remove the key from the ignition

switch.

Remote control problem

Following  disconnection  of  the  vehicle
battery, replacement of the remote con-
trol  battery  or  in  the  event  of  a  remote
control  malfunction,  you  can  no  longer
unlock, lock or locate your vehicle.
      First of all, use the key in the lock to

unlock or lock your vehicle.

 Then, reinitialise the remote control.
If the problem persists, contact a
PEUGEOT dealer as soon as possible.

Changing the battery

Battery ref.: CR1620/3 volts.

  Reinitialisation
      Switch off the ignition.
     Turn the key to position  2 (Ignition) .
     Press  the  closed  padlock  immedi-

ately for a few seconds.

 Switch off the ignition and remove

the key from the ignition switch.

The remote control is fully operational
again.

If the battery is ﬂ at, you are in-

formed by lighting of this warn-
ing lamp, an audible signal and
a message on the multifunction
screen.

This replacement battery is available
from PEUGEOT dealers.

Key left in the "Ignition"
position

If the key has been left in the ignition
switch, the ignition will be switched
off automatically after one hour.
To switch the ignition back on, turn
the key to position 1 (Stop) , then
back to position 2 (Ignition) .

 Unclip the casing using a coin at the

notch.



Slide the ﬂ at battery out of its

location.

 Slide the new battery into its location

observing the original direction.

 Clip the casing.
 Reinitialise the remote control.

  A heavy object (key fob...), attached
to  the  key  and  weighing  down  on
its shaft in the ignition switch, could
cause a malfunction.

ACCESS

ALARM

System which protects and provides a
deterrent against the theft of your vehi-
cle. It provides two types of protection,
exterior and interior, as well as a self-
protection function.

Locking the vehicle with full
alarm

Do not make any modiﬁ cations to

the alarm system, this could cause
malfunctions.

Activation
 Switch off the ignition and get out of

the vehicle.

 Lock or deadlock the vehicle using

the locking button on the remote
control.

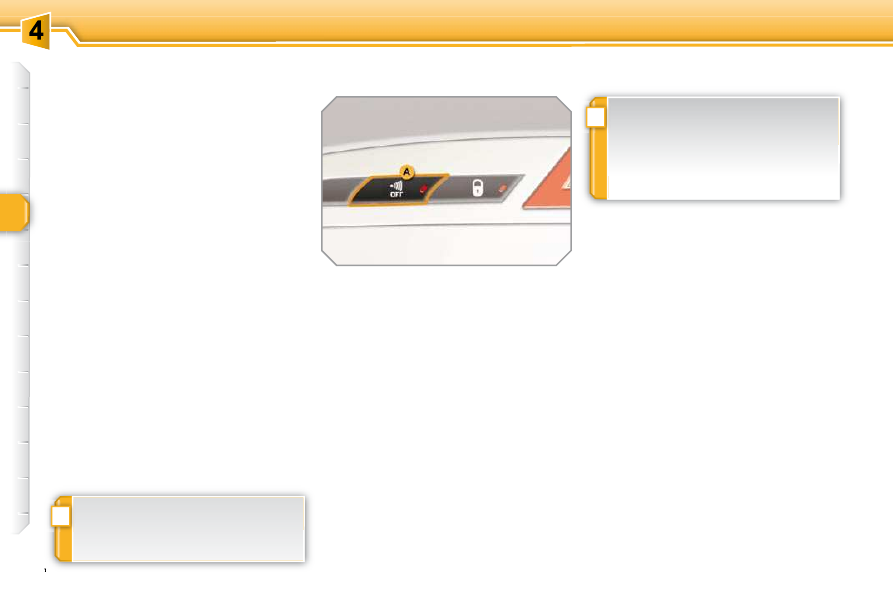

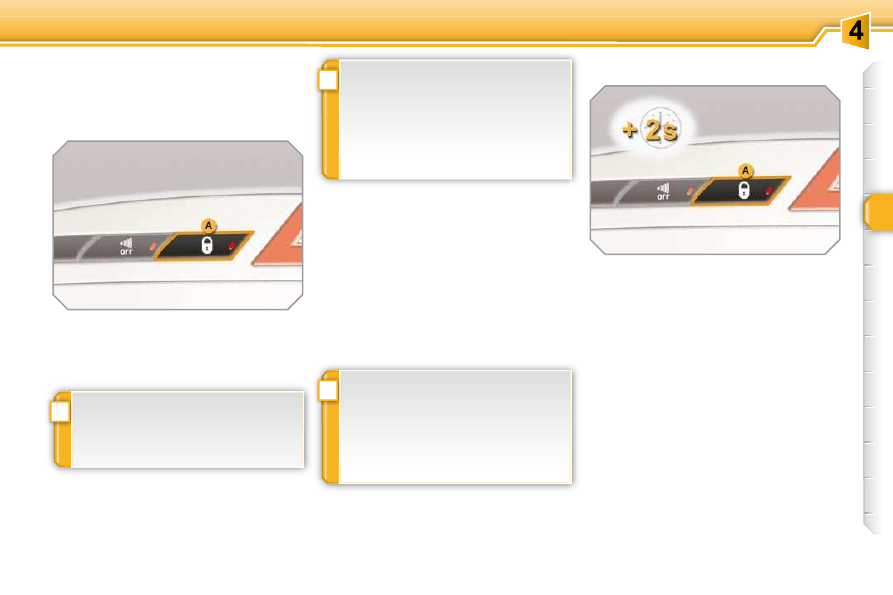

The alarm is activated; the indicator lamp
on button A

ﬂ ashes once per second.

The exterior perimeter protection is acti-
vated, 5 seconds after the locking button
on the remote control is pressed.
The interior volumetric protection is acti-
vated, 45 seconds after the locking but-
ton on the remote control is pressed.

Exterior perimeter protection

The system detects opening of the ve-
hicle.
The alarm is triggered if anyone tries to
enter the vehicle by forcing a door, the
boot or the bonnet.

Interior volumetric protection

The system detects any variation in the
volume in the passenger compartment.
The alarm is triggered if anyone breaks
a window or moves inside the vehicle.
If you wish to leave a pet in the vehicle
or a window partially open, deactivate
the interior volumetric protection.

Self-protection function

The system detects the putting out of
service of its components.
The alarm is triggered if anyone tries
to put the wires of the siren, the central
control or the battery out of service.

Deactivation
 Unlock

the

vehicle

using

the

unlocking button on the remote
control.

The alarm is deactivated; the indicator
lamp on button A switches off.

If  an  opening - door  or  boot - is
not  closed  fully,  the  vehicle  is  not
locked,  but  the  exterior  perimeter
protection  will  be  activated  after
45  seconds  at  the  same  time  as
the interior volumetric protection.

ACCESS

Triggering of the alarm

If the alarm is triggered ten times in
succession, the eleventh time will
result in it becoming inactive.
If the indicator lamp on button A

ﬂ ashes rapidly, this indicates that

the alarm was triggered during
your absence. When the ignition is

switched on, this ﬂ ashing stops im-

mediately.
To avoid triggering the alarm when
washing your vehicle, lock it using
the key in the driver's door lock.

 Unlock the vehicle using the key in

the driver's door lock.

 Open the door; the alarm is

triggered.

 Switch on the ignition; the alarm

stops.

Malfunction

 Lock or deadlock the vehicle using

the key in the driver's door lock.

Automatic activation *

This is indicated by sounding of the si-

ren and ﬂ ashing of the direction indica-

tors for approximately thirty seconds.
After it has been triggered, both types of
protection are again operational.

Failure of the remote control

Locking the vehicle without
activating the alarm

  When the ignition is switched on, light-
ing of the indicator lamp on button  A  for
ten seconds indicates a siren fault.
Have it checked by a PEUGEOT dealer.

* According to country.

  2 minutes after the last door or the boot
is  closed,  the  alarm  is  activated  auto-
matically.
      To  avoid  triggering  the  alarm  on

entering the vehicle, ﬁ rst press the

unlocking button on the remote
control.

To  be  effective,  this  deactivation
must  be  carried  out  each  time  the
ignition is switched off.

Reactivation of the interior
volumetric protection
 Unlock

the

vehicle

using

the

unlocking button on the remote
control.

 Relock the vehicle using the remote

control.

The  alarm  is  activated  again  with  both
types  of  protection;  the  indicator  lamp
on button  A

ﬂ ashes once per second.

Locking the vehicle with exterior
perimeter protection only

  Deactivation of the interior
volumetric protection
      Switch off the ignition.
     Within  ten  seconds,  press  button  A

until the indicator lamp is lit
continuously.

 Get out of the vehicle.
 Lock or deadlock the vehicle without

delay using the locking button on
the remote control.

The exterior perimeter protection alone
remains activated; the indicator lamp on
button A

ﬂ ashes once per second.

ACCESS

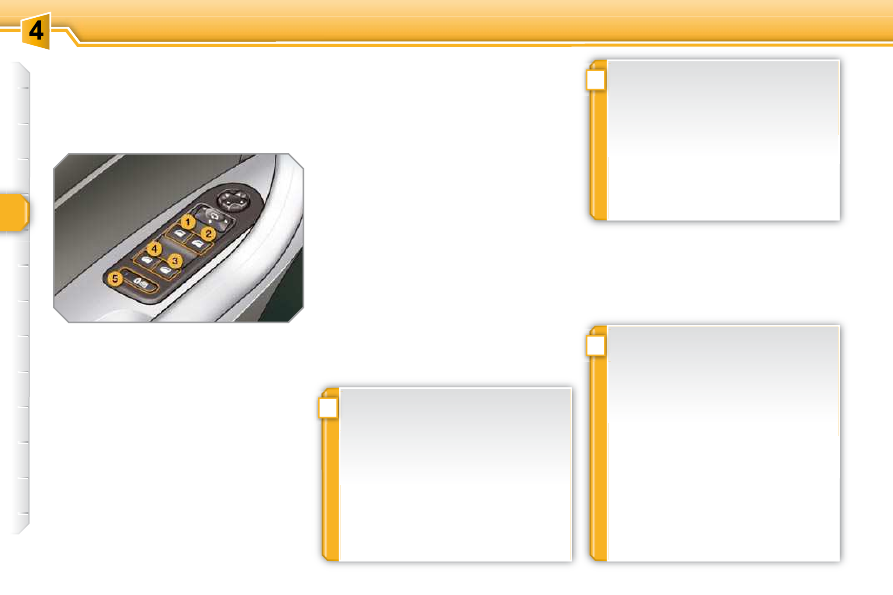

The  electric  window  controls  re-
main  operational  for  approximately
45  seconds  after  the  ignition  is
switched  off  or  until  the  vehicle  is
locked after a door is opened.
If  one  of  the  passenger  windows
cannot  be  operated  from  the  driv-
er's  door  control  panel,  carry  out
the operation from the control panel
of  the  passenger  door  concerned,
and vice versa.

ELECTRIC WINDOWS

Fitted with a safety anti-pinch system
and a deactivation system to prevent
misuse of the rear controls.

1. Driver's electric window control.
2. Passenger's electric window

control.

3. Rear right electric window

control.

4. Rear left electric window control.
5. Deactivation of the rear electric

window and door controls.

If the window cannot be closed (for
example, in the presence of ice),
immediately after the movement is
reversed:
 press and hold the control until

the window opens fully,

 then pull the control immediately

and hold it until the window
closes,

 continue to hold the control for

approximately one second after
the window has closed.

The safety anti - pinch function is
not operational during these op-
erations.

  Safety anti-pinch
When  the  window  rises  and  meets  an
obstacle,  it  stops  and  partially  lowers
again.

automatic mode



Press or pull the control ﬁ rmly.

The window opens or closes fully
when the control is released.

 Pressing the control again stops

the movement of the window.

One-touch electric windows

There are two options:
-

manual mode

 Press or pull the control gently.

The window stops when the
control is released.

After approximately ten consecutive
complete  opening/closing  move-
ments  of  the  window,  a  protection
function is activated which only au-
thorises  closing  of  the  window  to
prevent damage to the electric win-
dow motor.
Once the window is closed, the con-
trols  will  become  available  again
after approximately 40 minutes.

ACCESS

This control also deactivates the
interior controls for the rear doors
(refer to the section "Child safety -
§ Electric child lock").

Any other status of the indicator
light indicates a malfunction of the
electric child lock. Have it checked
by a PEUGEOT dealer.

Reinitialisation
If a window does not rise automatically,
its operation must be reinitialised:
 pull the control until the window

stops,

 release the control and pull it again

until the window closes fully,

 continue to hold the control for

approximately one second after the
window has closed,

 press the control to lower the window

automatically to the low position,

 when the window has reached the

low position, press the control again
for approximately one second.

Always  remove  the  key  from  the
ignition  when  leaving  the  vehicle,
even for a short time.
If an obstacle is encountered during
operation  of  the  electric  windows,
you must reverse the movement of
the  window.  To  do  this,  press  the
control concerned.
When the driver operates the con-
trols  for  the  passengers'  electric
windows, they must ensure that no
one is preventing correct closing of
the windows.
The  driver  must  ensure  that  the
passengers  use  the  electric  win-
dows correctly.
Be aware of children when operat-
ing the windows.

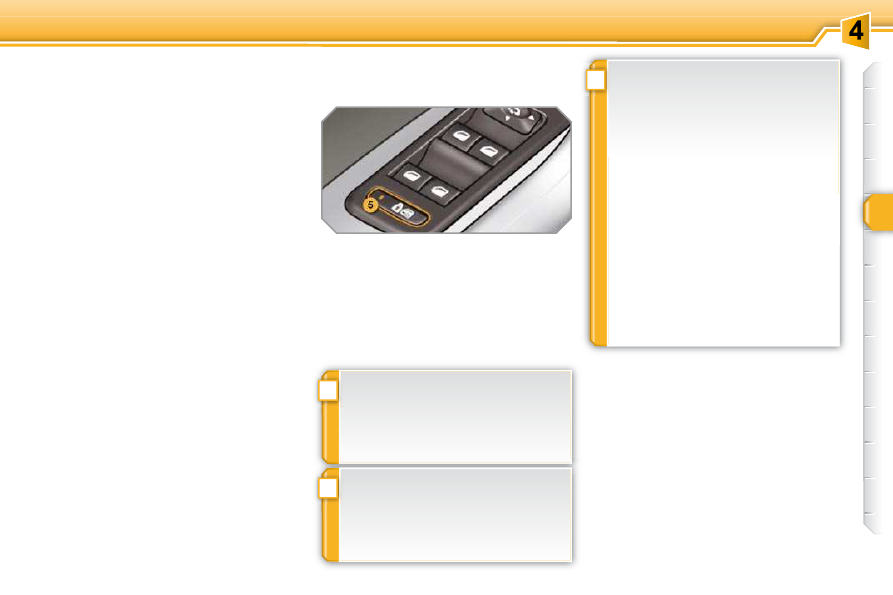

Deactivation of the rear electric
window and door controls

 For the safety of your children, press

control   5   to  deactivate  the  rear
electric  window  controls  regardless
of their position.

Indicator lamp on, the rear controls are
deactivated.
Indicator lamp off, the rear controls are
activated.

The safety anti - pinch function is not
operational during these operations.

ACCESS

DOORS

 After unlocking the vehicle com-

pletely using the remote control or
the key, pull the door handle.

From inside

 Pull on the front door control to open

the door; this unlocks the vehicle
completely.

 Pull on the rear door control to

open the door; this unlocks the door
concerned only.

Closing

When a door is not closed correctly:

  when the engine is running ,
this warning lamp comes on,
accompanied  by  a  message
on  the  multifunction  screen
for a few seconds,

when the vehicle is moving  (speed
higher  than  6  mph  (10  km/h)),  this
warning lamp comes on, accompanied
by an audible signal and a message
on the multifunction screen for a few
seconds.

Opening

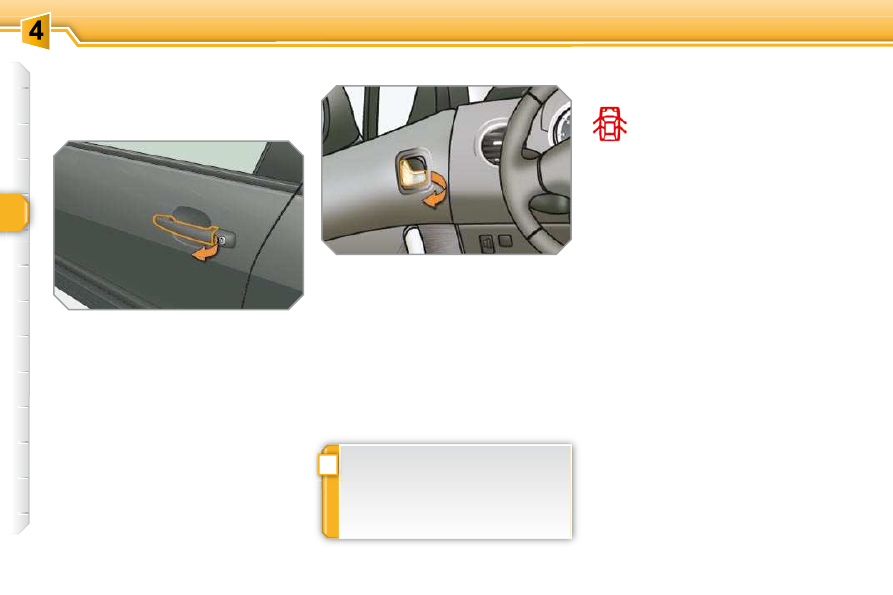

From outside

Version with deadlocking

The  interior  door  controls  do  not
operate  when  the  vehicle  is  dead-
locked.

ACCESS

If the vehicle is locked or dead-
locked from the outside, the red in-

dicator lamp ﬂ ashes and button A

is inactive.
 In this case, use the remote

control or the key to unlock the
vehicle.

If one of the doors is open, the auto-
matic central locking does not take
place.
If the boot or the rear screen is
open, the automatic central locking
of the doors is active.

Manual centralised control

System which provides full manual
locking or unlocking of the doors from
the inside.

  Locking
      Press button  A  to lock the vehicle.
The  red  indicator  lamp  on  the  button
comes on.

Automatic centralised control

System  which  provides  full  automatic
locking  or  unlocking  of  the  doors,  the
boot and the rear screen while driving.
You  can  activate  or  deactivate  this
function.

Activation

 Press button A for more than

two seconds.

A conﬁ rmation message appears on the

multifunction screen, accompanied by
an audible signal.

Unlocking
 Above 6 mph (10 km/h), press button A

to unlock the doors, the boot and the
rear screen temporarily.

If one of the doors is open, the cen-
tral locking from the inside does not
take place.

Unlocking
 Press button A again to unlock the

vehicle.

The red indicator lamp on the button
switches off.

  Locking
When  the  speed  exceeds  6 mph
(10  km/h),  the  doors,  the  boot  and  the
rear screen lock automatically.

Deactivation
 Press button A again for more than

two seconds.

A conﬁ rmation message appears on the

multifunction screen, accompanied by
an audible signal.

ACCESS

Emergency control

System which locks or unlocks the
doors mechanically in the event of a
malfunction of the battery or of the cen-
tral locking.

 Insert the key in the lock, located on

the edge of the door, then turn it one
eighth of a turn .

Opening

 After unlocking the vehicle com-

pletely  using  the  remote  control  or
the  key,  pull  the  handle  and  raise
the tailgate.

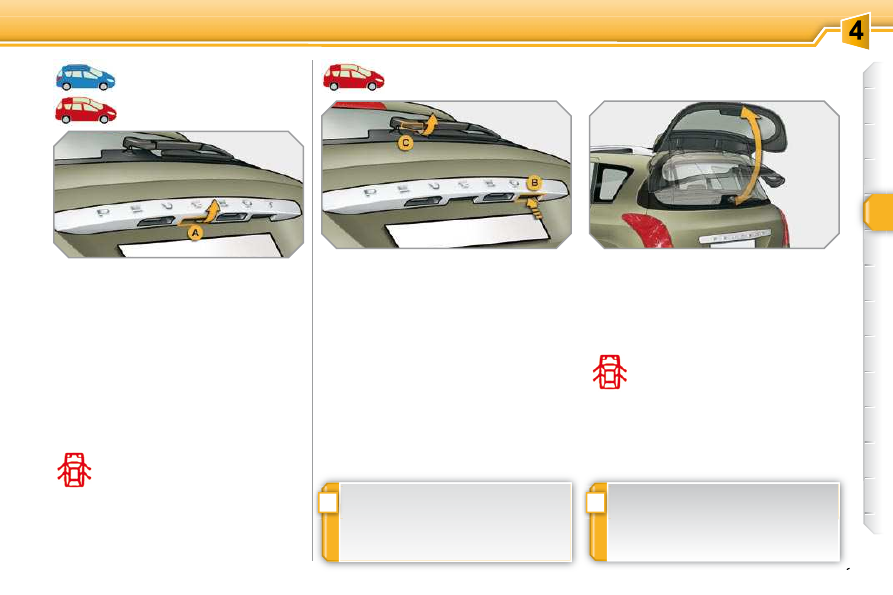

BOOT

when the engine is running ,
this warning lamp comes on,
accompanied by a message
on the multifunction screen
for a few seconds,

when the vehicle is moving  (speed
above 6 mph (10 km/h)), this warning
lamp comes on, accompanied by an
audible  signal  and  a  message  on
the  multifunction  screen  for  a  few
seconds.

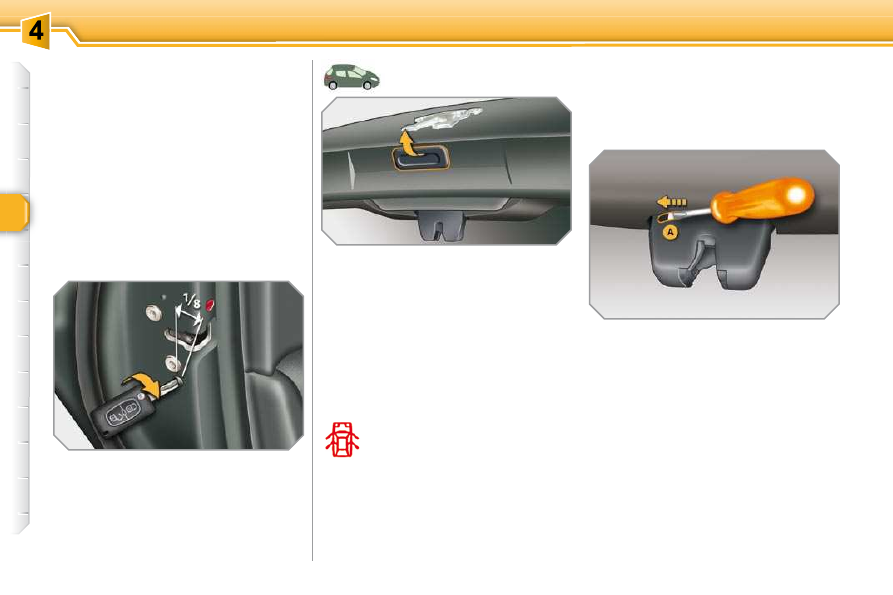

Tailgate release

System for mechanical unlocking of the
boot in the event of a battery or central
locking malfunction.

Unlocking
 Fold back the rear seats to gain

access to the lock from inside the
boot.

 Insert a small screwdriver into hole A

of the lock to unlock the tailgate.

Locking the driver's door
 Insert the key in the lock, then turn it

to the right.

Unlocking the driver's door
 Insert the key in the lock, then turn it

to the left.

Locking the front and rear
passenger doors

Unlocking the front and rear
passenger doors
 Pull the interior door opening control.

Closing

 Lower the tailgate using the interior

grab handle.

If the tailgate is not closed correctly:

ACCESS

Emergency control

System which locks or unlocks the
doors mechanically in the event of a
malfunction of the battery or of the cen-
tral locking.

 Insert the key in the lock, located on

the edge of the door, then turn it one
eighth of a turn .

Opening

 After unlocking the vehicle com-

pletely  using  the  remote  control  or
the  key,  pull  the  handle  and  raise
the tailgate.

BOOT

when the engine is running ,
this warning lamp comes on,
accompanied by a message
on the multifunction screen
for a few seconds,

when the vehicle is moving  (speed
above 6 mph (10 km/h)), this warning
lamp comes on, accompanied by an
audible  signal  and  a  message  on
the  multifunction  screen  for  a  few
seconds.

Tailgate release

System for mechanical unlocking of the
boot in the event of a battery or central
locking malfunction.

Unlocking
 Fold back the rear seats to gain

access to the lock from inside the
boot.

 Insert a small screwdriver into hole A

of the lock to unlock the tailgate.

Locking the driver's door
 Insert the key in the lock, then turn it

to the right.

Unlocking the driver's door
 Insert the key in the lock, then turn it

to the left.

Locking the front and rear
passenger doors

Unlocking the front and rear
passenger doors
 Pull the interior door opening control.

Closing

 Lower the tailgate using the interior

grab handle.

If the tailgate is not closed correctly:

ACCESS

BOOT

Opening

 After unlocking the vehicle com-

pletely  using  the  remote  control  or
the key, with the rear screen closed,
pull  on  the  handle   A   and  raise  the
tailgate.

Closing

 Lower the tailgate using the interior

grab handle.

REAR SCREEN

Opening

 With the boot closed, to unlock/

partially open the rear screen:

- either press control B ,
- or press the central button on the

remote control for more than two
seconds.

 Raise the rear screen using the

base C of the wiper arm.

Closing

 Lower the rear screen guiding it with

the wiper arm until it is closed.

If the rear screen is not closed correctly:

when the engine is running ,
this warning lamp comes on,
accompanied by a message
on the multifunction screen
for a few seconds,

when  the  vehicle  is  moving   (speed
above  6  mph  (10  km/h)),  this  warning
lamp  comes  on,  accompanied  by  an
audible  signal  and  a  message  on  the
multifunction screen for a few seconds.

- when the engine is running ,

this warning lamp comes on,
accompanied by a message
on the multifunction screen
for a few seconds,

If the tailgate is not closed correctly:

The boot and the rear screen can-
not both be open at the same time.

If  the  rear  screen  is  unlocked,
the  central  locking  does  not  take
place.

ACCESS

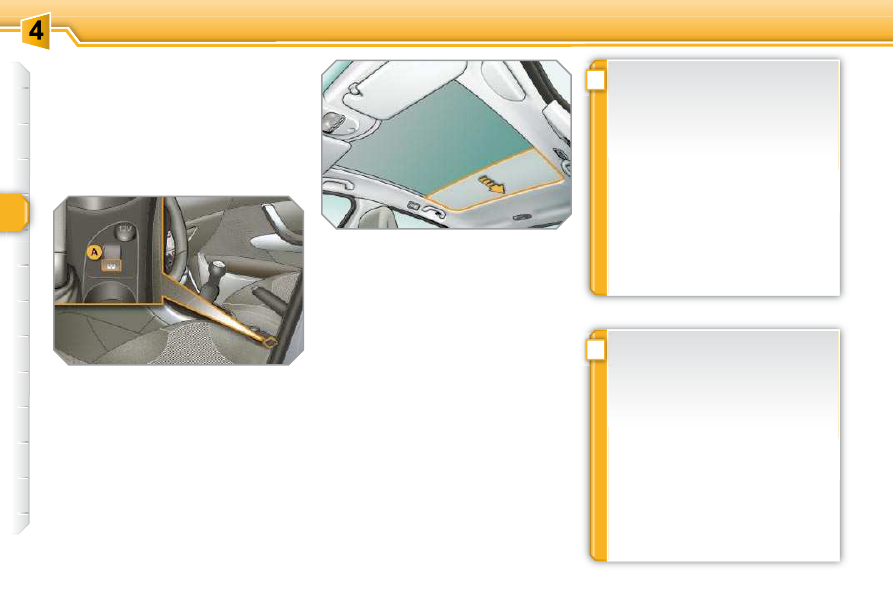

PANORAMIC SUNROOF

Component which has a tinted glass pan-
oramic surface to increase the light and
visibility in the passenger compartment.
Fitted with an electric blind in several sec-
tions to improve temperature and noise
related comfort.

If the blind meets an obstacle dur-
ing operation, you must reverse the
movement  of  the  blind. To  do  this,
press the control concerned.
When the driver operates the blind
control, he must ensure that no one
is preventing correct closing of the
blind.
The  driver  must  ensure  that  pas-
sengers use the blind correctly.
Be aware of children when operat-
ing the blind.

manual mode

 Pull or press control A gently.
The blind stops when you release

the control.

automatic mode

 Pull or press control A

ﬁ rmly.

One press opens or closes the

blind completely.

Pressing the control again stops

the blind.

  Safety anti-pinch
In  automatic  mode  and  at  the  end  of
its travel, if the blind meets an obstacle
while  closing  it  stops  and  moves  back
slightly.

One-touch electric blind

There are two options for opening and
closing:

If  the  blind's  supply  is  cut  off,  the
safety  anti-pinch  must  be  reini-
tialised:
      press the control until the blind

is fully closed.

If  the  blind  re-opens  during  the
closing  manoeuvre,  and  immedi-
ately after it stops:
      pull the control until the blind is

fully open,

 press the control until the blind

is fully closed.

  The  safety  anti-pinch  function
is  not  operational  during  these
operations.

ACCESS

The  key  cannot  be  removed  from
the lock until the cap is put back on
the tank.
Opening the cap may trigger an air
intake noise. This vacuum, which is
perfectly  normal,  is  caused  by  the
sealing of the fuel system.

FUEL TANK

Capacity of the tank: approximately
60 litres.

To ﬁ ll the tank safely:
 it is essential that the engine is

switched off,



open the fuel ﬁ ller ﬂ ap,

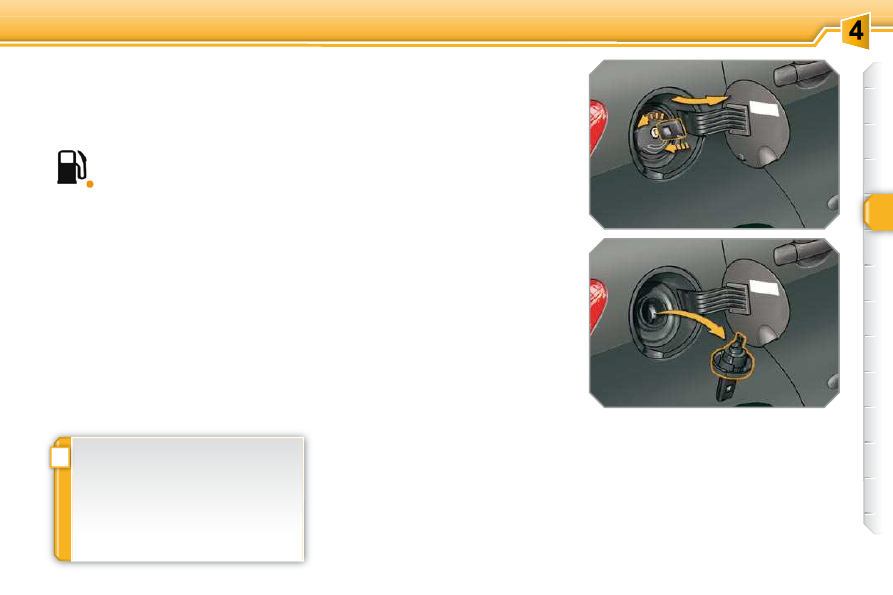

 insert the key in the cap, then turn it

to the left,

When ﬁ lling is complete:


reﬁ t the cap,

 turn the key to the right, then remove

it from the cap,



close the ﬂ ap.

 remove the cap and secure it on the

hook, located on the inside of the

ﬂ ap,



ﬁ ll the tank, but do not continue

after the 3rd cut-off of the nozzle ;
this could cause malfunctions.

Low fuel level

Filling

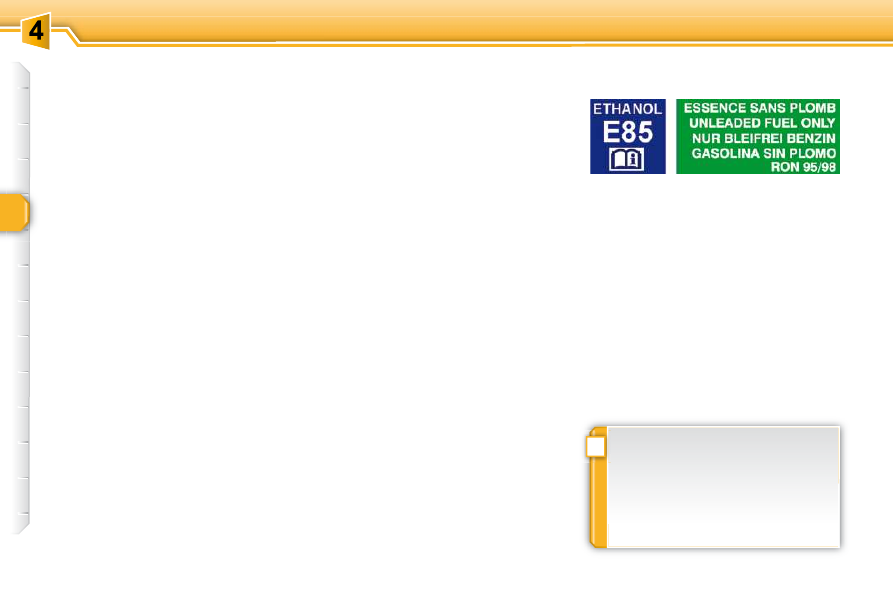

A label afﬁ xed to the inside of the ﬂ ap

reminds you of the type of fuel to be
used according to your engine.
More than 5 litres of fuel must be add-
ed in order to be registered by the fuel
gauge.

Operating fault

A fuel gauge malfunction is indicated by
the return of the fuel gauge needle to
zero.
Have it checked by a PEUGEOT dealer.

When  the  fuel  tank  minimum
level  is  reached,  this  warning
lamp  comes  on  on  the  instru-
ment  panel,  accompanied  by

an audible signal and a message on

the multifunction screen. When it ﬁ rst

comes  on,  you  have   approximately
6 litres  of fuel remaining.
Fill up as soon as possible to avoid run-
ning out of fuel.
If you run out of fuel (Diesel), refer also
to the "Checks" section.

ACCESS

Quality of the fuel used for
petrol engines

  The  petrol  engines  are  perfectly  com-
patible  with  E10  type  petrol  biofuels
(containing  10 %  ethanol),  conforming
to  European  standards  EN  228  and
EN 15376.
E85  type  fuels  (containing  up  to  85 %
ethanol) are reserved exclusively for ve-
hicles marketed for the use of this type
of fuel (BioFlex vehicles). The quality of
the ethanol must comply with European
standard EN 15293.
For  Brazil  only,  special  vehicles  are
marketed to run on fuels containing up
to 100 % ethanol (E100 type).

Quality of the fuel used for
Diesel engines

  The  Diesel  engines  are  perfectly  com-
patible  with  biofuels  which  conform  to
current and future European standards
(Diesel  fuel  which  complies  with  stan-
dard EN 590 mixed with a biofuel which
complies  with  standard  EN 14214)
available  at  the  pumps  (containing  up
to 7 % Fatty Acid Methyl Ester).
The  B30  biofuel  can  be  used  in  cer-
tain  Diesel  engines;  however,  this  use
is  subject  to  strict  application  of  the
special  servicing  conditions.  Consult  a
PEUGEOT dealer.
The  use  of  any  other  type  of  (bio)fuel
(vegetable or animal oils, pure or dilut-
ed, domestic fuel...) is strictly prohibited
(risk  of  damage  to  the  engine  and  fuel
system).

Special features of BioFlex
engines

A  BioFlex  vehicle  has  been  designed
to  run  on  unleaded  petrol  (RON  95  or
RON  98)  or  ethanol  (this  is  a  mixture
containing  85 %  ethanol  and  15 %  un-
leaded petrol, called E85).
So, regardless of the quantity of fuel re-
maining in your tank and irrespective of
its type (RON 95/RON 98, E85 or a mix-

ture of the two), you can ﬁ ll your tank at

any time with unleaded petrol (RON 95
or RON 98) or ethanol (E85).
There is no problem driving on unlead-
ed petrol only with this vehicle.

In winter conditions, starting the
engine from cold may sometimes

prove difﬁ cult. During these very

cold  periods  you  are  advised  to
use  unleaded  petrol  rather  than
E85  to  ensure  optimum  starting
conditions.

Peugeot 308 SW BL Dag (2009.5). Manual - part 5
