< FUNCTION DIAGNOSIS >

[ESP/TCS/ABS]

EBD

RHD models

D.

Steering knuckle

E.

Lower instrument cover RH

F.

Instrument driver lower panel

G.

Rear suspension arm

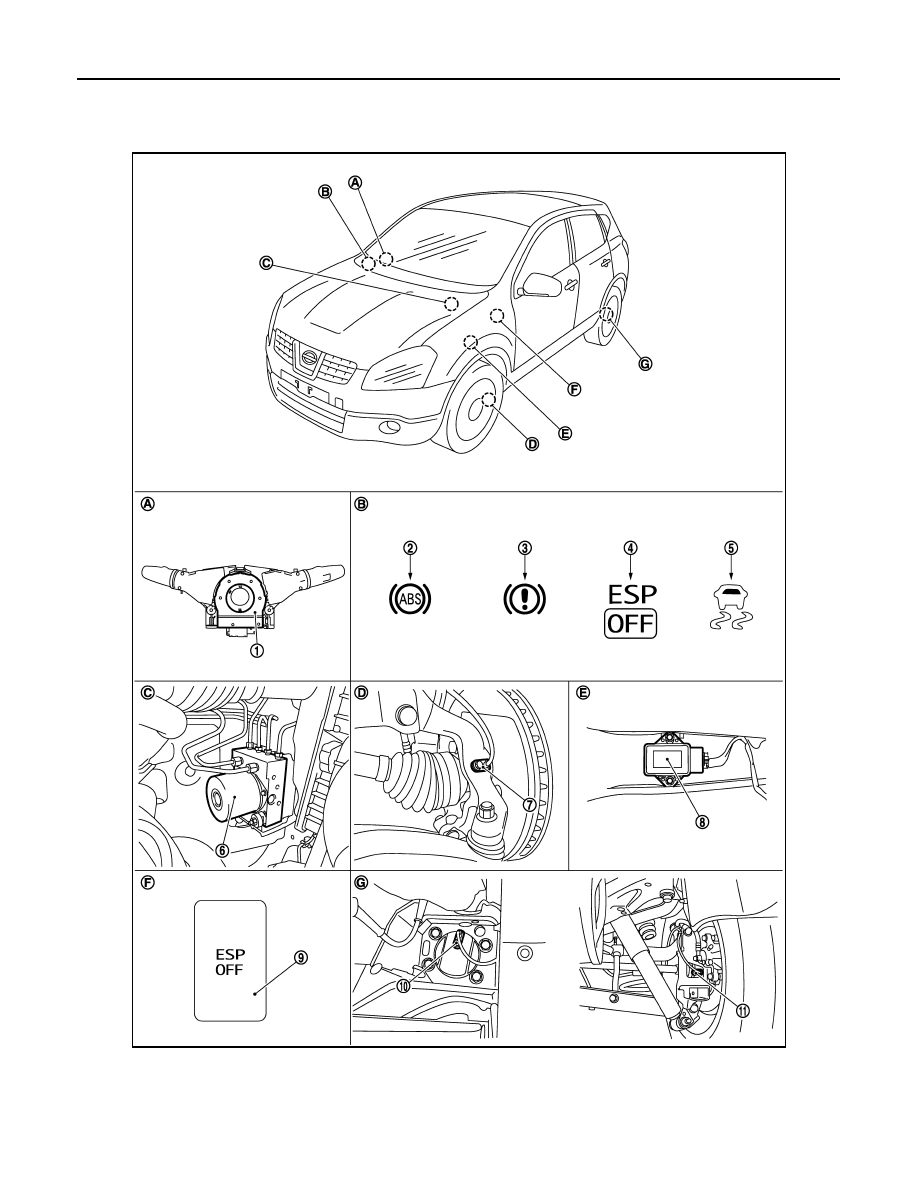

JSFIA0047ZZ

1.

Steering angle sensor

2.

ABS warning lamp

3.

Brake warning lamp

4.

ESP OFF indicator lamp

5.

SLIP indicator lamp

6.

ABS actuator and electric unit (con-
trol unit)

7.

Front wheel sensor

8.

Yaw rate/side G sensor

9.

ESP OFF switch

EBD

BRC-95

< FUNCTION DIAGNOSIS >

[ESP/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

Component Description

INFOID:0000000000977400

10. Rear wheel sensor (2WD models)

11.

Rear wheel sensor (4WD models)

A.

Back of spiral cable assembly

B.

Combination meter

C.

Left side in engine room

D.

Steering knuckle

E.

Lower instrument cover RH

F.

Instrument driver lower panel

G.

Rear suspension arm

Component parts

Reference

ABS actuator and electric unit (control unit)

Pump

BRC-110, "Description"

Motor

Actuator relay (Main relay)

BRC-113, "Description"

Solenoid valve

BRC-121, "Description"

Wheel sensor

BRC-100, "Description"

ABS warning lamp

BRC-149, "Description"

Brake warning lamp

BRC-150, "Description"

BRC-96

< FUNCTION DIAGNOSIS >

[ESP/TCS/ABS]

DIAGNOSIS SYSTEM [ABS ACTUATOR AND ELECTRIC UNIT (CONTROL

UNIT)]

DIAGNOSIS SYSTEM [ABS ACTUATOR AND ELECTRIC UNIT (CONTROL
UNIT)]

CONSULT-III Function (ABS)

INFOID:0000000000924811

FUNCTION

CONSULT-III can display each diagnostic item using the diagnostic test modes shown following.

SELF-DIAG RESULTS MODE

Operation Procedure

1.

Before performing the self-diagnosis, start engine and drive vehicle at 30 km/h (19 MPH) or more for
approximately 1 minute.

How to Erase Self-diagnosis Results

1.

After erasing DTC memory, start engine and drive vehicle at 30 km/h (19 MPH) or more for approximately
1 minute as the final inspection, and make sure that the ABS warning lamp, ESP OFF indicator lamp,
SLIP indicator lamp and brake warning lamp turn OFF.

CAUTION:

If memory cannot be erased, perform applicably diagnosis.
NOTE:
• When the wheel sensor malfunctions, after inspecting the wheel sensor system, the ABS warning lamp,

ESP OFF indicator lamp, SLIP indicator lamp and brake warning lamp will not turn OFF even when the
system is normal unless the vehicle is driving at approximately 30 km/h (19 MPH) or more for approxi-
mately 1 minute.

• Brake warning lamp will turn ON in case of parking brake operation (when switch is ON) or of brake fluid

level switch operation (when brake fluid is insufficient).

• ESP OFF switch should not stay “ON” position.

Display Item List

Refer to

BRC-160, "DTC No. Index"

.

DATA MONITOR MODE

Display Item List

×

: Applicable

o

: Optional item

Diagnostic test mode

Function

Work support

This mode enables a technician to adjust some devices faster and more accurately by following
the indications on CONSULT-III.

Self-diagnostic results

Self-diagnostic results can be read and erased quickly.

Data monitor

Input/Output data in the ABS actuator and electric unit (control unit) can be read.

Active test

Diagnostic test mode is which CONSULT-III drives some actuators apart from the ABS actuator
and electric unit (control unit) and also shifts some parameters in a specified range.

ECU part number

ABS actuator and electric unit (control unit) part number can be read.

CAN diagnostic support monitor

The results of transmit/receive diagnosis of CAN communication can be read.

Monitor item (Unit)

SELECT MONITOR ITEM

Remarks

ECU INPUT SIG-

NALS

MAIN SIGNLAS

FR LH SENSOR
[km/h (MPH)]

×

×

Wheel speed

FR RH SENSOR
[km/h (MPH)]

×

×

RR LH SENSOR
[km/h (MPH)]

×

×

RR RH SENSOR
[km/h (MPH)]

×

×

DIAGNOSIS SYSTEM [ABS ACTUATOR AND ELECTRIC UNIT (CONTROL

UNIT)]

BRC-97

< FUNCTION DIAGNOSIS >

[ESP/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

STOP LAMP SW
(On/Off)

×

×

Stop lamp switch signal status

BATTERY VOLT
(V)

×

×

Battery voltage supplied to the ABS actuator and electric
unit (control unit)

GEAR

×

×

Gear position determined by TCM

SLCT LVR POSI

×

×

Selector lever position (except M/T)

OFF SW
(On/Off)

o

×

ESP OFF switch

YAW RATE SEN
(

°

/s)

×

×

Yaw rate detected by yaw rate/side G sensor

ACCEL POS SIG
(%)

×

o

Throttle actuator opening/closing is displayed (Linked with
accelerator pedal)

SIDE G-SENSOR

(m/s

2

)

×

o

Transverse G detected by yaw rate/side G sensor

STR ANGLE SIG
(

°

)

×

o

Steering angle detected by steering angle sensor

PRESS SENSOR
(bar)

×

o

Brake fluid pressure detected by pressure sensor

ENGINE RPM
[tr/min (rpm)]

×

o

Engine speed

FLUID LEV SW
(On/Off)

×

o

Brake fluid level switch signal status

PARK BRAKE SW
(On/Off)

×

o

Parking brake switch signal status

FR RH IN SOL
(On/Off)

o

×

Operation status of each solenoid valve

FR RH OUT SOL
(On/Off)

o

×

FR LH IN SOL
(On/Off)

o

×

FR LH OUT SOL
(On/Off)

o

×

RR RH IN SOL
(On/Off)

o

×

RR RH OUT SOL
(On/Off)

o

×

RR LH IN SOL
(On/Off)

o

×

RR LH OUT SOL
(On/Off)

o

×

MOTOR RELAY
(On/Off)

o

×

Motor and motor relay operation

ACTUATOR RLY

NOTE

(On/Off)

o

×

Actuator relay operation

ABS WARN LAMP
(On/Off)

o

×

ABS warning lamp

OFF LAMP
(On/Off)

o

×

ESP OFF indicator lamp

SLIP LAMP
(On/Off)

o

×

SLIP indicator lamp

Monitor item (Unit)

SELECT MONITOR ITEM

Remarks

ECU INPUT SIG-

NALS

MAIN SIGNLAS
