BRC-86

< FUNCTION DIAGNOSIS >

[ESP/TCS/ABS]

TCS

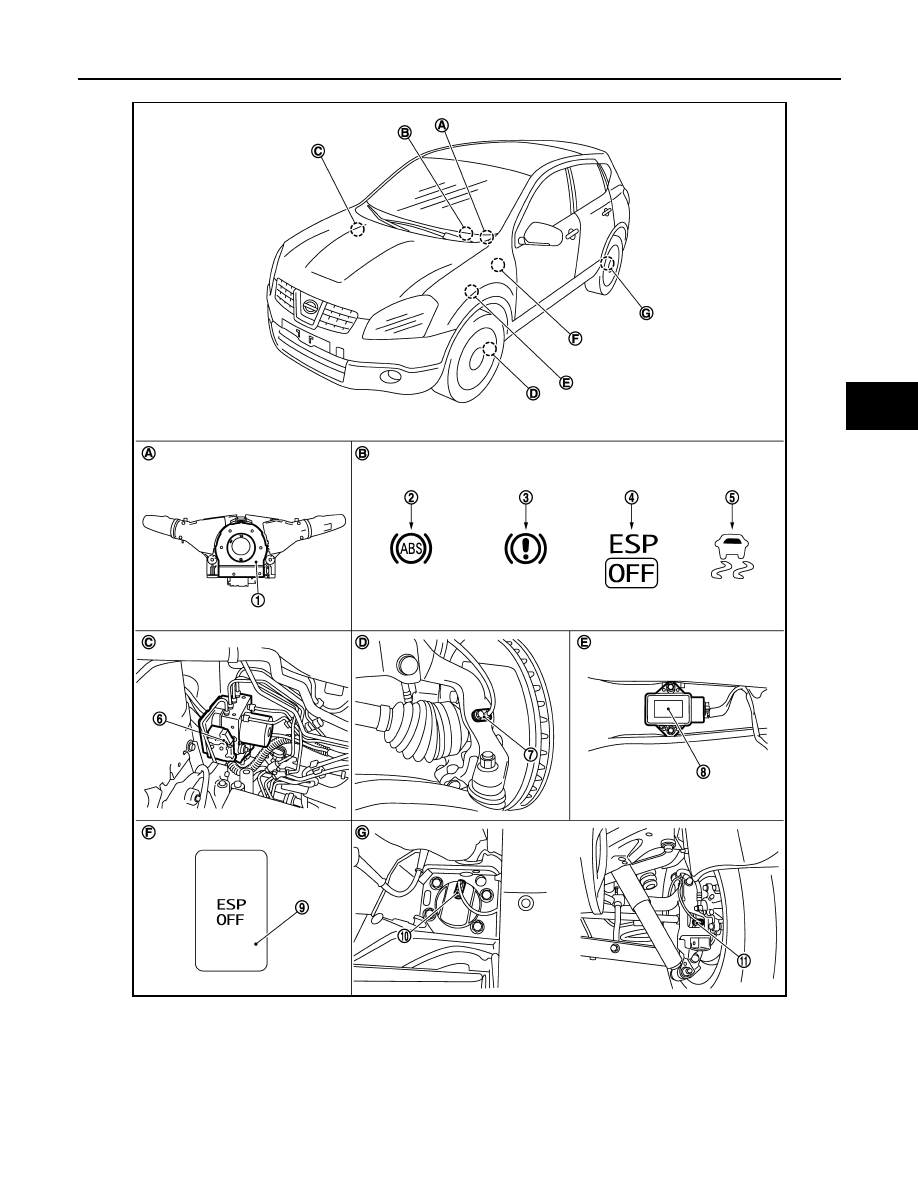

RHD models

D.

Steering knuckle

E.

Lower instrument cover RH

F.

Instrument driver lower panel

G.

Rear suspension arm

JSFIA0047ZZ

1.

Steering angle sensor

2.

ABS warning lamp

3.

Brake warning lamp

4.

ESP OFF indicator lamp

5.

SLIP indicator lamp

6.

ABS actuator and electric unit (con-
trol unit)

7.

Front wheel sensor

8.

Yaw rate/side G sensor

9.

ESP OFF switch

TCS

BRC-87

< FUNCTION DIAGNOSIS >

[ESP/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

Component Description

INFOID:0000000000977396

10. Rear wheel sensor (2WD models)

11.

Rear wheel sensor (4WD models)

A.

Back of spiral cable assembly

B.

Combination meter

C.

Left side in engine room

D.

Steering knuckle

E.

Lower instrument cover RH

F.

Instrument driver lower panel

G.

Rear suspension arm

Component parts

Reference

ABS actuator and electric unit (control unit)

Pump

BRC-110, "Description"

Motor

Actuator relay (Main relay)

BRC-113, "Description"

Solenoid valve

BRC-121, "Description"

Pressure sensor

BRC-128, "Description"

ESP switch-over valve
(USV1, USV2, HSV1, HSV2)

BRC-138, "Description"

Wheel sensor

BRC-100, "Description"

Yaw rate sensor

BRC-133, "Description"

G sensor

BRC-136, "Description"

Steering angle sensor

BRC-130, "Description"

ESP OFF switch

BRC-147, "Description"

ABS warning lamp

BRC-149, "Description"

Brake warning lamp

BRC-150, "Description"

ESP OFF indicator lamp

BRC-151, "Description"

SLIP indicator lamp

BRC-152, "Description"

BRC-88

< FUNCTION DIAGNOSIS >

[ESP/TCS/ABS]

ABS

ABS

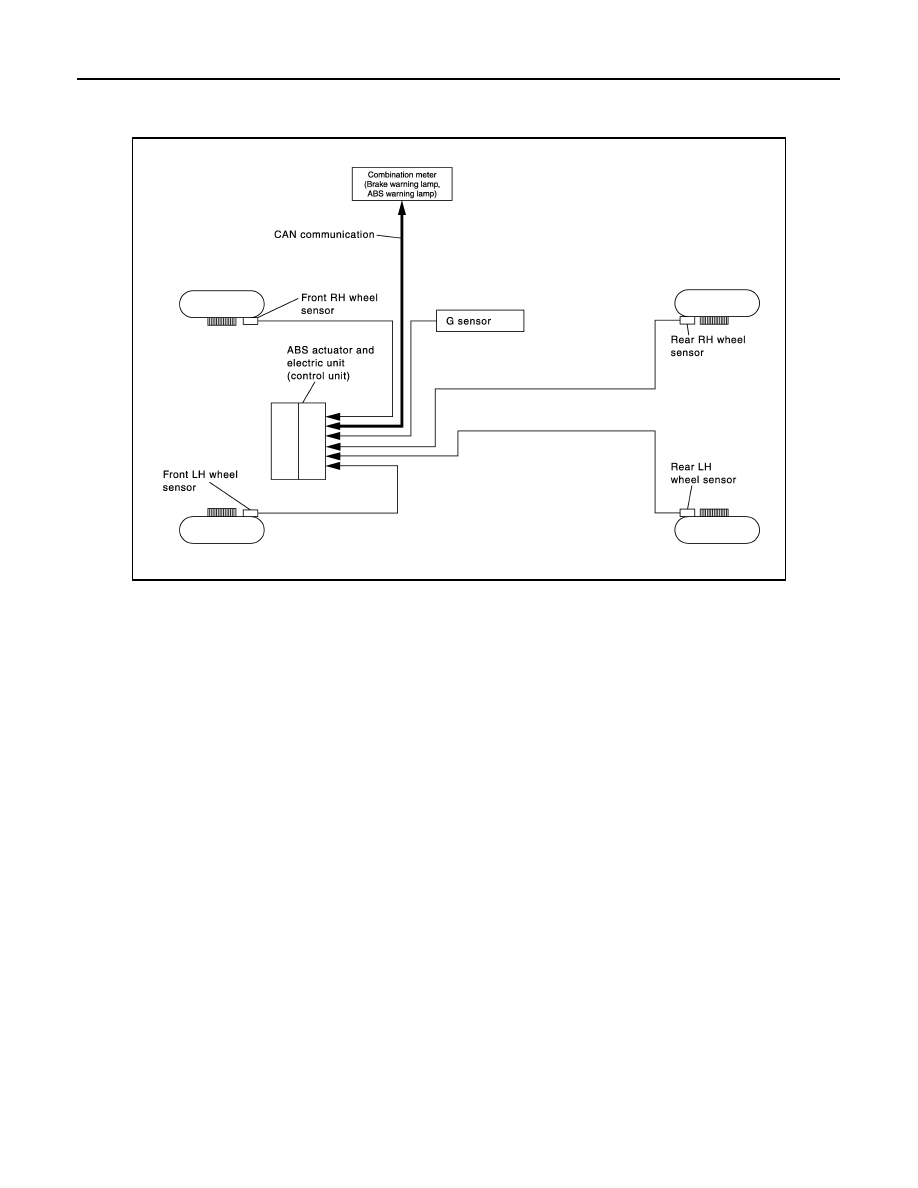

System Diagram

INFOID:0000000000924803

System Description

INFOID:0000000000924804

• Anti-Lock Braking System is a function that detects wheel revolution while braking, electronically controls

braking force, and prevents wheel locking during sudden braking. It improves handling stability and maneu-
verability for avoiding obstacles.

• Electrical system diagnosis by CONSULT-III is available.

Component Parts Location

INFOID:0000000000977397

JSFIA0033GB

ABS

BRC-89

< FUNCTION DIAGNOSIS >

[ESP/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

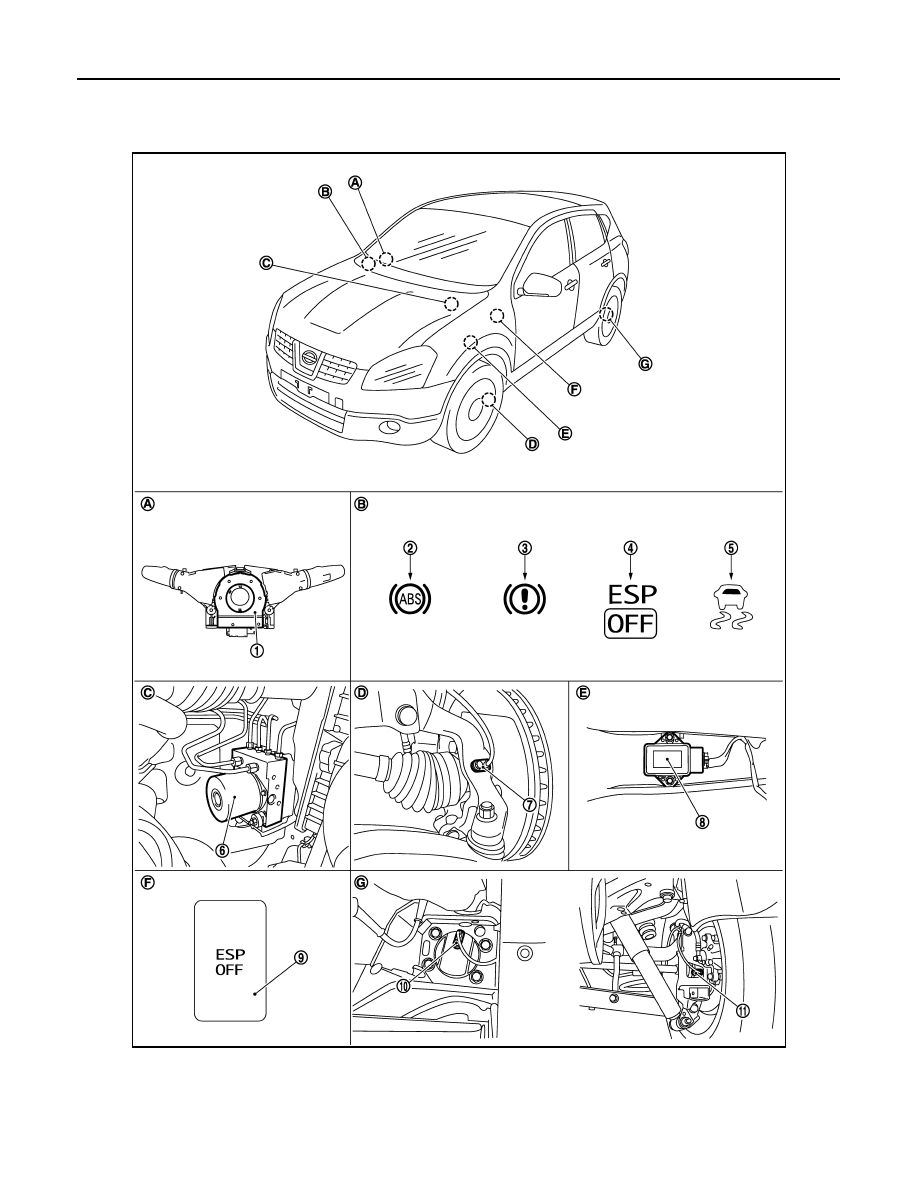

LHD models

JSFIA0032ZZ

1.

Steering angle sensor

2.

ABS warning lamp

3.

Brake warning lamp

4.

ESP OFF indicator lamp

5.

SLIP indicator lamp

6.

ABS actuator and electric unit (con-
trol unit)

7.

Front wheel sensor

8.

Yaw rate/side G sensor

9.

ESP OFF switch

10. Rear wheel sensor (2WD models)

11.

Rear wheel sensor (4WD models)

A.

Back of spiral cable assembly

B.

Combination meter

C.

Right side in engine room
