BRC-82

< FUNCTION DIAGNOSIS >

[ESP/TCS/ABS]

ESP

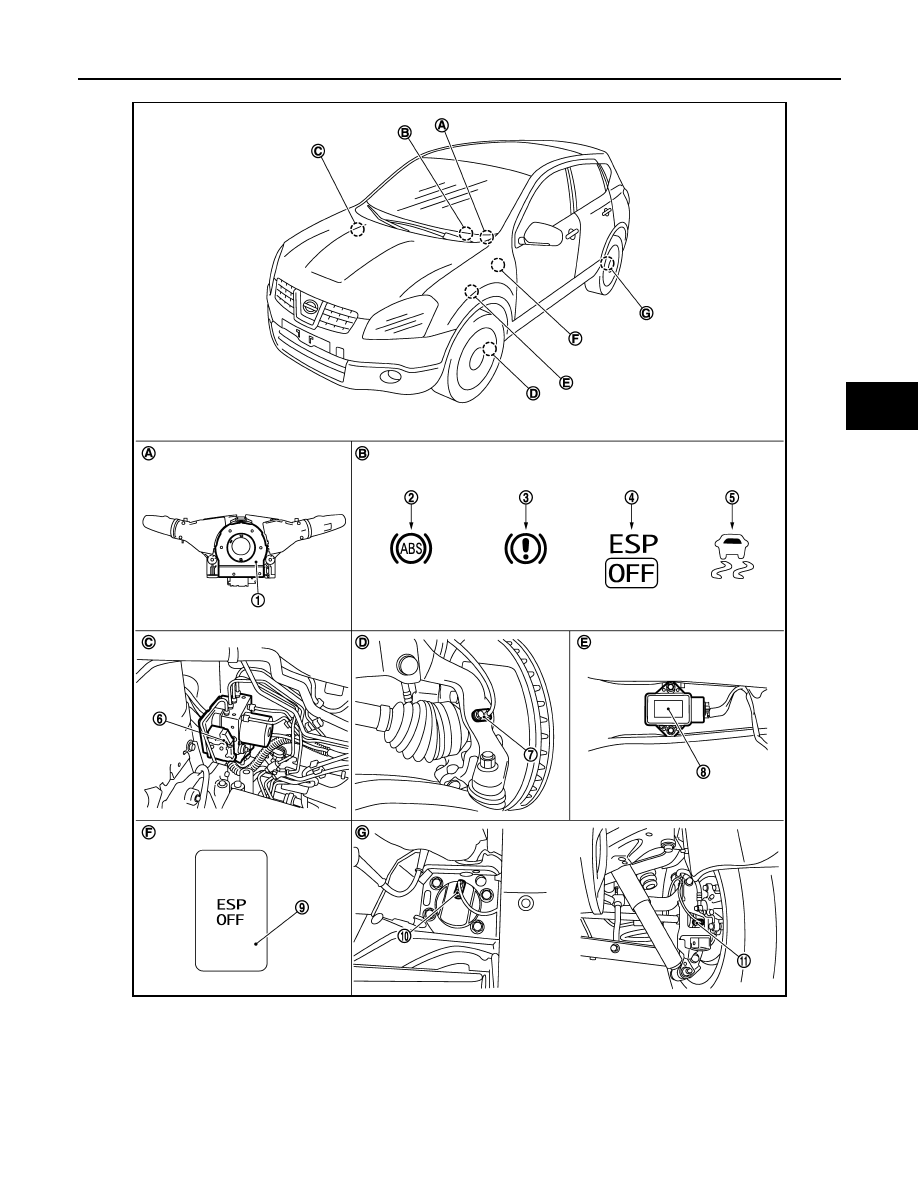

RHD models

D.

Steering knuckle

E.

Lower instrument cover RH

F.

Instrument driver lower panel

G.

Rear suspension arm

JSFIA0047ZZ

1.

Steering angle sensor

2.

ABS warning lamp

3.

Brake warning lamp

4.

ESP OFF indicator lamp

5.

SLIP indicator lamp

6.

ABS actuator and electric unit (con-
trol unit)

7.

Front wheel sensor

8.

Yaw rate/side G sensor

9.

ESP OFF switch

ESP

BRC-83

< FUNCTION DIAGNOSIS >

[ESP/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

Component Description

INFOID:0000000000924798

10. Rear wheel sensor (2WD models)

11.

Rear wheel sensor (4WD models)

A.

Back of spiral cable assembly

B.

Combination meter

C.

Left side in engine room

D.

Steering knuckle

E.

Lower instrument cover RH

F.

Instrument driver lower panel

G.

Rear suspension arm

Component parts

Reference

ABS actuator and electric unit (control unit)

Pump

BRC-110, "Description"

Motor

Actuator relay (Main relay)

BRC-113, "Description"

Solenoid valve

BRC-121, "Description"

Pressure sensor

BRC-128, "Description"

ESP switch-over valve
(USV1, USV2, HSV1, HSV2)

BRC-138, "Description"

Wheel sensor

BRC-100, "Description"

Yaw rate sensor

BRC-133, "Description"

G sensor

BRC-136, "Description"

Steering angle sensor

BRC-130, "Description"

ESP OFF switch

BRC-147, "Description"

ABS warning lamp

BRC-149, "Description"

Brake warning lamp

BRC-150, "Description"

ESP OFF indicator lamp

BRC-151, "Description"

SLIP indicator lamp

BRC-152, "Description"

BRC-84

< FUNCTION DIAGNOSIS >

[ESP/TCS/ABS]

TCS

TCS

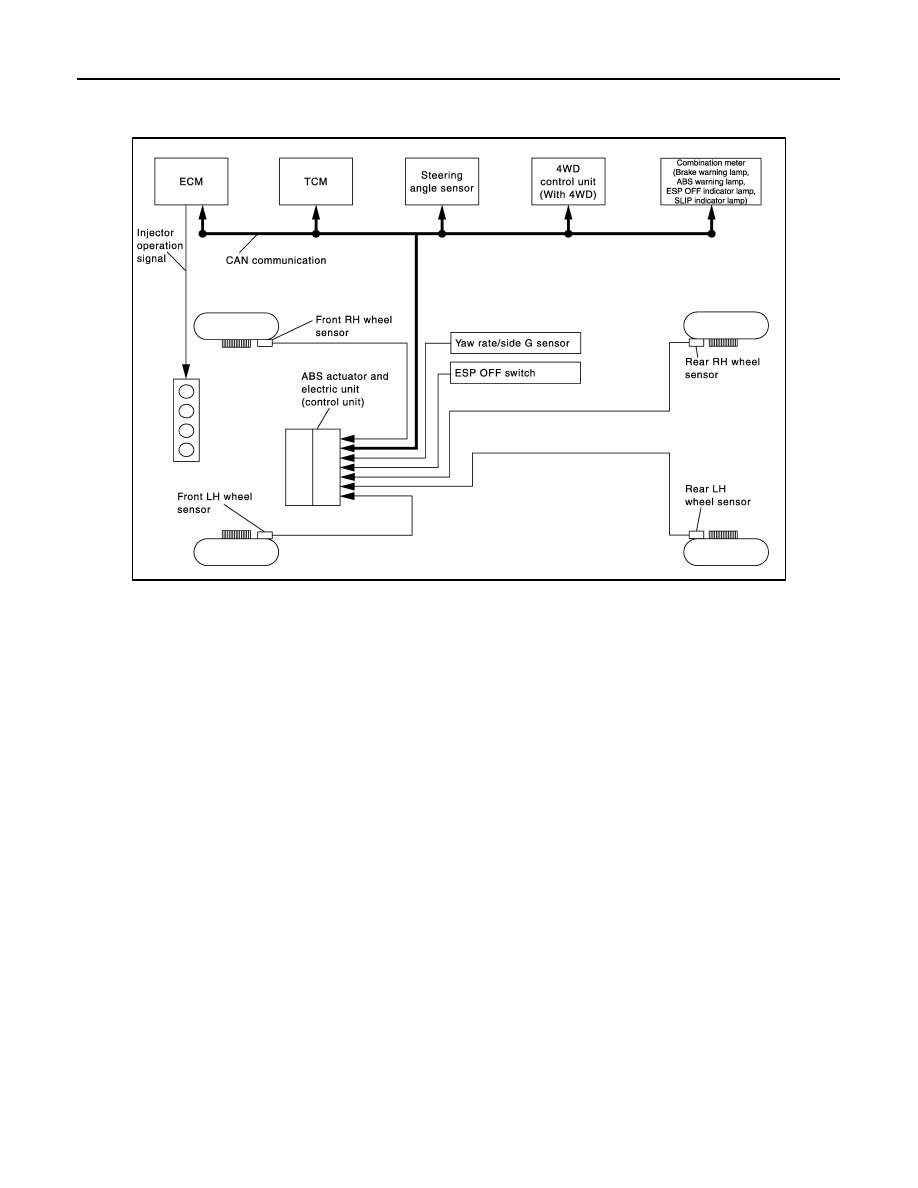

System Diagram

INFOID:0000000000977394

System Description

INFOID:0000000000924800

• Traction Control System is a function that electronically controls engine torque, brake fluid pressure and

gear ratio (except M/T) to ensure the optimum slippage ratio at drive wheels by computing wheel speed sig-
nals from 4 wheel sensors. When ABS actuator and electric unit (control unit) detects a spin at drive wheels
(rear wheels), it compares wheel speed signals from all 4 wheels. At this time, LH and RH rear brake fluid
pressure are controlled, while fuel being cut to engine and throttle valve being closed to reduce engine
torque by the control unit. Further more, throttle position is continuously controlled to ensure the optimum
engine torque at all times.

• During TCS operation, it informs driver of system operation by flashing SLIP indicator lamp.
• Electrical system diagnosis by CONSULT-III is available.

Component Parts Location

INFOID:0000000000977395

JSFIA0070GB

TCS

BRC-85

< FUNCTION DIAGNOSIS >

[ESP/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

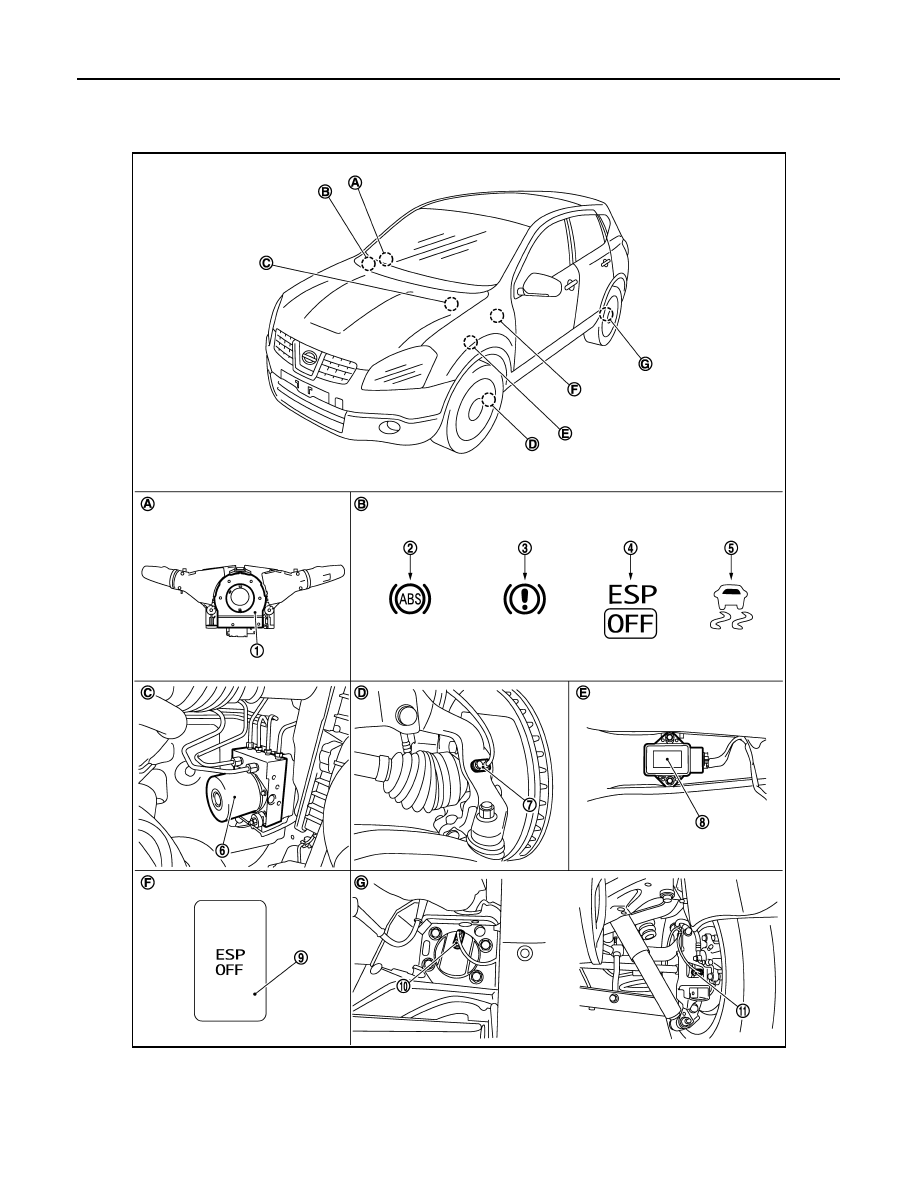

LHD models

JSFIA0032ZZ

1.

Steering angle sensor

2.

ABS warning lamp

3.

Brake warning lamp

4.

ESP OFF indicator lamp

5.

SLIP indicator lamp

6.

ABS actuator and electric unit (con-
trol unit)

7.

Front wheel sensor

8.

Yaw rate/side G sensor

9.

ESP OFF switch

10. Rear wheel sensor (2WD models)

11.

Rear wheel sensor (4WD models)

A.

Back of spiral cable assembly

B.

Combination meter

C.

Right side in engine room
