Black plate (504,1)

Service Publications

Factory-authorized Mazda service publications are available for owners who wish to do
some of their own maintenance and repair.

When requesting any of our publications through an Authorized Mazda Dealer, refer to the
chart below.

If they do not have what you need in stock, they can order it for you.

PUBLICATION ORDER NUMBER

PUBLICATION DESCRIPTION

9999-95-034B-12

2012 WORKSHOP MANUAL (English)

9999-MX-034B-12

2012 WORKSHOP MANUAL (Spanish)

9999-95-068G-12

2012 WIRING DIAGRAM (English)

9999-MX-068G-12

2012 WIRING DIAGRAM (Spanish)

9999-95-080C-12 (U.S.A. only)

2012 OWNER'S MANUAL

9999-EC-080C-12 (Canada only)

2012 OWNER'S MANUAL

9999-PR-080C-12 (Puerto Rico only)

2012 OWNER'S MANUAL

9999-95-MODL-12

2012 SERVICE HIGHLIGHTS

7-inch Navigation system

9999-EC-080C-12NAV (Canada only)

2012 NAVIGATION SYSTEM OWNER'S MANUAL

Multi Information Display (MID) with compact navigation system

9999-95-080C-12NAV (U.S.A. only)

2012 NAVIGATION SYSTEM OWNER'S MANUAL

9999-PR-080C-12NAV (Puerto Rico only)

2012 NAVIGATION SYSTEM OWNER'S MANUAL

qWORKSHOP MANUAL:

Covers recommended maintenance and repair procedures of the drive train, body and
chassis.

qWIRING DIAGRAM:

Provides electrical schematics as well as component location for the entire electrical
system.

qOWNER'S MANUAL:

This booklet contains information regarding the proper care and operation of your vehicle.
This is not a technician's manual.

9-46

Customer Information and Reporting Safety Defects

Service Publications

CX-7_8CG3-EA-11J_Edition1 Page504
Saturday, September 24 2011 10:34 AM

Black plate (505,1)

qSERVICE HIGHLIGHTS:

Provides description and operation of the many systems of your Mazda.

qNAVIGATION SYSTEM OWNER'S MANUAL:

This booklet contains information regarding the proper operation and use of the navigation
system. This is not a technician's manual.

Customer Information and Reporting Safety Defects

Service Publications

9-47

CX-7_8CG3-EA-11J_Edition1 Page505
Saturday, September 24 2011 10:34 AM

Black plate (508,1)

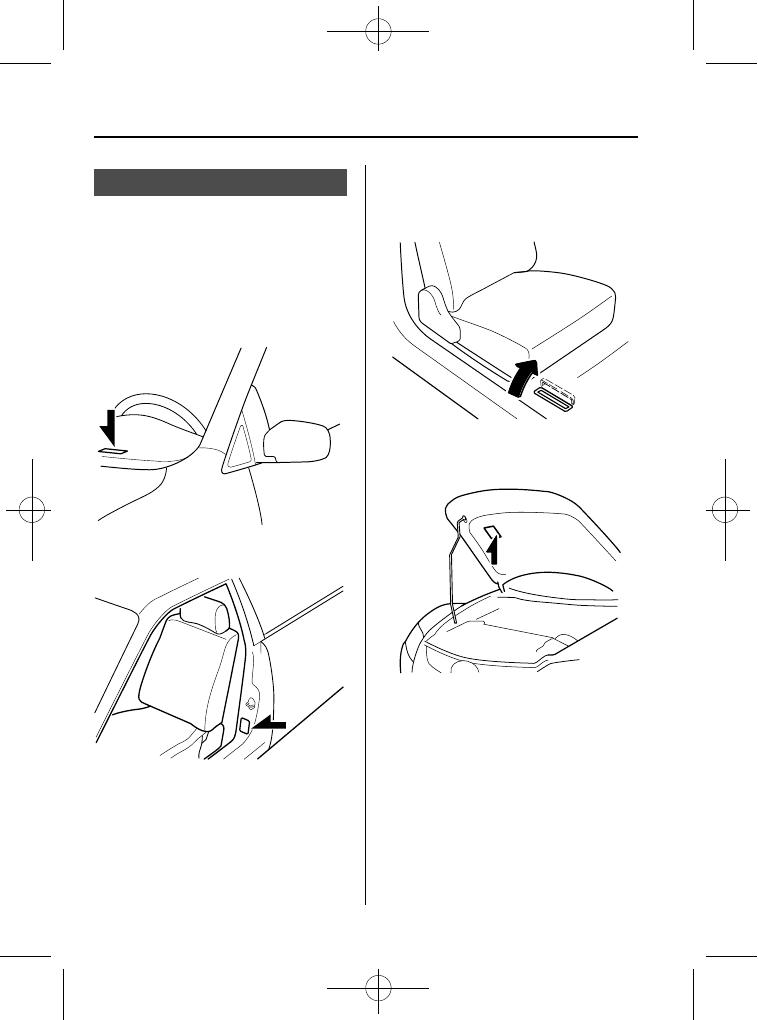

Vehicle Information Labels

qVehicle Identification Number

The vehicle identification number legally
identifies your vehicle. The number is on
a plate attached to the cowl panel located
on the left corner of the dashboard. This
plate can easily be seen through the
windshield.

qMotor Vehicle Safety Standard Label

qChassis Number

Open the cover shown in the figure to
check the chassis number.

qVehicle Emission Control

Information Label

10-2

Identification Numbers

CX-7_8CG3-EA-11J_Edition1 Page508
Saturday, September 24 2011 10:34 AM

Black plate (509,1)

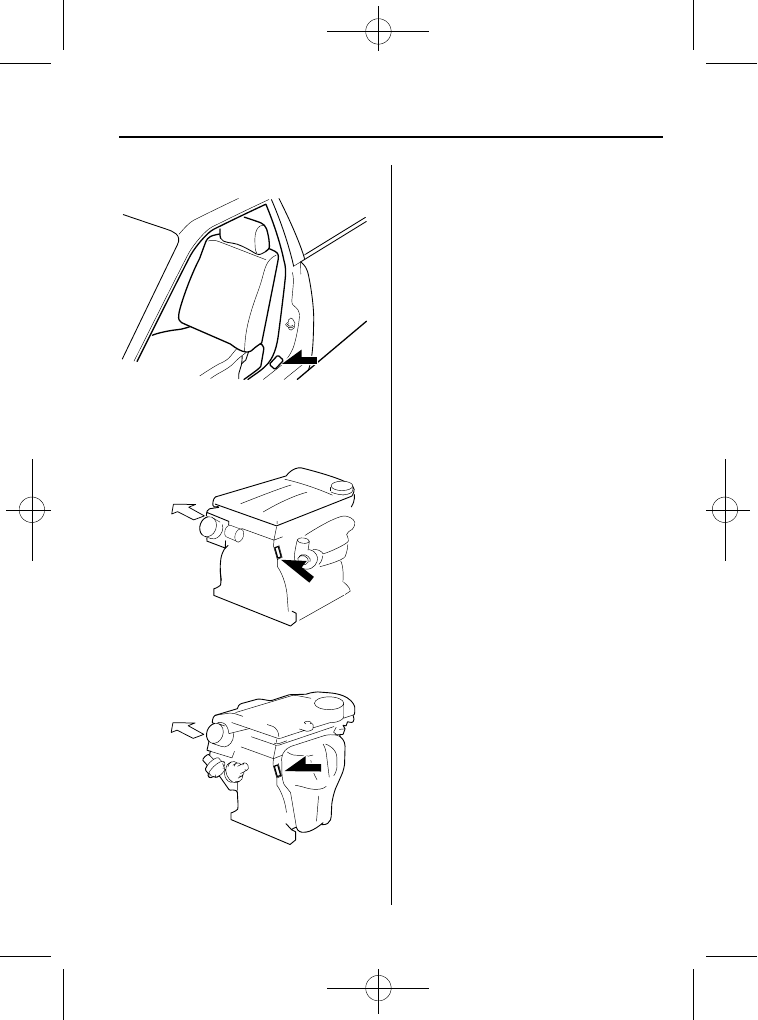

qTire Pressure Label (Except Canada)

qEngine Number

2.3-liter engine

Forward

2.5-liter engine

Forward

Identification Numbers

10-3

CX-7_8CG3-EA-11J_Edition1 Page509
Saturday, September 24 2011 10:34 AM

Black plate (510,1)

Specifications

qEngine

Item

Specification

2.3-liter engine

2.5-liter engine

Type

DOHC-16V in-line, 4-cylinder

Bore × Stroke

87.5 × 94.0 mm (3.44 × 3.70 in)

89.0 × 100 mm (3.50 × 3.94 in)

Displacement

2,261 ml (2,261 cc, 138.0 cu in)

2,488 ml (2,488 cc, 151.8 cu in)

Compression ratio

9.5

9.7

qElectrical System

Item

Classification

2.3-liter engine

2.5-liter engine

Battery

12V-48AH/5HR MF

12V-55AH/5HR MF

12V-52AH/5HR MF

Spark-plug number

L3BD 18 110

LFG1 18 110

L3YD 18 110

L3Y2 18 110

Spark-plug gap

0.60

―0.70 mm (0.024―0.027 in) 1.25―1.35 mm (0.049―0.053 in)

*1 ex factory

CAUTION

When cleaning the iridium plugs, do not use a wire brush. The fine particulate
coating on the iridium alloy and platinum tips could be damaged.

qLubricant Quality

Lubricant

Classification

Engine oil

Refer to Recommended Oil on page 8-19.

Automatic transaxle
fluid

5-speed
transaxle

Mazda Genuine ATF M-V

6-speed
transaxle

Mazda Genuine JWS3309

Transfer case oil

API Service GL-5 (SAE 80W-90)

Rear differential oil

API Service GL-5 (SAE 80W-90)

Power steering fluid

Mazda Genuine ATF M-III, M-V, or equivalent (e.g. Dexron® II)

Brake fluid

SAE J1703 or FMVSS116 DOT-3

10-4

Specifications

CX-7_8CG3-EA-11J_Edition1 Page510
Saturday, September 24 2011 10:34 AM

Black plate (511,1)

qCapacities

(Approximate Quantities)

Item

Capacity

Engine oil

2.3-liter engine

With oil filter replacement

5.7 L (6.0 US qt, 5.0 Imp qt)

Without oil filter replacement

5.3 L (5.6 US qt, 4.7 Imp qt)

2.5-liter engine

With oil filter replacement

5.0 L (5.3 US qt, 4.4 Imp qt)

Without oil filter replacement

4.6 L (4.9 US qt, 4.0 Imp qt)

Coolant

9.0 L (9.5 US qt, 7.9 Imp qt)

Automatic transaxle fluid

5-speed transaxle

8.14 L (8.60 US qt, 7.16 Imp qt)

6-speed transaxle

7.0 L (7.4 US qt, 6.2 Imp qt)

Transfer case oil

1.2 L (1.3 US qt, 1.1 Imp qt)

Rear differential oil

1.0 L (1.1 US qt, 0.9 Imp qt)

Washer fluid

With low washer fluid level warning
light

4.5 L (4.8 US qt, 4.0 Imp qt)

Without low washer fluid level
warning light

2.5 L (2.6 US qt, 2.2 Imp qt)

Fuel tank

2.3-liter engine

69.0 L (18.2 US gal, 15.2 Imp gal)

2.5-liter engine

62.0 L (16.4 US gal, 13.6 Imp gal)

Check oil and fluid levels with dipsticks or reservoir gauges.

qDimensions

Item

Vehicle specification

Overall length

With license plate holder

4,694 mm (184.8 in)

Without license plate holder

4,682 mm (184.3 in)

Overall width

1,872 mm (73.7 in)

Overall height

1,645 mm (64.8 in)

Front tread

17 inch

1,627 mm (64.1 in)

18 or 19 inch

1,617 mm (63.7 in)

Rear tread

17 inch

1,622 mm (63.9 in)

18 or 19 inch

1,612 mm (63.5 in)

Wheelbase

2,750 mm (108.3 in)

qWeights

2.3-liter engine

Item

Weight

2WD

AWD

GVWR (Gross Vehicle Weight Rating)

2,233 kg (4,923 lbs)

2,322 kg (5,119 lbs)

GAWR (Gross Axle Weight Rating)

Front

1,188 kg (2,619 lbs)

1,217 kg (2,683 lbs)

Rear

1,049 kg (2,313 lbs)

1,115 kg (2,458 lbs)

Specifications

10-5

CX-7_8CG3-EA-11J_Edition1 Page511
Saturday, September 24 2011 10:34 AM

Black plate (512,1)

2.5-liter engine

Item

Weight

GVWR (Gross Vehicle Weight Rating)

2,125 kg (4,685 lbs)

GAWR (Gross Axle Weight Rating)

Front

1,104 kg (2,434 lbs)

Rear

1,025 kg (2,260 lbs)

qAir Conditioner

Item

Classification

Refrigerant Type

HFC134a (R-134a)

qLight Bulbs

Exterior light

Light bulb

Category

Wattage

ECE R

Overhead lights (Front)/Map lights

W5W

Overhead light (Rear)

―

Luggage compartment light

―

Vanity mirror light

1.8

―

10-6

Some models.

Specifications

CX-7_8CG3-EA-11J_Edition1 Page512
Saturday, September 24 2011 10:34 AM

Black plate (513,1)

qTires

NOTE

The tires have been optimally matched with the chassis of your vehicle.
When replacing tires, Mazda recommends that you replace tires of the same type originally fitted to
your vehicle. For details, contact an Authorized Mazda Dealer.

Check the tire pressure label for tire size and inflation pressure.
Refer to Tire Inflation Pressure on page 8-37.

Standard tire

(U.S.A. and Canada)

Tire size

Inflation pressure

Front

Rear

P215/70R17 100H

220 kPa (32 psi)

P235/60R18 102H

220 kPa (32 psi)

P235/55R19 101H

220 kPa (32 psi)

(Except U.S.A. and Canada)

Tire size

Inflation pressure

Front

Rear

P215/70R17 100H

220 kPa (32 psi)

235/60R18 103H

220 kPa (32 psi)

Temporary spare tire

(U.S.A. and Canada)

Tire size

Inflation pressure

T155/90D18 103M

420 kPa (60 psi)

(Except U.S.A. and Canada)

Tire size

Inflation pressure

185/80R17 95M

250 kPa (36 psi)

qFuses

Refer to Fuses on page 8-49.

Specifications

10-7

CX-7_8CG3-EA-11J_Edition1 Page513
Saturday, September 24 2011 10:34 AM

Black plate (514,1)

Personalization Features

The following

“Personalization Features” are available. These settings can only be changed by an Authorized

Mazda Dealer.

Item

Feature

Factory Setting

Available Settings

Advanced keyless
entry

The advanced key's remaining battery level
warning light in the instrument cluster can be
deactivated

Activated

Deactivated

The beep sound which is heard when
locking/unlocking all doors or the liftgate can
be deactivated

Activated

Deactivated

The function to automatically lock the doors
when leaving the vehicle while carrying the key
can be activated

Deactivated

Activated

*1 When the autolock function is operating, the warning sound will be heard regardless of the setting.
*2 When the autolock function is enabled, windows will not automatically close. You must close them before

leaving vehicle.

10-8

Personalization Features

CX-7_8CG3-EA-11J_Edition1 Page514
Saturday, September 24 2011 10:34 AM
