Location of the Tire Label (Placard)

You will find the tire label containing tire inflation pressure by tire size and other important
information on the driver's side B-pillar or on the edge of the driver's door frame.

SAMPLE

qRecommended Tire Inflation Pressure

On the tire label you will find the recommended tire inflation pressure in both kPa and psi
for the tires installed as original equipment on the vehicle. It is very important that the
inflation pressure of the tires on your vehicle is maintained at the recommended pressure.
You should check the tire pressure regularly to insure that the proper inflation pressure is
maintained.
Refer to Tires on page 10-7.

NOTE

Tire pressures listed on the vehicle placard or tire information label indicate the recommended cold
tire inflation pressure, measured when the tires are cold, after the vehicle has been parked for at least
3 hours. As you drive, the temperature in the tire warms up, increasing the tire pressure.

9-30

Customer Information and Reporting Safety Defects

Tire Information (except Canada)

CX-7_8CG3-EA-11J_Edition1 Page488
Saturday, September 24 2011 10:34 AM

Black plate (489,1)

WARNING

Always check the tire inflation pressures on a regular basis according to the
recommended tire inflation pressure on the tire label and in conjunction with the
information in this owner's manual:

Driving your vehicle with under-inflated tires is dangerous.
Under-inflation is the most common cause of failures in any kind of tire and may
result in severe cracking, tread separation or

“blowout”, with unexpected loss of

vehicle control and increased risk of injury. Under-inflation increases sidewall flexing
and rolling resistance, resulting in heat buildup and internal damage to the tire. It
results in unnecessary tire stress, irregular wear, loss of control and accidents. A tire
can lose up to half of its air pressure and not appear to be flat!
It is impossible to determine whether or not tires are properly inflated just by looking
at them.

qChecking Tire Pressure

1. When you check the air pressure, make sure the tires are cold

―meaning they are not

hot from driving even a mile.

2. Remove the cap from the valve on one tire.

3. Firmly press a tire gauge onto the valve.

4. Add air to achieve recommended air pressure.

5. If you overfill the tire, release air by pushing on the metal stem in the center of the

valve. Then recheck the pressure with your tire gauge.

6. Replace the valve cap.

7. Repeat with each tire, including the spare.

NOTE

Some spare tires require higher inflation pressure.

8. Visually inspect the tires to make sure there are no nails or other objects embedded that

could poke a hole in the tire and cause an air leak.

9. Check the sidewalls to make sure there are no gouges, cuts, bulges, cracks or other

irregularities.

NOTE

Warm tires normally exceed recommended pressures. Don't release air from warm tires to adjust the
pressure.
Under-inflation can cause serious failures and accidents.
Over-inflation can produce a harsh ride and the greater possibility of damage from road hazards.

Customer Information and Reporting Safety Defects

Tire Information (except Canada)

9-31

CX-7_8CG3-EA-11J_Edition1 Page489
Saturday, September 24 2011 10:34 AM

Black plate (490,1)

qGlossary of Terms

Tire Placard: A label indicating the OE tire sizes, recommended inflation pressure, and
the maximum weight the vehicle can carry.
Tire Identification Number (TIN): A number on the sidewall of each tire providing
information about the tire brand and manufacturing plant, tire size, and date of
manufacture.
Inflation Pressure: A measure of the amount of air in a tire.
kPa: Kilopascal, the metric unit for air pressure.
psi: Pounds per square inch, the English unit for air pressure.
B-pillar: The structural member at the side of the vehicle behind the front door.
Original Equipment (OE): Describes components originally equipped on the vehicle.
Vehicle Load Limit: The maximum value of the combination weight of occupants and
cargo.
Bead Area of the Tire: Area of the tire next to the rim.
Sidewall Area of the Tire: Area between the bead area and the tread.
Tread Area of the Tire: Area on the perimeter of the tire that contacts the road when it's
mounted on the vehicle.

Seating capacity means the total allowable number of vehicle occupants. Seating capacity
is described on the tire label.

Production options weight is the combination weight of installed regular production
options weighing over 2.3 kilograms in excess of the standard items which they replace,
and not previously considered in the curb weight or accessory weight, including heavy
duty brakes, ride levelers, roof rack, heavy duty battery, and special trim.

Rim is the metal support (wheel) for a tire or a tire and tube assembly upon which the tire
beads are seated.

9-32

Customer Information and Reporting Safety Defects

Tire Information (except Canada)

CX-7_8CG3-EA-11J_Edition1 Page490
Saturday, September 24 2011 10:34 AM

Black plate (491,1)

Tire Maintenance

Improper or inadequate vehicle maintenance can cause tires to wear abnormally. Here are
some important maintenance points:

qTire Inflation Pressure

Inspect all tire pressure monthly (including the spare) when the tires are cold. Maintain
recommended pressures for the best ride, top handling, and minimum tire wear. Use the
pressures specified on the vehicle tire information placard or tire label for optimum service.

qTire Rotation

To equalize tread wear, rotate the tires every 12,000 km (7,500 miles) or sooner if irregular
wear develops. During rotation, inspect them for correct balance.

Do not include (TEMPORARY USE ONLY)
spare tire in rotation.

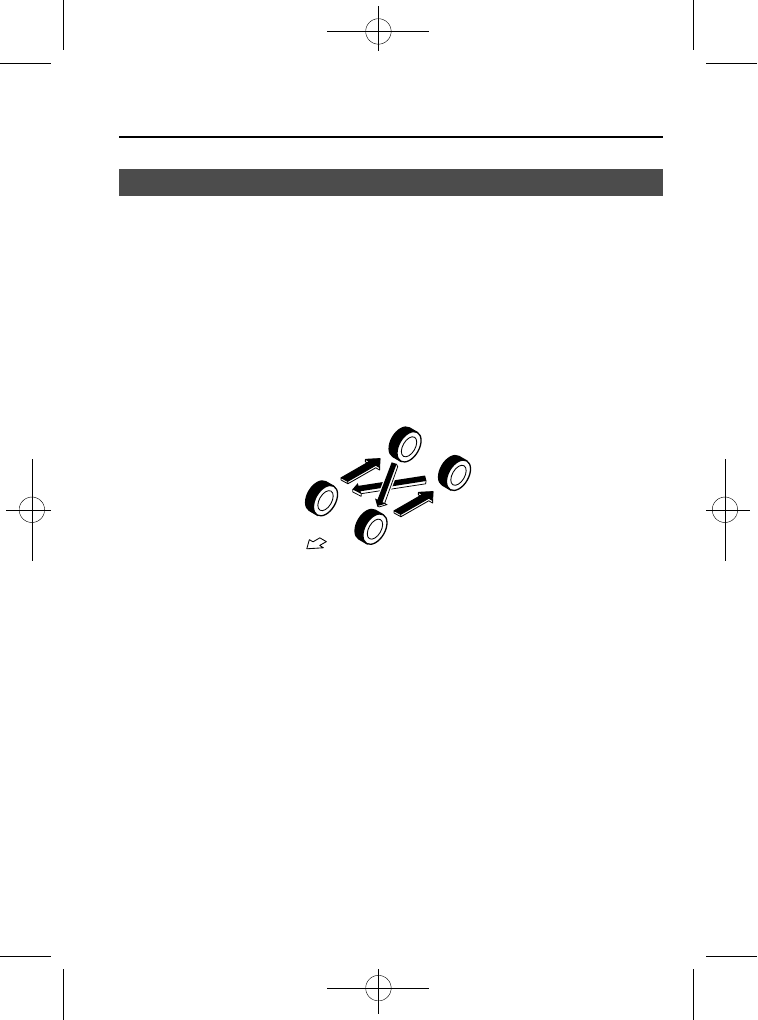

Forward

Inspect the tires for uneven wear and damage. Abnormal wear is usually caused by one or a
combination of the following:

Incorrect tire pressure

Improper wheel alignment

Out-of-balance wheel

Severe braking

After rotation, inflate all tire pressures to specification (page 10-7) and inspect the lug nuts
for tightness.

Customer Information and Reporting Safety Defects

Tire Information (except Canada)

9-33

CX-7_8CG3-EA-11J_Edition1 Page491
Saturday, September 24 2011 10:34 AM

Black plate (492,1)

CAUTION

Rotate unidirectional tires and radial tires that have an asymmetrical tread pattern
or studs only from front to rear, not from side to side. Tire performance will be
weakened if rotated from side to side.

(With limited-slip differential)
Don't use the following:

Ø Tires not of the designated size

Ø Tires of different sizes or types at the same time

Ø Tires not sufficiently inflated

If these instructions aren't followed, the rotation of the left and right wheels will be
different and will thus apply a constant load on the limited-slip differential.
This will cause a malfunction.

qReplacing a Tire

WARNING

Always use tires that are in good condition:

Driving with worn tires is dangerous. Reduced braking, steering, and traction could
result in an accident.

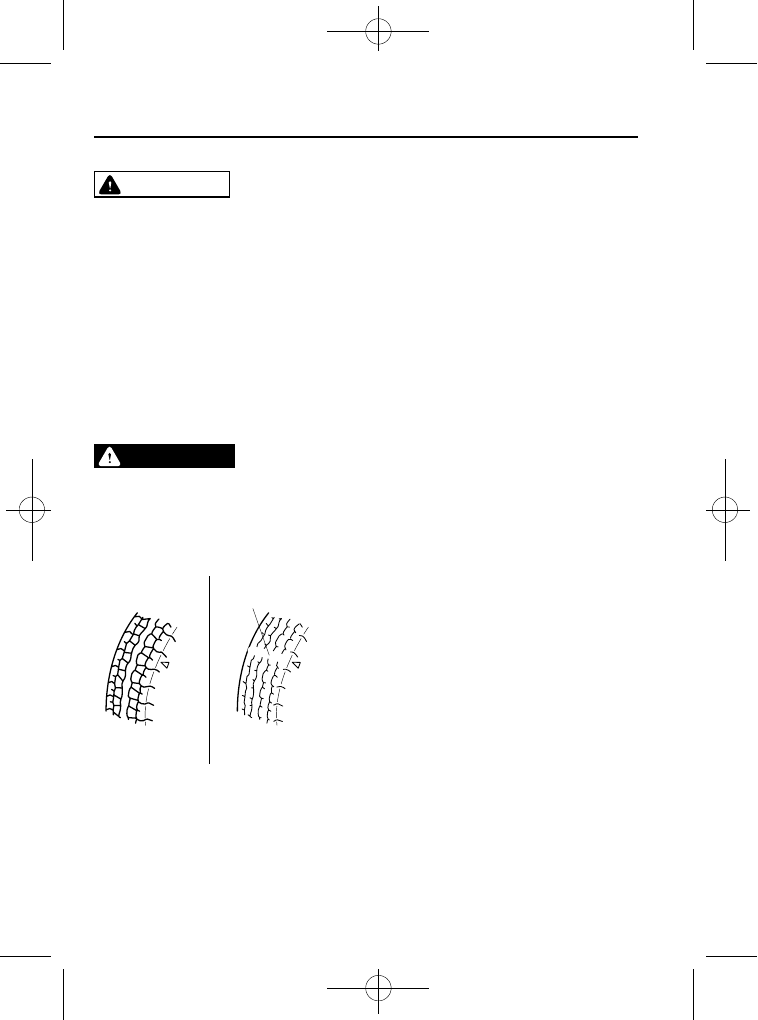

If a tire wears evenly, a wear indicator will appear as a solid band across the tread.
Replace the tire when this happens.

New tread

Tread wear indicator

Worn tread

You should replace the tire before the band crosses the entire tread.

9-34

Customer Information and Reporting Safety Defects

Tire Information (except Canada)

CX-7_8CG3-EA-11J_Edition1 Page492
Saturday, September 24 2011 10:34 AM

Black plate (493,1)

NOTE

Tires degrade over time, even when they are not being used on the road. It is recommended that tires
generally be replaced when they are 6 years or older. Heat caused by hot climates or frequent high
loading conditions can accelerate the aging process. You should replace the spare tire when you
replace the other road tires due to the aging of the spare tire. The period in which the tire was
manufactured (both week and year) is indicated by a 4-digit number.
Refer to Tire Labeling on page 9-24.

qSafety Practices

The way you drive has a great deal to do with your tire mileage and safety. So cultivate
good driving habits for your own benefit.

Observe posted speed limits

Avoid fast starts, stops and turns

Avoid potholes and objects on the road

Do not run over curbs or hit the tire against the curb when parking

CAUTION

If you feel a sudden vibration or ride disturbance while driving or you suspect your
tire or vehicle has been damaged, immediately reduce your speed. Drive with caution
until you can safely pull off the road. Stop and inspect the tire for damage. If the tire
is under-inflated or damaged, deflate it, remove the tire and rim and replace it with
your spare tire. If you cannot detect a cause, have the vehicle towed to the nearest
vehicle or tire dealer to have the vehicle inspected.

Customer Information and Reporting Safety Defects

Tire Information (except Canada)

9-35

CX-7_8CG3-EA-11J_Edition1 Page493
Saturday, September 24 2011 10:34 AM

Black plate (494,1)

Vehicle Loading

This section will guide you in the proper loading of your vehicle and/or trailer, to keep
your loaded vehicle weight within its design rating capability, with or without a trailer.
Properly loading your vehicle will provide maximum return of vehicle design performance.
Before loading your vehicle, familiarize yourself with the following terms for determining
your vehicle's weight ratings, with or without a trailer, from the vehicle's Safety
Certification Label and Tire and Load Information Label:

WARNING

Overloaded Vehicle:

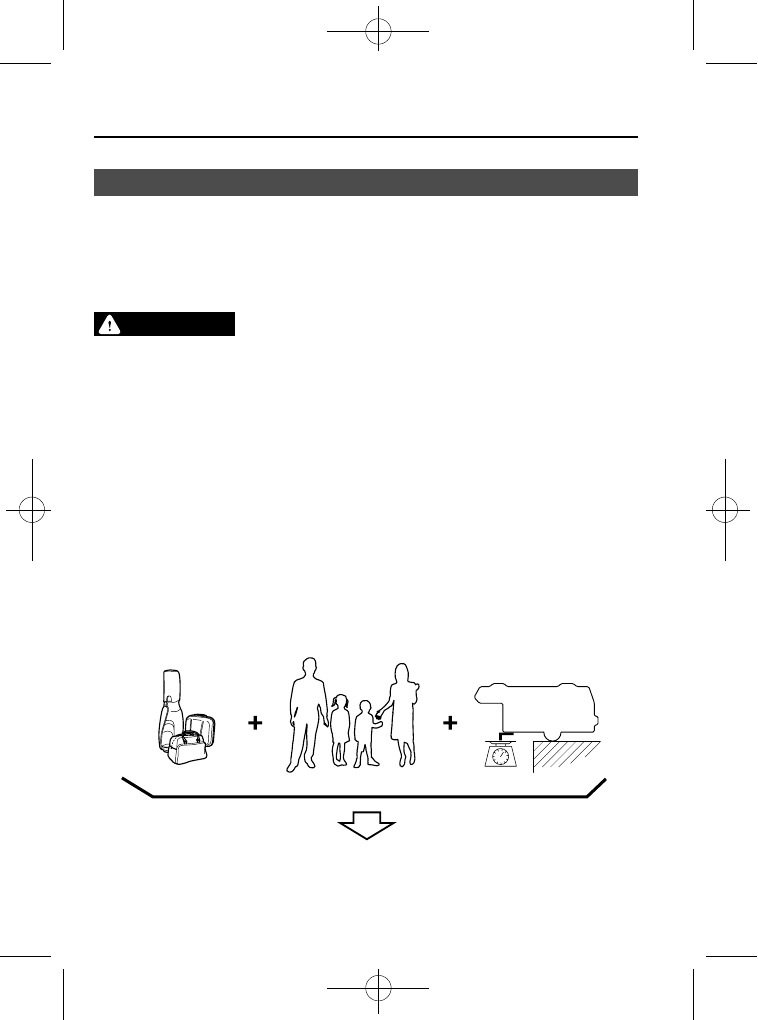

Overloading a vehicle is dangerous. The results of overloading can have serious
consequences in terms of passenger safety. Too much weight on a vehicle's
suspension system can cause spring or shock absorber failure, brake failure,
handling or steering problems, irregular tire wear, tire failure or other damage.
Overloading makes a vehicle harder to drive and control. It also increases the
distance required for stopping. In cases of serious overloading, brakes can fail
completely, particularly on steep grades. The load a tire will carry safely is a
combination of the size of the tire, its load range, and corresponding inflation
pressure.
Never overload the vehicle and always observe the vehicle's weight ratings from the
vehicle's Safety Certification and Tire and Load Information labels.

Base Curb Weight is the weight of the vehicle including a full tank of fuel and all
standard equipment. It does not include passengers, cargo, or optional equipment.

Vehicle Curb Weight is the weight of your new vehicle when you picked it up from your
dealer plus any aftermarket equipment.

PAYLOAD

9-36

Customer Information and Reporting Safety Defects

Tire Information (except Canada)

CX-7_8CG3-EA-11J_Edition1 Page494
Saturday, September 24 2011 10:34 AM

Black plate (495,1)

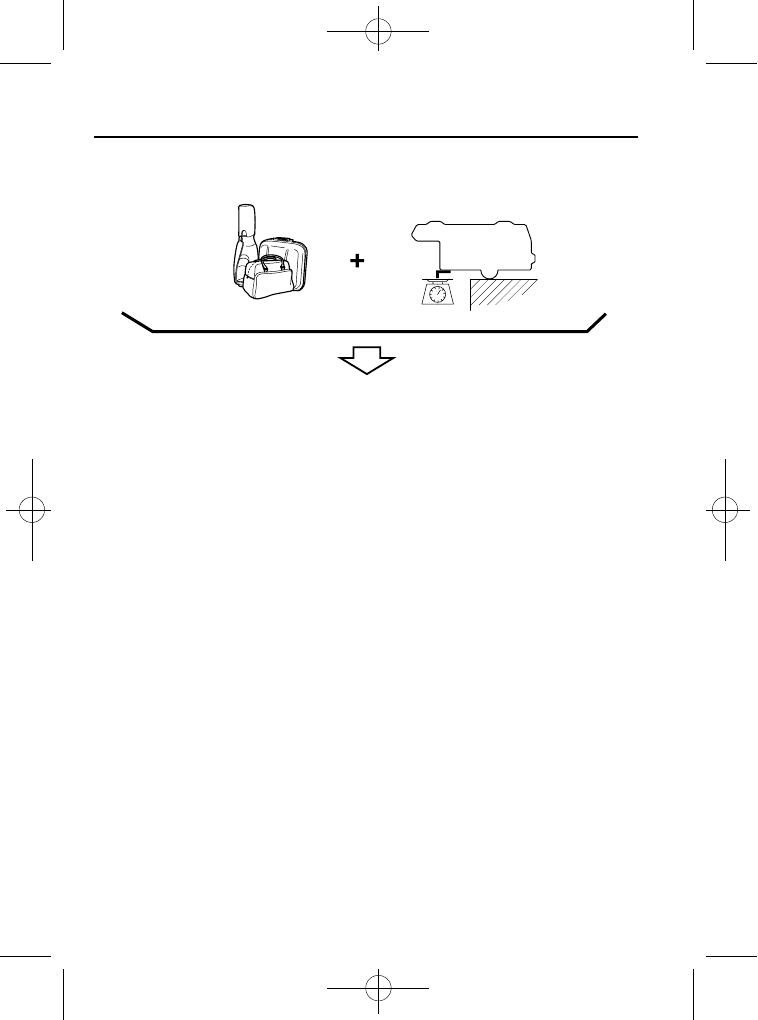

Payload is the combination weight of cargo and passengers that the vehicle is designed to
carry. The maximum payload for your vehicle can be found on the Tire and Load
Information label on the driver's door frame or door pillar. Look for

“THE

COMBINATION WEIGHT OF OCCUPANTS AND CARGO SHOULD NEVER
EXCEED XXX kg or XXX lbs

” for your maximum payload. The payload listed on the tire

label is the maximum payload for the vehicle as built by the assembly plant. If any
aftermarket or dealer installed equipment has been installed on the vehicle, the weight of
the equipment must be subtracted from the payload listed on the tire label in order to be
accurate.

SAMPLE

Customer Information and Reporting Safety Defects

Tire Information (except Canada)

9-37

CX-7_8CG3-EA-11J_Edition1 Page495
Saturday, September 24 2011 10:34 AM

Black plate (496,1)

CARGO

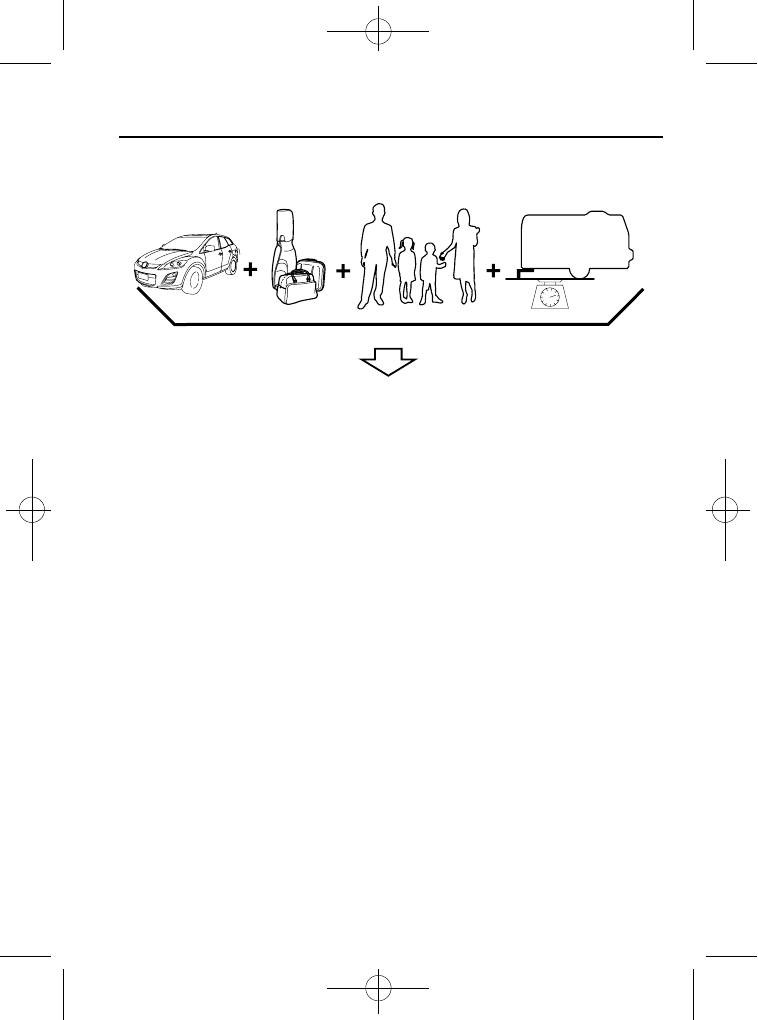

Cargo Weight includes all weight added to the Base Curb Weight, including cargo and
optional equipment. When towing, trailer tongue load or king pin weight is also part of
cargo weight.

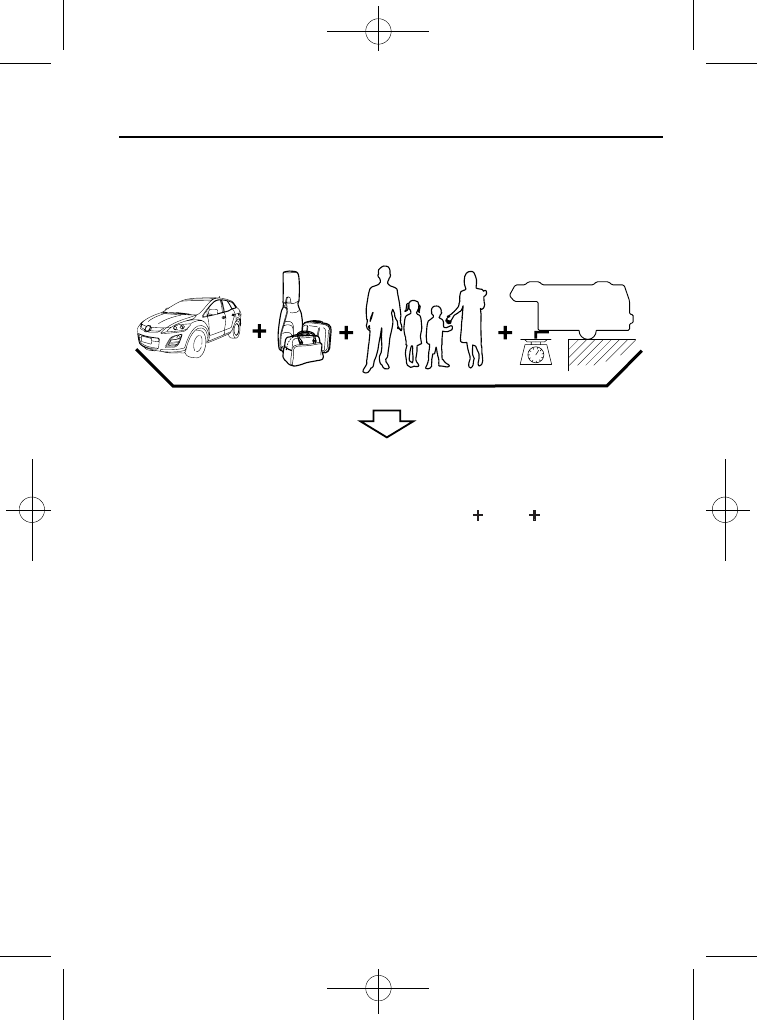

The cargo weight limit decreases depending on the number of vehicle occupants. The cargo
weight limit can be calculated by subtracting the total weight of the vehicle occupants from
the

“combination weight of occupants and cargo should never exceed” value on the tire

label.

Examples: Based on a single occupant weight of 68 kg (150 lbs), and a value of 385 kg
(849 lbs) for the

“combination weight of occupants and cargo should never exceed”:

The cargo weight limit with one occupant is 385 kg (849 lbs)

68 kg (150 lbs) = 317 kg

(699 lbs)
The cargo weight limit with two occupants is 385 kg (849 lbs) _ (68 × 2) kg ( (150 × 2)
lbs) = 249 kg (549 lbs)
If the weight of the occupant increases, the cargo weight limit decreases by that much.

GAW (Gross Axle Weight) is the total weight placed on each axle (front and rear) -
including vehicle curb weight and all payload.

9-38

Customer Information and Reporting Safety Defects

Tire Information (except Canada)

CX-7_8CG3-EA-11J_Edition1 Page496
Saturday, September 24 2011 10:34 AM

Black plate (497,1)

GAWR (Gross Axle Weight Rating) is the maximum allowable weight that can be carried
by a single axle (front or rear). These numbers are shown on the Safety Compliance
Certification Label located on the driver's door frame or door pillar. The total load on
each axle must never exceed its GAWR.

GVW

GVW (Gross Vehicle Weight) is the Vehicle Curb Weight

cargo

passengers.

GVWR (Gross Vehicle Weight Rating) is the maximum allowable weight of the fully
loaded vehicle (including all options, equipment, passengers and cargo). The GVWR is
shown on the Safety Compliance Certification Label located on the driver's door
frame or door pillar. The GVW must never exceed the GVWR.

Customer Information and Reporting Safety Defects

Tire Information (except Canada)

9-39

CX-7_8CG3-EA-11J_Edition1 Page497
Saturday, September 24 2011 10:34 AM

Black plate (498,1)

SAMPLE

WARNING

Exceeding Axle Weight Rating Limits:

Exceeding the Safety Certification Label axle weight rating limits is dangerous and
could result in death or serious injury as a result of substandard vehicle handling,
performance, engine, transmission and/or structural damage, serious damage to the
vehicle, or loss of control.
Always keep the vehicle within the axle weight rating limits.

Do not tow a trailer with this vehicle:

Towing a trailer with this vehicle is dangerous because it has not been designed to
tow a trailer and doing so will affect the drive system which could result in vehicle
damage.

9-40

Customer Information and Reporting Safety Defects

Tire Information (except Canada)

CX-7_8CG3-EA-11J_Edition1 Page498
Saturday, September 24 2011 10:34 AM

Black plate (499,1)

GCW

GCW (Gross Combination Weight) is the weight of the loaded vehicle (GVW) plus the
weight of the fully loaded trailer.

GCWR (Gross Combination Weight Rating) is the maximum allowable weight of the
vehicle and the loaded trailer - including all cargo and passengers - that the vehicle can
handle without risking damage. (Important: The towing vehicle's braking system is rated
for operation at GVWR, not at GCWR. Separate functional brakes should be used for safe
control of towed vehicles and for trailers weighing more than 1,500 lbs). The GCW must
never exceed the GCWR.

Maximum Loaded Trailer Weight is the highest possible weight of a fully loaded trailer
the vehicle can tow. It assumes a vehicle with only mandatory options, no cargo (internal or
external), a tongue load of 10_15% (conventional trailer) or king pin weight of 15_25%
(fifth-wheel trailer), and driver only (150 lbs). Consult your dealership (or the RV and
Trailer Towing Guide provided by your dealership) for more detailed information.
Tongue Load or Fifth-Wheel King Pin Weight refers to the amount of the weight that a
trailer pushes down on a trailer hitch.

Examples: For a 5000 lb conventional trailer, multiply 5000 by 0.10 and 0.15 to obtain a
proper tongue load range of 500 to 750 lbs. For an 11,500 lb fifth-wheel trailer, multiply by
0.15 and 0.25 to obtain a proper king pin load range of 1,725 to 2,875 lbs.

Customer Information and Reporting Safety Defects

Tire Information (except Canada)

9-41

CX-7_8CG3-EA-11J_Edition1 Page499
Saturday, September 24 2011 10:34 AM

Black plate (500,1)

WARNING

Exceeding GVWR or GAWR Specifications:

Exceeding the GVWR or the GAWR specified on the certification label is dangerous.
Exceeding any vehicle rating limitation could result in a serious accident, injury, or
damage to the vehicle.
Do not use replacement tires with lower load carrying capacities than the originals
because they may lower the vehicle's GVWR and GAWR limitations. Replacement
tires with a higher limit than the originals do not increase the GVWR and GAWR
limitations.
Never exceed the GVWR or the GAWR specified on the certification label.

9-42

Customer Information and Reporting Safety Defects

Tire Information (except Canada)

CX-7_8CG3-EA-11J_Edition1 Page500
Saturday, September 24 2011 10:34 AM

Black plate (501,1)

Steps for Determining the Correct Load Limit:

Steps for Determining Correct Load Limit:
(1) Locate the statement

“The combined weight of occupants and cargo should

never exceed XXX kg or XXX lbs

” on your vehicle's placard.

(2) Determine the combined weight of the driver and passengers that will be

riding in your vehicle.

(3) Subtract the combined weight of the driver and passengers from XXX kg

or XXX lbs.

(4) The resulting figure equals the available amount of cargo and luggage load

capacity. For example, if the

“XXX” amount equals 1400 lbs. and there

will be five 150 lb passengers in your vehicle, the amount of available
cargo and luggage load capacity is 650 lbs. (1400 _ 750 (5 × 150) = 650
lbs.)

(5) Determine the combined weight of luggage and cargo being loaded on the

vehicle. That weight may not safely exceed the available cargo and luggage
load capacity calculated in Step 4.

(6) If your vehicle will be towing a trailer, the load from your trailer will be

transferred to your vehicle. Consult this manual to determine how this
reduces the available cargo and luggage load capacity of your vehicle.

Customer Information and Reporting Safety Defects

Tire Information (except Canada)

9-43

CX-7_8CG3-EA-11J_Edition1 Page501
Saturday, September 24 2011 10:34 AM

Black plate (502,1)

Reporting Safety Defects (U.S.A.)

If you believe that your vehicle has a defect which could cause a crash or could
cause injury or death, you should immediately inform the National Highway
Traffic Safety Administration (NHTSA) in addition to notifying Mazda Motor
Corporation (Your Mazda Importer/Distributor).

If NHTSA receives similar complaints, it may open an investigation, and if it
finds that a safety defect exists in a group of vehicles, it may order a recall and
remedy campaign. However, NHTSA cannot become involved in individual
problems between you, your dealer, or Mazda Motor Corporation (Your Mazda
Importer/Distributor).

To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888-
327-4236 (TTY:1-800-424-9153) ; go to http://www.safercar.gov; or write to:
Administrator, NHTSA, 1200 New Jersey Avenue, SE., Washington, DC,
20590. You can also obtain other information about motor vehicle safety from
http://www.safercar.gov.

NOTE

If you live in the U.S.A., all correspondence to Mazda Motor Corporation should be forwarded to:

Mazda North American Operations
7755 Irvine Center Drive
Irvine, California 92618-2922
or
P.O. Box 19734
Irvine, CA 92623-9734
Customer Assistance Center or toll free at 1 (800) 222-5500

If you live outside of the U.S.A., please contact the nearest Mazda Distributor shown (page 9-13) in
this booklet.

9-44

Customer Information and Reporting Safety Defects

Reporting Safety Defects

CX-7_8CG3-EA-11J_Edition1 Page502
Saturday, September 24 2011 10:34 AM

Black plate (503,1)

Reporting Safety Defects (Canada)

Canadian customers who wish to report a safety-related defect to Transport Canada, Defect
Investigations and Recalls, may telephone the toll free hotline 1-800-333-0510, or contact
Transport Canada by mail at: Transport Canada, ASFAD, Place de Ville Tower C, 330
Sparks Street, Ottawa ON K1A 0N5.

For additional road safety information, please visit the Road Safety website at:
http://www.tc.gc.ca/roadsafety/menu.htm

Customer Information and Reporting Safety Defects

Reporting Safety Defects

9-45

CX-7_8CG3-EA-11J_Edition1 Page503
Saturday, September 24 2011 10:34 AM

Content .. 29 30 31 32 ..
