Mazda CX-7 (2012 year). Manual - part 30

Black plate (472,1)

Triple J Saipan, Inc.

(d.b.a. Triple J Motors)

P.O. Box 500487 Saipan, MP 96950-0487
TEL: (670) 234-7133/3051

qAMERICAN SAMOA

Polynesia Motors, Inc.
P.O. Box 1120, Pago Pago, American
Samoa 96799
TEL: (684) 699-9347

9-14

Customer Information and Reporting Safety Defects

Mazda Importer/Distributors

CX-7_8CG3-EA-11J_Edition1 Page472
Saturday, September 24 2011 10:34 AM

Black plate (473,1)

Warranties for Your Mazda

New Vehicle Limited Warranty

Powertrain Limited Warranty

Safety Restraint System Limited Warranty

Anti-perforation Limited Warranty

Federal Emission Control Warranty/California Emission Control Warranty

Emission Defect Warranty

Emission Performance Warranty

Emission Control Warranty

Replacement Parts and Accessories Limited Warranty

Tire Warranty

NOTE

Warranty information varies depending on the country. Refer to the Warranty Booklet for detailed
warranty information.

Customer Information and Reporting Safety Defects

Warranty

9-15

CX-7_8CG3-EA-11J_Edition1 Page473
Saturday, September 24 2011 10:34 AM

Black plate (474,1)

Outside the United States and Canada

Government regulations in the United States and Canada require that automobiles meet
specific emission regulations and safety standards. Therefore, vehicles built for use in the
United States, its territories, and Canada may differ from those sold in other countries.

Recommended fuel may be unavailable. Any kind of leaded fuel or low-octane fuel will
affect vehicle performance and damage the emission controls and engine.

Proper repair facilities, tools, testing equipment, and replacement parts may not be
available.

The Mazda warranty applies only to Mazda vehicles registered and normally operated in
the United States, its territories, and Canada.

9-16

Customer Information and Reporting Safety Defects

Warranty

CX-7_8CG3-EA-11J_Edition1 Page474
Saturday, September 24 2011 10:34 AM

Black plate (475,1)

Outside the United States

Government regulations in the United States require that automobiles meet specific
emission regulations and safety standards. Therefore, vehicles built for use in the United
States may differ from those sold in other countries.

The differences may make it difficult or even impossible for your vehicle to receive
satisfactory servicing in other countries. We strongly recommend that you NOT take your
Mazda outside the United States. However, in the event that you are moving to Canada
permanently, Mazda vehicles built for use in the United States could be eligible for
exportation to Canada with specific vehicle modifications to comply with the Canadian
Motor Vehicle Safety Standards (CMVSS).

NOTE

The above is applicable for a permanent import/export situation and not related to travelers on
vacation.

You may have the following problems if you do take your vehicle outside of the United
States:

Recommended fuel may be unavailable. Any kind of leaded fuel or low-octane fuel will
affect vehicle performance and damage the emission controls and engine.

Proper repair facilities, tools, testing equipment, and replacement parts may not be
available.

Please refer to your Manufacturer's Warranty Booklet for more information.

Customer Information and Reporting Safety Defects

Warranty

9-17

CX-7_8CG3-EA-11J_Edition1 Page475
Saturday, September 24 2011 10:34 AM

Black plate (476,1)

Outside Canada

Government regulations in Canada require that automobiles meet specific emission
regulations and safety regulations. Therefore, vehicles built for use in Canada may differ
from those sold in other countries.

The differences may make it difficult or even impossible for your vehicle to receive
satisfactory servicing in other countries. We strongly recommend that you NOT take your
Mazda outside Canada. However, in the event that you are moving to the United States
permanently, Mazda vehicles built for use in Canada could be eligible for exportation to the
United States with specific vehicle modifications to comply with the United States Federal
Motor Vehicle Safety Standards (FMVSS).

NOTE

The above is applicable for a permanent import/export situation and not related to travelers on
vacation.

You may have the following problems if you do take your vehicle outside of Canada:

Recommended fuel may be unavailable. Any kind of leaded fuel or low-octane fuel will
affect vehicle performance and damage the emission controls and engine.

Proper repair facilities, tools, testing equipment, and replacement parts may not be
available.

Please refer to your Manufacturer's Warranty Booklet for more information.

9-18

Customer Information and Reporting Safety Defects

Warranty

CX-7_8CG3-EA-11J_Edition1 Page476
Saturday, September 24 2011 10:34 AM

Black plate (477,1)

Registering Your Vehicle in A Foreign Country (Except
United States and Canada)

Registering your vehicle in a foreign country may be problematic depending on whether it
meets the specific emission and safety standards of the country in which the vehicle will be
driven. Consequently, your vehicle may require modifications at personal expense in order
to meet the regulations.
In addition, you should be aware of the following issues:
Satisfactory vehicle servicing may be difficult or impossible in another country.

The fuel specified for your vehicle may be unavailable.

Parts, servicing techniques, and tools necessary to maintain and repair your vehicle may be
unavailable.

There might not be an Authorized Mazda Dealer in the country you plan to take your
vehicle.

The Mazda warranty is valid only in certain countries.

Customer Information and Reporting Safety Defects

Warranty

9-19

CX-7_8CG3-EA-11J_Edition1 Page477
Saturday, September 24 2011 10:34 AM

Black plate (478,1)

Add-On Non-Genuine Parts and Accessories

Non-genuine parts and accessories for Mazda vehicles can be found in stores.
These may fit your vehicle, but they are not approved by Mazda for use with Mazda
vehicles. When you install non-genuine parts or accessories, they could affect your
vehicle's performance or safety systems; the Mazda warranty doesn't cover this. Before you
install any non-genuine parts or accessories, consult an Authorized Mazda Dealer.

WARNING

Always consult an Authorized Mazda Dealer before you install non-genuine parts or
accessories:

Installation of non-genuine parts or accessories is dangerous. Improperly designed
parts or accessories could seriously affect your vehicle's performance or safety
systems. This could cause you to have an accident or increase your chances of
injuries in an accident.

Be very careful in choosing and installing add-on electrical equipment, such as
mobile telephones, two-way radios, stereo systems, and car alarm systems:

Incorrectly choosing or installing improper add-on equipment or choosing an
improper installer is dangerous. Essential systems could be damaged, causing engine
stalling, air-bag (SRS) activation, ABS/TCS/DSC inactivation, or a fire in the vehicle.

Mazda assumes no responsibility for death, injury, or expenses that may result from the
installation of add-on non-genuine parts or accessories.

9-20

Customer Information and Reporting Safety Defects

Warranty

CX-7_8CG3-EA-11J_Edition1 Page478
Saturday, September 24 2011 10:34 AM

Black plate (479,1)

Cell Phones Warning

WARNING

Please comply with the legal regulations concerning the use of communication
equipment in vehicles in your State or Province:

Use of any electrical devices such as cell phones, computers, portable radios, vehicle
navigation or other devices by the driver while the vehicle is moving is dangerous.
Dialing a number on a cell phone while driving also ties-up the driver's hands. Use of
these devices will cause the driver to be distracted and could lead to a serious
accident. If a passenger is unable to use the device, pull off the right-of-way to a safe
area before use. If use of a cell phone is necessary despite this warning, use a hands-
free system to at least leave the hands free to drive the vehicle. Never use a cell
phone or other electrical devices while the vehicle is moving and, instead,
concentrate on the full-time job of driving.

Customer Information and Reporting Safety Defects

Cell Phones

9-21

CX-7_8CG3-EA-11J_Edition1 Page479
Saturday, September 24 2011 10:34 AM

Black plate (480,1)

Uniform Tire Quality Grading System (UTQGS)

This information relates to the tire grading system developed by the U.S. National
Highway Traffic Safety Administration for grading tires by tread wear, traction, and
temperature performance.

qTread Wear

The tread wear grade is a comparative rating based on the wear rate of the tire when tested
under controlled conditions on a specified government test course.
For example, a tire graded 150 would wear one-and-a-half times as well on the government
course as a tire graded 100.

The relative performance of tires depends upon the actual conditions of their use, however,
and may depart significantly from the norm because of variations in driving habits, service
practices and differences in road characteristics and climate.

qTraction-AA, A, B, C

The traction grades, from highest to lowest, are AA, A, B, and C. These grades represent
the tire's ability to stop on wet pavement as measured under controlled conditions on
specified government test surfaces of asphalt and concrete. A tire marked C may have poor
traction performance.

WARNING

The traction grade assigned to this tire is based on braking (straight ahead) traction
tests and does not include acceleration cornering (turning), hydroplaning, or peak
traction characteristics.

qTemperature-A, B, C

The temperature grades A (the highest), B, and C, represent the tire's resistance to the
generation of heat and its ability to dissipate heat when tested under controlled conditions
on a specified indoor laboratory test wheel.
Sustained high temperature can cause the material of the tire to degenerate and reduce tire
life, and excessive temperatures can lead to sudden tire failure.

Grade C corresponds to a level of performance which all passenger vehicle tires must meet
under the Federal Motor Vehicle Safety Standard No. 109. Grades B and A represent
higher levels of performance on the laboratory test wheel than the minimum required by
law.

9-22

Customer Information and Reporting Safety Defects

Uniform Tire Quality Grading System (UTQGS)

CX-7_8CG3-EA-11J_Edition1 Page480
Saturday, September 24 2011 10:34 AM

Black plate (481,1)

WARNING

Keep your vehicle's tires properly inflated and not overloaded:

Driving with improperly inflated or overloaded tires is dangerous. Excessive speed,
underinflation, or excessive loading, either separately or in combination, can cause
heat buildup and possible tire failure. The temperature grade for this tire is
established for a tire that is properly inflated and not overloaded.

These grades will be added to the sidewalls of passenger vehicle tires over the next several
years according to a schedule established by the NHTSA and the tire manufacturers.

The grade of tires available as standard or optional equipment on Mazda vehicles may vary
with respect to grade.

ALL PASSENGER VEHICLE TIRES MUST CONFORM TO THESE GRADES AND
TO ALL OTHER FEDERAL TIRE-SAFETY REQUIREMENTS.

qUniform Tire Quality Grading

Quality grades can be found where applicable on the tire sidewall between tread shoulder
and maximum section width.
For example:
Treadwear 200 Traction AA Temperature A

TREADWEAR 200 TRACTION AA

TEMPERATURE A

UTQGS MARK (example)

Customer Information and Reporting Safety Defects

Uniform Tire Quality Grading System (UTQGS)

9-23

CX-7_8CG3-EA-11J_Edition1 Page481
Saturday, September 24 2011 10:34 AM

Black plate (482,1)

Tire Labeling

Federal law requires tire manufacturers to place standardized information on the sidewall of
all tires. This information identifies and describes the fundamental characteristics of the tire
and also provides a tire identification number for safety standard certification and in case of
a recall.

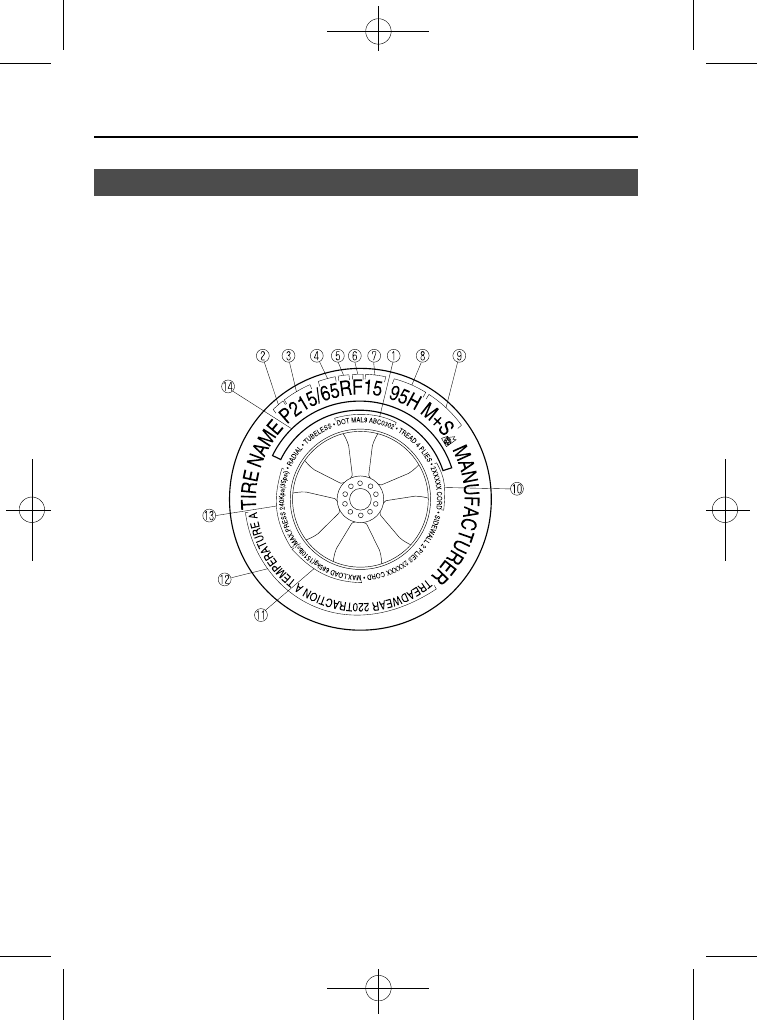

qInformation on Passenger Vehicle Tires

Please refer to the sample below.

1. TIN: U.S. DOT tire identification number

2. Passenger car tire

3. Nominal width of tire in millimeters

4. Ratio of height to width (aspect ratio)

5. Radial

6. Run-flat tire

7. Rim diameter code

8. Load index & speed symbol

9. Severe snow conditions

10. Tire ply composition and materials used

9-24

Customer Information and Reporting Safety Defects

Tire Information (except Canada)

CX-7_8CG3-EA-11J_Edition1 Page482
Saturday, September 24 2011 10:34 AM

Black plate (483,1)

11. Max. load rating

12. Tread wear, traction and temperature grades

13. Max. permissible inflation pressure

14. SAFETY WARNING

P215/65R15 95H is an example of a tire size and load index rating. Here is an explanation
of the various components of that tire size and load index rating. Note that the tire size and
load index rating may be different from the example.

Indicates a tire that may be installed on cars, SUVs, minivans and light trucks as designated
by the Tire and Rim Association (T&RA).

NOTE

If your tire size does not begin with a letter this may mean it is designated by either ETRTO
(European Tire and Rim Technical Organization) or JATMA (Japan Tire Manufacturing Association).

215
“215” is the nominal width of the tire in millimeters. This three-digit number gives the
width in millimeters of the tire from sidewall edge to sidewall edge. In general, the larger
the number, the wider the tire.

65
“65” is the aspect ratio. This two-digit number indicates the tire's ratio of height to width.

R
“R” is the tire construction symbol. R indicates “Radial ply construction”.

15
“15” is the wheel rim diameter in inches.

95
“95” is the Load Index. This two-or three-digit number indicates how much weight each
tire can support.

Customer Information and Reporting Safety Defects

Tire Information (except Canada)

9-25

CX-7_8CG3-EA-11J_Edition1 Page483
Saturday, September 24 2011 10:34 AM

Black plate (484,1)

H
“H” is the speed rating. The speed rating denotes the maximum speed for which the use of
the tire is rated.

Letter Rating

Speed Rating

99 mph

106 mph

112 mph

118 mph

124 mph

130 mph

149 mph

168

mph

186

mph

* For tires with a maximum speed capability over 149 mph, tire manufacturers sometimes use the letters ZR. For

tires with a maximum speed capability over 186 mph, tire manufacturers always use the letters ZR.

S or M/S: Mud and Snow

AT: All Terrain.
AS: All Season. The

“M S” or “M/S” indicates that the tire has some functional use in

mud and snow.

U.S. DOT Tire Identification Number (TIN)

This begins with the letters

“DOT” which indicates the tire meets all federal standards. The

next two numbers or letters are the plant code where it was manufactured, and the last four
numbers represent the week and year the tire was manufactured. For example, the numbers
457 means the 45st week of 1997. After 2000 the numbers go to four digits. For example,
the number 2102 means the 21th week of 2002. The other numbers are marketing codes
used at the manufacturer's discretion. This information is used to contact consumers if a tire
defect requires a recall.

Tire Ply Composition and Materials Used

The number of plies indicates the number of layers of rubber-coated fabric in the tire. In
general, the greater the number of plies, the more weight a tire can support. Tire
manufacturers also must indicate the tire materials, which include steel, nylon, polyester,
and other.

Maximum Load Rating

This number indicates the maximum load in kilograms and pounds that can be carried by
the tire.

Maximum Permissible Inflation Pressure

This number is the greatest amount of air pressure that should ever be put in the tire under
normal driving conditions.

9-26

Customer Information and Reporting Safety Defects

Tire Information (except Canada)

CX-7_8CG3-EA-11J_Edition1 Page484
Saturday, September 24 2011 10:34 AM

Black plate (485,1)

Tread Wear, Traction and Temperature Grades

Tread wear: The tread wear grade is a comparative rating based on the wear rate of the tire
when tested under controlled conditions on a specified government test course. For
example, a tire graded 150 would wear one and one-half (1 1/2) times as well on the
government course as a tire graded 100.
Traction: The traction grades, from highest to lowest are AA, A, B, and C. The grades
represent the tire's ability to stop on wet pavement as measured under controlled conditions
on specified government test surfaces of asphalt and concrete. A tire marked C may have
poor traction performance.
Temperature: The temperature grades are A (the highest), B and C, representing the tire's
resistance to the generation of heat and its ability to dissipate heat when tested under
controlled conditions on a specified indoor laboratory test wheel.

Snow Tires

In some heavy snow areas, local governments may require true snow tires, those with very
deeply cut tread. These tires should only be used in pairs or placed on all four wheels.
Make sure you purchase snow tires that are the same size and construction type as the other
tires on your vehicle.

SAFETY WARNING

The following safety warning appears on the tire's sidewall.
SERIOUS INJURY MAY RESULT FROM:

EXPLOSION OF TIRE/RIM ASSEMBLY DUE TO IMPROPER MOUNTING-
MATCH TIRE DIAMETER TO RIM DIAMETER; NEVER EXCEED 40 psi (275 kPa)
TO SEAT BEADS-ONLY SPECIALLY TRAINED PERSONS SHOULD MOUNT
TIRES.

TIRE FAILURE DUE TO UNDER-INFLATION/OVERLOADING/DAMAGE-
FOLLOW OWNER'S MANUAL AND PLACARD IN VEHICLE-FREQUENTLY
CHECK INFLATION PRESSURE AND INSPECT FOR DAMAGE.

Customer Information and Reporting Safety Defects

Tire Information (except Canada)

9-27

CX-7_8CG3-EA-11J_Edition1 Page485
Saturday, September 24 2011 10:34 AM

Black plate (486,1)

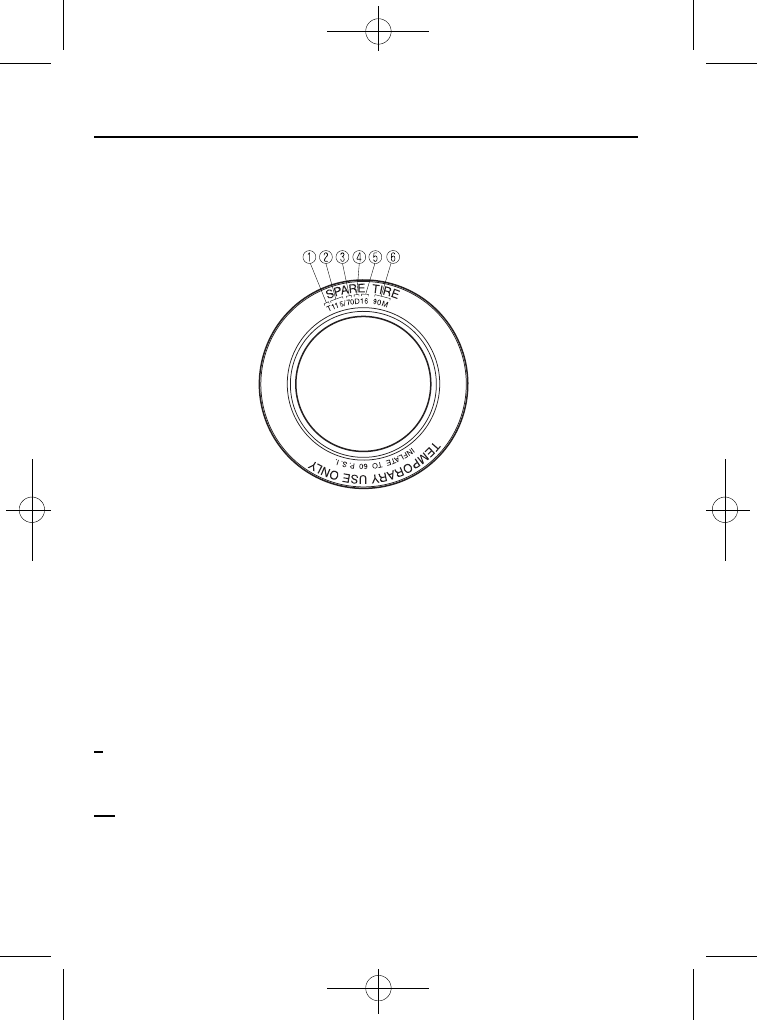

qInformation on Temporary Tires

Please refer to the sample below.

1. Temporary tires

2. Nominal width of tire in millimeters

3. Ratio of height to width (aspect ratio)

4. Diagonal

5. Rim diameter code

6. Load index & speed symbol

T115/70D 16 90M is an example of a tire size and load index rating. Here is an explanation
of the various components of that tire size and load index rating. Note that the tire size and
load index rating may be different from the example.

Indicates a tire that may be installed on cars, SUVs, minivans and light trucks as designated
by the Tire and Rim Association (T&RA).

115
“115” is the nominal width of the tire in millimeters. This three-digit number gives the
width in millimeters of the tire from sidewall edge to sidewall edge. In general, the larger
the number, the wider the tire.

9-28

Customer Information and Reporting Safety Defects

Tire Information (except Canada)

CX-7_8CG3-EA-11J_Edition1 Page486
Saturday, September 24 2011 10:34 AM

Black plate (487,1)

70
“70” is the aspect ratio. This two-digit number indicates the tire's ratio of height to width.

D
“D” is the tire construction symbol. D indicates “diagonal ply construction”.

16
“16” is the wheel rim diameter in inches.

90
“90” is the Load Index. This two-or three-digit number indicates how much weight each
tire can support.

M
“M” is the speed rating. The speed rating denotes the maximum speed for which the use of
the tire is rated.

Letter Rating

Speed Rating

81 mph

Customer Information and Reporting Safety Defects

Tire Information (except Canada)

9-29

CX-7_8CG3-EA-11J_Edition1 Page487
Saturday, September 24 2011 10:34 AM

Content .. 28 29 30 31 ..
