Maintenance
6. Maximum load rating
Tread wear
Traction - AA, A, B & C
This number indicates the maximum
The tread wear grade is a compara-
The traction grades, from highest to
load in kilograms and pounds that
tive rating based on the wear rate of
lowest, are AA, A, B and C. Those
can be carried by the tire. When
the tire when tested under controlled
grades represent the tire’s ability to
replacing the tires on the vehicle,
conditions on a specified govern-
stop on wet pavement as measured
always use a tire that has the same
ment test course. For example, a tire
under controlled conditions on spec-
load rating as the factory installed
graded 150 would wear one-and-a-
ified government test surfaces of
tire.
half times (1½) as well on the gov-
asphalt and concrete. A tire marked
ernment course as a tire graded 100.
C may have poor traction perform-
ance.
The relative performance of tires
7. Uniform tire quality grading
depends upon the actual conditions
Quality grades can be found where
of their use, however, and may
WARNING
applicable on the tire sidewall
depart significantly from the norm
between tread shoulder and maxi-
due to variations in driving habits,
The traction grade assigned to
mum section width.
service practices and differences in
this tire is based on straight-
For example:
road characteristics and climate.
ahead braking traction tests,
TREAD wear 200
and does not include accelera-
These grades are molded on the
tion, cornering, hydroplaning,
TRACTION AA
sidewalls of passenger vehicle tires.
or peak traction characteristics.
The tires available as standard or
TEMPERATURE A
optional equipment on your vehicle
may vary with respect to grade.
7-60
Temperature - A, B & C
Low aspect ratio tires
(Continued)
The temperature grades are A (the
A low aspect ratio tire, of which the
•
When there is an impact on a
highest), B and C representing the
aspect ratio is lower than
50, is
tire, inspect the tire condition.
tire’s resistance to the generation of
designed for a sporty-look vehicle.
Or, contact an authorized
heat and its ability to dissipate heat
The low aspect ratio is to optimize
HYUNDAI dealer.
when tested under controlled condi-
handling and braking. Thus, it may
tions on a specified indoor laboratory
•
Inspect the tire condition and
be uncomfortable to ride and it may
test wheel.
pressure every
3,000 km
generate noises, in comparison with
(1,800 miles) to prevent a tire
Sustained high temperature can
a normal tire.
damage.
cause the material of the tire to
•
It is difficult to recognize a tire
degenerate and reduce tire life, and
CAUTION
excessive temperature can lead to
damage only with your eyes.
When there is a slight hint of a
sudden tire failure. Grades B and A
The side wall of a low aspect
represent higher levels of perform-
ratio tire is shorter than the nor-
tire damage, check and replace
the tire to prevent the damage
ance on the laboratory test wheel
mal one. Thus, the low-aspect
than the minimum required by law.
wheel and tire are easily dam-
caused by air leakage.
aged. Follow the below instruc-
•
When a tire is damaged while
tions.
driving on a rough road, off a
WARNING
road, or over obstacles, such
• When driving on a rough road
or driving off a road, be care-
as a pothole, manhole, or curb
The temperature grade for this
stone, your warranty does not
7
tire is established for a tire that
ful not to damage the tires
and wheels. After driving,
cover the damage.
is properly inflated and not
overloaded. Excessive speed,
inspect the tires and wheels.
•
The tire information is speci-
under-inflation, over-inflation,
• When passing over a pothole,
fied on the tire side wall.
or excessive loading, either
speed bump, manhole, or
separately or in combination,
curb stone, slowly drive the
can cause heat build-up and
vehicle not to damage the
possible sudden tire failure.
tires and wheels.
This may cause loss of vehicle
(Continued)
control resulting in an accident.
7-61
Maintenance
FUSES
■ Blade type
A vehicle’s electrical system is pro-
i
Information
tected from electrical overload dam-
age by fuses.
Three kinds of fuses are used: blade
type for lower amperage rating, car-

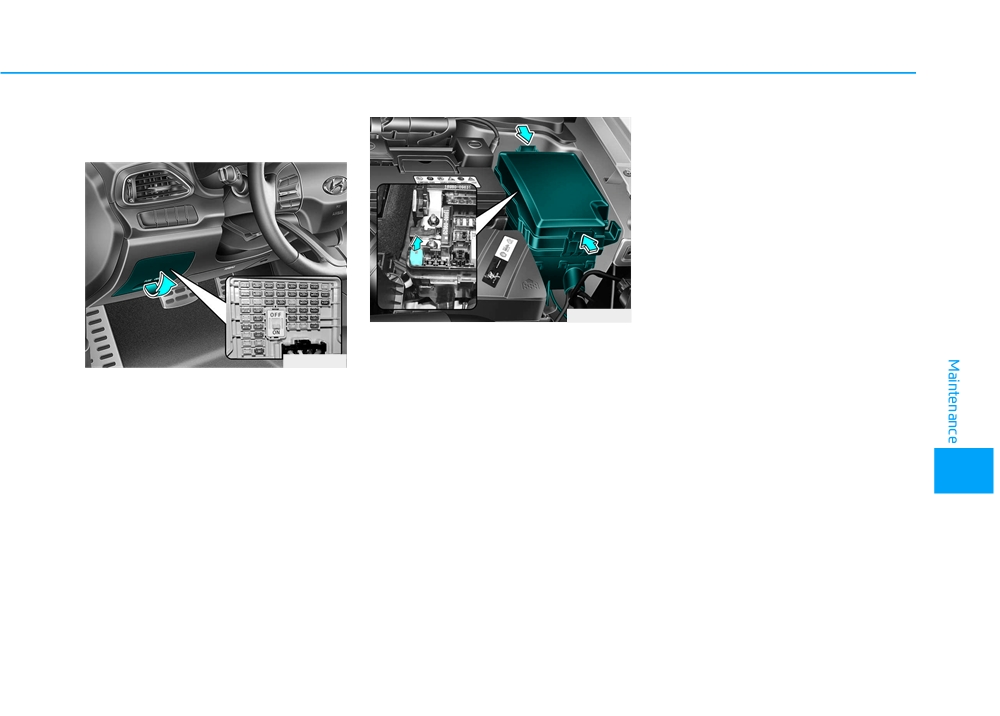

This vehicle has 2 (or 3) fuse panels,
tridge type, and multi fuse for higher
one located in the driver’s side panel
Normal
Blown
amperage ratings.
bolster, the other in the engine com-
■ Cartridge type
partment.
WARNING
If any of your vehicle’s lights, acces-
sories, or controls do not work, check
NEVER replace a fuse with any-
the appropriate circuit fuse. If a fuse
thing but another fuse of the
has blown, the element inside the
Normal
Blown
fuse will be melted or broken.
same rating.
■ Multi fuse
• A higher capacity fuse could
If the electrical system does not
cause damage and possibly
work, first check the driver’s side
cause a fire.
fuse panel. Before replacing a blown
fuse, turn the engine and all switches
• Do not install a wire or alu-
off, and then disconnect the negative
minum foil instead of the
battery cable. Always replace a
proper fuse - even as a tem-
Normal
Blown
blown fuse with one of the same rat-
porary repair. It may cause
ing.
extensive wiring damage and
possibly a fire.
If the replacement fuse blows, this indi-
cates an electrical problem. Avoid
using the system involved and immedi-
ately consult an authorized HYUNDAI
NOTICE
dealer.
Do not use a screwdriver or any
other metal object to remove
fuses because it may cause a
Normal
Blown
short circuit and damage the sys-
OLF074075
tem.
7-62
Instrument panel fuse replace-
In an emergency, if you do not have
ment
a spare fuse, use a fuse of the same
rating from a circuit you may not
need for operating the vehicle, such
as the cigarette lighter fuse.
If the headlamps or other electrical
components do not work and the
fuses are OK, check the fuse panel
in the engine compartment. If a fuse
is blown, it must be replaced with the
same rating.
OPD076035
5. Pull the suspected fuse straight
out. Use the removal tool provided
OPD076034
in the engine compartment fuses
1. Turn the vehicle off.
panel.
2. Turn all other switches OFF.
6. Check the removed fuse; replace it
3. Open the fuse panel cover.
if it is blown. Spare fuses are pro-
vided in the instrument panel fuse
4. Refer to the label on the inside of
panels (or in the engine compart-
the fuse panel cover to locate the
ment fuse panel).
7
suspected fuse location.
7. Push in a new fuse of the same
rating, and make sure it fits tightly
in the clips. If it fits loosely, consult
an authorized HYUNDAI dealer.
7-63
Maintenance
Fuse switch
Engine compartment panel
i
Information
fuse replacement
■ Blade type fuse
OPD076032
OPD076036
OPDE046119
■ Cartridge type fuse
Always, place the fuse switch to the
If the fuse switch is OFF, “Turn on
ON position.
FUSE SWITCH” message will appear.
If you move the switch to the OFF
position, some items such as the
NOTICE
audio system and digital clock must
be reset and the smart key may not
• Always place the fuse switch in
work properly.
the ON position while driving the
vehicle.
• Do not move the transportation
OPD076033
fuse switch repeatedly. The fuse
switch may be damaged.
1. Turn the vehicle off.
2. Turn all other switches OFF.
3. Remove the fuse panel cover by
pressing the tap and pulling up.
7-64
4. Check the removed fuse; replace it
Main fuse
Multi fuse
if it is blown. To remove or insert
the fuse, use the fuse puller in the
engine compartment fuse panel.
5. Push in a new fuse of the same
rating, and make sure it fits tightly
in the clips. If it fits loosely, consult
an authorized HYUNDAI dealer.
NOTICE
After checking the fuse panel in
the engine compartment, securely
OPD076030
OPD076031
install the fuse panel cover. You
may hear a clicking sound if the
The electronic system may not func-
If the multi fuse is blown, it must be
cover is securely latched. If it is
tion correctly even when the fuses
removed as follows:
located in the engine compartment
not securely latched, electrical
1. Turn the vehicle off.
and instrument panel are not discon-
failure may occur from water con-
2. Disconnect the negative battery
nected. In such case, the cause of
tact.
cable.
the problem may be disconnection of
the main fuse (BFT type), which is
3. Remove the fuse panel cover by
pressing the tab and pulling it up.
located inside the positive battery
7
terminal (+) cap. Since the main fuse
4. Remove the nuts shown in the pic-
is designed more intricately than
ture above.
other parts, we recommend you visit
5. Replace the fuse with a new one
the nearest HYUNDAI dealer.
of the same rating.
6. Reinstall in the reverse order of
i
Information
removal.
After inspection always securely
install the battery cap. If it is not
securely latched, electrical failure may
occur from water contact.
7-65
Maintenance

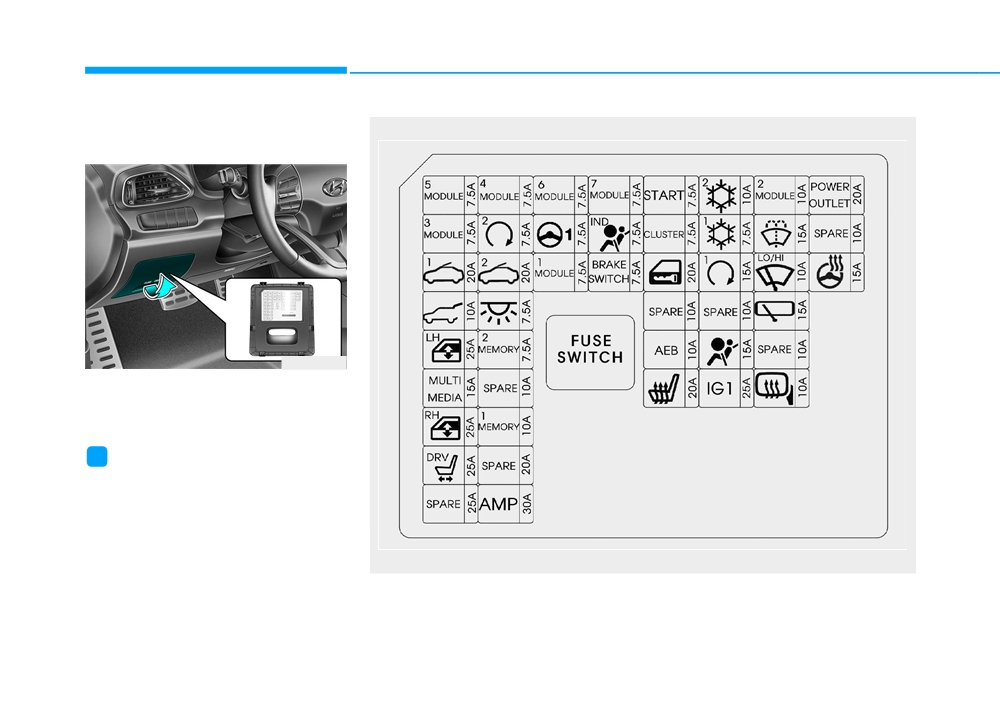

Fuse/Relay panel description
Driver’s side fuse panel
OPD076039
Inside the fuse/relay box covers, you
can find the fuse/relay label describ-
ing fuse/relay name and capacity.
i
Information
Not all fuse panel descriptions in this
manual may be applicable to your
vehicle. It is accurate at the time of
printing. When you inspect the fuse
box on your vehicle, refer to the fuse
box label.
OPDE076040
7-66
Driver's side fuse Panel
Fuse No.
Fuse Name
Symbol
Fuse Rating
Circuit Protected
Crash Pad Switch, Electro Chromic Mirror, MTS E-Call Module, Audio,
A/V & Navigation Head Unit, A/C Control Module, A/T Shift Lever Indicator,
5
F1
MODULE 5
MODULE
7.5A
Console Switch RH, DC-DC Converter, Head Lamp LH/RH, Active Air Flap Unit,
Auto Head Lamp Leveling Device Module, Front Seat Warmer Control Module,
Front Air Ventilation Seat Control Module, Driver IMS Module
3
F2
MODULE 3
MODULE
7.5A
Driver/Passenger Door Module, BCM, Sport Mode Switch
1
F3
SUNROOF 1
20A
Panorama Sunroof
F4
TAILGATE
10A
Tail Gate Relay
POWER
LH
Power Window LH Relay, Driver/Passenger Safety Window Module,
F5
25A
WINDOW LH
Rear Power Window Switch LH, Rear Safety Window Module LH
MULTI
F6
MULTIMEDIA
15A
Audio, A/V & Navigation Head Unit, DC-DC Converter
MEDIA
POWER
RH
Power Window RH Relay, Driver/Passenger Safety Window Module,
F7
25A
WINDOW RH
Rear Power Window Switch RH, Rear Safety Window Module RH
7
POWER
DRV
F8
25A
Driver Seat Manual Switch, Driver IMS Module
SEAT DRIVER
Lane Keeping Assist Module, Rear Parking Assist Buzzer, Stop Lamp Switch,
4
F10
MODULE 4
MODULE
7.5A
Blind Spot Detection Radar LH/RH, BCM, Electric Parking Brske Switch,
Autonomous Emergency Braking Module
2
F11
SMART KEY 2
SMART
7.5A
Smart Key Control Module, Immobilizer Module
KEY
2
F12
SUNROOF 2
20A
Panorama Sunroof
7-67
Maintenance
Driver's side fuse Panel
Fuse No.
Fuse Name
Symbol
Fuse Rating
Circuit Protected
Wireless Charger, Vanity Lamp LH/RH, Room Lamp, Overhead Console Lamp,
INTERIOR
F13
7.5A
Personal Lamp LH/RH, Rain Sensor, Ignition Key Ill. & Door Warning Switch,
LAMP
Glove Box Lamp, Luggage Lamp
2
F14
MEMORY 2
MEMORY
7.5A
MTS E-Call Module
Driver/Passenger Door Module, Driver IMS Module, BCM, A/C Control Module,
1
F16
MEMORY 1
MEMORY
10A
Instrument Cluster, Auto Light & Photo Sensor,
ICM Relay Box (Outside Mirror Folding/Unfolding Relay)
6
F19
MODULE 6
MODULE
7.5A
Smart Key Control Module, BCM
F20
MDPS
1
7.5A
MDPS Unit
Hazard Switch, Center Door Lock Switch, Active Air Flap Unit,
1
F21
MODULE 1
MODULE
7.5A
Driver/Passenger Door Module, Driver/Passenger Power Outside Mirror,
Driver/Passenger Smart Key Outside Handle, Data Link Connector
7
Front Seat Warmer Control Module, Front Air Ventilation Seat Control Module, Nozzle
F22
MODULE 7
MODULE
7.5A
Heater
AIRBAG
IND
F23
7.5A
Instrument Cluster, Center Door Lock Switch
INDICATOR
BRAKE
BRAKE
F24
7.5A
Smart Key Control Module, Stop Lamp Switch
SWITCH
SWITCH
Without Smart Key : ICM Relay Box (Burglar Alarm Relay),
F25
START
7.5A
With Smart Key : Transaxle Range Switch, Smart Key Control Module, ECM/PCM,
Engine Room Junction Block (RLY.4)"
F26
CLUSTER
CLUSTER
7.5A
Instrument Cluster
7-68
Driver's side fuse Panel
Fuse No.
Fuse Name
Symbol
Fuse Rating
Circuit Protected
F27
DOOR LOCK
20A
Door Lock/Unlock Relay, ICM Relay Box (T/Turn Unlock Relay)
F29
AEB
AEB
10A
Autonomous Emergency Braking Module
SEAT HEATER
F30
20A
Front Seat Warmer Control Module, Front Air Ventilation Seat Control Module
FRONT
AIR
2
A/C Control Module, ECM/PCM, Blower Resistor, Blower Motor,
F31
10A
CONDITIONER 2
E/R Junction Block (RLY.10)
AIR
1
F32
7.5A
A/C Control Module, Cluster Ionizer, E/R Junction Block (RLY.1/10/11/13)
CONDITIONER 1
1
F33
SMART KEY 1
SMART
15A
Smart Key Control Module, Immobilizer Module
KEY
F35
AIRBAG
15A
SRS Control Module
F36
IGNITION 1
IG1
25A
PCB Block (F45/F46/F47/F48)
Wireless Charger, MTS E-Call Module, Smart Key Control Module, BCM, Audio,
7
2
F37
MODULE 2
MODULE
10A
A/V & Navigation Head Unit, DC-DC Converter, Power Outside Mirror Switch,
Engine Room Junction Block (RLY.14)
F38
WASHER
15A
Multifunction Switch
LO/HI
F39
WIPER
10A
ECM/PCM, BCM
7-69
Maintenance
Driver's side fuse Panel
Fuse No.
Fuse Name
Symbol
Fuse Rating
Circuit Protected
F40
REAR WIPER
15A
Rear Wiper Relay, Rear Wiper Motor
MIRROR
F42
10A
Driver/Passenger Power Outside Mirror, A/C Control Module, ECM/PCM
HEATED
POWER
POWER
F43
20A
Rear Power Outlet #2
OUTLET
OUTLET
HEATED
F45
15A
BCM
STEERING
7-70

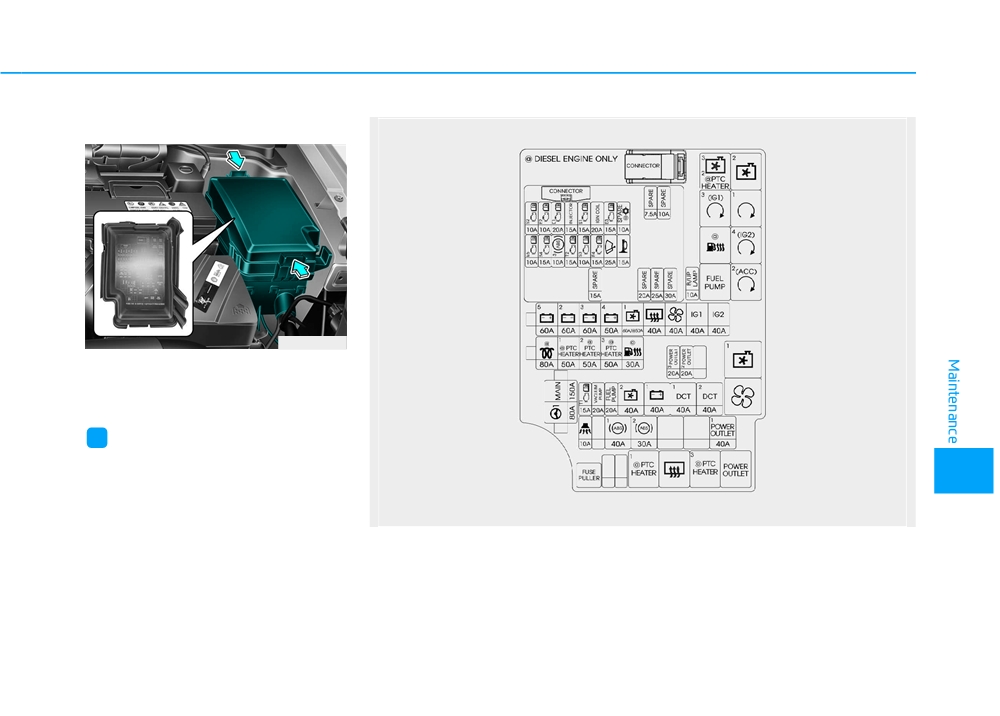

Engine compartment fuse panel
OPD076037
Inside the fuse/relay box covers, you
can find the fuse/relay label describ-
ing fuse/relay name and capacity.
i
Information
Not all fuse panel descriptions in this
7
manual may be applicable to your
vehicle. It is accurate at the time of
printing. When you inspect the fuse
OPDE076038
box on your vehicle, refer to the fuse
box label.
7-71
Maintenance
Engine compartment fuse panel
Relay No.
Symbol
Relay Name
Relay No.
Symbol
Relay Name
3
1
COOLING FAN 3 Relay (Gasoline)
RLY. 9
COOLING FAN 1 Relay
RLY. 1
2
PTC
PTC HEATER #2 Relay (Diesel)
RLY. 10
BLOWER Relay
HEATER
2
1
PTC
RLY. 2
COOLING FAN 2 Relay
RLY. 11
PTC HEATER #1 Relay
HEATER
3
(IG1)
RLY. 3
PDM #3 (IG1) Relay
RLY. 12
REAR HEATED Relay
1
3
PTC
RLY. 4
START Relay
RLY. 13
HEATER
PTC HEATER #3 Relay (Diesel)
POWER
RLY. 5
FUEL HEATER Relay (Diesel)
RLY. 14
OUTLET
POWER OUTLET Relay
4
(IG2)
RLY. 6
PDM #4 (IG2) Relay
FUEL
RLY. 7
PUMP
FUEL PUMP Relay
2
(ACC)
RLY.8
PDM #2 (ACC) Relay
7-72
Engine compartment fuse panel
Fuse No.
Fuse Name
Symbol
Fuse Rating
Circuit Protected
F1
MAIN
MAIN
150A
Fuse : F27, F29, F30, F33
F2
MDPS 1
1
80A
MDPS Unit
5
F3
B+5
60A
PCB Block (Fuse : F43, F44, F50, F51, F52, Engine Control Relay)
2
F4
B+2
60A
IGPM (Fuse : F30, IPS0, IPS1, IPS2)
3
F5
B+3
60A
IGPM (IPS3, IPS4, IPS5, IPS6)
4
F6
B+4
60A
IGPM (Fuse : F3, F4, F5, F7, F8, F12)
COOLING
1
60A
RLY.9 (Gasoline)
FAN 1
F7
PTC
1
PTC
HEATER
50A
RLY.2 (Diesel)
HEATER 1
REAR
7
F8
40A
REAR HEATED Relay
HEATED
F9
BLOWER
40A
RLY.10
F10
IGNITION 1
IG1
40A
Ignition Switch, E/R Junction Block (RLY.3, RLY8)
7-73
Maintenance
Engine compartment fuse panel
Fuse No.
Fuse Name
Symbol
Fuse Rating
Circuit Protected
F11
IGNITION 2
IG2
40A
Ignition Switch, E/R Junction Block (RLY.6)
F12
GLOW
80A
Glow Plug Unit
PTC
1
PTC
F13
HEATER
50A
RLY.11
HEATER 1
PTC
2
F14
PTCHEATER
50A
RLY.1
HEATER 2
PTC
3
F15
PTC
50A
RLY.13
HEATER
HEATER 3
FUEL
F16
30A
RLY.5
HEATER
POWER
3
POWER
F17
OUTLET
20A
Rear Power Outlet 1
OUTLET 3
POWER
2
F18
POWER
20A
Front Power Outlet
OUTLET 2
OUTLET
T1
F20
TCU1
15A
TCM
VACUUM
VACUUM
F21
PUMP
20A
Vacuum Pump
PUMP
F22
FUEL PUMP
FUEL
20A
RLY.7
PUMP
7-74
Engine compartment fuse panel
Fuse No.
Fuse Name
Symbol
Fuse Rating
Circuit Protected
COOLING
2
F23
40A
RLY.9, RLY.2 (Gasoline)
FAN 2
1
F24
B+1
40A
IGPM (Leak Current Autocut Device, Fuse : F21, F24, F27, F33)
1
F25
DCT 1
DCT
40A
TCM
2
F26
DCT 2
DCT
40A
TCM
BURGLAR
F27
10A
ICM Relay Box (Burglar Alarm Horn Relay)
ALARM HORN
1
F29
ABS 1
40A
ABS Control Module, ESP Control Module, Multipurpose Check Connector
2
F30
ABS 2
30A
ABS Control Module, ESP Control Module, Multipurpose Check Connector
POWER OUT-
1
F33
POWER
40A
RLY.14
LET 1
OUTLET
BACK UP
B/UP
7
F34
LAMP
10A
Back-Up Lamp Switch
LAMP
7-75
Maintenance
Engine compartment fuse panel
■ Kappa 1.0 T-GDI
Fuse No.
Fuse Name
Symbol
Fuse Rating
Circuit Protected
S2
RCV Control Solenoid Valve , Purge Control Solenoid Valve, Oil Control Valve #1/#2,
F37
SENSOR 2
10A
A/Con Relay, E/R Junction Block (RLY.9)
E2
F38
ECU 2
10A
ECM
E1
F39
ECU 1
20A
ECM
F40
INJECTOR
INJECTOR
15A
-
S1
F41
SENSOR 1
15A
Oxygen Sensor (Up), Oxygen Sensor (Down)
IGNITION
IGN
F42
20A
Ignition Coil #1/#2/#3
COIL
COIL
E3
F43
ECU 3
15A
ECM
F44
A/CON
10A
A/Con Relay
E5
F45
ECU 5
10A
ECM
S4
F46
SENSOR 4
15A
-
3
F47
ABS 3
10A
ABS/ESP Control Module, Multipurpose Check Connector
7-76
