Hyundai i30 (2018 year). Manual - part 30

CAUTION

Securely install the sealant fill-

ing hose to the valve. If not,

sealant may flow backward,

possibly clogging the filling

hose.

OPDE066015

OLMF064105

4. Unscrew the valve cap from the

5. Insert the sealant bottle into the

valve of the defective wheel and

housing of the compressor (4) so

screw the connector hose (9) of

that the bottle is upright.

the sealant bottle onto the valve.

6. Ensure that the compressor is

switched off, position 0.

OPDE066016

6-35

What to do in an emergency

8. With the ignition switch in the ON

9. Switch off the compressor.

position, switch on the compres-

10. Detach the hoses from the

sor and let it run for approximately

sealant bottle connector and

5~7 minutes to fill the sealant up

from the tire valve.

to proper pressure. (refer to the

Return the Tire Mobility Kit to its stor-

Tire and Wheels, chapter 8). The

age location in the vehicle.

inflation pressure of the tire after

filling is unimportant and will be

checked/corrected later.

WARNING

Be careful not to overinflate the

Carbon monoxide

tire and stay away from the tire

OPD066017

when filling it.

Do not leave your vehicle run-

7. Plug the compressor power cord

ning in a poorly ventilated area

(3) into the vehicle power outlet.

CAUTION

for extended periods of time.

Carbon monoxide poisoning

Tire pressure

and suffocation can occur.

NOTICE

Only use the front passenger side

Do not attempt to drive your

power outlet when connecting the

vehicle if the tire pressure is

power cord.

below 200 kPa (29 psi). This

could result in an accident due

to sudden tire failure.

6-36

Do not exceed a speed of 80 km/h

Checking the tire inflation pres-

(50 mph). If possible, do not fall

sure

below a speed of 20 km/h (12 mph).

While driving, if you experience any

unusual vibration, ride disturbance or

noise, reduce your speed and drive

with caution until you can safely pull

off of the side of the road.

Call for road side service or towing.

When you use the Tire Mobility Kit,

the tire pressure sensors and wheel

OLMF064106

may be damaged by sealant, remove

Distributing the sealant

the sealant stained with tire pressure

sensors and wheel and inspect in

11. Immediately drive approximately

OPDE066015

authorized dealer.

7~10 km (4~6 miles or, about

1. After driving approximately 7~10

10min) to evenly distribute the

km (4~6 miles or about 10 min),

sealant in the tire.

stop at a safety location.

2. Connect the connection hose (9)

of the compressor directly to the

tire valve.

3. Plug the compressor power cord

into the vehicle power outlet.

4. Adjust the tire inflation pressure to

the recomended tire inflation.

With the ignition swithched on,

proceed as follows.

6-37

What to do in an emergency

- To increase the inflation pres-

CAUTION

sure : Switch on the compres-

sor, position I. To check the cur-

If the inflation pressure is not

Tire pressure sensor

rent inflation pressure setting,

maintained, drive the vehicle a

briefly switch off the compressor.

The sealant on the tire pressure

second time, refer to Distributing

- To reduce the inflation pres-

sensor and wheel should be

the sealant. Then repeat steps 1

sure: Press the button (8) on the

removed when you replace the

to 4.

compressor.

tire with a new one and inspect

Use of the TMK may be ineffec-

the tire pressure sensors at an

tual for tire damage larger than

authorized dealer.

NOTICE

approximately 4 mm (0.16 in).

Do not let the compressor run for

We recommend that you contact

more than 10 minutes, otherwise

an authorized HYUNDAI dealer if

the device will overheat and may

the tire cannot be made road-

be damaged.

worthy with the Tire Mobility Kit.

Information

WARNING

The pressure gauge may show higher

than actual reading when the com-

The tire inflation pressure must

pressor is running. To get an accurate

be at least 220 kPa (32 psi). If it

tire reading, the compressor needs to

is not, do not continue driving.

be turned off.

Call for road side service or tow-

ing.

6-38

TOWING

Towing service

It is acceptable to tow the vehicle

CAUTION

with the rear wheels on the ground

(without dollies) and the front wheels

•

Do not tow the vehicle with the

off the ground.

front wheels on the ground as

If any of the loaded wheels or sus-

this may cause damage to the

pension components are damaged

vehicle.

or the vehicle is being towed with the

front wheels on the ground, use a

towing dolly under the front wheels.

When being towed by a commercial

tow truck and wheel dollies are not

Dollies

used, the front of the vehicle should

always be lifted, not the rear.

OPD066019

•

Do not tow with sling-type

equipment. Use wheel lift or

Dollies

flatbed equipment.

OPD066018

If emergency towing is necessary,

we recommend having it done by an

authorized HYUNDAI dealer or a

commercial tow-truck service.

Proper lifting and towing procedures

OPD066020

are necessary to prevent damage to

the vehicle. The use of wheel dollies

or flatbed is recommended.

6-39

What to do in an emergency

Removable towing hook

■ Front

WARNING

If your vehicle is equipped with

a rollover sensor, place the igni-

tion switch in the LOCK/OFF or

ACC position when the vehicle

is being towed. The side impact

and curtain air bag may deploy

if the sensor detects the situa-

tion as a rollover.

OPDE066021

■ Rear

When towing your vehicle in an

OPDE066035

emergency without wheel dollies:

1. Open the tailgate, and remove the

1. Place the ignition switch in the

towing hook from the tool case.

ACC position.

2. Place the shift lever in N (Neutral).

3. Release the parking brake.

OPD066023

CAUTION

2. Remove the hole cover pressing

Failure to place the shift lever in

the lower part of the cover on the

N (Neutral) may cause internal

bumper.

damage to the transmission.

3. Install the towing hook by turning it

clockwise into the hole until it is

fully secured.

4. Remove the towing hook and

install the cover after use.

6-40

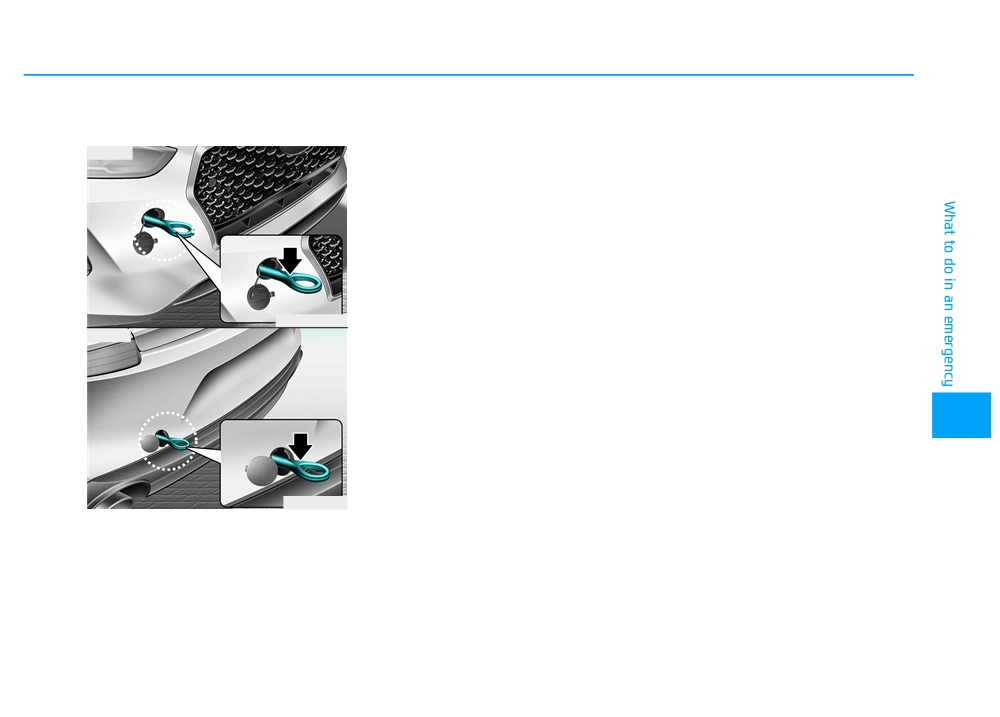

Emergency towing

If towing service is not available in an

Always follow these emergency tow-

emergency, your vehicle may be

ing precautions:

■ Front

temporarily towed using a cable or

•

Place the ignition switch in the ACC

chain secured to the emergency tow-

position so the steering wheel is not

ing hook at the front (or rear) of the

locked.

vehicle.

•

Place the shift lever in N (Neutral).

Use extreme caution when towing

•

Release the parking brake.

the vehicle with a cable or chain. A

driver must be in the vehicle to steer

•

Depress the brake pedal with more

it and operate the brakes.

force than normal since you will

have reduced braking perform-

Towing in this manner may be done

ance.

OPDE066022

only on hard-surfaced roads for a

■ Rear

short distance and at low speeds.

•

More steering effort will be required

Also, the wheels, axles, power train,

because the power steering system

steering and brakes must all be in

will be disabled.

good condition.

•

Use a vehicle heavier than your

own to tow your vehicle.

•

The drivers of both vehicles should

communicate with each other fre-

quently.

•

Before emergency towing, check

that the hook is not broken or dam-

OPD066026

aged.

If towing is necessary, we recommend

•

Fasten the towing cable or chain

you have it done by an authorized

securely to the hook.

HYUNDAI dealer or a commercial tow

truck service.

•

Do not jerk the hook. Apply steady

and even force.

6-41

What to do in an emergency

CAUTION

To avoid damage to your vehicle

and vehicle components when

towing:

•

Always pull straight ahead

when using the towing hooks.

Do not pull from the side or at

a vertical angle.

•

Do not use the towing hooks

OTL065029

to pull a vehicle out of mud,

sand or other conditions from

•

Use a towing cable or chain less

which the vehicle cannot be

than 5 m (16 feet) long. Attach a

driven out under its own

white or red cloth (about 30 cm (12

power.

inches) wide) in the middle of the

cable or chain for easy visibility.

•

Limit the vehicle speed to

15 km/h (10 mph) and drive

•

Drive carefully so the towing cable

less than 1.5 km (1 mile) when

or chain remains tight during towing.

towing to avoid serious dam-

•

Before towing, check the automatic

age to the automatic transmis-

transmission/dual clutch transmis-

sion.

sion for fluid leaks under your vehi-

cle. If the automatic transmission

fluid is leaking, flatbed equipment

or a towing dolly must be used.

6-42

EMERGENCY COMMODITY (IF EQUIPPED)

Your vehicle is equipped with emer-

First aid kit

To check the tire pressure, take the

gency commodities to help you

following steps:

Supplies for use in giving first aid

respond to emergency situation.

such as scissors, bandage and

1. Unscrew the inflation valve cap

adhesive tape, etc. are provided.

that is located on the rim of the

tire.

Fire extinguisher

2. Press and hold the gauge against

If there is small fire and you know how

Triangle reflector

the tire valve. Some air will leak as

to use the fire extinguisher, follow

you begin and more will leak if you

these steps carefully.

Place the triangle reflector on the

don't press the gauge in firmly.

road to warn oncoming vehicles dur-

1. Pull out the safety pin at the top of

ing emergencies, such as when the

3. A firm non-leaking push will acti-

the extinguisher that keeps the han-

vehicle is parked by the roadside due

vate the gauge.

dle from being accidentally pressed.

to problems.

4. Read the tire pressure on the gauge

2. Aim the nozzle towards the base

to see whether the tire pressure is

of the fire.

low or high.

Tire pressure gauge

3. Stand approximately 2.5 m (8 ft)

(if equipped)

5. Adjust the tire pressure to the

away from the fire and squeeze

specified pressure. Refer to “Tires

the handle to discharge the extin-

Tires normally lose some air in day-

and Wheels” in chapter 8.

guisher. If you release the handle,

to-day use, and you may have to add

the discharge will stop.

a air periodically and usually it is not

6. Reinstall the inflation valve cap.

4. Sweep the nozzle back and forth

a sign of a leaking tire, but of normal

at the base of the fire. After the fire

wear. Always check tire pressure

appears to be out, watch carefully

when the tires are cold because tire

since it may re-ignite.

pressure increases with temperature.

6-43

Maintenance

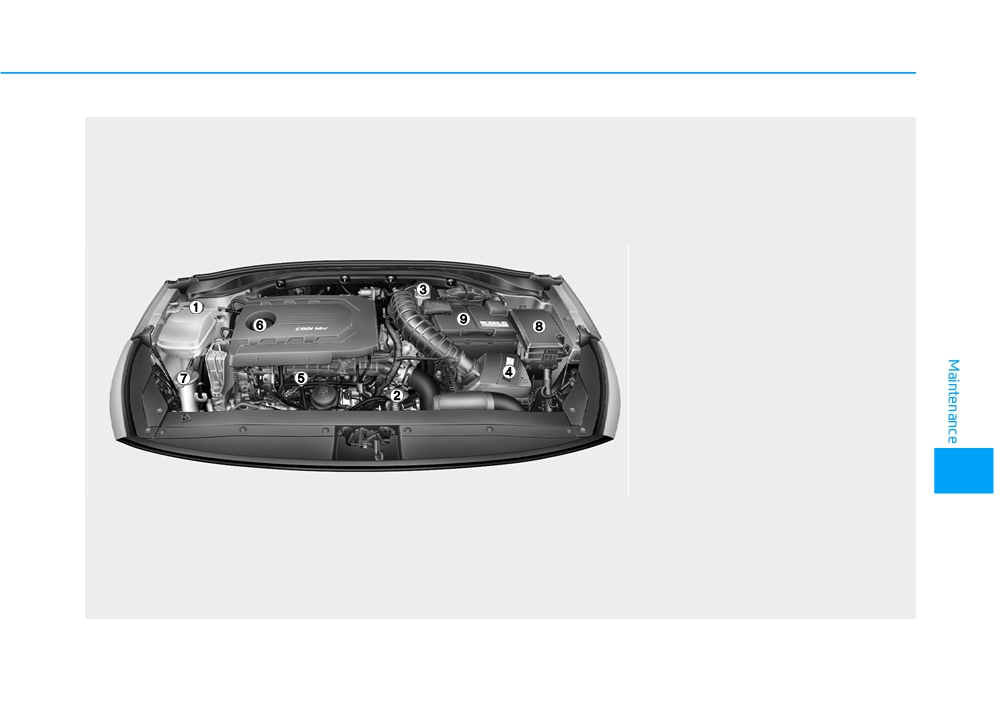

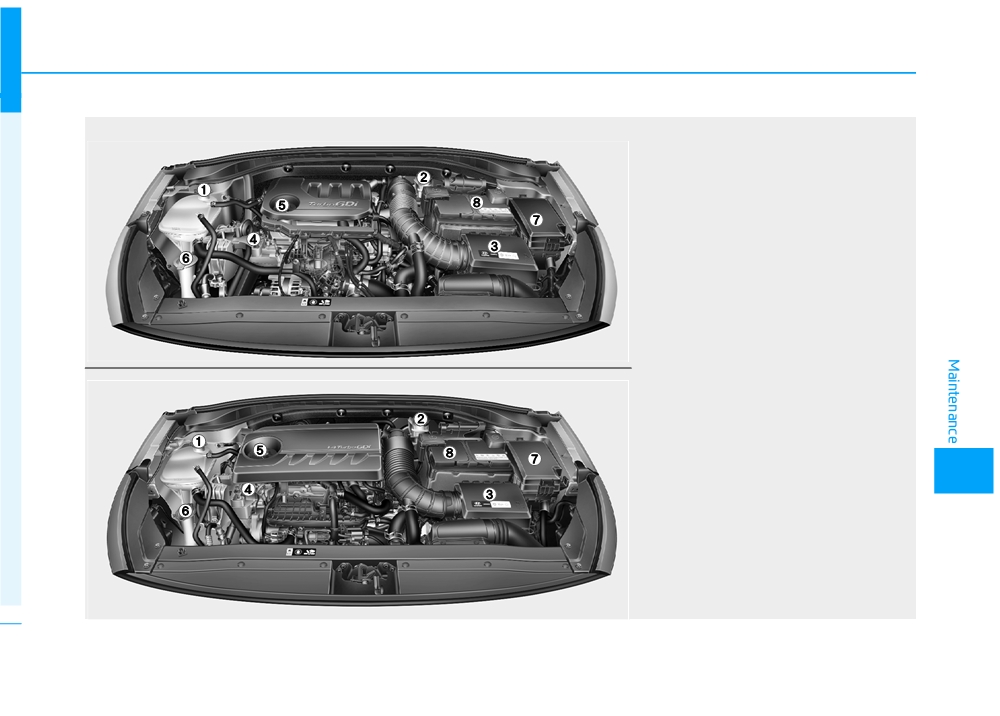

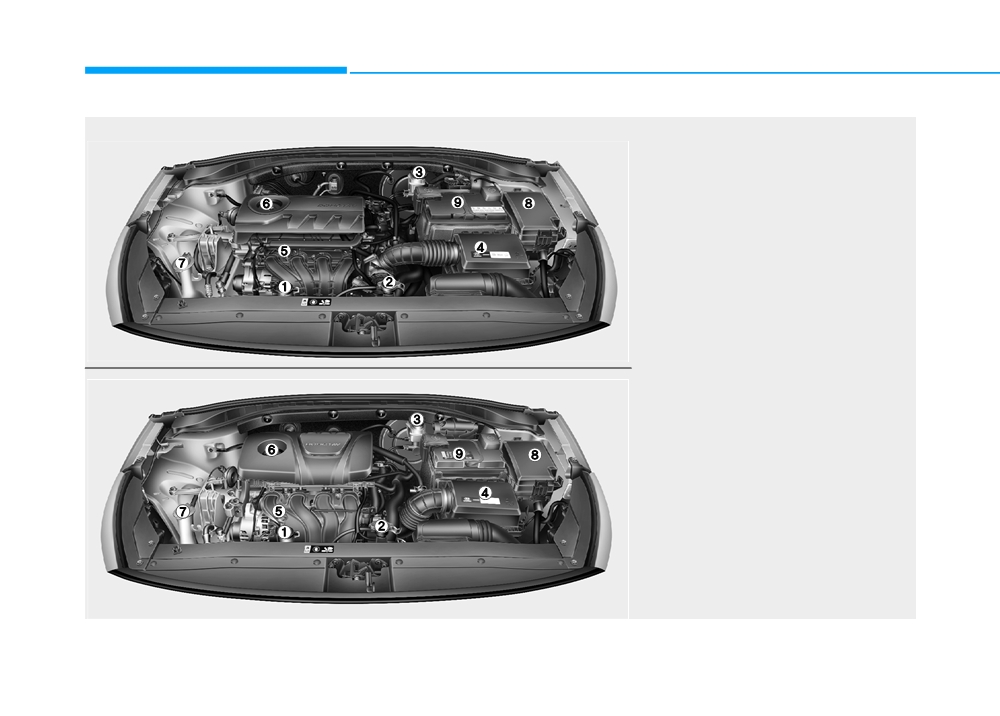

Engine compartment

7-3

Explanation of scheduled maintenance items.7-32

Maintenance services

7-6

Engine oil

7-35

Owner's responsibility

7-6

Checking the engine oil level

7-35

Owner maintenance precautions

7-6

Checking the engine oil and filter

7-36

Owner maintenance

7-7

Engine coolant

7-37

Owner maintenance schedule

7-8

Checking the engine coolant level

7-37

Scheduled maintenance services

7-10

Changing the engine coolant

7-39

Normal Maintenance Schedule

Brake/clutch fluid

7-40

(Gasoline Engine, for Europe)

7-11

Checking the brake/clutch fluid level

7-40

Maintenance Under Severe Usage and

Washer fluid

7-41

Low Mileage Conditions

Checking the washer fluid level

7-41

(Gasoline Engine, for Europe)

7-14

Parking brake

7-41

Normal Maintenance Schedule

Checking the parking brake

7-41

(Gasoline Engine, except Europe)

7-16

Fuel Filter (For Diesel)

7-42

Maintenance Under Severe Usage and

Draining water from fuel filter

7-42

Low Mileage Conditions

Fuel filter cartridge replacement

7-42

(Gasoline Engine, except Europe)

7-20

Air cleaner

7-42

Normal Maintenance Schedule

Filter replacement

7-42

(Diesel Engine, for Europe)

7-22

Climate control air filter

7-44

Maintenance Under Severe Usage and

Filter inspection

7-44

Low Mileage Conditions

Filter replacement

7-44

(Diesel Engine, for Europe)

7-25

Normal Maintenance Schedule

Wiper blades

7-45

(Diesel Engine, except Europe)

7-27

Blade inspection

7-45

Blade replacement

7-46

Maintenance Under Severe Usage and

Low Mileage Conditions

(Diesel Engine, except Europe)

7-30

Battery

7-48

Light bulbs

7-85

For best battery service

7-49

Headlamp, static bending lamp,

Battery capacity label

7-49

position lamp, turn signal lamp and

Battery recharging

7-50

daytime running light bulb replacement

7-86

Reset items

7-51

Front fog lamp

7-91

Tires and wheels

7-52

Headlamp and front fog lamp

Tire care

7-52

aiming (for Europe)

7-91

Recommended cold tire inflation pressures

7-53

Side repeater lamp replacement

7-97

Check tire inflation pressure

7-54

Rear combination lamp bulb replacement

7-98

Tire rotation

7-54

Rear fog lamp

7-102

Wheel alignment and tire balance

7-55

High mounted stop lamp replacement

7-103

Tire replacement

7-56

License plate light bulb replacement

7-103

Wheel replacement

7-57

Interior light bulb replacement

7-103

Tire traction

7-57

Appearance care

7-105

Tire maintenance

7-57

Exterior care

7-105

Tire sidewall labeling

7-57

Interior care

7-110

Low aspect ratio tires

7-61

Emission control system

7-111

Fuses

7-62

1. Crankcase emission control system

7-111

Instrument panel fuse replacement

7-63

2. Evaporative emission control system

7-111

Engine compartment panel fuse replacement

7-64

3. Exhaust emission control system

7-112

Fuse/Relay panel description

7-66

ENGINE COMPARTMENT

■ Gasoline Engine (Kappa 1.0 T-GDI)

1. Engine coolant reservoir/

Engine coolant cap

2. Brake/clutch fluid reservoir

3. Air cleaner

4. Engine oil dipstick

5. Engine oil filler cap

■ Gasoline Engine (Kappa 1.4 T-GDI)

6. Windshield washer fluid reservoir

7. Fuse box

8. Battery

The actual engine room in the vehicle

may differ from the illustration.

OPDE076088/OPD076001

7-3

Maintenance

■ Gasoline Engine (Kappa 1.4 MPI)

1. Engine coolant reservoir

2. Radiator cap

3. Brake/clutch fluid reservoir

4. Air cleaner

5. Engine oil dipstick

6. Engine oil filler cap

■ Gasoline Engine (Gamma 1.6 MPI)

7. Windshield washer fluid reservoir

8. Fuse box

9. Battery

The actual engine room in the vehicle

may differ from the illustration.

OPDE076089/OPDE076093

7-4

■ Diesel Engine (U2 1.6 TCI)

1. Engine coolant reservoir

2. Radiator cap

3. Brake/clutch fluid reservoir

4. Air cleaner

5. Engine oil dipstick

6. Engine oil filler cap

7. Windshield washer fluid reservoir

8. Fuse box

9. Battery

The actual engine room in the vehicle

may differ from the illustration.

OPD076003

7-5

Maintenance

MAINTENANCE SERVICES

You should exercise the utmost care

Detailed warranty information is pro-

NOTICE

to prevent damage to your vehicle

vided in your Service Passport.

and injury to yourself whenever per-

Improper owner maintenance dur-

Repairs and adjustments required as

forming any maintenance or inspec-

ing the warranty period may affect

a result of improper maintenance or

tion procedures.

warranty coverage. For details, read

a lack of required maintenance are

the separate Service Passport pro-

We recommend you have your vehi-

not covered.

vided with the vehicle. If you're

cle maintained and repaired by an

unsure about any servicing or main-

authorized HYUNDAI dealer. An

Owner maintenance precautions

tenance procedure, we recommend

authorized HYUNDAI dealer meets

that the system be serviced by an

HYUNDAI’s high service quality stan-

Inadequate, incomplete or insufficient

authorized HYUNDAI dealer.

dards and receives technical support

servicing may result in operational

from HYUNDAI in order to provide

problems with your vehicle that could

you with a high level of service satis-

lead to vehicle damage, an accident,

faction.

or personal injury. This chapter pro-

vides instructions only for the mainte-

nance items that are easy to perform.

Owner’s responsibility

Several procedures can be done only

Maintenance service and record reten-

by an authorized HYUNDAI dealer

tion are the owner’s responsibility.

with special tools.

You should retain documents that show

Your vehicle should not be modified in

proper maintenance has been per-

any way. Such modifications may

formed on your vehicle in accordance

adversely affect the performance,

with the scheduled maintenance serv-

safety or durability of your vehicle and

ice charts shown on the following

may, in addition, violate conditions of

pages. You need this information to

the limited warranties covering the

establish your compliance with the

vehicle.

servicing and maintenance require-

ments of your vehicle warranties.

7-6

OWNER MAINTENANCE

The following lists are vehicle checks

(Continued)

WARNING

and inspections that should be per-

•

Block the tires (front and back)

formed by the owner or an authorized

Performing maintenance work

to prevent the vehicle from

HYUNDAI dealer at the frequencies

on a vehicle can be dangerous.

moving.

indicated to help ensure safe, depend-

If you lack sufficient knowledge

Remove loose clothing or jew-

able operation of your vehicle.

and experience or the proper

elry that can become entan-

Any adverse conditions should be

tools and equipment to do the

gled in moving parts.

brought to the attention of your dealer

work, we recommend that the

•

If you must run the engine

as soon as possible.

system be serviced by an author-

during maintenance, do so

These Owner Maintenance vehicle

ized HYUNDAI dealer. ALWAYS

out doors or in an area with

follow these precautions for

checks are generally not covered by

plenty of ventilation.

warranties and you may be charged

performing maintenance work:

•

Keep flames, sparks, or smok-

for labor, parts and lubricants used.

• Park your vehicle on level

ing materials away from the

ground, move the shift lever

battery and fuel-related parts.

into the P (Park, for automatic

transmission/dual clutch trans-

mission vehicle) position, apply

the parking brake, place the

ignition

switch in the

LOCK/OFF position.

(Continued)

7-7

Maintenance

Owner maintenance schedule

While operating your vehicle:

WARNING

When you stop for fuel:

•

Note any changes in the sound of

the exhaust or any smell of exhaust

Diesel Engine

• Check the engine oil level.

fumes in the vehicle.

Never manipulate or modify the

• Check coolant level in the engine

•

Check for vibrations in the steering

injection system while running

coolant reservoir.

wheel. Notice if there is any

the diesel engine or within 30

• Check the windshield washer fluid

increased steering effort or loose-

seconds after turning OFF the

level.

ness in the steering wheel, or

diesel engine. The high-pressure

• Check for low or under-inflated tires.

change in its straight-ahead position.

pump, high-pressure pipes, rail,

•

Notice if your vehicle constantly turns

and injectors are still subject to

WARNING

slightly or “pulls” to one side when

the high pressure right after

traveling on smooth, level road.

stopping the diesel engine.

Be careful when checking your

•

When stopping, listen and check for

When the fuel leakage vents out,

engine coolant level when the

unusual sounds, pulling to one side,

it may cause serious body injury.

engine is hot. This may result in

increased brake pedal travel or

Any people, who are implement-

coolant being blown out of the

“hard-to-push” brake pedal.

ed with the artificial cardiac

opening and cause serious

pacemaker, should remain away

•

If any slipping or changes in the

burns and other injuries.

from the ECU or the wiring har-

operation of your transaxle occurs,

ness by at least 30 cm, while run-

check the transaxle fluid level.

ning the diesel engine. The high

•

Check the automatic transmission/

currents of the electric engine

dual clutch transmission P (Park)

control system produce a con-

function.

siderable amount of magnetic

•

Check the parking brake.

fields.

•

Check for fluid leaks under your

vehicle (water dripping from the air

conditioning system during or after

use is normal).

7-8

Content .. 28 29 30 31 ..
