Hyundai i30 (2018 year). Manual - part 29
What to do in an emergency
9. Loosen the lug nuts with the wheel
lug nut wrench and remove them
with your fingers. Remove the
wheel from the studs and lay it flat
on the ground out of the way.
Remove any dirt or debris from
the studs, mounting surfaces, and
■ Front
■ Rear
wheel.
10. Install the spare tire onto the
studs of the hub.
11. Tighten the lug nuts with your fin-
OPDE066032
OPDE066033
gers onto the studs with the
7. Place the jack at the designated
8. Insert the jack handle into the jack
smaller end of the lug nuts clos-
jacking position under the frame
and turn it clockwise, raising the
est to the wheel.
closest to the tire you are chang-
vehicle until the tire clears the
12. Lower the vehicle to the ground
ing. The jacking positions are
ground. Make sure the vehicle is
by turning the jack handle coun-
plates welded to the frame with
stable on the jack.
terclockwise.
two notches. Never jack any other
position or part of the vehicle. It
may damage to the side seal
molding.
6-18
If you have a tire gauge, check the
CAUTION
tire pressure
(see "Tires and
Wheels" in chapter 8 for tire pressure
Your vehicle has metric threads
instructions.). If the pressure is lower
on the studs and lug nuts. Make
or higher than recommended, drive
certain during tire changing
slowly to the nearest service station
that the same nuts that were
and adjust it to the recommended
removed are reinstalled. If you
pressure. Always reinstall the valve
have to replace your lug nuts
cap after checking or adjusting tire
make sure they have metric
pressure. If the cap is not replaced,
threads to avoid damaging the
air may leak from the tire. If you lose
studs and ensure the wheel is
a valve cap, buy another and install it
OTL065007
properly secured to the hub. We
as soon as possible. After changing
13. Use the wheel lug nut wrench to
recommend that you consult an
tires, secure the flat tire and return
tighten the lug nuts in the order
authorized HYUNDAI dealer for
the jack and tools to their proper stor-
shown. Double-check each lug
assistance.
age locations.
nut until they are tight. After
changing tires, we recommend
NOTICE
6
that an authorized HYUNDAI
If any of the equipment such as the
dealer tighten the lug nuts to their
jack, lug nuts, studs, or other equip-
• Check the tire pressure as soon
proper torque as soon as possi-
as possible after installing a
ment is damaged or in poor condi-
ble. The wheel lug nut should
tion, do not attempt to change the
spare tire. Adjust it to the rec-
be tightened to 11~13 kgf·m
ommended pressure.
tire and call for assistance.
(79~94 lbf·ft).
• Check and tighten the wheel lug
nuts after driving over 50 km if
tires are replaced. Re-check the
tire wheel lug nuts after driving
over 1,000 km.
6-19
What to do in an emergency
Use of compact spare tires
When driving with the compact spare
NOTICE
(if equipped)
tire mounted to your vehicle:
When the original tire and wheel
Compact spare tires are designed for
•
Check the tire pressure after
are repaired and reinstalled on the
emergency use only. Drive carefully
installing the compact spare tire.
vehicle, the lug nut torque must be
on the compact spare tire and
The compact spare tire should be
set correctly. The correct lug nut
always follow the safety precautions.
inflated to 420 kPa (60 psi).
tightening torque is 11~13 kgf·m
•
Do not take this vehicle through an
(79~94 lbf·ft).
automatic car wash while the com-
WARNING
pact spare tire is installed.
To prevent compact spare tire
•
Do not use the compact spare tire
failure and loss of control pos-
on any other vehicle because this
sibly resulting in an accident:
tire has been designed especially
for your vehicle.
• Use the compact spare tire
only in an emergency.
•
The compact spare tire’s tread life is
shorter than a regular tire. Inspect
• NEVER operate your vehicle
your compact spare tire regularly
over 80 km/h (50 mph).
and replace worn compact spare
• Do not exceed the vehicle’s
tires with the same size and design,
maximum load rating or the
mounted on the same wheel.
load carrying capacity shown
•
Do not use more than one compact
on the sidewall of the com-
spare tire at a time.
pact spare tire.
•
Do not tow a trailer while the com-
• Do not use the compact spare
pact spare tire is installed.
tire continuously. Repair or
replace the original tire as
soon as possible to avoid fail-
ure of the compact spare tire.
6-20
Jack label
CAUTION
■ Example
To prevent damaging the com-
pact spare tire and your vehicle:
•
Drive slowly enough for the
road conditions to avoid all
hazards, such as a potholes
or debris.
•
Avoid driving over obstacles.
The compact spare tire diame-
OHYK065011
ter is smaller than the diame-
The actual Jack label in the vehicle may differ from the illustration.
ter of a conventional tire and
For more detailed specifications, refer to the label attached to the jack.
reduces the ground clearance
approximately 25 mm (1 inch).
•
Do not use tire chains on the
1. Model Name
8. Shift into Reverse gear on vehicles
with manual transmission or move
compact spare tire. Because
2. Maximum allowable load
of the smaller size, a tire chain
the shift lever to the P position on
6
3. When using the jack, set your
vehicles with automatic transmis-
will not fit properly.
parking brake.
sion/ dual clutch transmission.
•
Do not use the compact spare
4. When using the jack, stop the
9. The jack should be used on firm
tire on any other wheels, nor
engine.
should standard tires, snow
level ground.
5. Do not get under a vehicle that is
tires, wheel covers or trim
10. Jack manufacture
supported by a jack.
rings be used with the com-
11. Production date
pact spare wheel.
6. The designated locations under
12. Representative company and
the frame
address
7. When supporting the vehicle, the
base plate of jack must be vertical
under the lifting point.
6-21
What to do in an emergency

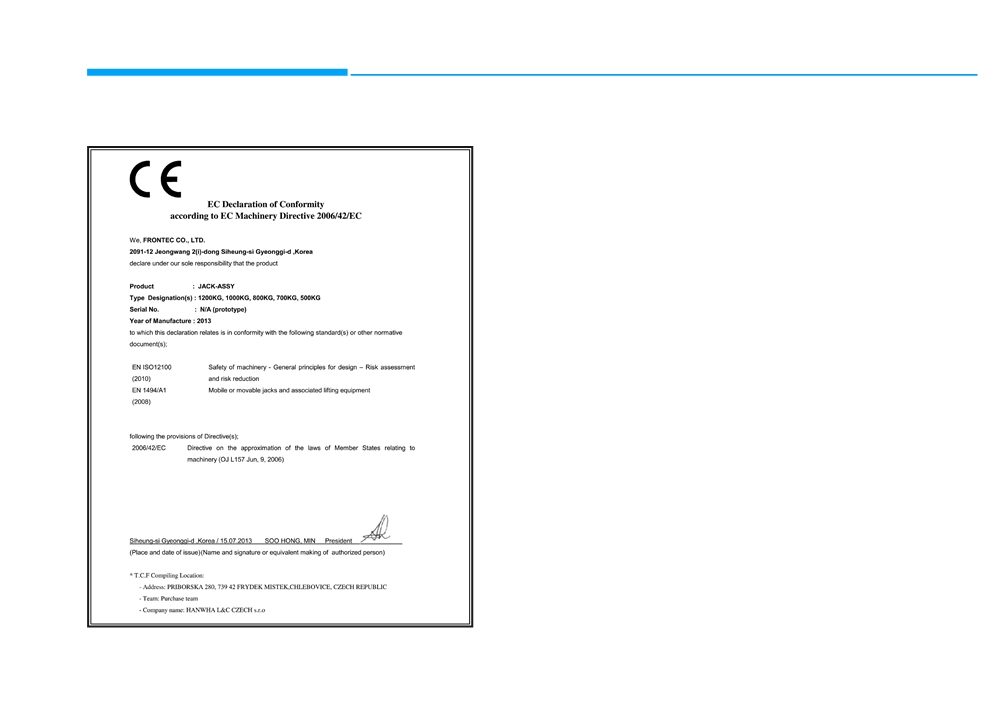

EC Declaration of conformity for Jack
JACKDOC14F
6-22
IF YOU HAVE A FLAT TIRE (WITH TIRE MOBILITY KIT, IF EQUIPPED)
For 15, 16 inch tire
Introduction
CAUTION
When two or more tires are flat,
do not use the tire mobility kit
because the supported one
sealant of Tire Mobility Kit is
only used for one flat tire.
WARNING
Do not use the Tire Mobility Kit
to repair punctures in the tire
OPDE066010
OPDE066012
walls. This can result in an acci-
For safe operation, carefully read
dent due to tire failure.
With the Tire Mobility Kit you stay
and follow the instructions in this
mobile even after experiencing a tire
manual before use.
puncture.
6
(1) Compressor
WARNING
The system of compressor and seal-
ing compound effectively and com-
(2) Sealant bottle
Have your tire repaired as soon
fortably seals most punctures in a
The Tire Mobility Kit is a temporary
as possible. The tire may loose
passenger car tire caused by nails
fix to the tire and we recommend that
air pressure at any time after
or similar objects and reinflates the
the system be inspected by an
inflating with the Tire Mobility Kit.
tire.
authorized HYUNDAI dealer.
After you ensured that the tire is
properly sealed you can drive cau-
tiously on the tire (distance up to 200
km (120 miles)) at a max. speed of
80 km/h (50 mph) in order to reach a
service station or tire dealer to have
the tire replaced.
6-23
What to do in an emergency
It is possible that some tires, espe-
Notes on the safe use of the
•
Do not use the Tire Mobility Kit if a
cially with larger punctures or dam-
Tire Mobility Kit
tire is severely damaged by driving
age to the sidewall, cannot be sealed
run flat or with insufficient air pres-
•
Park your car at the side of the
completely.
sure.
road so that you can work with the
Air pressure loss in the tire may
Tire Mobility Kit away from moving
•
Do not remove any foreign objects
adversely affect tire performance.
traffic.
such as nails or screws that have
For this reason, you should avoid
penetrated the tire.
•
To be sure your vehicle will not
abrupt steering or other driving
move, even when you're on fairly
•
Provided the car is outdoors, leave
maneuvers, especially if the vehicle
level ground, always set your park-
the engine running. Otherwise
is heavily loaded or if a trailer is in
ing brake.
operating the compressor may
use.
eventually drain the car battery.
The Tire Mobility Kit is not designed
•
Only use the Tire Mobility Kit for
or intended as a permanent tire
sealing/inflation passenger car
•
Never leave the Tire Mobility Kit
repair method and is to be used for
tires. Only punctured areas located
unattended while it is being used.
one tire only. This instruction shows
within the tread region of the tire
•
Do not leave the compressor run-
you step by step how to temporarily
can be sealed using the tire mobil-
ning for more than 10 min. at a time
seal the puncture simply and reliably.
ity kit.
or it may overheat.
Read the section "Notes on the safe
•
Do not use on motorcycles, bicy-
•
Do not use the Tire Mobility Kit if
use of the Tire Mobility Kit".
cles or any other type of tires.
the ambient temperature is below
•
When the tire and wheel are dam-
-30°C (-22°F).
WARNING
aged, do not use Tire Mobility Kit
for your safety.
Do not use the TMK if a tire is
•
Use of the Tire Mobility Kit may not
severely damaged by driving run
be effective for tire damage larger
flat or with insufficient air pres-
than approximately 6 mm (0.24 in).
sure.
If the tire cannot be made roadwor-
Only punctured areas located
thy with the Tire Mobility Kit, we
within the tread region of the tire
recommend that you contact an
can be sealed using the TMK.
authorized HYUNDAI dealer.
6-24
Components of the Tire Mobility Kit
Connectors, cable and connection
hose are stored in the compressor
housing.
Strictly follow the specified sequence,
otherwise the sealant may escape
under high pressure.
WARNING
Expired sealant
Do not use the Tire sealant after
the sealant has expired
(i.e.
pasted the expiration date on
the sealant container). This can
increase the risk of tire failure.
6
WARNING
Sealant
OGDE064102
• Keep out of reach of children.
0. Speed- restriction label
4. Holder for the sealant bottle
• Avoid contact with eyes.
1. Sealant bottle and label with
5. Compressor
• Do not swallow.
speed restriction
6. ON/OFF switch
2. Filling hose from sealant bottle to
7. Pressure gauge for displaying the
wheel
tire inflation pressure
3. Connectors and cable for the
8. Button for reducing tire inflation
power outlet direct connection
pressure
6-25
What to do in an emergency
Using the Tire Mobility Kit
CAUTION
OLMF064103
OPDE066014
1. Shake the sealant bottle.
2. Screw the filling hose (2) onto the
connector of the sealant bottle (1).
OPD066013
3. Insert the sealant bottle into the
Detach the speed restriction
housing of the compressor (4) so
label (0) from the sealant bottle
that the bottle is upright.
(1), and place it in a highly visi-
4. Ensure that the button (8) on the
ble place inside the vehicle
compressor is not pressed.
such as on the steering wheel
to remind the driver not to drive
too fast.
6-26
CAUTION
Securely install the sealant fill-
ing hose to the valve. If not,
sealant may flow backward,
possibly clogging the filling
hose.
OPDE066015
OPD066017
5. Unscrew the valve cap from the
7. Plug the compressor power cord
valve of the defective wheel and
(3) into the vehicle power outlet.
screw the filling hose (2) of the
sealant bottle onto the valve.
NOTICE
6. Ensure that the compressor is
Only use the front passenger side
6
switched off, position 0.
OPDE066016
power outlet when connecting the
power cord.
6-27
What to do in an emergency
8. With the ignition switch in the ON
9. Switch off the compressor.
position, switch on the compres-
10. Detach the hoses from the
sor and let it run for approximately
sealant bottle connector and
5~7 minutes to fill the sealant up
from the tire valve.
to proper pressure. (refer to the
Return the Tire Mobility Kit to its stor-
Tire and Wheels, chapter 8). The
age location in the vehicle.
inflation pressure of the tire after
filling is unimportant and will be
checked/corrected later.
WARNING
Be careful not to overinflate the
Carbon monoxide
tire and stay away from the tire
when filling it.
Do not leave your vehicle run-
OLMF064106
ning in a poorly ventilated area
Distributing the sealant
for extended periods of time.
CAUTION
11. Immediately drive approximately
Carbon monoxide poisoning
7~10 km (4~6 miles or, about
Tire pressure
and suffocation can occur.
10min) to evenly distribute the
sealant in the tire.
Do not attempt to drive your
vehicle if the tire pressure is
below 200 kPa (29 psi). This
could result in an accident due
to sudden tire failure.
6-28
Do not exceed a speed of 80 km/h
Checking the tire inflation pres-
- To increase the inflation pres-
(50 mph). If possible, do not fall
sure
sure : Switch on the compres-
below a speed of 20 km/h (12 mph).
sor, position I. To check the cur-
rent inflation pressure setting,
While driving, if you experience any
briefly switch off the compressor.
unusual vibration, ride disturbance or
noise, reduce your speed and drive
- To reduce the inflation pres-
with caution until you can safely pull
sure: Press the button (8) on the
off of the side of the road.
compressor.
Call for road side service or towing.
When you use the Tire Mobility Kit,
NOTICE
the tire pressure sensors and wheel
Do not let the compressor run for
may be damaged by sealant, remove
more than 10 minutes, otherwise
the sealant stained with tire pressure
the device will overheat and may
sensors and wheel and inspect in
OPDE066015
be damaged.
authorized dealer.
1. After driving approximately 7~10
km (4~6 miles or about 10 min),
i
Information
stop at a safety location.
6
The pressure gauge may show higher
2. Connect the filling hose (2) of the
than actual reading when the com-
compressor directly to the tire
pressor is running. To get an accurate
valve.
tire reading, the compressor needs to
3. Plug the compressor power cord
be turned off.
into the vehicle power outlet.
4. Adjust the tire inflation pressure to
the recomended tire inflation.
With the ignition swithched on,
proceed as follows.
6-29
What to do in an emergency
For 17 inch tire
CAUTION
CAUTION
If the inflation pressure is not
Tire pressure sensor
maintained, drive the vehicle a
The sealant on the tire pressure
second time, refer to Distributing
sensor and wheel should be
the sealant. Then repeat steps 1
removed when you replace the
to 4.
tire with a new one and inspect
Use of the TMK may be ineffec-
the tire pressure sensors at an
tual for tire damage larger than
authorized dealer.
approximately 4 mm (0.16 in).
We recommend that you contact
an authorized HYUNDAI dealer if
OPD066010
the tire cannot be made road-
worthy with the Tire Mobility Kit.
For safe operation, carefully read
and follow the instructions in this
manual before use.
WARNING
(1) Compressor
(2) Sealant bottle
The tire inflation pressure must
be at least 220 kPa (32 psi). If it
The Tire Mobility Kit is a temporary
is not, do not continue driving.
fix to the tire and we recommend that
the system be inspected by an
Call for road side service or tow-
authorized HYUNDAI dealer.
ing.
6-30
Introduction
It is possible that some tires, espe-
CAUTION
cially with larger punctures or dam-
age to the sidewall, cannot be sealed
When two or more tires are flat,
completely.
do not use the tire mobility kit
Air pressure loss in the tire may
because the supported one
adversely affect tire performance.
sealant of Tire Mobility Kit is
only used for one flat tire.
For this reason, you should avoid
abrupt steering or other driving
maneuvers, especially if the vehicle
WARNING
is heavily loaded or if a trailer is in
use.
Do not use the Tire Mobility Kit
The Tire Mobility Kit is not designed
to repair punctures in the tire
OPDE066011
or intended as a permanent tire
walls. This can result in an acci-
repair method and is to be used for
With the Tire Mobility Kit you stay
dent due to tire failure.
one tire only. This instruction shows
mobile even after experiencing a tire
you step by step how to temporarily
puncture.
seal the puncture simply and reliably.
6
WARNING
The system of compressor and seal-
Read the section "Notes on the safe
ing compound effectively and com-
use of the Tire Mobility Kit".
Have your tire repaired as soon
fortably seals most punctures in a
as possible. The tire may loose
passenger car tire caused by nails
air pressure at any time after
or similar objects and reinflates the
inflating with the Tire Mobility Kit.
tire.
After you ensured that the tire is
properly sealed you can drive cau-
tiously on the tire (distance up to 200
km (120 miles)) at a max. speed of
80 km/h (50 mph) in order to reach a
service station or tire dealer to have
the tire replaced.
6-31
What to do in an emergency
Notes on the safe use of the
•
Do not use the Tire Mobility Kit if a
WARNING
Tire Mobility Kit
tire is severely damaged by driving
run flat or with insufficient air pres-
•
Park your car at the side of the
Do not use the TMK if a tire is
sure.
road so that you can work with the
severely damaged by driving
Tire Mobility Kit away from moving
•
Do not remove any foreign objects
run flat or with insufficient air
traffic.
such as nails or screws that have
pressure.
penetrated the tire.
•
To be sure your vehicle will not
Only punctured areas located
move, even when you're on fairly
•
Provided the car is outdoors, leave
within the tread region of the
level ground, always set your park-
the engine running. Otherwise
tire can be sealed using the
ing brake.
operating the compressor may
TMK.
eventually drain the car battery.
•
Only use the Tire Mobility Kit for
sealing/inflation passenger car
•
Never leave the Tire Mobility Kit
tires. Only punctured areas located
unattended while it is being used.
within the tread region of the tire
•
Do not leave the compressor run-
can be sealed using the tire mobil-
ning for more than 10 min. at a time
ity kit.
or it may overheat.
•
Do not use on motorcycles, bicy-
•
Do not use the Tire Mobility Kit if
cles or any other type of tires.
the ambient temperature is below
•
When the tire and wheel are dam-
-30°C (-22°F).
aged, do not use Tire Mobility Kit
for your safety.
•
Use of the Tire Mobility Kit may not
be effective for tire damage larger
than approximately 6 mm (0.24 in).
If the tire cannot be made roadwor-
thy with the Tire Mobility Kit, we
recommend that you contact an
authorized HYUNDAI dealer.
6-32
Components of the Tire Mobility Kit
9. Hose to connect compressor and
sealant bottle or compressor and
wheel
Connectors, cable and connection
hose are stored in the compressor
housing.
Strictly follow the specified sequence,
otherwise the sealant may escape
under high pressure.
WARNING
Expired sealant
Do not use the Tire sealant after
the sealant has expired
(i.e.
6
pasted the expiration date on
the sealant container). This can
increase the risk of tire failure.
OEL069020
0. Speed- restriction label
4. Holder for the sealant bottle
WARNING
1. Sealant bottle and label with
5. Compressor
speed restriction
Sealant
6. ON/OFF switch
2. Filling hose from sealant bottle to
• Keep out of reach of children.
7. Pressure gauge for displaying the
wheel
tire inflation pressure
• Avoid contact with eyes.
3. Connectors and cable for the
8. Button for reducing tire inflation
• Do not swallow.
power outlet direct connection
pressure
6-33
What to do in an emergency
Using the Tire Mobility Kit
CAUTION
OLMF064103
OLMF064104
1. Shake the sealant bottle.
2. Screw the connection hose
(9)
onto the connector of the sealant
OPD066013
bottle.
Detach the speed restriction
3. Ensure that the button (8) on the
label (0) from the sealant bottle
compressor is not pressed.
(1), and place it in a highly visi-
ble place inside the vehicle
such as on the steering wheel
to remind the driver not to drive
too fast.
6-34
