Volvo V90 Twin Engine (2018 year). Manual

SAFETY

* Option/accessory.

Table for location of child seats

using the car's seatbelts

The table gives a recommendation for which
child seats suit which locations, and for what
size of child.

NOTE

Always read the section "Child seats" before
fitting a child seat in the car.

Weight

Front seat (with deactivated airbag, only rear-facing
child seats)

Front seat (with activated airbag, only front-facing
child seats)

Outer rear seat

Centre rear seat

Group 0

max 10 kg

A, B

Group 0+

max 13 kg

A, B

Group 1

9-18 kg

A, D

U, L

Group 2

15-25 kg

E, F

, B

, G

, L

SAFETY

* Option/accessory.

Weight

Front seat (with deactivated airbag, only rear-facing
child seats)

Front seat (with activated airbag, only front-facing
child seats)

Outer rear seat

Centre rear seat

Group 3

22-36 kg

F, H

, B

, G

U: Suitable for universal category restraints approved for use in this mass group.

UF: Suitable for front-facing universally approved child seats.

L: Suitable for particular child restraints. These restraints may be of the specific vehicle, restricted or semi-universal categories.

B: Built-in restraint approved for this mass group.

X: The seat is not suitable for children in this mass group.

Adjust the backrest to a more upright position.

Volvo recommends: Volvo infant seat (type approval E1 04301146).

Volvo recommends: Volvo reversible seat in the rear-facing position (type approval E5 04192); Volvo rear-facing seat (type approval E5 04212).

Volvo recommends rear-facing child seat for children in this mass group.

Volvo recommends: Volvo reversible seat in the front-facing position (type approval E5 04191); booster cushion with and without back (type approval E5 04216); Volvo booster cushion with backrest (type

approval E1 04301169); Volvo booster seat (type approval E1 04301312).

Volvo recommends: Römer KidFix XP (type approval E1 04301312).

Volvo recommends: Integrated child seat (type approval E5 04220).

Volvo recommends: booster cushion with and without back (type approval E5 04216); Volvo booster cushion with backrest (type approval E1 04301169).

WARNING

Never use a rear-facing child seat on the front

passenger seat if the passenger airbag is

activated.

Related information

•

Child seats (p. 76)

•

Upper mounting points for child seats (p. 78)

•

Table for location of ISOFIX child seats
(p. 83)

•

Table for location of i-Size child seats
(p. 86)

SAFETY

i-Size/ISOFIX mounting points

The car is equipped with i-Size/ISOFIX

mount-

ing points for child seats in the rear seat.

i-Size/ISOFIX is a fixture system for car child
seats that is based on an international standard.

Always follow the manufacturer's installation
instructions when connecting a child seat to the
i-Size/ISOFIX mounting points.

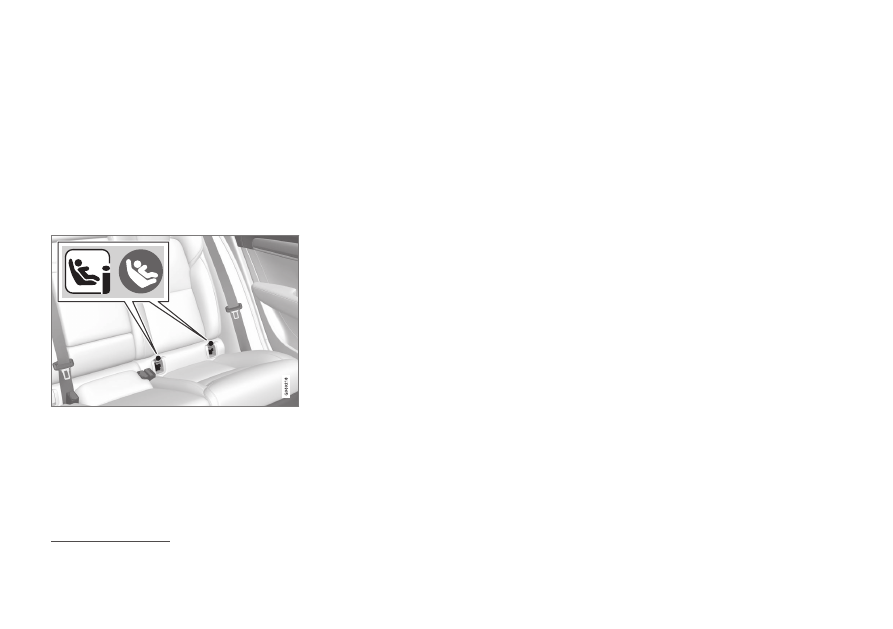

The location of the mounting points

Mounting point locations are indicated by symbols

the upholstery of the backrest.

The mounting points for i-Size/ISOFIX are
located behind covers in the lower section of the
rear seat's backrest, in the outer seats.

Lift the covers in order to access the mounting
points.

Related information

•

Child seats (p. 76)

•

Upper mounting points for child seats (p. 78)

•

Lower mounting points for child seats (p. 78)

•

Table for location of i-Size child seats
(p. 86)

•

Table for location of ISOFIX child seats
(p. 83)

Names and symbols change depending on market.

SAFETY

}}

Table for location of ISOFIX child

seats

The table gives a recommendation for which
ISOFIX child seats suit which locations, and for
what size of child.

The child seat must be approved in accordance
with UN Reg R44 and the car model must be
included in the manufacturer's vehicle list.

NOTE

Always read the section "Child seats" before
fitting a child seat in the car.

Weight

Size class

Type of child seat

Front seat (with deactivated air-

bag, only rear-facing child

seats)

Front seat (with activated air-

bag, only front-facing child

seats)

Outer rear seat

Centre rear seat

Group 0

max 10 kg

Rear-facing infant seat

B, C

, X

Group 0+

max 13 kg

Rear-facing infant seat

B, C, E

, X

Rear-facing child seat

SAFETY

Weight

Size class

Type of child seat

Front seat (with deactivated air-

bag, only rear-facing child

seats)

Front seat (with activated air-

bag, only front-facing child

seats)

Outer rear seat

Centre rear seat

Group 1

9-18 kg

Front-facing child seat

B, E, F

, X

, IUF

Front-facing child seat

Rear-facing child seat

B, E

, X

Rear-facing child seat

IL: Suitable for particular ISOFIX child restraint systems. These child restraint systems are those of the specific vehicle, restricted or semi-universal catego-
ries.

IUF: Suitable for ISOFIX forward child restraint systems of universal category approved for use in the mass group.

X: Not suitable for ISOFIX child restraint systems.

For child seats with the ISOFIX fixture system there is a size classification to help users choose the right type of child seat. The size class can be read on the child seat's label.

Works for the installation of ISOFIX child seats that are semi-universally approved (IL) if the car is equipped with the ISOFIX console accessory (the accessory range varies depending on market).

Volvo recommends: Volvo infant seat secured using the ISOFIX fixture system (type approval E1 04301146).

Applicable if the car is not fitted with an ISOFIX bracket.

Adjust the backrest so that the head restraint does not touch the child seat.

Volvo recommends rear-facing child seat for children in this mass group.

Volvo recommends: BeSafe iZi Kid X3 ISOfix (type approval E5 04200).

WARNING

Never use a rear-facing child seat on the front

passenger seat if the passenger airbag is

activated.

NOTE

If an i-Size/ISOFIX child seat has no size
classification, the car model must be included
on the vehicle list for the child seat.

NOTE

Volvo recommends contacting an authorised
Volvo dealer for information about which i-
Size/ISOFIX child seats Volvo recommends.

SAFETY

Table for location of i-Size child

seats

The table gives a recommendation for which i-
Size child seats suit which locations, and for
what size of child.

The child seat must be approved in accordance
with UN Reg R129.

NOTE

Always read the section "Child seats" before
fitting a child seat in the car.

Type of child seat

Front seat (with deactivated airbag, only rear-

facing child seats)

Front seat (with activated airbag, only front-fac-

ing child seats)

Outer rear seat

Centre rear seat

i-Size child seats

i-U

i-U: Suitable for i-Size "universal" child seat, front-facing and rear-facing.

X: Not suitable for universally approved child seats.

Volvo recommends rear-facing child seats for this group.

Related information

•

Child seats (p. 76)

•

i-Size/ISOFIX mounting points (p. 82)

•

Table for location of ISOFIX child seats
(p. 83)

•

Table for location of child seats using the
car's seatbelts (p. 80)

SAFETY

* Option/accessory.

Integrated child seat

The integrated child seats on the outer positions
in the rear seat allow children to sit comfortably
and safely.

The child seat is especially designed to provide
good safety for the child together with the car's
seatbelt. The seat cushion can be raised in two
positions depending on the weight of the child.

The child seat is approved for children weighing
between 15 and 36 kg and at least 95 cm tall.

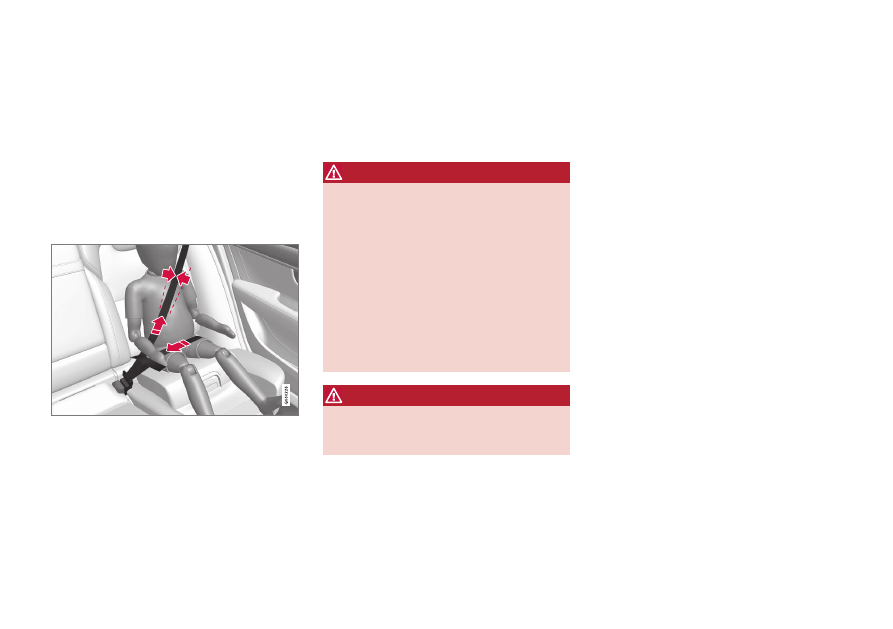

Correct position, the seatbelt must pass over the shoul-

der.

Check before driving that:

•

the seat cushion is raised to the correct posi-
tion for the child's weight

•

the seat cushion is locked in position

•

the seatbelt is in contact with the child's
body and is not slack or twisted

•

the seatbelt does not lie across the child's
throat or below the shoulder

•

the lap section of the seatbelt is positioned
low over the pelvis to provide optimal protec-
tion.

WARNING

Volvo recommends that repair or replacement

of the integrated child seat is only performed

by an authorised Volvo workshop. Do not

make any modifications or additions to the

child seat. If an integrated child seat has been

subjected to a heavy load, e.g. in connection

with a collision, then the seat cushion, seat-

belt and backrest, or possibly the whole seat,

must be replaced. Even if the child seat

appears to be undamaged, it may not afford

the same level of protection. This also applies

if the seat cushion was in lowered position

during a collision or similar. The seat cushion

must also be replaced if it is heavily worn.

WARNING

If the instructions for the integrated child seat

are not followed then the child could sustain

serious injury in the event of an accident.

Related information

•

Child safety (p. 75)

•

Folding up the integrated child seat cushion

(p. 88)

•

Folding down the integrated child seat cush-
ion

* (p. 89)

SAFETY

* Option/accessory.

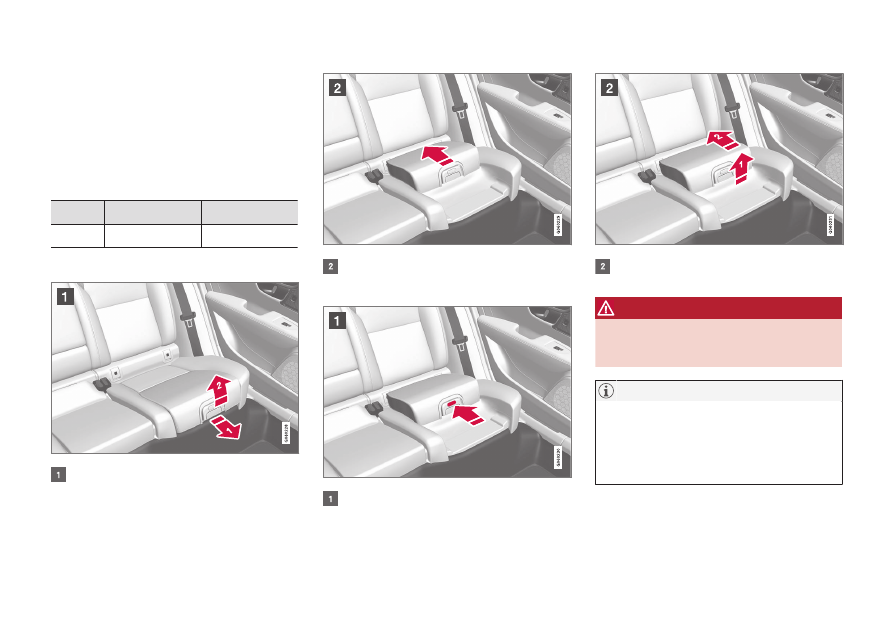

Folding up the integrated child seat

cushion

The seat cushion should always be folded up
when the integrated child seat is in use.

The seat cushion can be folded up in two posi-
tions. The position that should be used depends
on the weight of the child.

Lower position

Upper position

Weight

22-36 kg

15-25 kg

Lower position:

Pull the handle forward and up in order to
release the seat cushion.

Press the seat cushion backwards to lock.

Upper position, start from the lower position:

Press the button to release the seat cushion.

Lift up the front of the seat cushion and
press it back against the backrest to lock.

WARNING

If the instructions for the integrated child seat

are not followed then the child could sustain

serious injury in the event of an accident.

NOTE

It is not possible to adjust the seat cushion
from the upper position to the lower position.
From the upper position, the seat cushion
must first be fully lowered into the rear seat,
and then folded up to the lower position.

SAFETY

* Option/accessory.

Related information

•

Integrated child seat

* (p. 87)

•

Folding down the integrated child seat cush-
ion

* (p. 89)

Folding down the integrated child

seat cushion

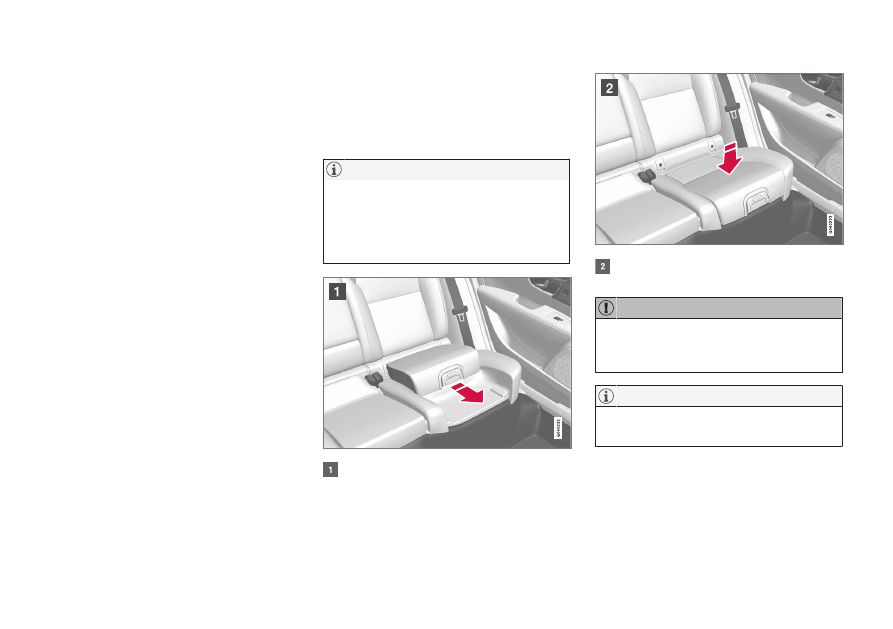

The seat cushion should be folded down into
the rear seat when the integrated child seat is
not being used.

NOTE

Pull the handle forward in order to release
the seat cushion.

Press down with your hand in the centre of
the seat cushion in order to lock it.

IMPORTANT

Check that there are no loose objects (e.g.
toys) left behind in the space under the child
seat's seat cushion before lowering.

NOTE

Before the rear backrest is lowered, the child
seat's seat cushion must be lowered first.

Related information

•

Integrated child seat

* (p. 87)

•

Folding up the integrated child seat cushion

(p. 88)

INSTRUMENTS AND CONTROLS

* Option/accessory.

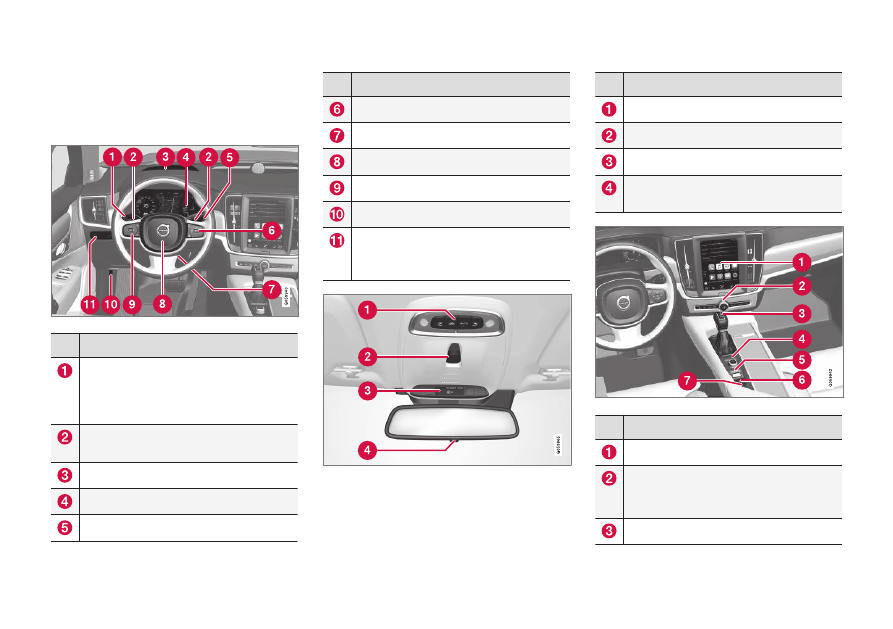

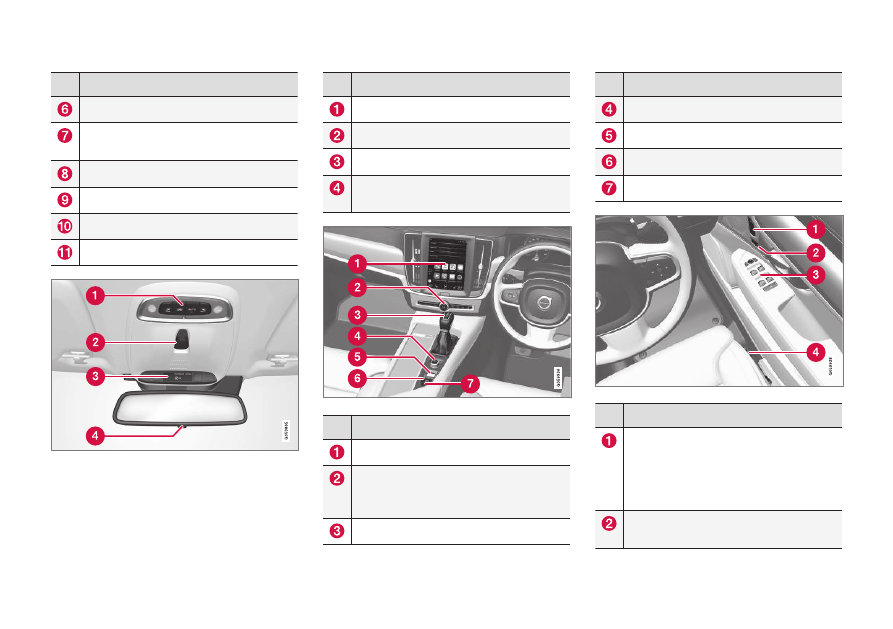

Instruments and controls, left-hand

drive car

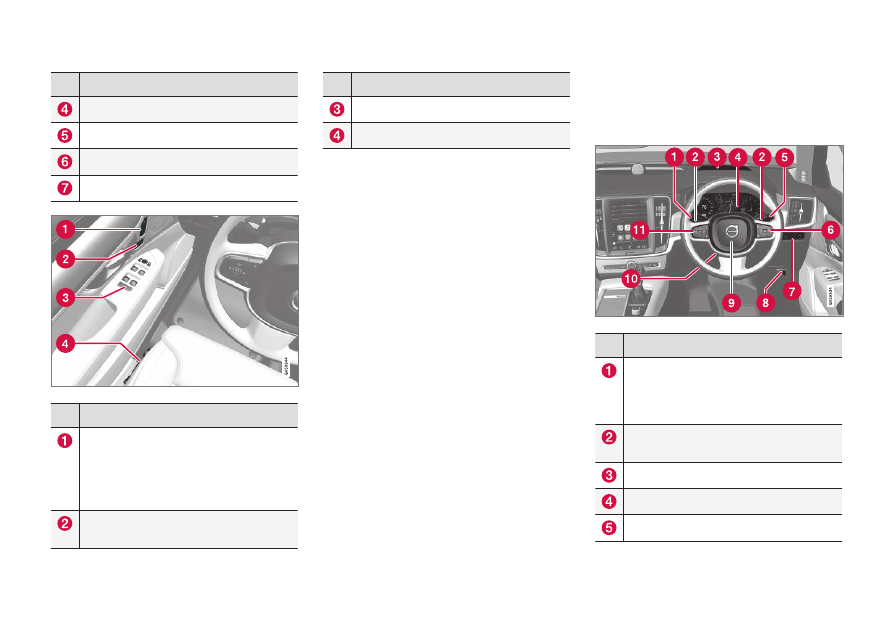

The overviews show where the displays and
controls near the driver are located.

Display/function/control

Position lamps, daytime running lights,
dipped beam, main beam, direction indi-
cators, rear fog lamp, resetting the trip
meter

Steering wheel paddles for manual gear
changing in an automatic gearbox

Head-up display

Driver display

Wipers and washing, rain sensor

Display/function/control

Right-hand steering wheel keypad

Steering wheel adjustment

Horn

Left-hand steering wheel keypad

Bonnet opening

Display lighting, tailgate unlocking, tail-
gate opening/closing

*, halogen head-

lamp levelling

Display/function/control

Front reading lamps and interior lighting

Panorama roof

Display in roof console

Manual dimming of interior rearview mir-
ror

Display/function/control

Centre display

Hazard warning flashers, max defroster/
heated windscreen

*, media, glovebox

door opening

Gear selector

INSTRUMENTS AND CONTROLS

}}

* Option/accessory.

Display/function/control

Start knob

Drive mode control

Parking brake

Automatic braking when stationary

Display/function/control

Memory for setup of:

•

Power front seat

•

Door mirrors

•

Head-up display

Door opening, locking/unlocking of side
doors and tailgate

Display/function/control

Power windows, door mirrors

Adjusting front seat

Related information

•

General information about Twin Engine
(p. 55)

•

Steering wheel (p. 135)

•

Manual front seat (p. 126)

•

Adjusting the power front seat

* (p. 127)

•

Lighting control (p. 138)

•

Climate controls (p. 186)

•

Overview of the centre display (p. 33)

Instruments and controls, right-

hand drive car

The overviews show where the displays and
controls near the driver are located.

Display/function/control

Position lamps, daytime running lights,
dipped beam, main beam, direction indi-
cators, rear fog lamp, resetting the trip
meter

Steering wheel paddles for manual gear
changing in an automatic gearbox

Head-up display

Driver display

Wipers and washing, rain sensor

INSTRUMENTS AND CONTROLS

* Option/accessory.

Display/function/control

Right-hand steering wheel keypad

Display lighting, unlocking the tailgate,
opening/closing the tailgate

Bonnet opening

Horn

Steering wheel adjustment

Left-hand steering wheel keypad

Display/function/control

Front reading lamps and interior lighting

Panorama roof

Display in roof console

Manual dimming of interior rearview mir-
ror

Display/function/control

Centre display

Hazard warning flashers, max defroster/
heated windscreen

*, media, glovebox

door opening

Gear selector

Display/function/control

Start knob

Drive mode control

Parking brake

Automatic braking when stationary

Display/function/control

Memory for setup of:

•

Power front seat

•

Door mirrors

•

Head-up display

Door opening, locking/unlocking of side
doors and tailgate

INSTRUMENTS AND CONTROLS

* Option/accessory.

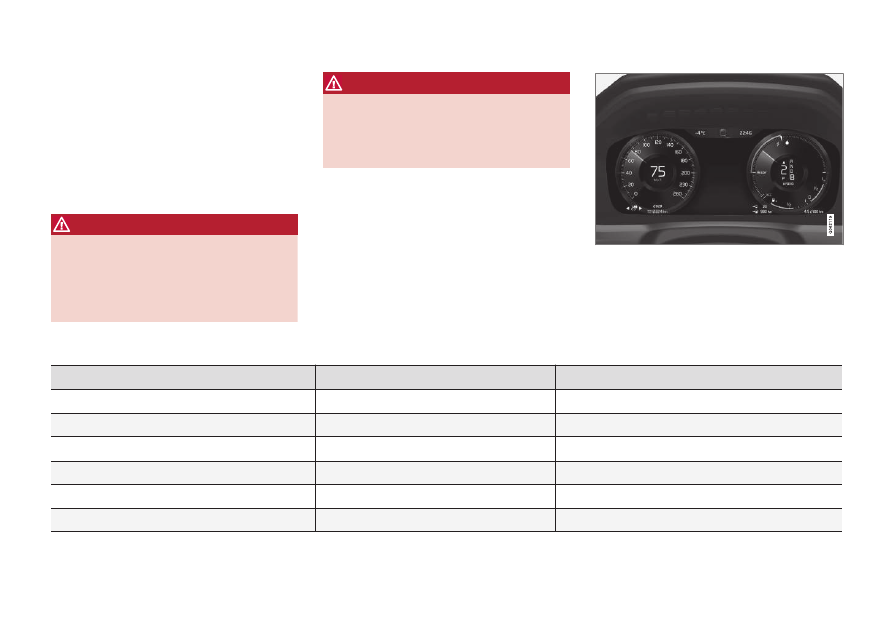

Driver display

The driver display shows information about the
car and driving.

The driver display contains gauges, indicators and
indicator and warning symbols. The content of
the driver display depends on the car's equip-
ment, settings and which functions are active at
that time.

WARNING

In the event of a fault in the driver display the

information on e.g. brakes, airbags or other

safety systems may not be shown. In which

case, the driver cannot check the status of

the car's systems or receive current warnings

and information.

WARNING

If the driver display should extinguish, not illu-

minate on activation/start or be fully or parti-

ally illegible, the car must not be used. You

should visit a workshop immediately. Volvo

recommends an authorised Volvo workshop.

Location in the driver display:

On the left

In the middle

On the right

Speedometer

Indicator and warning symbols

Tachometer/Hybrid gauge

Trip meter

Outside temperature gauge

Gear shift indicator

Odometer

Clock

Drive mode

Cruise control and speed limiter information

Messages, in some cases with graphics

Fuel gauge

Road Sign Information

Door and seatbelt information

Hybrid battery gauge

–

Charge status

Distance to empty tank

INSTRUMENTS AND CONTROLS

* Option/accessory.

On the left

In the middle

On the right

–

Media player

Distance to empty battery

–

Navigation map

Instantaneous fuel consumption

–

Phone

App menu (activated via steering wheel keypad)

–

Voice recognition

–

Depends on drive mode selected.

Accumulated mileage.

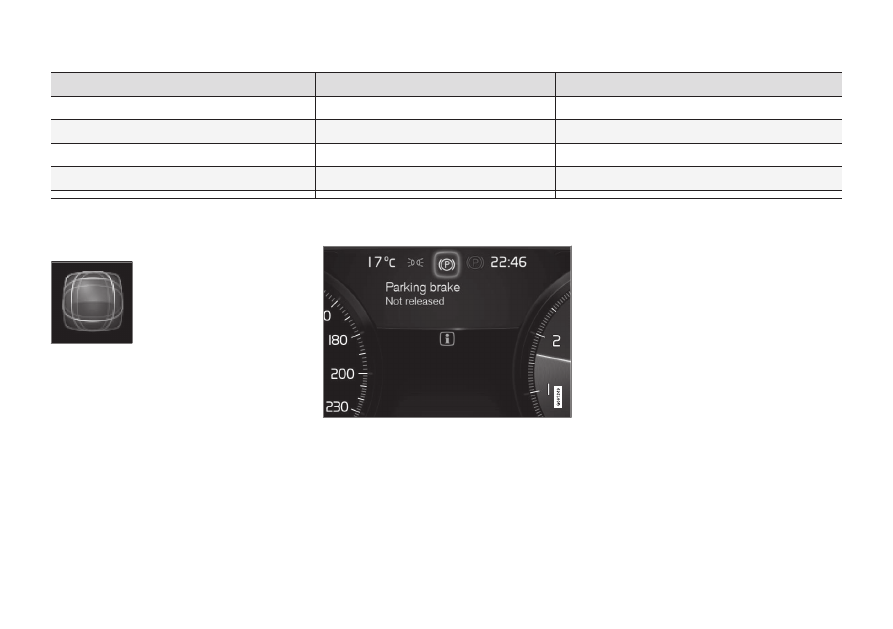

Dynamic symbol

The dynamic symbol in its basic
form.

The centre of the driver display contains a
dynamic symbol that changes appearance for dif-
ferent types of message. It can show an indicator
or warning symbol, or consist of an image
sequence that starts from this position and is
then converted to a larger image to clarify infor-
mation.

Example of indicator symbol in the 12-inch driver display.

Activating the driver display

The driver display is activated as soon as a door
is opened, i.e. in ignition position 0. The driver
display extinguishes after a while if it is not used.
To reactivate it, proceed with one of the following:

•

Depress the brake pedal.

•

Turn the ignition knob to ignition position to I.

•

Open one of the doors.

Related information

•

Driver display settings (p. 98)

•

Indicator symbols in the driver display
(p. 101)

•

Warning symbols in the driver display
(p. 103)

•

Application menu in the driver display
(p. 111)

•

Fuel gauge (p. 105)

•

License agreement for the driver display
(p. 106)

INSTRUMENTS AND CONTROLS

* Option/accessory.

Driver display settings

Settings for the driver display can be made in
the driver display's application menu and in the
centre display's

Settings

menu.

Settings in the app menu

In the app menu, you can choose which informa-
tion is shown on the driver display from

•

trip computer

•

media player

•

phone

•

navigation system

The application menu in the driver display is
opened and navigated using the steering wheel's
right-hand keypad, see the section "Using the
application menu in the driver display".

Settings in the centre display

Selecting information type

1. Tap on

Settings

in the centre display's top

view.

2. Press

My Car

Displays

Driver

Display Information

3. Select what should be shown in the back-

ground:

•

Show no information in background

•

Show information for current playing
media

•

Show navigation even if no route is
set

Selecting theme

1. Tap on

Settings

in the centre display's top

view.

2. Tap on

My Car

Displays

Display

Themes

3. Select a theme (appearance) for the driver

display:

•

Glass

•

Minimalistic

•

Performance

•

Chrome Rings

Selecting language

1. Tap on

Settings

in the centre display's top

view.

2. Tap on

System

System Languages and

Units

System Language

to select lan-

guage.
> A change will affect the language in all

displays.

Related information

•

Driver display (p. 96)

•

Application menu in the driver display
(p. 111)

•

Settings in the centre display (p. 172)

Volvo V90 Twin Engine (2018 year). Manual - part 4
