11 Specifications

11

317

List of labels

Vehicle Emission Control Information.
Your Volvo is designed to meet all appli-

cable emission standards, as evidenced

by the certification label on the underside

of the hood. For further information regar-

ding these regulations, please consult

your Volvo retailer.
Engine oil. This label contains the recom-

mended engine oil specifications.
Vehicle Identification Number (VIN).
The VIN plate is located on the top left

surface of the dashboard. The Vehicle

Identification Number (VIN) should always

be quoted in all correspondence concern-

ing your vehicle with the retailer and when

ordering parts.
Tire inflation pressures. This label indi-

cates the correct inflation pressures for

the tires that were on the vehicle when it

left the factory.

Federal Motor Vehicle Safety Stand-

ards (FMVSS) specifications (USA) and

Ministry of Transport (CMVSS) stand-

ards (Canada). Your Volvo is designed to

meet all applicable safety standards, as

evidenced by the certification label on the

driver's side B-pillar (the structural mem-

ber at the side of the vehicle, at the rear

of the driver's door opening). This label

also includes codes for paint color, etc.

For further information regarding these

regulations, please consult your Volvo

retailer. U.S. models have the upper

decal; Canadian models have the lower

one.

Related information

•

Weights (p. 320)

•

Engine specifications (p. 322)

11 Specifications

11

318

Dimensions

This section lists your vehicle's most impor-

tant dimensions.

Dimensions–S60 Inscription

Position

Dimension

in. (mm)

A

Ground clearance (curb weight + 2 people)

A

5.0 (127 )

B

Wheelbase

112.4 (2856)

C

Length

185.6 (4715)

D

Load length, floor, seatback down

72.0 (1829)

E

Load length, floor

38.0 (965)

F

Height

58.3 (1481)

11 Specifications

11

319

Position

Dimension

in. (mm)

G

Load height

18.3 (465)

H

Track, front

62.5 (1588)

I

Track, rear

62.4 (1585)

J

Load width, floor

36.2 (919)

K

Width

73.5 (1866)

L

Width incl. door mirrors (folded out)

82.6 (2097)

M

Width incl. door mirrors (folded in)

74.8 (1899)

A

Varies slightly depending on tire size, optional sport chassis, etc.

11 Specifications

11

320

Weights

The following table lists important weight data

for your vehicle.

Category

USA

Gross vehicle weight

4-cyl. FWD

A

5-cyl. AWD

B

4670 lbs
4825 lbs

Capacity weight
4-cyl. FWD
5-cyl. AWD

1000 lbs
1000 lbs

Permissible axle weights, front
4-cyl. FWD
5-cyl. AWD

2535 lbs
2580 lbs

Permissible axle weights, rear
4-cyl. FWD
5-cyl. AWD

2225 lbs
2335 lbs

Curb weight

3630 - 3827 lbs

Max. roof load

165 lbs

11 Specifications

11

321

Category

USA

Max. trailer weights

Without brakes: N/A
With brakes, N/A
With brakes, N/A

Max. tongue weight

N/A

A

Front Wheel Drive

B

All Wheel Drive

Related information

•

Loading specifications (p. 261)

•

Loading specifications – load limit (p. 261)

11 Specifications

11

322

Engine specifications

The following table provides technical data for

the respective engines. Engine specifications

for Special Edition vehicles may vary.

Some of the engines listed here may not

be available in all markets.

Engine specifications

Specification/Model

5-cyl.

2.0 4-cyl. T11

Engine designation

B5254T12

B4204T11

Output (kW/rps)

187/90

179/93

Output (hp/rpm)

250/5400 rpm

240/5600

Torque (Nm/rps)

360/30-70

350/25-75

Torque (ft. lbs./rpm)

266/1800-4200

258/1500–4500

No. of cylinders

5

4

Bore (in/mm)

3.27/83

3.23/82

Stroke (in/mm)

3.63/92.3

3.67/93.2

Displacement

2.497 liters / (152.4 cu. in.)

1.97 liters (120.2 cu. in.)

Compression ratio

9.5:1

10.8:1

Related information

•

Coolant – specification and volume

(p. 324)

•

Oil specifications (p. 323)

•

Oil volume (p. 323)

11 Specifications

11

323

Oil specifications

Full synthetic engine oil meeting the minimum

ACEA A5/B5 must be used. Lower quality oils

may not offer the same fuel economy, engine

performance, or engine protection.

Volvo recommends:

Refer to the warranty and Service Records

information booklet for information on oil

change intervals and oil type requirements.

NOTE

This vehicle comes from the factory with

synthetic oil.

Oil additives must not be used.

Oil viscosity
Incorrect viscosity oil can shorten engine life

under normal use. SAE 5W-30 will provide

good fuel economy and engine protection.

See the viscosity chart.

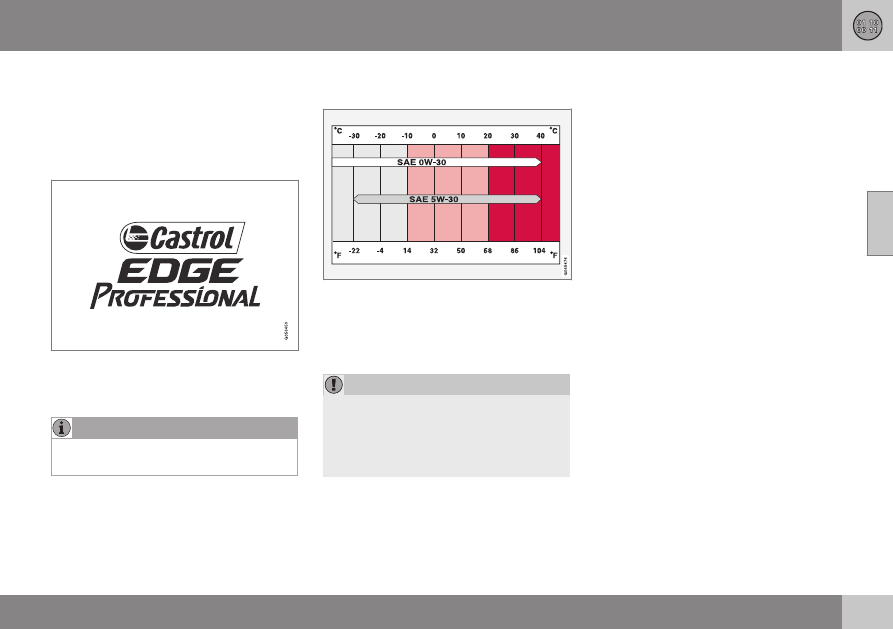

Viscosity chart

Extreme engine operation

SAE 0W-30 oil meeting ACEA A5/B5 require-

ments is recommended for extreme driving

conditions.

CAUTION

4-cylinder engines only: Volvo oil VCC

RBS0-2AE/SAE 0W20 is recommended for

extreme driving conditions.
This oil must never be used in 5- or 6-cyl-

inder engines.

Related information

•

Oil volume (p. 323)

•

Engine compartment – engine oil (p. 286)

Oil volume

The following table provides technical data for

the respective engines. Some of these

engines may not be available in all markets.

Engine specifications for Special Edition vehi-

cles may vary.

Related information

•

Engine compartment – engine oil (p. 286)

•

Oil specifications (p. 323)

11 Specifications

11

324

Coolant – specification and volume

The table lists coolant volumes and specifica-

tions.

System

Volume

Specifica-

tion

9.4 US qts.

(8.9 liters)

Coolant with

corrosion

inhibitor mixed

with water

(50/50 mix),

see packaging.

All 4-cyl.

engines

8.8 US qts.

(8.3 liters)

Related information

•

Engine compartment – coolant (p. 288)

Transmission oil – specification and

volumes

The table lists transmission oil

1

 volumes and

specifications.

Auto-

matic

trans-

mission

Volume

Specifi-

cation

TF-80SC

7.4 US qts

(7 liters)

Transmis-

sion fluid

AW1

TG-81SC

7 US qts ( 6.6

liters)

TF-71SC

7.1 US qts

(6.8 liters)

Related information

•

Label information (p. 315)

Brake fluid – specification and volume

Brake fluid transfers braking force when the

brake pedal is depressed to the master cylin-

der and to the slave cylinders on each wheel.

Specification: DOT 4 boiling point >536 °F

(>280 °C)
Volume: 0.63 US qts (0.6 liters)

Related information

•

Engine compartment – brake fluid (p. 289)

1

Under normal driving conditions the transmission oil does not need changing during its service life. However, it may be necessary under adverse driving conditions.

11 Specifications

11

325

Power steering – specification

This fluid is used to help reduce and regulate

steering force.

Specification:Power steering fluid recom-

mended by Volvo.

Related information

•

Engine compartment – power steering

fluid (p. 289)

Fuel tank volume – specification and

volume

The table lists the fuel tank volume for your

vehicle.

Volume

Specification

–

Related information

•

Refueling – opening/closing fuel filler door

(p. 241)

•

Refueling – opening/closing fuel cap

(p. 242)

•

Refueling – octane rating (p. 240)

•

Engine specifications (p. 322)

Air conditioning – specification and

volume

The air conditioning system in your vehicle

contains the following:

Refrigerant: R134a (HFC134a)
Volume: 1.7 lbs (770 g)
Compressor oil: PAG

11 Specifications

11

326

*



Option/accessory, for more information, see Introduction.

Battery specifications

If the battery is replaced, replace it with a bat-

tery of the same cold start capacity as the

original (see the decal on the battery).

General information

WARNING

PROPOSITION 65 WARNING!
Battery posts, terminals, and related

accessories contain lead and lead com-

pounds, chemicals known to the state of

California to cause cancer and reproduc-

tive harm. Wash hands after handling.

12 volt system with a voltage-regulated alter-

nator. Single pole system in which the chas-

sis and engine block are used as conductors.

The negative terminal is connected to the

chassis.

Motor

Voltage (V)

Cold start capacity

CCA (Cold Cranking Amperes) (A)

Engines with Start/Stop*

12

800

A

All other engines

12

520–800

A

AGM (Absorbed Glass Mat) batteries have to be used on models with Start/Stop

11 Specifications

11

}}

327

Symbols – general information

The following tables list the most common

warning and indicator lights and symbols and

a reference to where more detailed informa-

tion can be found.

Introduction
The symbols in the vehicle's various displays

are divided into three main categories:

•

Warning symbols

•

Indicator symbols

•

Information symbols

The following tables list the most common

symbols, their meaning and the pages in this

manual that provide more detailed informa-

tion.

NOTE

Not all of the symbols shown in the related

articles are available in all models or on all

markets. Local variations may occur.

Warning symbol

: The red warning symbol illuminates to

indicate a problem related to safety and/or

drivability. A message will also appear in the

main instruments panel's display.

Information symbol

: The information symbol illuminates and

a text message is displayed to provide the

driver with necessary information about one

of the vehicle's systems.

Related information

•

Information displays – indicator symbols

(p. 62)

•

Information displays – warning symbols

(p. 64)

•

Information display – messages (p. 97)

Warning symbols

The following tables list the most common

warning and indicator lights and symbols and

a reference to where more detailed informa-

tion can be found.

: The red warning symbol illuminates to

indicate a problem related to safety and/or

drivability. A message will also appear in the

main instruments panel's display.

: The information symbol illuminates and

a text message is displayed to provide the

driver with necessary information about one

of the vehicle's systems.

||

11 Specifications

11

328

*



Option/accessory, for more information, see Introduction.

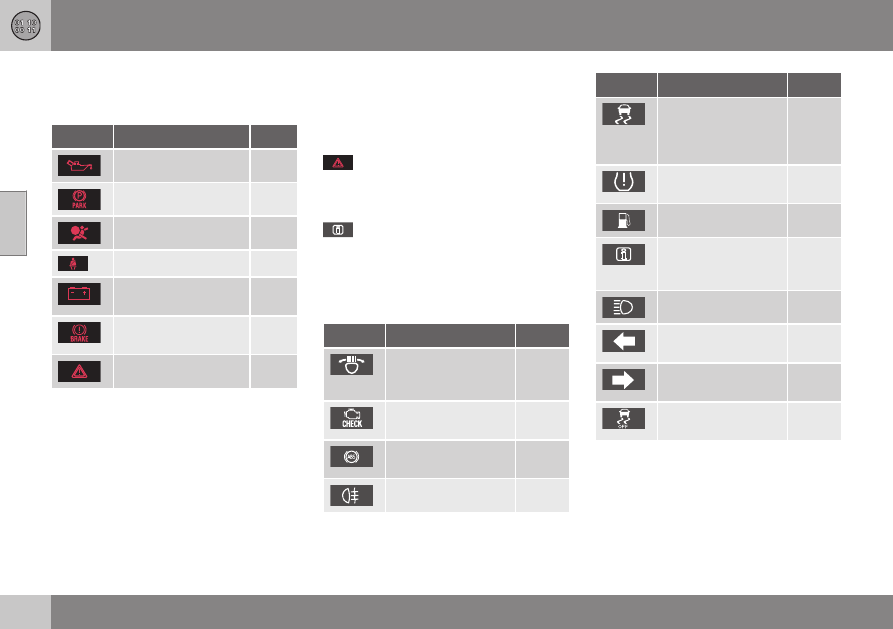

Symbols in the main instrument panel

Warning symbols in the instrument
panel

Symbol Description

See

Low oil pressure

(p. 64)

Parking brake

A

(p. 64)

SRS airbags

(p. 64)

Seat belt reminder

(p. 64)

Generator not charg-

ing

(p. 64)

Fault in the brake sys-

tem

(p. 64)

Warning symbol

(p. 64)

A

The symbol is Park only on models with the optional digital

instrument panel.

Related information

•

Information displays – indicator symbols

(p. 62)

•

Information displays – warning symbols

(p. 64)

•

Information display – messages (p. 97)

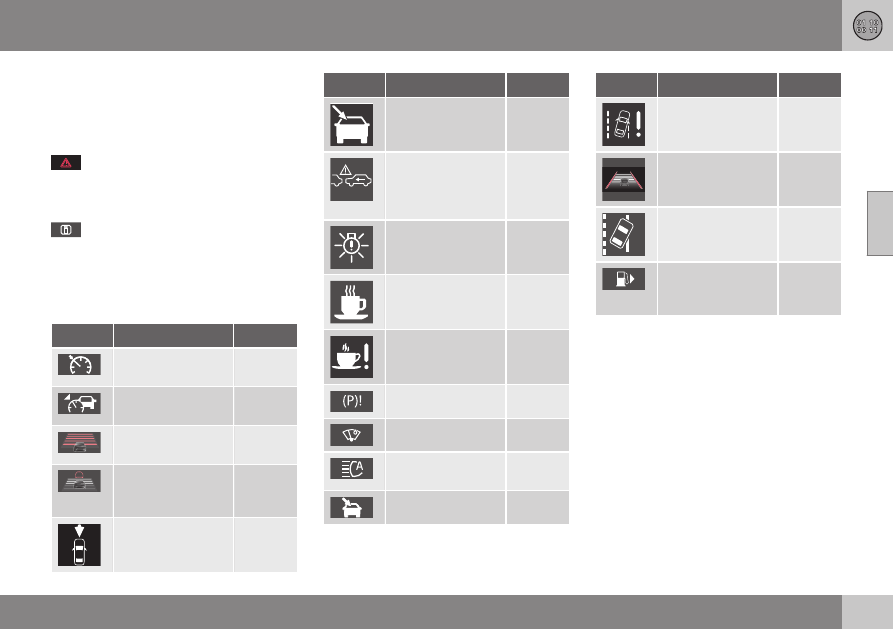

Indicator symbols

The following tables list the most common

warning and indicator lights and symbols and

a reference to where more detailed informa-

tion can be found.

: The red warning symbol illuminates to

indicate a problem related to safety and/or

drivability. A message will also appear in the

main instruments panel's display.

: The information symbol illuminates and

a text message is displayed to provide the

driver with necessary information about one

of the vehicle's systems.

Indicator symbols in the instrument
panel

Symbol Description

See

Fault in the Active

Bending Light

(ABL)*system

(p. 62)

Malfunction indicator

light

(p. 62)

Anti-lock brake sys-

tem (ABS)

(p. 62)

Rear fog lights on

(p. 62)

Symbol Description

See

Stability system, Hill

Descent Control,

Trailer Stability

Assist*

(p. 62)

Tire pressure moni-

toring sensor (TPMS)

(p. 62)

Low fuel level

(p. 62)

Information symbol,

see text in informa-

tion display

(p. 62)

High beam indicator

(p. 62)

Left turn signal indi-

cator

(p. 62)

Right turn signal indi-

cator

(p. 62)

Stability system ,

Sport mode

(p. 142)

Related information

•

Information displays – indicator symbols

(p. 62)

•

Information displays – warning symbols

(p. 64)

•

Information display – messages (p. 97)

11 Specifications

11

*



Option/accessory, for more information, see Introduction.

329

Information symbols

The following tables list the most common

warning and indicator lights and symbols and

a reference to where more detailed informa-

tion can be found.

: The red warning symbol illuminates to

indicate a problem related to safety and/or

drivability. A message will also appear in the

main instruments panel's display.

: The information symbol illuminates and

a text message is displayed to provide the

driver with necessary information about one

of the vehicle's systems.

Information symbols in the instrument
panel

Symbol Description

See

Adaptive Cruise

Control *

(p. 150)

Adaptive Cruise

Control *

(p. 150)

Adaptive Cruise

Control *

(p. 150)

Adaptive Cruise

Control * (Distance

alert)

(p. 150)

Radar sensor*

(p. 159)

Symbol Description

See

Camera sensor,

laser sensor

(p. 181)

(p. 174)

Collision Warning

with Full Auto-

brake and Pedes-

trian Detection*

(p. 186)

Active Bending

Lights (ABL)*

(p. 79)

Driver Alert Sys-

tem*

(p. 188)

Driver Alert Sys-

tem*

(p. 188)

Parking brake

(p. 232)

Rain sensor*

(p. 84)

Active High Beams

(AHB)*

(p. 77)

Windshield sensor*

(p. 77)

Symbol Description

See

Fuel tank on pas-

senger's side of the

vehicle

(p. 241)

Related information

•

Information displays – indicator symbols

(p. 62)

•

Information displays – warning symbols

(p. 64)

•

Information display – messages (p. 97)

11 Specifications

11

330

*



Option/accessory, for more information, see Introduction.

Information symbols – ceiling console

The following tables list the most common

warning and indicator lights and symbols and

a reference to where more detailed informa-

tion can be found.

: The red warning symbol illuminates to

indicate a problem related to safety and/or

drivability. A message will also appear in the

main instruments panel's display.

: The information symbol illuminates and

a text message is displayed to provide the

driver with necessary information about one

of the vehicle's systems.

Symbol Description

See

Seat belt reminder

(p. 30)

Occupant Weight Sen-

sor

(p. 36)

Related information

•

Information displays – indicator symbols

(p. 62)

•

Information displays – warning symbols

(p. 64)

•

Information display – messages (p. 97)

Information symbols – center console

The following tables list the most common

warning and indicator lights and symbols and

a reference to where more detailed informa-

tion can be found.

: The red warning symbol illuminates to

indicate a problem related to safety and/or

drivability. A message will also appear in the

main instruments panel's display.

: The information symbol illuminates and

a text message is displayed to provide the

driver with necessary information about one

of the vehicle's systems.

Symbol Description

See

Audio files

Sensus Info-

tainment sup-

plement

CD folder

Sensus Info-

tainment sup-

plement

Video files

Sensus Info-

tainment sup-

plement

Bluetooth-

connected cell

phone

Sensus Info-

tainment sup-

plement

Symbol Description

See

Bluetooth

TM

hands-free

Sensus Info-

tainment sup-

plement

HD radio

Sensus Info-

tainment sup-

plement

Park Assist*

(p. 198)

Related information

•

Information displays – indicator symbols

(p. 62)

•

Information displays – warning symbols

(p. 64)

•

Information display – messages (p. 97)
