WIRING DIAGRAM SYMBOLS

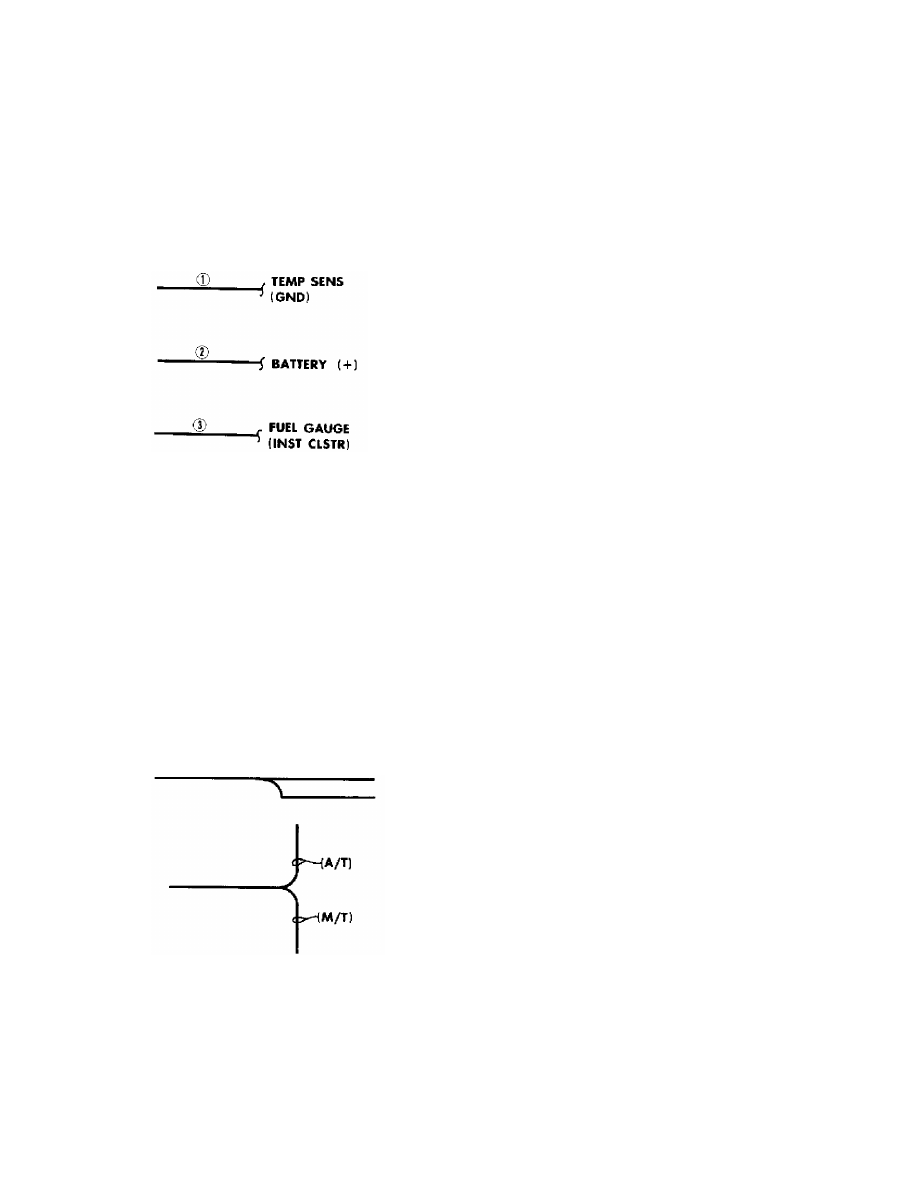

Fig. 1:  Identifying Tie-Off Symbols

         4) If the wires are not drawn all the way to another
component (across several pages), a reference will tell you their
final destination.
         5) Again, use the legend on the first page of the wiring
diagram to determine the grid number and letter of the referenced
component. You can then turn directly to it without tracing wires
across several pages.
         6) The symbols shown in Fig. 1 are called tie-offs. The first
tie-off shown indicates that the circuit goes to the temperature
sensor, and is also a ground circuit.
         7) The second symbol indicates that the circuit goes to a
battery positive parallel circuit. The third symbol leads to a
particular component and the location is also given.
         8) The lines shown in Fig. 2 are called options. Which path
or option to take depends on what engine or systems the vehicle has.

Fig. 2:  Identifying Option Symbols

         COLOR ABBREVIATIONS IDENTIFICATION

COLOR ABBREVIATIONS

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

Color                    Normal                Optional

Black  ..................  BLK  ...................  BK

WIRING DIAGRAM SYMBOLS

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

         WIRING DIAGRAM SYMBOL IDENTIFICATION

NOTE:    Standard wiring symbols are used on diagrams. The list below
         will help clarify any symbols that are not easily understood
         at a glance. Most components are labeled "Motor", "Switch" or
         "Relay" in addition to being drawn with the standard symbol.

         WIRING DIAGRAM SYMBOLS

         Views of the symbols used in the WIRING DIAGRAM articles are
in the following graphics. See Figs. 3 through 25.

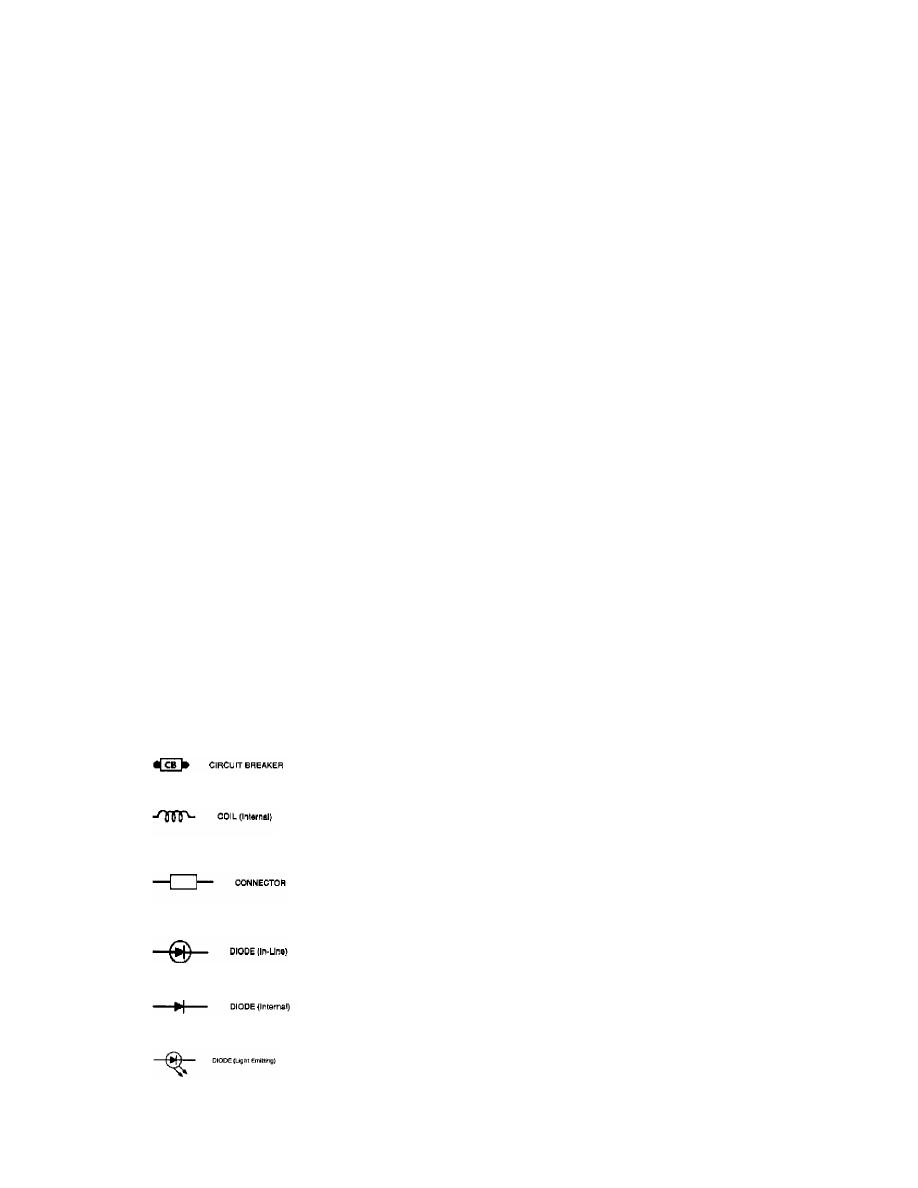

Fig. 3:  Circuit Breaker

Fig. 4:  Coil (Internal)

Fig. 5:  Connector

Fig. 6:  Diode (In-Line)

Fig. 7:  Diode (Internal)

Fig. 8:  Diode (Light Emitting)

WIRING DIAGRAM SYMBOLS

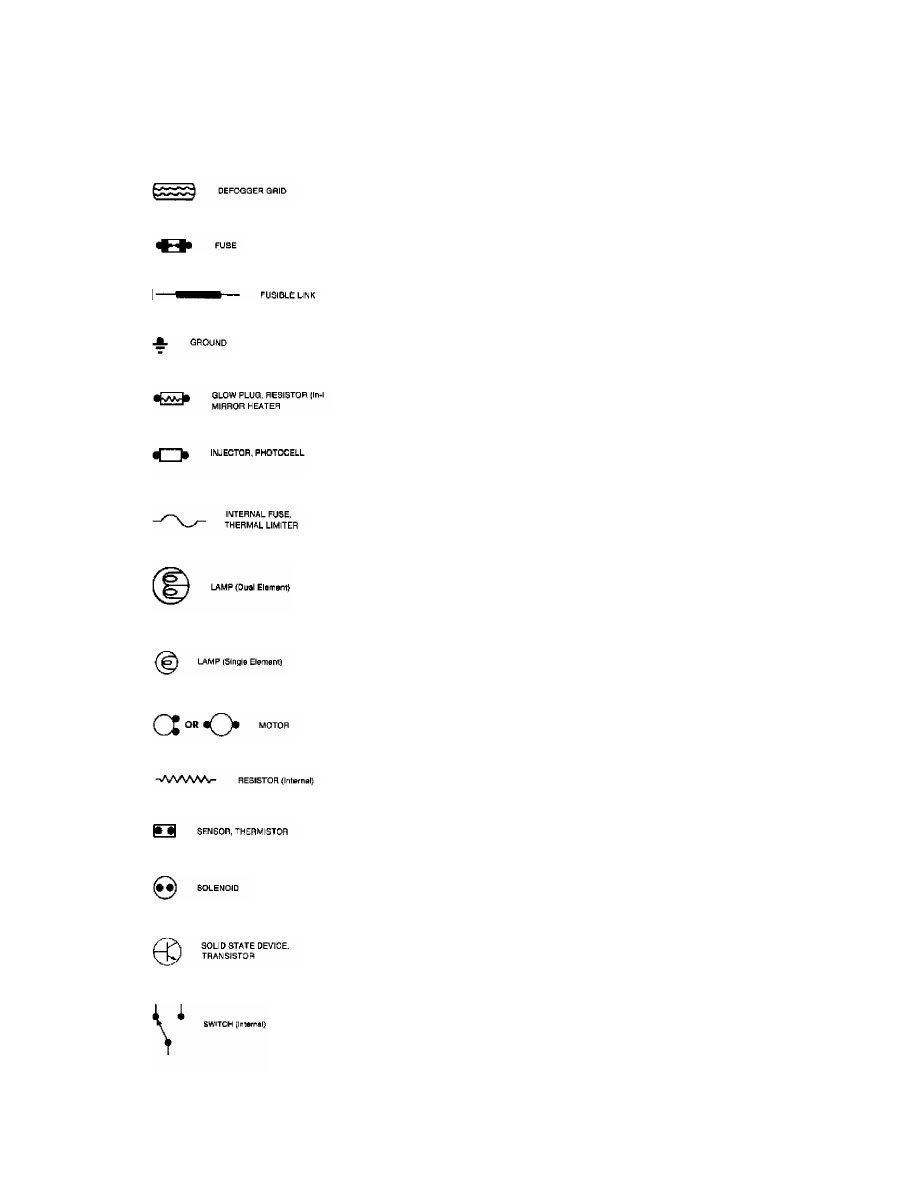

Fig. 10:  Fuse

Fig. 11:  Fusible Link

Fig. 12:  Ground

Fig. 13:  Glow Plug Resistor (In-Line) or Mirror Heater

Fig. 14:  Injector (Diesel) or Photocell (Gasoline)

Fig. 15:  Internal Fuse, Thermal Limiter

Fig. 16:  Lamp (Dual Element)

Fig. 17:  Lamp (Single Element)

Fig. 18:  Motor

Fig. 19:  Resistor (Internal)

Fig. 20:  Sensor, Thermistor

Fig. 21:  Solenoid

Fig. 22:  Solid State Device, Transistor

Fig. 23:  Switch (Internal)

WIRING DIAGRAM SYMBOLS

Fig. 25:  Variable Resistor or Potentiometer

END OF ARTICLE
