WHEEL ALIGNMENT THEORY/OPERATION

         STEERING AXIS INCLINATION

         1) Steering axis inclination is a check for bent or damaged
parts, and not a service adjustment. Vehicle must be level and camber
should be properly adjusted. See Fig. 6.
         2) If camber cannot be brought within limits and steering
axis inclination is correct, steering knuckle is bent. If camber and
steering axis inclination are both incorrect by approximately the same
amount, the upper and lower control arms are bent.

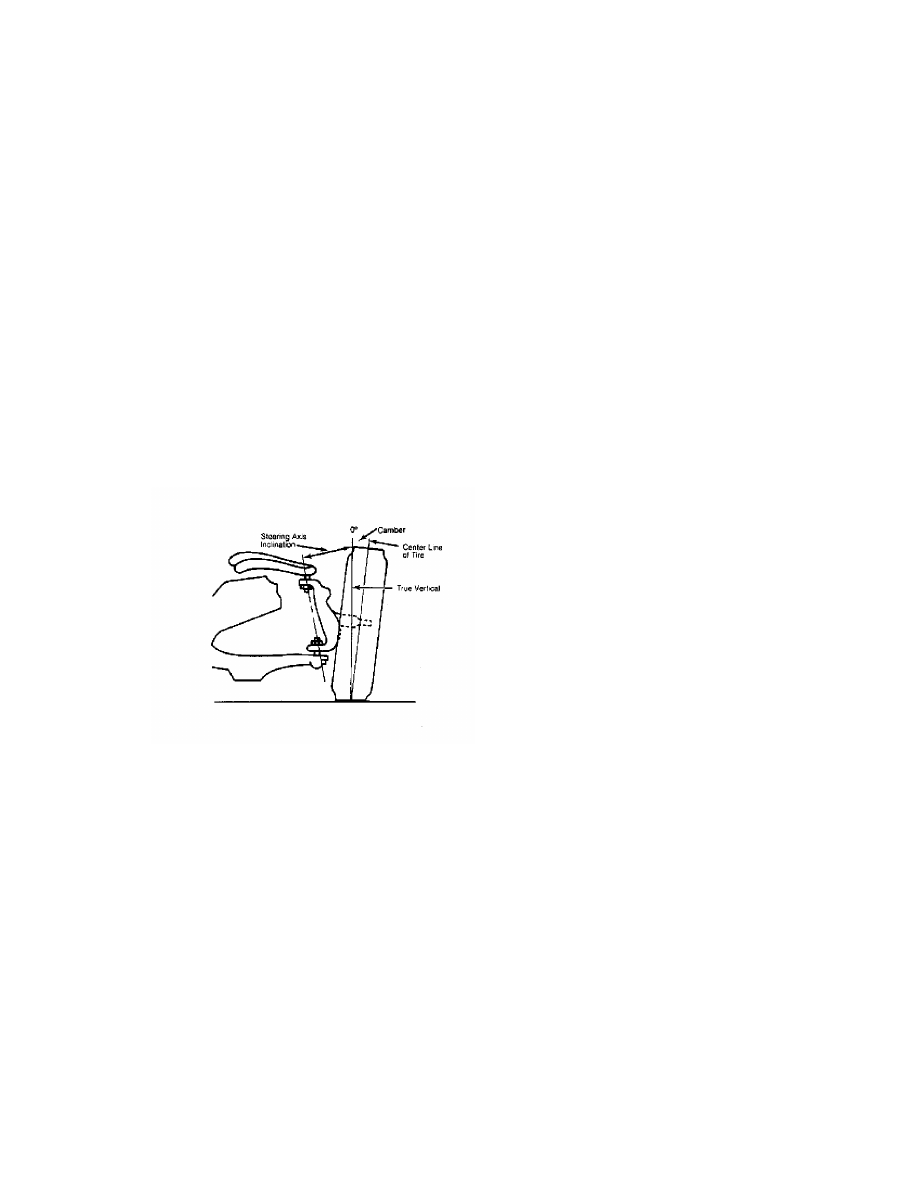

Fig. 6:  Checking Steering Axis Inclination

END OF ARTICLE

WIPER/WASHER SYSTEM

         1993 ACCESSORIES & EQUIPMENT
         Volkswagen Wiper/Washer Systems

         Volkswagen;  Corrado SLC

         DESCRIPTION

         All models are equipped with 2-speed wipers. A standard or
optional intermittent feature is also available. The wiper control is
the right lever on the steering column. Some models are equipped with
a rear wiper/washer system.

         ADJUSTMENTS

         WIPER BLADE

         To adjust wiper blade park position, ensure wiper motor is at
park position. Locate wiper blade(s) above lower edge of windshield as
specified. See WIPER BLADE PARK POSITION SPECIFICATION table. Secure
wiper arm.

WIPER BLADE PARK POSITION SPECIFICATION TABLE

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

Application                                         In. (mm)

Corrado SLC
 Right  ..........................................  1.0 (25)
 Left  ...........................................  1.8 (47)
 Rear  ...........................................  1.9 (50)

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

         TESTING

         Testing information is not available from manufacturer.

         REMOVAL & INSTALLATION

         FRONT WIPER MOTOR

         Removal
         Open hood, and unplug wiring connector. Pry linkage off motor
crank arm. Remove mounting bolts and motor. DO NOT remove motor
bracket when removing motor.

         Installation
         Check crank arm alignment by running motor and allowing arm
to park. Ensure crank arm is properly aligned. See Fig. 1. To complete

WIPER/WASHER SYSTEM

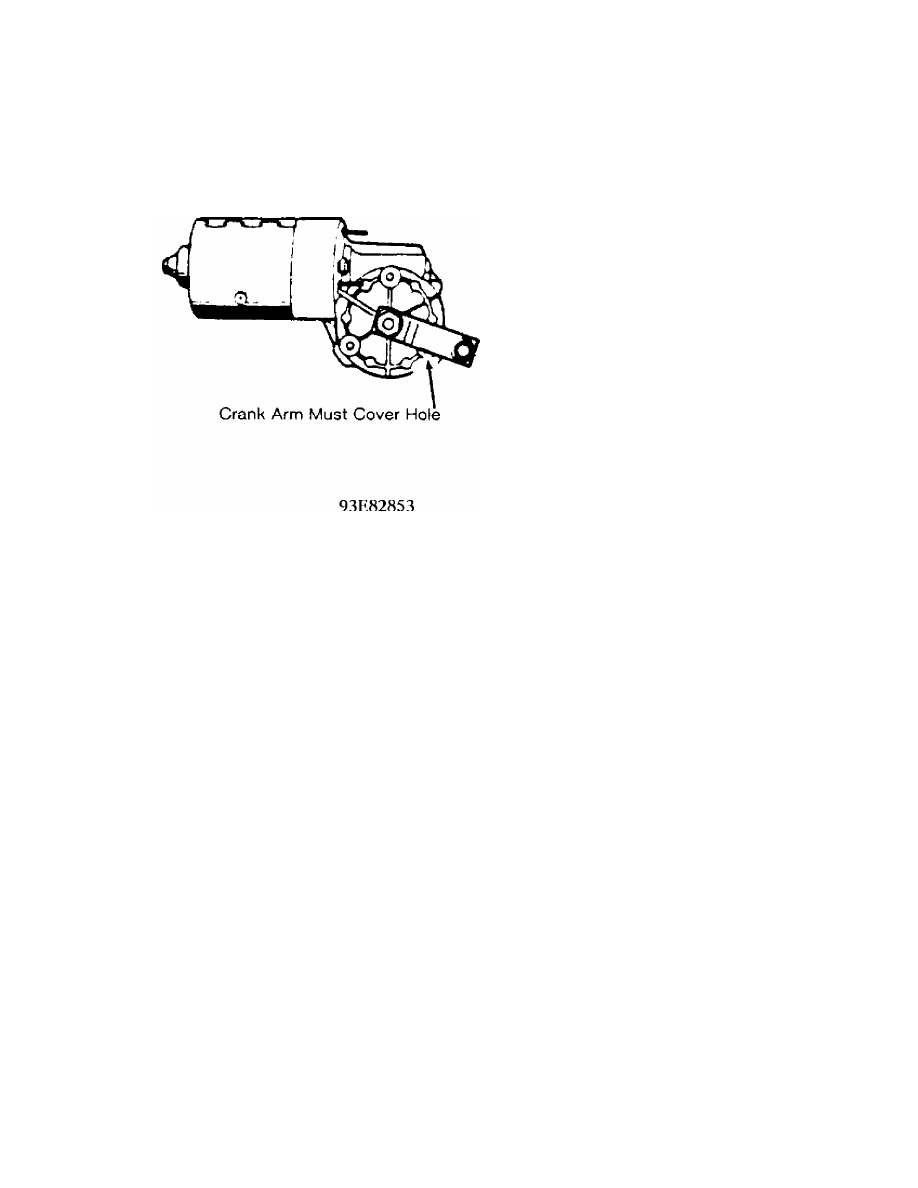

Fig. 1:  Aligning Front Wiper Motor Crank Arm
Courtesy of Volkswagen United States, Inc.

         WIRING DIAGRAMS

         See appropriate chassis wiring diagram in WIRING DIAGRAMS.

END OF ARTICLE

WIRING DIAGRAM SYMBOLS

         WIRING DIAGRAMS
         How To Use The Wiring Diagrams

         INTRODUCTION

         The wiring diagrams and technical service bulletins,
containing wiring diagram changes, are obtained from the domestic and
import manufacturers. These are checked for accuracy and are all
redrawn into a consistent format for easy use.
         All diagrams are arranged with the front of the vehicle at
the left side of the first page and the rear of the vehicle at the
right side of the last page. Accessories are shown near the end of the
diagram.
         Components are shown in their approximate location on the
vehicle. Due to the constantly increasing number of components on
vehicles today, it is impossible to show exact locations.
         In the past, when cars were simpler, diagrams were simpler.
All components were connected by wires, and diagrams seldom exceeded 4
pages in length. Today some wiring diagrams require more than 16
pages. It would be impractical to expect a service technician to trace
a wire from page 1 across every page to page 16.
         Removing some of the wiring maze reduces eyestrain and time
wasted searching across several pages. Today, the majority of diagrams
now follow a much improved format, which permits space for internal
switch details and connector shapes.
         Any wires that don't connect directly to their components are
identified on the diagram to indicate where they go. There is a legend
on the first page of each diagram, detailing component location. It
refers you to sub-systems, using grid NUMBERS at the top and bottom of
the page and grid LETTERS on each side. This grid system works in a
manner similar to that of a road map.

         HOW TO USE THE WIRING DIAGRAMS

         1) On the first page of the diagram, you will find a listing
of major electrical components or systems. Locate the specific
component or system you wish to trace. A grid number and letter will
follow the component's name.
         2) Use the grid NUMBERS (arranged horizontally across the top
and bottom of each page) to find the page of the wiring diagram that
contains the component you're seeking. When you reach this page, use
the grid LETTERS on the side of the page to determine the component's
vertical location.
         3) Locate the circuit you need to service. The internals are
shown for switches and relays to assist you in understanding how the
circuit operates.

NOTE:    In some of the newer wiring diagram articles in this
         product, there is a Legend for the wiring diagrams that has















Content   ..  223  224  225  226   ..
