Volkswagen Corrado (1993 year). Manual - part 212





VR65 ENGINE: AFFIX NEW VACUUM HOSE ROUTING LABEL

   5. Evaluation of Emissions and Driveability of the Defect:

      Not Applicable.

   6. Available Emissions Data:

      Not Applicable.

   7. Anticipated Follow-Up Action:

      VWoA will recall all affected vehicles and instruct dealers to
      affix a new label in addition to performing safety recall work.
      The details of the safety recall have been reported to the
      NHTSA.

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

ATTACHMENT I

         RECALL CAMPAIGN BULLETIN - SQ

Date:    July 1993

         SECURE ENGINE COMPARTMENT ELECTRICAL WIRING AND AFFIX
         VACUUM HOSE ROUTING LABEL

REPLACEMENT PARTS REQUIRED

ÄÄÄÄÄÄÄÄÄÄÄÄÂÄÄÄÄÄÄÄÄÄÄÄÄÂÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÂÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

Repair Step

³

  Quantity

³

         Description

³

  Part Number

ÄÄÄÄÄÄÄÄÄÄÄÄÅÄÄÄÄÄÄÄÄÄÄÄÄÅÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÅÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

     A

³

 1 (290 mm)

³

  Protective Sleeve

³

 N905 930.01



³

     1

³

  Beading

³

 535 853 879 A



³

     1

³

  Tie Wrap

³

 N020 906.3



³

     3

³

  Tie Wrap

³

 ZVW 601 100

     B

³

     2

³

  Lock Nut

³

 N902 920.01

     C

³



³

  No parts required

³

     D

³

     1

³

  Beading

³

 701 947 149A

     E

³

     1

³

  Clamp

³

 535 253 139

     F

³

     1

³

  ECM

³

 095 927 731BD

     G

³

     1

³

  Label

³

 021 010 058G

ÄÄÄÄÄÄÄÄÄÄÄÄÁÄÄÄÄÄÄÄÄÄÄÄÄÁÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÁÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

   General Repair Information

REPAIR STEPS TO BE PERFORMED

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÂÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

               VIN Range

³

     Repair Steps

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÅÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

From 50_NK 000 001 through 50_PK 002 707

³

     A, B, C, D, E and G

From 50_PK 000 708 through 50_PK 003 049

³

     A, B, C, D, and E

VR65 ENGINE: AFFIX NEW VACUUM HOSE ROUTING LABEL

³

     A, B, C, and D

From 50_NK 004 148 through 50_NK 012 142

³

     A, C, D, E, F and G



³

 (automatic transmission



³

  vehicles)

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÁÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

   REPAIR STEPS EXPLANATION:

Repair Step A - Secure Cooling Fan Wiring Harness

Repair Step B - Modify Shift Linkage Balance Weight Mounting
                (Standard Transmission Only)

Repair Step C - Re-route Ignition Cables and Breather Hose

Repair Step D - Secure Engine Compartment Harness

Repair Step E - Secure Exhaust System

Repair Step F - Replace Transmission Control Module (Automatic
                Transmission Only)

Repair Step G - Replace Vacuum Hose Routing Label

   WORK PROCEDURE

   A. Secure Cooling Fan Wiring Harness

      - Open hood
      - Connect power saver to protect radio code
      - Remove battery
      - Disconnect harness plug from fan motor
      - Cut protective sleeve, part number N 905 930.01 into
        individual lengths according to the indicated measurements
        in Fig. 1.
      - Pull open each protective sleeve longways and slide over
        harness according to Fig. 1.

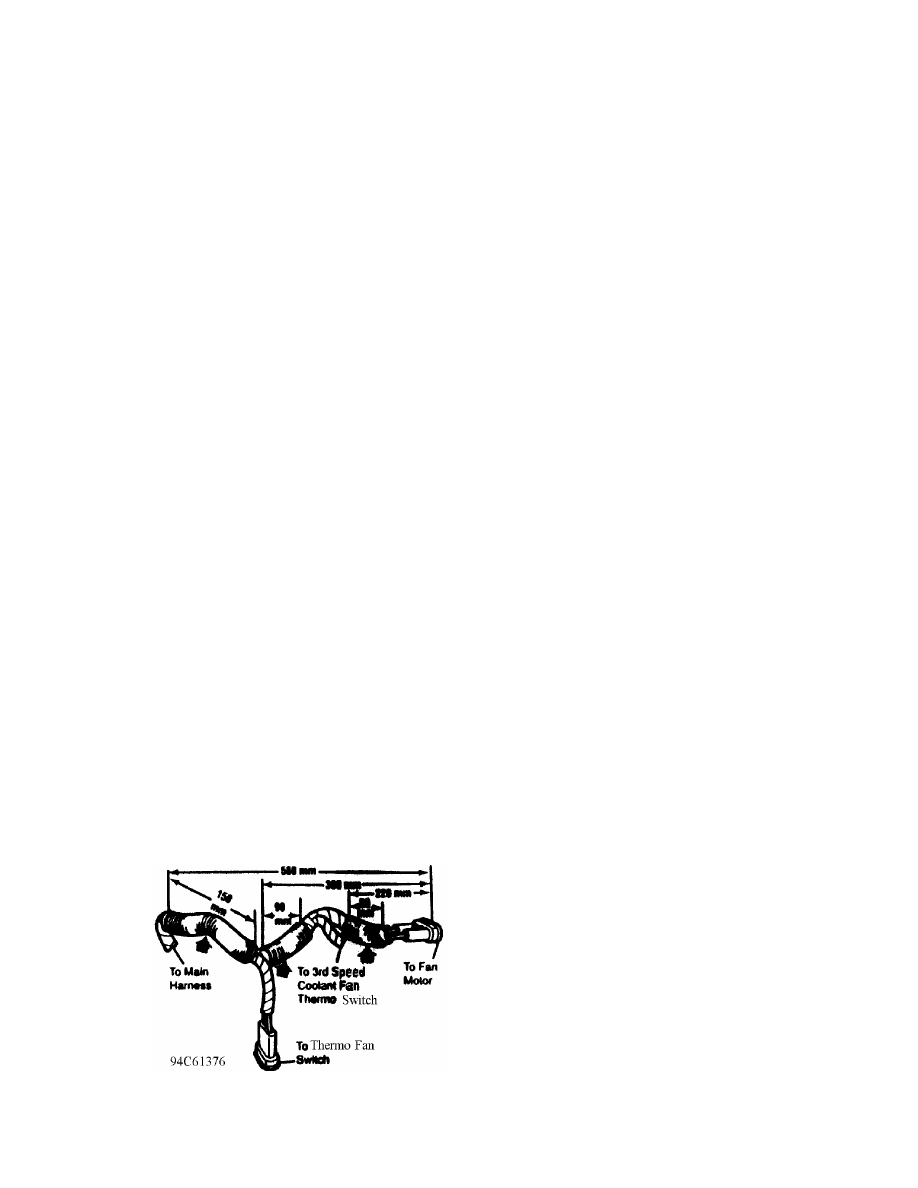

Fig. 1:  Protective Sleeve Measurements

      - Place protective sleeves approx. 10mm from each branching off

VR65 ENGINE: AFFIX NEW VACUUM HOSE ROUTING LABEL

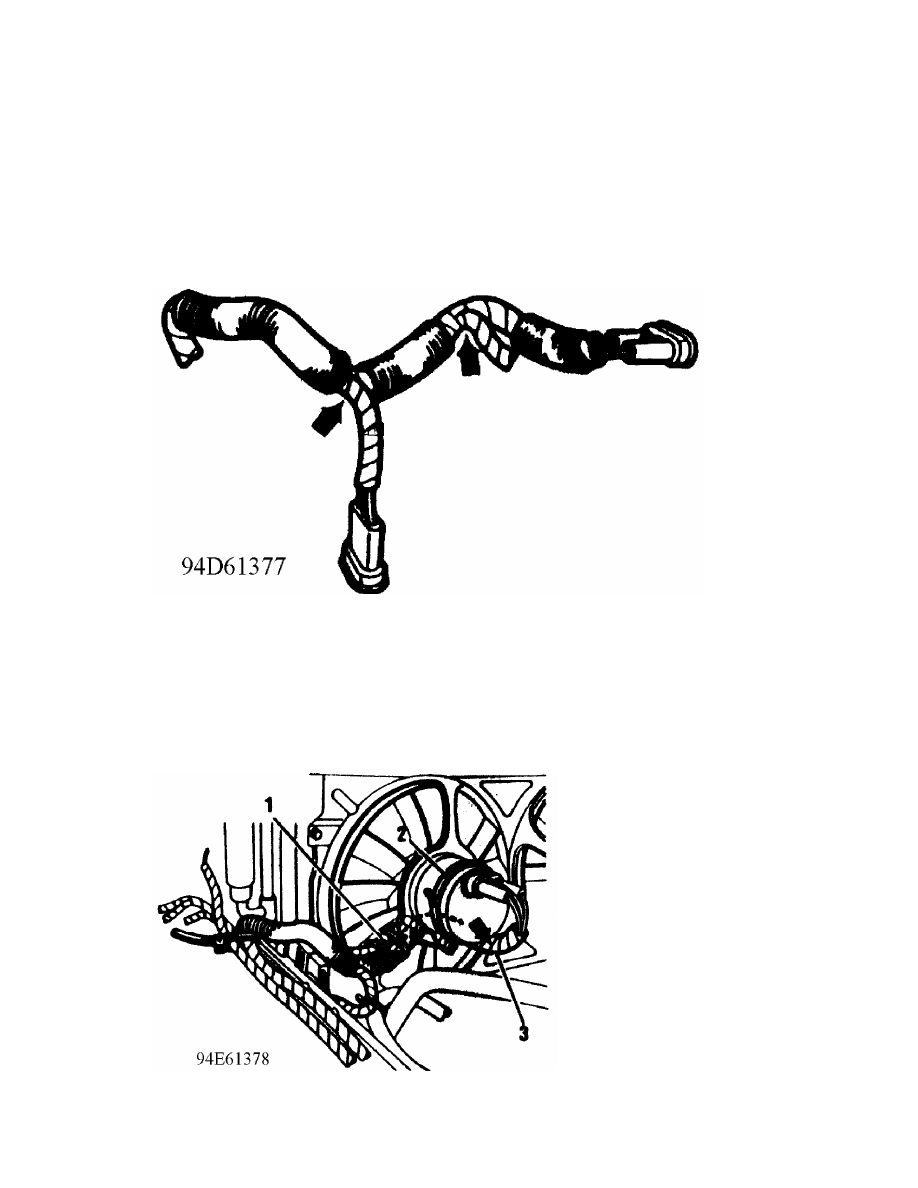

Fig. 2:  Placing Protective Sleeves on Harness Branches

      - Install beading part number 535 853 879A to edge of fan cowl
        (see Fig. 3, marked "1").
      - Re-connect harness to fan motor
      - Use tie wrap, part number N020 906.3 and secure harness to fan
        motor (see Fig. 3, marked "2").
      - Ensure that protective sleeve (see Fig. 3, marked "3") is
        routed past fan motor housing edge, see arrow in Fig. 3.

Fig. 3:  Installing Beading and Proper Protective Sleeve Routing

      - Push protective sleeve of harness into cowl bracket (see

VR65 ENGINE: AFFIX NEW VACUUM HOSE ROUTING LABEL

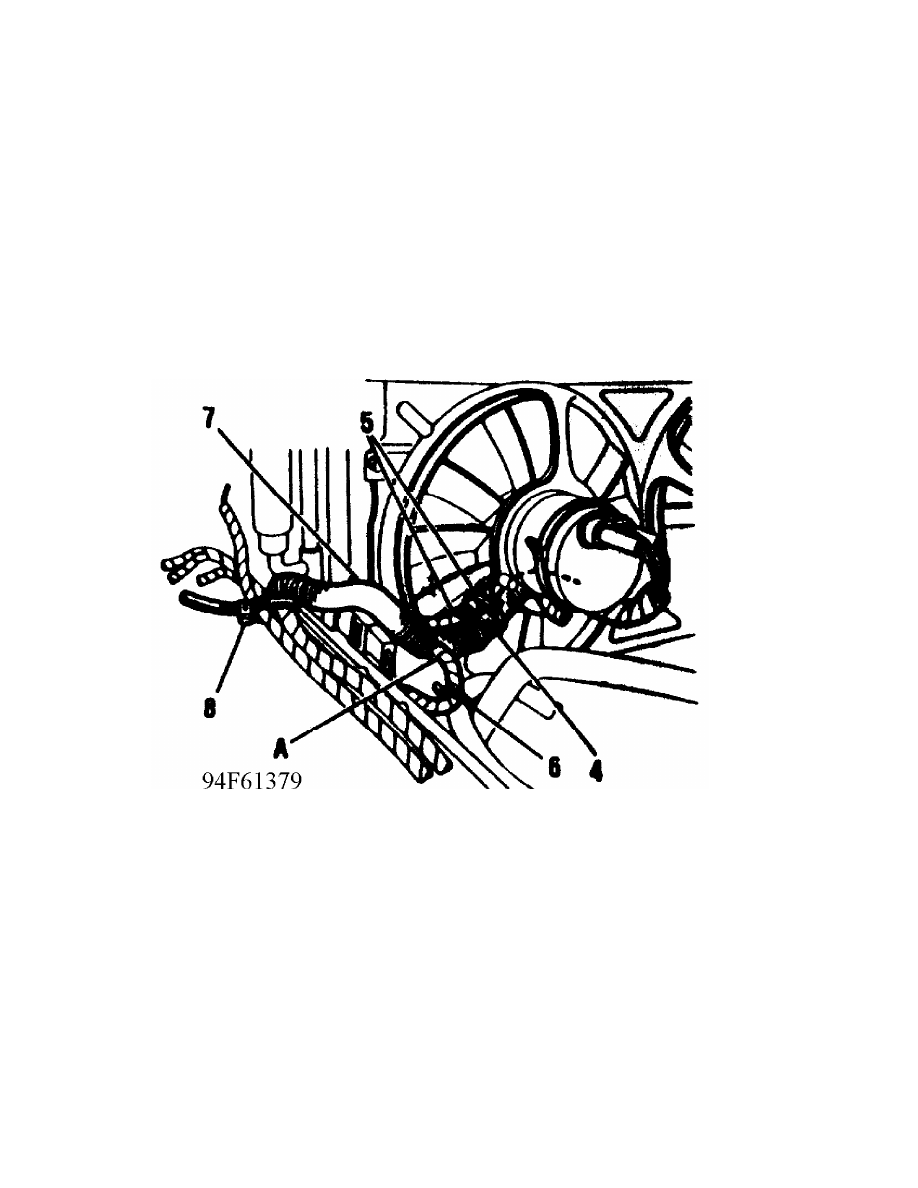

Fig. 4:  Securing and Routing Harness

   B. Modify Shaft Linkage Balance Weight Mounting
      (Standard Transmission Vehicles Only)

      - Remove air cooling hose for the front exhaust pipe (see
        Fig. 5, marked "1") by loosening bolt (arrow), Pull hose
        from air duct (see Fig. 5, marked "2")
