Volkswagen Corrado (1993 year). Manual - part 191





SUSPENSION - REAR

         Removal (Disc Brakes)
         Raise and support vehicle. Remove wheel assembly. Remove
caliper assembly and support it out of work area. Remove dust cap,
cotter pin, hub nut, and thrust washer. Remove brake disc. Using a
long drift, tap bearings, races, and grease seal from disc hub.

         Installation (Disc Brakes)
         1) Clean hub cavity thoroughly. Using Bearing Race Installer
(VW 432 and VW 411), press inner and outer bearing races into bore.
Lubricate and install inner bearing. Using Seal Installer (VW 295 and
3074), tap grease seal into bore.
         2) Install brake disc, outer bearing, thrust washer, and hub
nut. Reverse removal procedure to complete installation. Adjust wheel
bearing. See WHEEL BEARING under ADJUSTMENTS & INSPECTION. Install NEW
cotter pin.

         Removal (Drum Brakes)
         Raise and support vehicle. Remove wheel assembly. Remove dust
cap, cotter pin, hub nut, and thrust washer. Remove brake drum. Using
a long drift, tap bearings, races, and grease seal from hub.

         Installation (Drum Brakes)
         1) Clean hub cavity thoroughly. Using Outer Bearing Race
Installer (VW 431 and VW 411), press outer bearing race into bore.
Using Inner Bearing Race Installer (VW 432 and VW 411), press inner
bearing race into bore. Lubricate and install inner bearing. Using
Seal Installer (VW 295 and 3074), tap grease seal into bore.
         2) Install brake drum, outer bearing, thrust washer, and hub
nut. Reverse removal procedure to complete installation. Adjust wheel
bearing. See WHEEL BEARING under ADJUSTMENTS & INSPECTION. Install NEW
cotter pin.

         TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS TABLE

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

Application                              Ft. Lbs. (N.m)

Brake Caliper Bolt  ..........................  48 (65)
Coil Spring Retainer-To-Piston Rod Nut  ......  11 (15)
Rear Axle Beam Pivot Bushing Bolt  ...........  43 (58)
Rear Axle Mounting Pad-To-Body Bolt  .........  63 (85)
Shock Absorber Slot Nut  .....................  15 (20)
Shock Absorber-To-Axle Beam Nut  .............  52 (70)
Shock Absorber-To-Body Bolt  .................  26 (35)
Stub Axle-To-Control Arm Bolt  ...............  44 (60)
Wheel Lug Bolt  .............................  81 (110)

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

END OF ARTICLE

SYSTEM WIRING DIAGRAMS

         1993 System Wiring Diagrams
         Volkswagen - Corrado

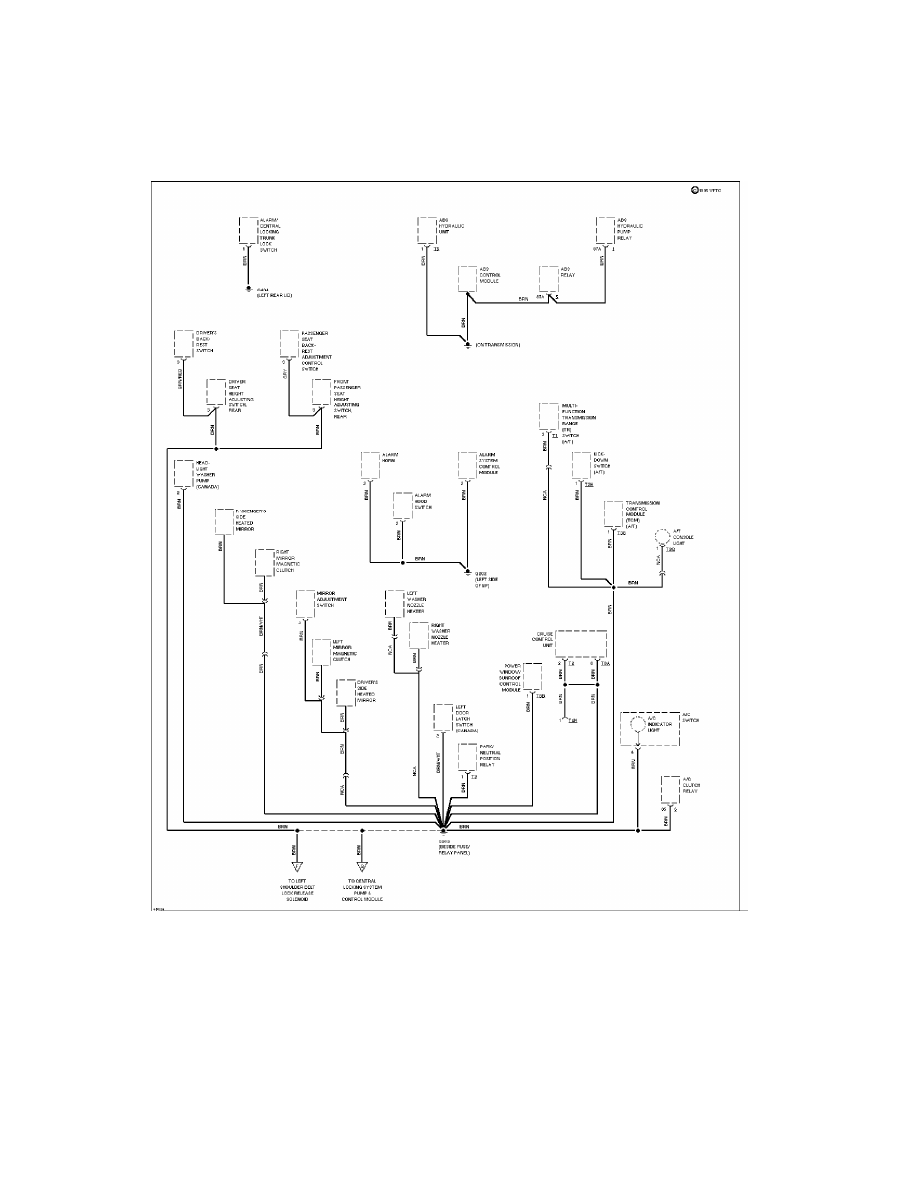

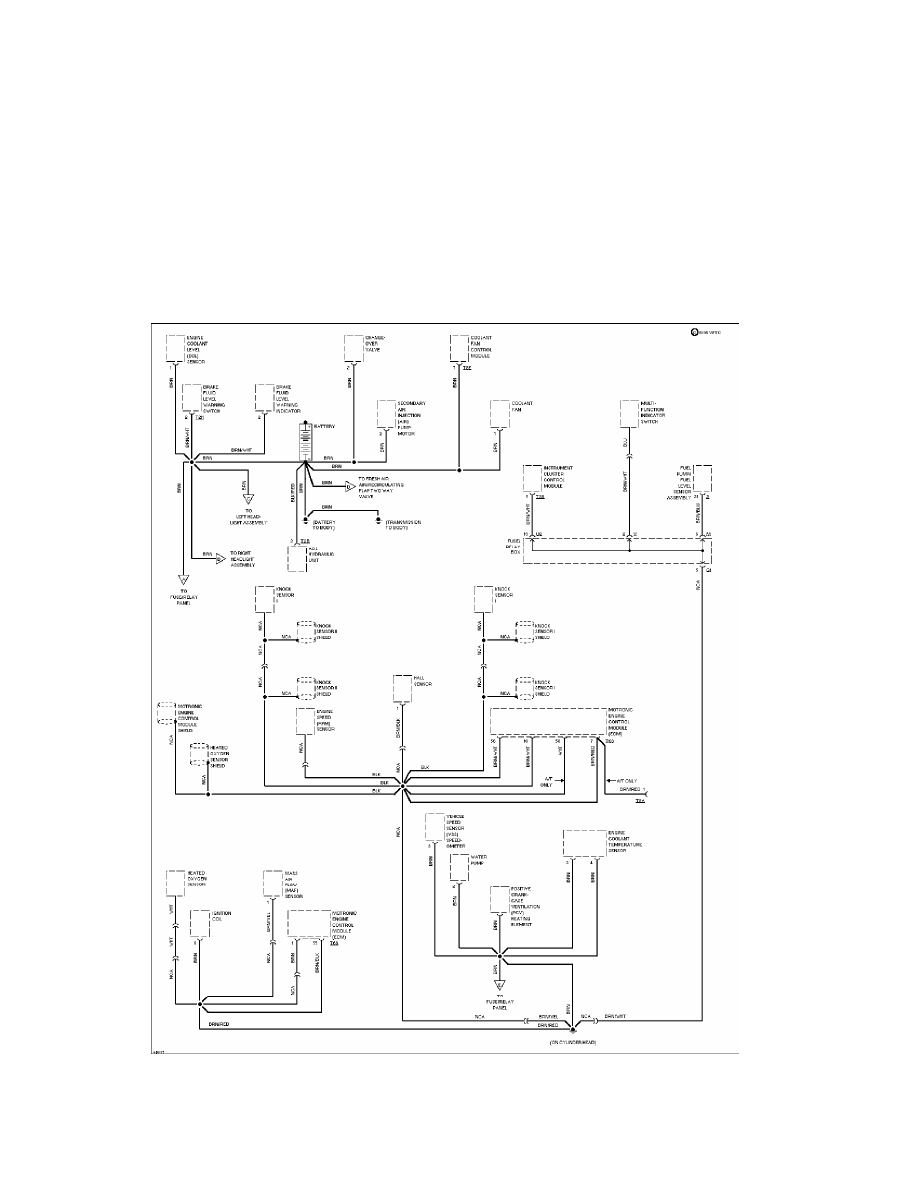

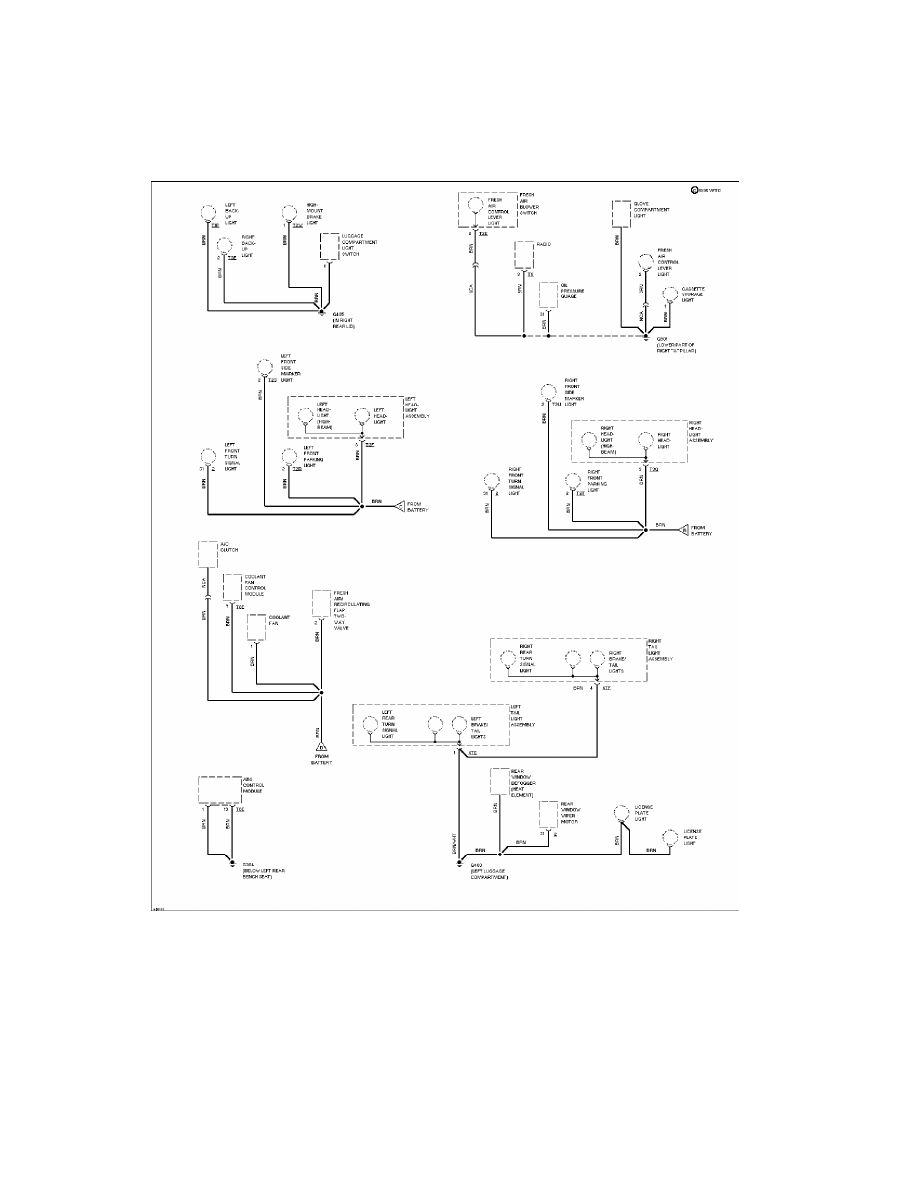

         GROUND DISTRIBUTION

Ground Distribution Circuit (1 of 5)

SYSTEM WIRING DIAGRAMS

SYSTEM WIRING DIAGRAMS
