Volkswagen Corrado (1993 year). Manual - part 169





MIRRORS - POWER

         1993 ACCESSORIES & EQUIPMENT
         Volkswagen Power Mirrors

         Volkswagen;  Corrado SLC, Passat

         DESCRIPTION & OPERATION

         Mirrors can be adjusted electrically from inside by operating
control knob on driver door panel. Adjustment control operates only
when ignition is on. To adjust driver-side or passenger-side mirror,
rotate control knob to "L" or "R". Control knob is a 4-way rocker
switch which is pressed top (up), bottom (down), left (out) or right
(in). See Fig. 1.
         If electrical control of mirror does not operate, adjust
mirror by hand by pushing lightly on edge of mirror glass. When rear
defogger is on, outside mirrors are electrically heated.

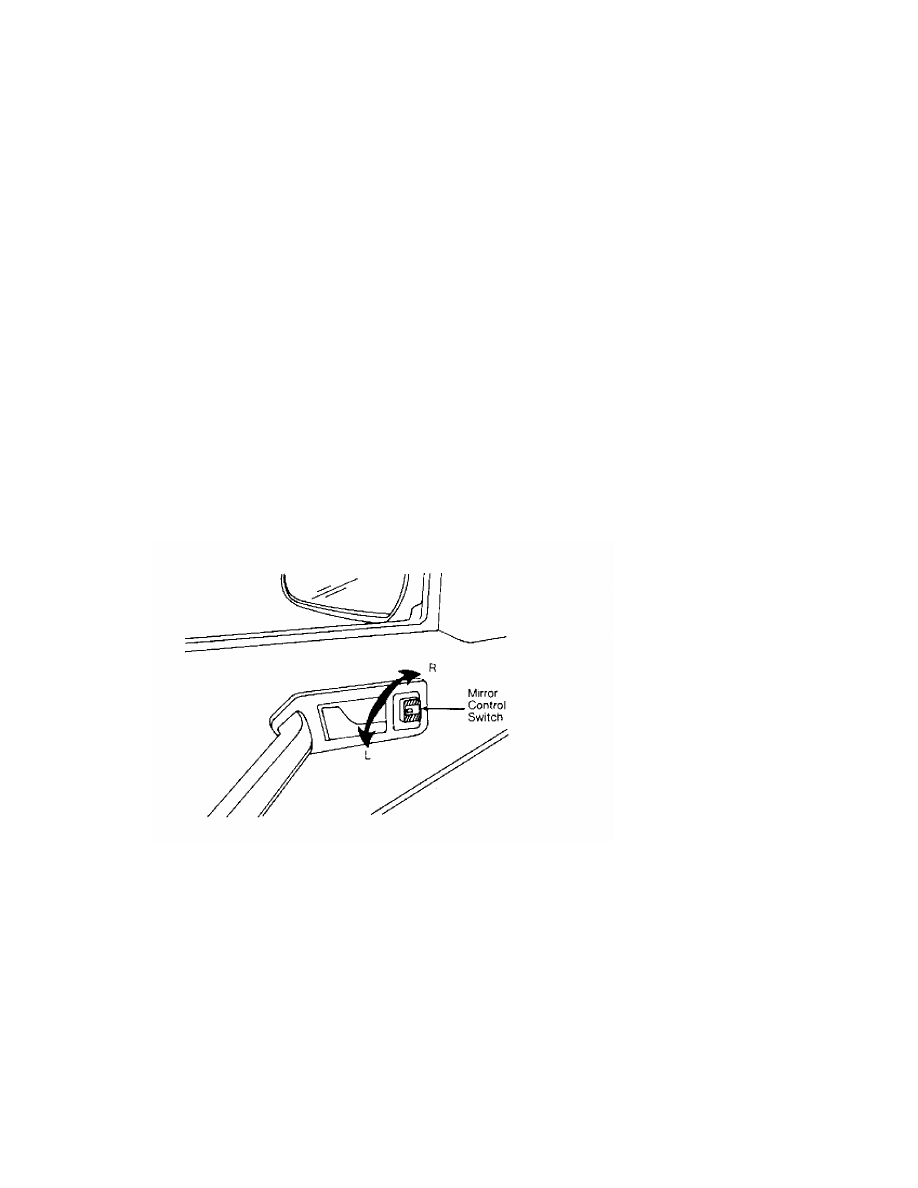

Fig. 1:  Controlling Mirror Switch
Courtesy of Volkswagen United States, Inc.

         TROUBLE SHOOTING

         Left Or Right Power Mirror Inoperative
         Check power mirror switch, power mirror motor(s), wiring,
ground connection(s) and fuse(s). Use operator's manual to identify
fuse(s).

         REMOVAL & INSTALLATION

         MIRROR GLASS

WARNING: Press only on center of glass. Always wear protective gloves

MIRRORS - POWER

NOTE:    Mirror glass is only clipped in place.

         Removal & Installation
         Tape upper and lower edges of mirror housing. See Fig. 2 & 3.
Remove mirror glass using knife blade Pry Bar (VW-80-200). Pry off at
bottom and then top. While holding mirror, unplug electrical
connector, and remove mirror glass. To install, connect electrical
connector. Put mirror pins in notches, and press mirror into place.
See Fig. 2 & 3. Check mirror for proper function.

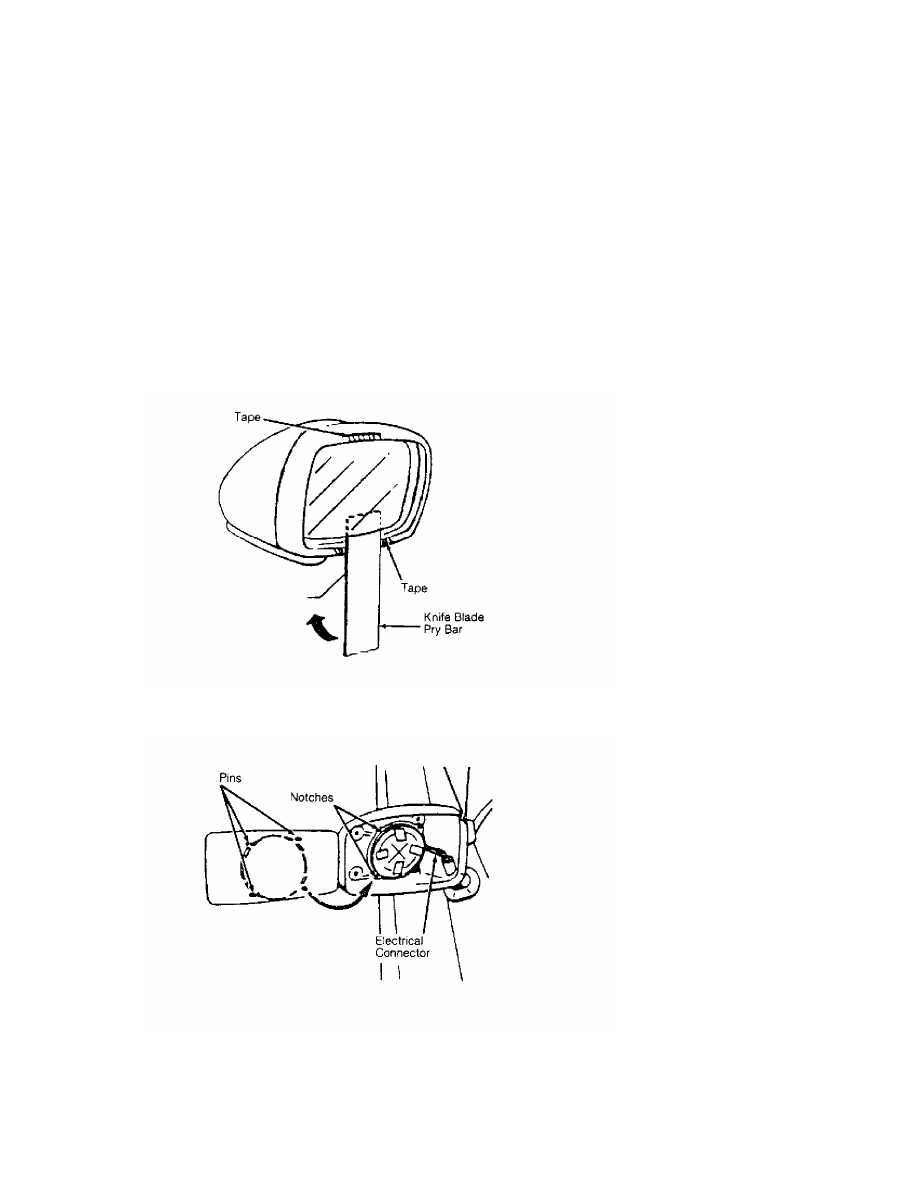

Fig. 2:  Removing Mirror Glass
Courtesy of Volkswagen United States, Inc.

Fig. 3:  Removing Mirror Glass (Open)
Courtesy of Volkswagen United States, Inc.

         POWER MIRROR ASSEMBLY

MIRRORS - POWER

         Removal & Installation
         1) Disconnect battery ground cable. Lower window. Remove
control knob and boot. Remove door trim, and loosen moisture barrier
in area of rearview mirror control. Remove lock nut. Unplug electrical
connector.
         2) Pivot mirror inward, and remove mounting screw. Pivot
mirror outward, and remove second mounting screw. Remove mirror with
base and control. To install, reverse removal procedure.

         WIRING DIAGRAMS

         See appropriate chassis wiring diagram in WIRING DIAGRAMS.

END OF ARTICLE

N - REMOVE/INSTALL/OVERHAUL

         1993 ENGINE PERFORMANCE
         Removal, Overhaul & Installation

         Corrado SLC

CAUTION:  When battery is disconnected, vehicle computer and memory
          systems may lose memory data. Driveability problems may
          exist until computer systems have completed a relearn
          cycle. See the COMPUTER RELEARN PROCEDURES article in
          GENERAL INFORMATION before disconnecting battery.

         INTRODUCTION

         Removal, overhaul and installation procedures are covered in
this article. If component removal and installation is primarily an
unbolt and bolt-on procedure, only a torque specification may be
furnished.

CAUTION:  When disconnecting battery, obtain and record radio
          anti-theft code. If wrong code is entered into radio after
          power is restored, radio will become inoperable.

         IGNITION SYSTEM

NOTE:    Corrado SLC ignition system removal and installation
         information not available from manufacturer. These vehicles
         are equipped with a distributorless ignition system.

         DISTRIBUTOR

         FUEL SYSTEM

         FUEL SYSTEM PRESSURE RELEASE

         To relieve fuel system pressure, remove fuel pump fuse (No.
5, 13 or 18) or fuel pump relay to deactivate fuel pump. Place a clean
shop rag around fuel line fitting and slowly loosen fitting.

WARNING: Fuel system pressure release procedure is not available
         from manufacturer. Fuel will discharge when disconnecting
         fuel system components. Disconnect ignition coil output
         stage wiring harness to deactivate ignition. DO NOT smoke
         or work near heaters or other fire hazards. Keep a fire
         extinguisher handy.

         FUEL PUMP

         Removal & Installation (Corrado SLC)
         1) Obtain and record radio anti-theft code. Disconnect
