Volkswagen Corrado (1993 year). Manual - part 162





M - VACUUM DIAGRAMS

MAINTENANCE INFORMATION

         1990-94 MAINTENANCE
         Volkswagen Maintenance Information

         Corrado G60 (1990-92)
                 SLC (1992-94 USA)
                 VR6 (1992-94 Canada)

         * PLEASE READ THIS FIRST *

NOTE:    For scheduled maintenance intervals and the related fluid
         capacities, fluid specifications and labor times for major
         service intervals, see SCHEDULED SERVICES article in this
         section. Warranty information and specifications for fluid
         capacities, lubrication specifications, wheel and tire size,
         and battery type are covered in this article.

         MODEL IDENTIFICATION

         VIN LOCATION

         The Vehicle Identification Number (VIN) is located on the
left side of the dash panel at the base of the windshield. The VIN
chart explains the code characters.

         VIN CODE ID EXPLANATION

         Numbers preceding the explanations in the legend below refer
to the sequence of characters as listed on VIN identification label.
See VIN example below.

ÚÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ¿
³

 (VIN)    W  V  W  A  B  0  5  3  2  M  H  0  9  9  7  1  7

³

³

          1  2  3  4  5  6  7  8  9  10 11 12 13 14 15 16 17

³

ÀÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÙ

1 - Manufacturing Country
  W  *  Germany
  1  *  United States
  3  *  Mexico
  9  *  Brazil

2-3 - Manufacturer
 VW  *  Volkswagen

4 - Series
  D  *  2-Door G60 (1990-92)
  E  *  2-Door SLC (1992-94 USA)
  E  *  2-Door VR6 (1992-94 Canada)

MAINTENANCE INFORMATION

6 - Restraint System
  4  *  Electric Passive With Manual Lap

7-8 - Model
 50  *  Corrado

9 - VIN Check Digit
  2  *  Computer Selected Check Number

10 - Vehicle Model Year
  L  *  1990
  M  *  1991
  N  *  1992
  P  *  1993
  R  *  1994

11 - Assembly Plant
  A  *  Ingolstadt
  B  *  Brussel
  E  *  Emden
  G  *  Graz
  H  *  Hannover
  K  *  Osnabruk
  M  *  Mexico
  N  *  Neckarsulm
  P  *  Brazil
  S  *  Stuttgart
  W  *  Wolfsburg

12-17 - Serial Number
     *  Sequential Production Number

         MAINTENANCE SERVICE INFORMATION

         SEVERE & NORMAL SERVICE DEFINITIONS

NOTE:    Use the Severe Service schedule if the vehicle to be serviced
         is operated under ANY (one or more) of these conditions:

         Service is recommended at mileage intervals based on vehicle
operation. Service schedules are based on the following primary
operating conditions:

         Normal Service

      *  Driven More Than 10 Miles Daily
      *  No Operating Conditions From Severe Service Schedule

MAINTENANCE INFORMATION

      *  Short Trips In Freezing Temperatures
      *  Towing Or Heavily Loaded
      *  Severe Dust Conditions
      *  Hot Weather, Stop-And-Go Driving
      *  Extensive Idling

         CAMSHAFT TIMING BELT

CAUTION: Failure to replace a faulty camshaft timing belt may result
         in serious engine damage.

         The condition of camshaft drive belts should always be
checked on vehicles which have more than 50,000 miles. Although some
manufacturers do not recommend belt replacement at a specified
mileage, others require it at 60,000-100,000 miles. A camshaft drive
belt failure may cause extensive damage to internal engine components
on most engines, although some designs do not allow piston-to-valve
contact. These designs are often called "Free Wheeling".
         Many manufacturers changed their maintenance and warranty
schedules in the mid-1980's to reflect timing belt inspection and/or
replacement at 50,000-60,000 miles. Most service interval schedules in
this manual reflect these changes.
         Belts or components should be inspected and replaced if any
of the following conditions exist:

      *  Cracks Or Tears In Belt Surface
      *  Missing, Damaged, Cracked Or Rounded Teeth
      *  Oil Contamination
      *  Damaged Or Faulty Tensioners
      *  Incorrect Tension Adjustment

         Inspect camshaft timing belt condition every 20,000 miles.
Replace belt as necessary.

         DRIVE BELT ROUTING

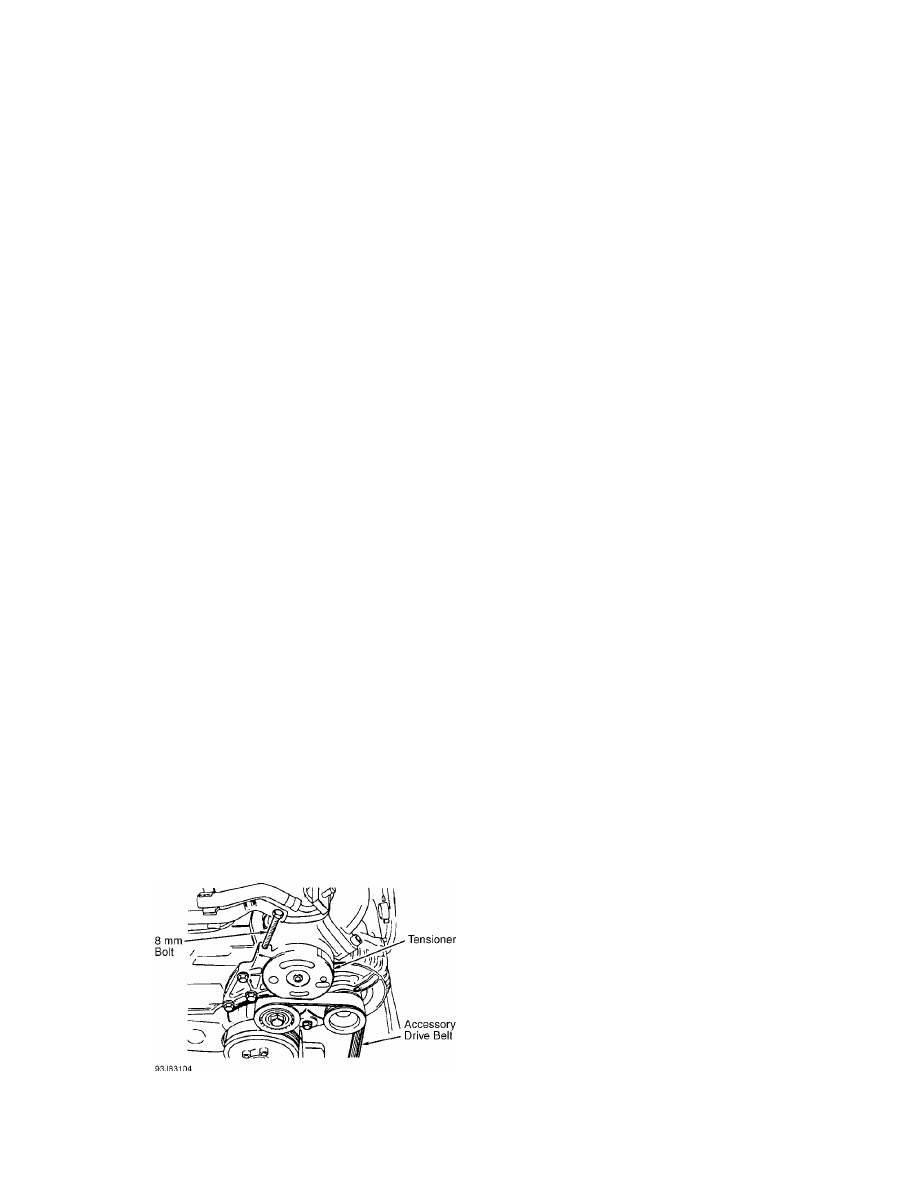

Fig. 1:  Drive Belt Tensioner Adjustment (VR6)
Courtesy of Volkswagen United States, Inc.
