Volkswagen Corrado (1993 year). Manual - part 161





M - VACUUM DIAGRAMS

         1993 ENGINE PERFORMANCE
         Vacuum Diagrams

         Cabriolet, Corrado SLC, EuroVan,
         Fox, Golf, GTI, Jetta, Passat

         INTRODUCTION

         This article contains underhood views or schematics of vacuum
hose routing. Use these vacuum diagrams during visual inspection. This
will assist in identifying improperly routed vacuum hoses which cause
driveability and/or computer-indicated malfunctions.

         CABRIOLET & FOX VACUUM DIAGRAMS

NOTE:    Vacuum diagrams are not available for Cabriolet or Fox.

         EUROVAN VACUUM DIAGRAMS

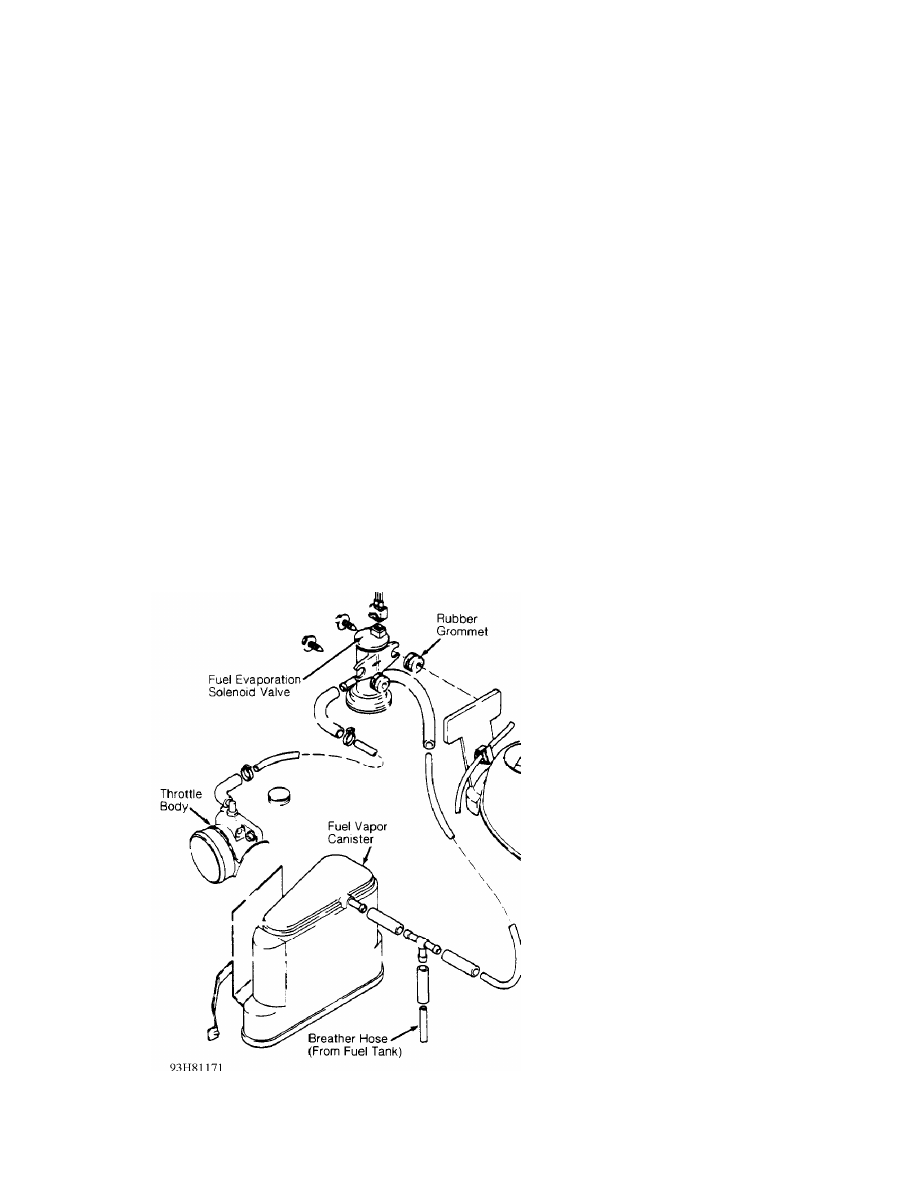

Fig. 1:  Fuel Evaporation System Vacuum Diagram (EuroVan)
Courtesy of Volkswagen United States, Inc.

M - VACUUM DIAGRAMS

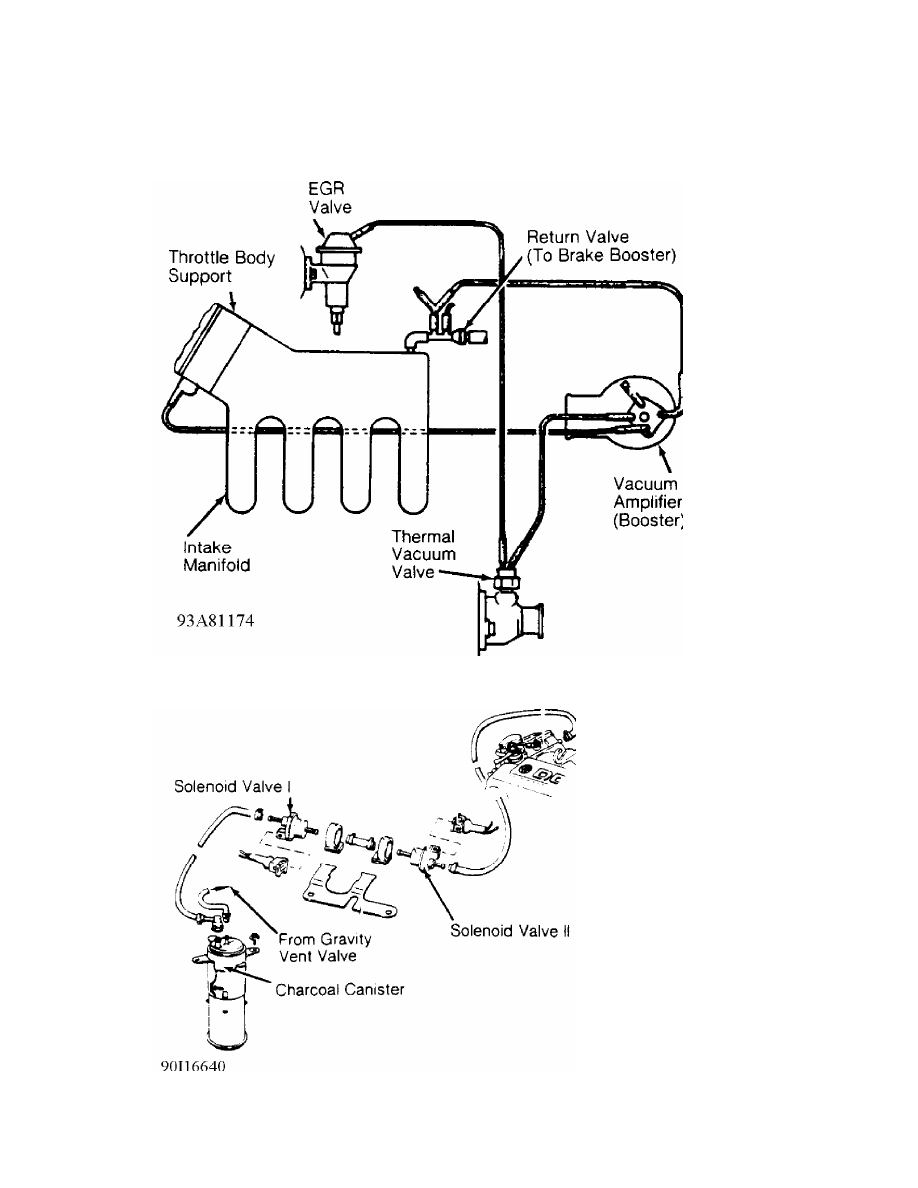

Fig. 2:  Fuel Evaporation System Vacuum Diagram (Golf, GTI & Jetta)
Courtesy of Volkswagen United States, Inc.

         PASSAT GL VACUUM DIAGRAMS

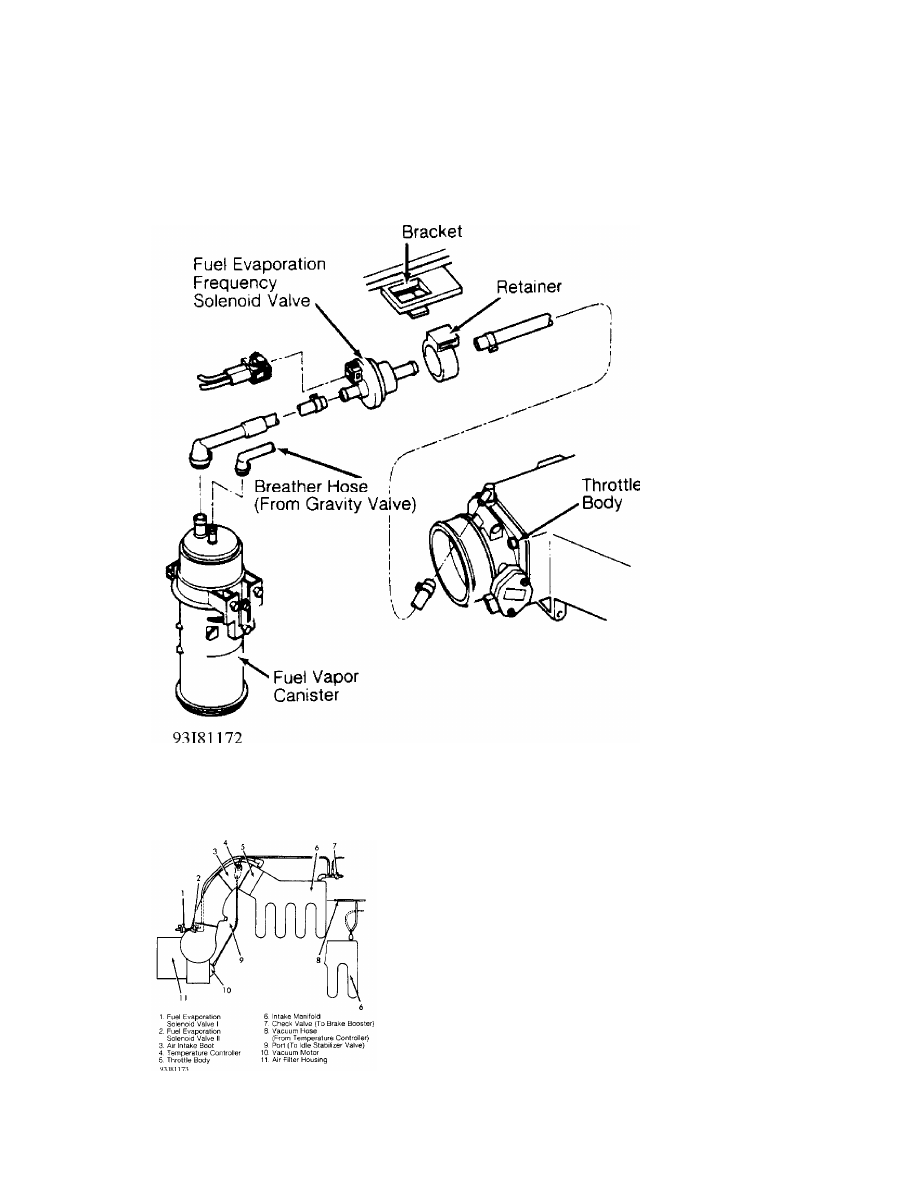

Fig. 3:  Intake Air Preheating System Vacuum Diagram (Passat GL)
Courtesy of Volkswagen United States, Inc.

M - VACUUM DIAGRAMS

Fig. 5:  Canister-To-Intake Manifold Vacuum Diagram (Passat GL)
Courtesy of Volkswagen United States, Inc.

M - VACUUM DIAGRAMS

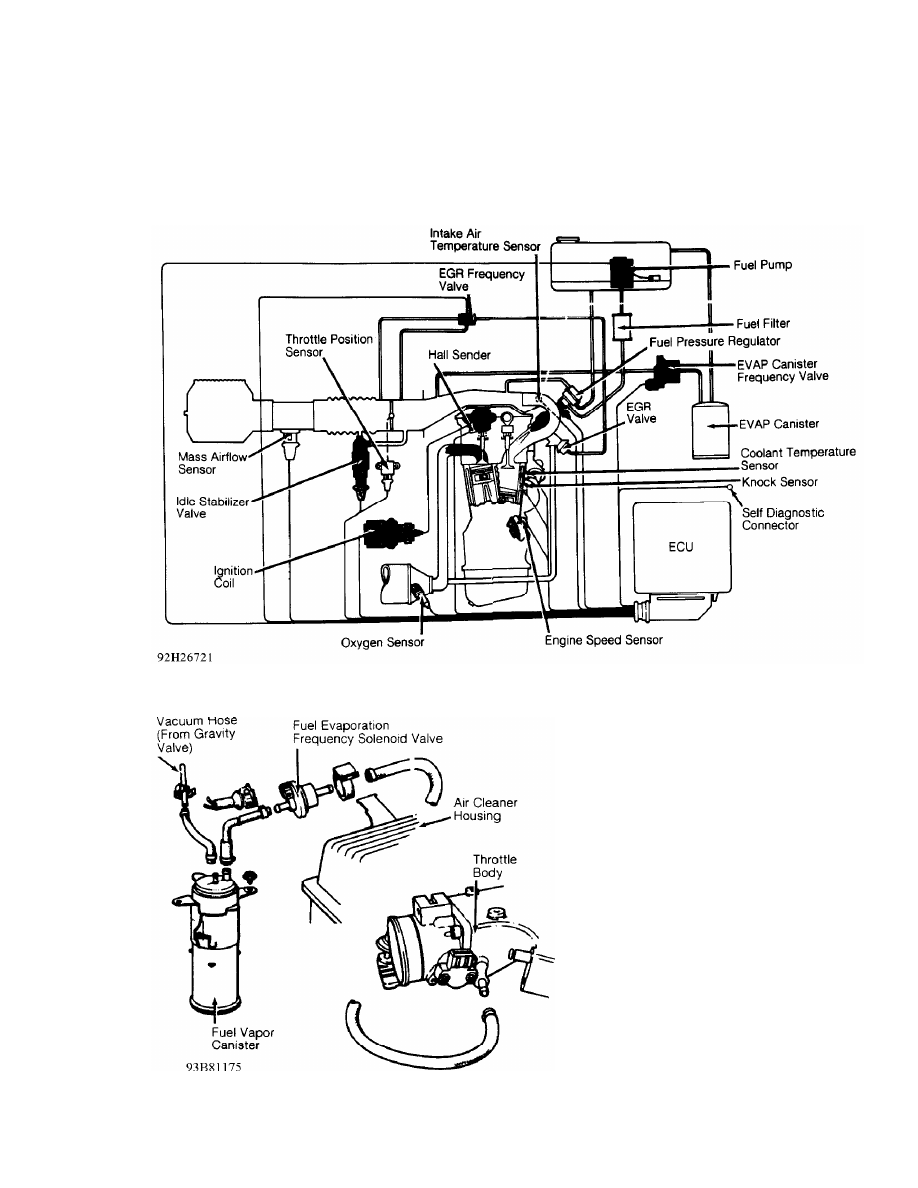

Fig. 6:  Motronic System & Vacuum Diagram (Corrado SLC/Passat GLX)
Courtesy of Volkswagen United States, Inc.

Fig. 7:  Fuel Evap. System Vacuum Diagram (Corrado SLC/Passat GLX)
Courtesy of Volkswagen United States, Inc.
