Volkswagen Corrado (1993 year). Manual - part 156





INSTRUMENT PANEL

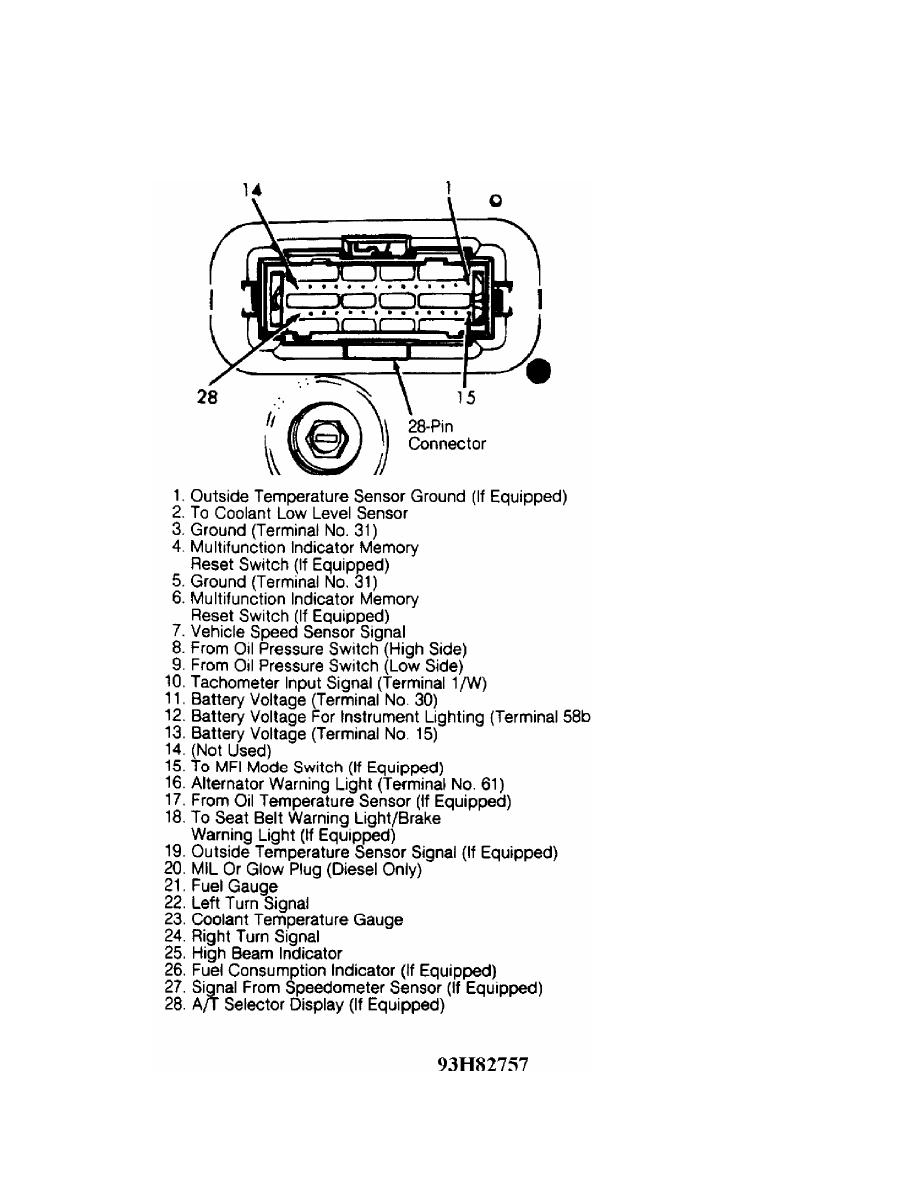

         PRINTED CIRCUIT CONNECTORS

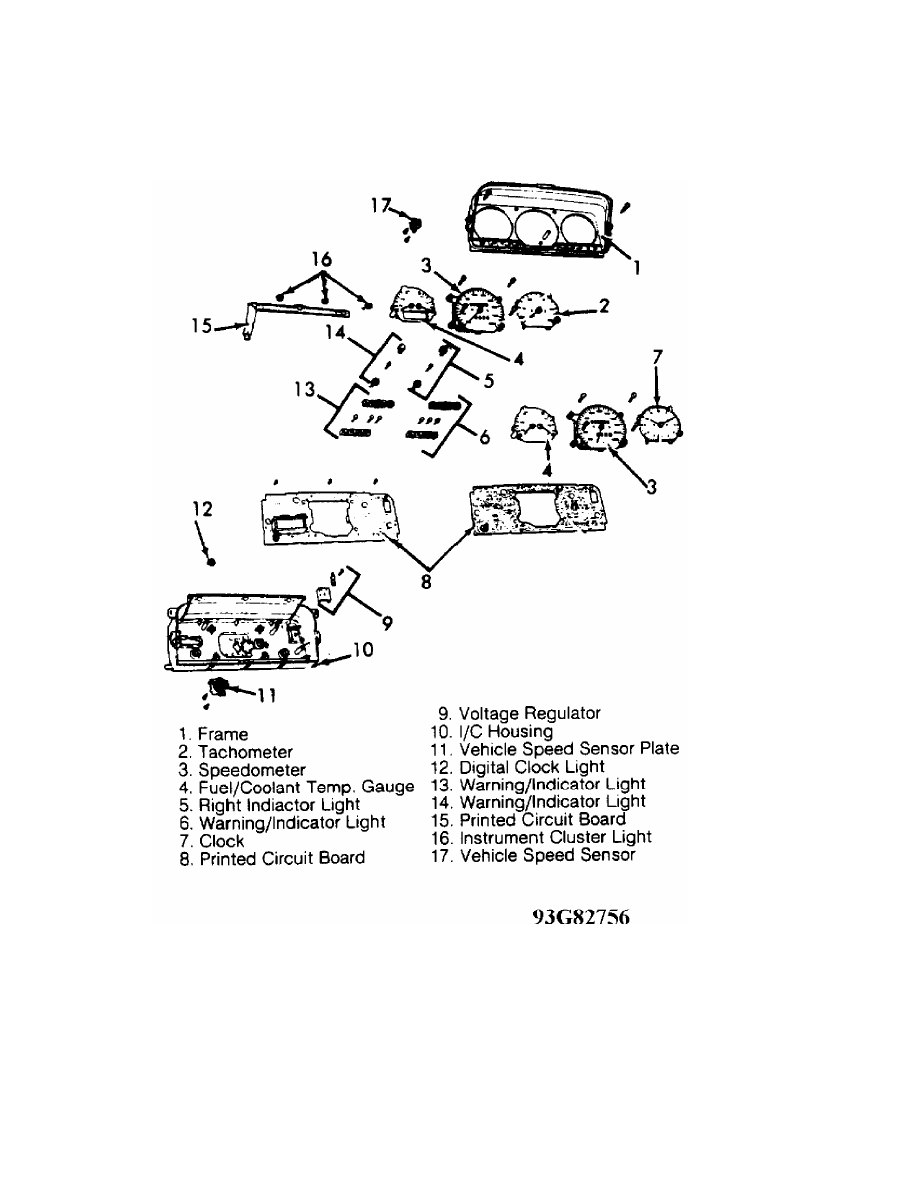

INSTRUMENT PANEL

INSTRUMENT PANEL

         See appropriate chassis wiring diagram in WIRING DIAGRAMS.

END OF ARTICLE

INTERFERENCE VERIFICATION CHECK FOR OHC ENGINE

         Maintenance & Service Information
         1974-96 Volkswagen - Timing Belt Information

         Cabrio, Cabriolet, Corrado, Dasher, Eurovan (Canadian), Fox,
         Golf, Golf (Canadian), GTI, GTI (Canadian), Jetta, Jetta GLI,
         Passat, Passat (Canadian), Pickup, Quantum, Rabbit, Scirocco,
         Scirocco (Canadian), Transporter (Canadian), Vanagon

         TIMING BELT INTERFERENCE VERIFICATION INFORMATION

         TIMING BELT INTERFERENCE CAUTION

NOTE:    CAMSHAFT DRIVE BELTS OR TIMING BELTS - The condition of
         camshaft drive belts should always be checked on vehicles
         which have more than 50,000 miles. Although some
         manufacturers do not recommend replacement at a specified
         mileage, others require it at 60,000-100,000 miles. A
         camshaft drive belt failure may cause extensive damage to
         internal engine components on most engines, although some
         designs do not allow piston-to-valve contact. These designs
         are often called "Free Wheeling". Many manufacturers changed
         their maintenance and warranty schedules in the mid-1980's to
         reflect timing belt inspection and/or replacement at
         50,000-60,000 miles. Most service interval schedules shown in
         this section reflect these changes. Belts or components
         should be inspected and replaced if any of the following
         conditions exist:

      *  Crack Or Tears In Belt Surface
      *  Missing, Damaged, Cracked Or Rounded Teeth
      *  Oil Contamination
      *  Damaged Or Faulty Tensioners
      *  Incorrect Tension Adjustment

         TIMING BELT INTERFERENCE CHECK MENU

TIMING BELT INTERFERENCE VERIF. TABLE - PASSENGER CARS (1)

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

                                        Replacement Interval
Application              Engine                      (Miles)

Cabrio
  1995-96  ..........  2.0L 4-Cyl.  ............  (3) 60,000
Cabriolet
  1985-89  .......  1.8L 4-Cyl. (DOHC)  ........  (3) 60,000
                    1.8L 4-Cyl. (SOHC)  ........  (3) 60,000
  1990-93  ..........  1.8L 4-Cyl.  ............  (3) 60,000
Corrado
  1990-92  ..........  1.8L 4-Cyl.  ............  (3) 60,000
Dasher
