Volkswagen Corrado (1993 year). Manual - part 111





C - SPECIFICATIONS

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

         HIGH TENSION WIRE RESISTANCE

HIGH TENSION WIRE RESISTANCE

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

Application                                        Ohms

Corrado SLC  .....................................  (1)

(1) - Information is not available from manufacturer.

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

         SPARK PLUGS

SPARK PLUG TYPE

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

Application                                       Bosch

Corrado SLC  ...................................  C9MCC

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

SPARK PLUG SPECIFICATIONS

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

                            Gap                  Torque
Application               In. (mm)       Ft. Lbs. (N.m)

Corrado SLC  .....  .028-.031 (.70-.80)  .....  18 (25)

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

         FIRING ORDER & TIMING MARKS

NOTE:    To identify firing order and distributor rotation,
         see Fig. 1.

         Corrado SLC
         Ignition coil pack, new for 1993, is located on left side of
cylinder head. When ignition coil is triggered, spark is supplied to 2
spark plugs at one time. One spark plug fires during compression
stroke and the other plug fires during exhaust stroke (waste spark).

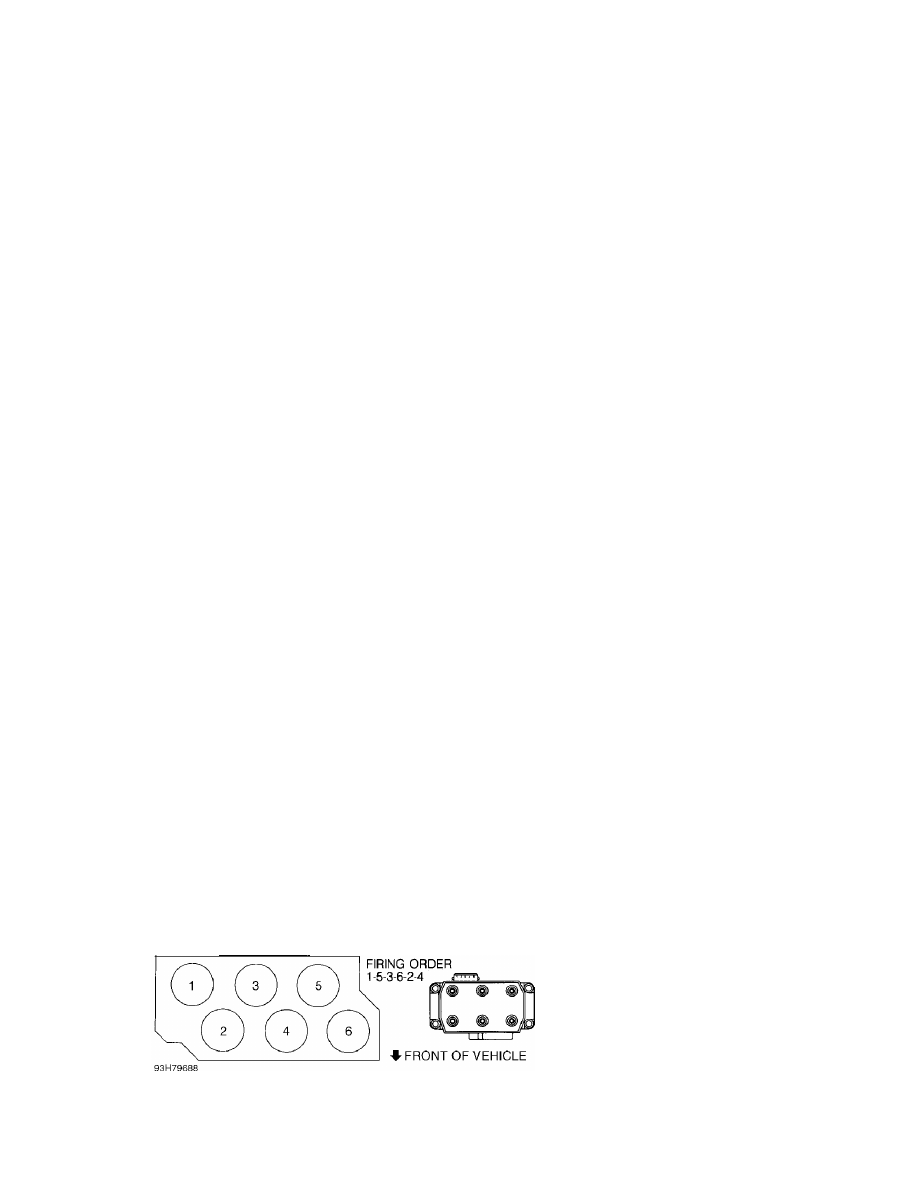

Fig. 1:  Firing Order & Distributor Rotation (2.8L)
Courtesy of Volkswagen United States, Inc.

C - SPECIFICATIONS

NOTE:    Always refer to underhood label for latest specifications.

IGNITION TIMING (Degrees BTDC @ RPM)

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

Application                 Checking          Adjusting

Corrado SLC  ...............  (1)  ...............  (1)

(1) - Ignition timing is computer controlled.
      Information is not available from manufacturer.

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

IGNITION TIMING ADVANCE (Degrees BTDC @ RPM)

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

Application                               Specification

Corrado SLC  .....................................  (1)

(1) - Ignition timing advance is computer controlled.
      Information is not available from manufacturer.

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

         FUEL SYSTEM

         FUEL PUMP

NOTE:    Fuel pump performance measures fuel pressure and volume
         availability, not regulated fuel pressure.

FUEL PUMP PERFORMANCE

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

                             Pressure        Min. Vol. In 30 Sec.
Application                psi (kg/cm(

ý

)                 Pts. (L)

Corrado SLC (1)  ..........  58 (4.0)  .......  1.0-1.4 (0.5-0.7)

(1) - Using Adapter Cable (VAG 1348/3-2) between battery positive
      terminal and terminal No. 4 of fuel pump relay socket. Fuel
      pump energized, with 10-12 volts at fuel pump and engine off.

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

REGULATED FUEL PRESSURE

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

                           At Idle                        At Idle
                           w/Vacuum                    w/o Vacuum
Application              psi (kg/cm

ý

)            (1) psi (kg/cm

ý

)

Corrado SLC  ............  50 (3.5)  ..................  58 (4.0)

(1) - With vacuum hose disconnected from fuel pressure regulator.

C - SPECIFICATIONS

         INJECTOR RESISTANCE

INJECTOR RESISTANCE SPECIFICATIONS

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

Application                                        Ohms

Corrado SLC  ...............................  15.0-21.5

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

         IDLE SPEED & MIXTURE

IDLE SPEED & CO LEVEL

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

Application                 Idle RPM         CO Level %

Corrado SLC (1)  .........  650-750  .........  0.3-1.5

(1) - Idle speed and fuel mixture (CO level) are not
      adjustable.

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

         DASHPOT SPECIFICATION

         Corrado SLC
         Gap between limiter (stop) screw and throttle lever must be
0.10-0.14" (2.5-3.5 mm).

END OF ARTICLE

CLUTCH

         1993 CLUTCHES
         Volkswagen FWD - Corrado SLC & Passat

         Volkswagen;  Corrado SLC & Passat

         DESCRIPTION

         The clutch is a single dry disc type, which uses a diaphragm
spring-type pressure plate. The clutch is hydraulically operated.

         ADJUSTMENTS

         CLUTCH PEDAL

         Clutch is automatically adjusted and requires no manual
adjustment. If clutch pedal does not operate clutch or return
properly, check hydraulic system for leaking fluid or air in system.

         GEARSHIFT LEVER CABLES

         1) Place gearshift in Neutral position. Remove gearshift knob
and boot. Loosen bolt and nut (at transaxle slotted levers) of both
cables.
         2) Loosen lock bolt below gearshift lever. See Fig. 1.
Install Shift Lever Gauge (3193). Pivot gauge locating pin under
bearing plate and tighten lock nut.
         3) Push gearshift lever leftward into detent of slide. Push
gearshift lever and slide leftward and hold against stop (opposite
direction of arrow shown). See Fig. 1. Tighten gauge bolt.

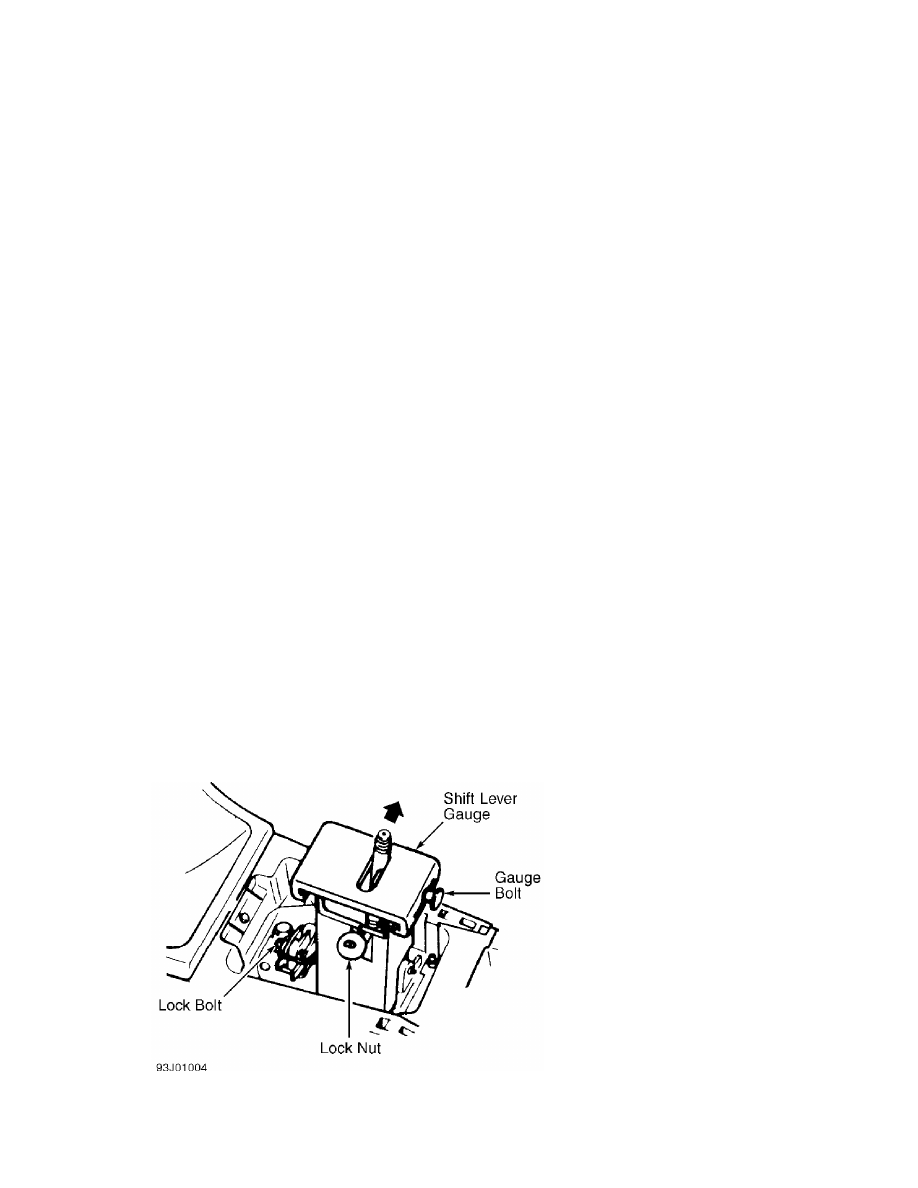

Fig. 1:  Adjusting Shift Cables (Gearshift Lever Position)
Courtesy of Volkswagen United States, Inc.
