Volkswagen Corrado (1993 year). Manual - part 110





BRAKE SYSTEM

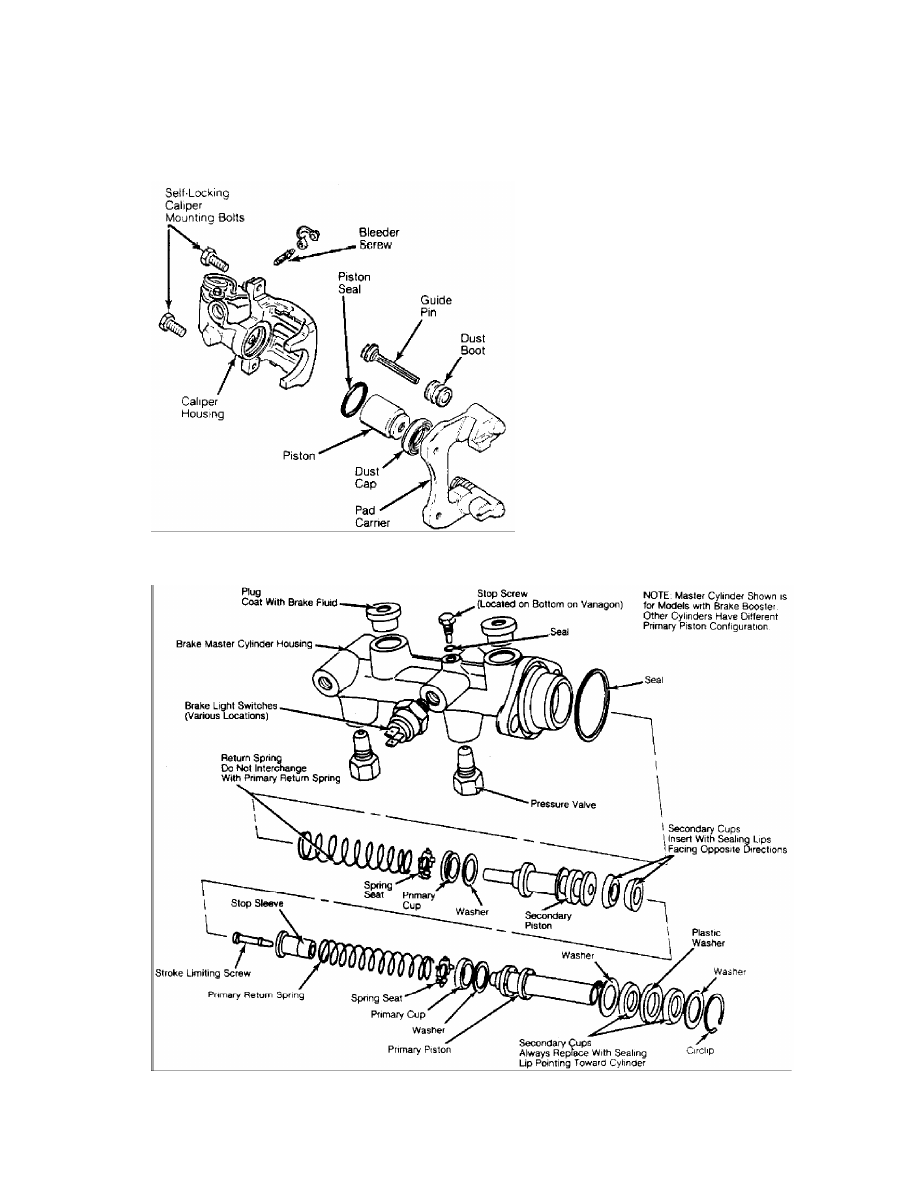

Fig. 7:  Identifying Power Assist Master Cylinder Components
Courtesy of Volkswagen United States, Inc.

BRAKE SYSTEM

TORQUE SPECIFICATIONS TABLE

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

Application                                   Ft. Lbs. (N.m)

Caliper Mounting Bolts (1) ........................  26 (35)
Pad Carrier Mounting Bolt
 Front  ..........................................  92 (125)
 Rear  ............................................  48 (65)
Rear Backing Plate-To-Flange Bolt  ................  44 (60)
Wheel Lug Nut ....................................  81 (110)

                                             INCH Lbs. (N.m)

Wheel Cylinder Bolt  ...............................  80 (9)

(1) - Always replace all self-locking bolts.

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

         DISC BRAKE SPECIFICATIONS

DISC BRAKE SPECIFICATIONS TABLE (1)

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

Application                                         In. (mm)

Front
  Disc Diameter  ..............................  11.02 (280)
  Original Thickness  ...........................  .866 (22)
  Wear Limit  ...................................  .787 (20)
Rear
  Original Thickness  ...........................  .394 (10)
  Wear Limit  ....................................  .315 (8)

(1) - Lateral runout is .002" (.05 mm).

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

END OF ARTICLE

C - SPECIFICATIONS

         1993 ENGINE PERFORMANCE
         Service & Adjustment Specifications

         Corrado SLC

         INTRODUCTION

         Use this article to quickly find specifications related to
servicing and on-vehicle adjustments. This is a quick-reference
article to use when you are familiar with an adjustment procedure and
only need a specification.

         CAPACITIES

BATTERY SPECIFICATIONS

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

Application                              Amp Hr. Rating

Corrado SLC  ......................................  63

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

FLUID CAPACITIES

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

Application                                    Quantity

Auto. Trans. (Dexron-II)
  Dry Fill  ......................................  (1)
  Refill (Oil Change)  ...........................  (1)
Cooling System (Includes Heater)  ....  9.1 Qts. (8.6L)
Crankcase (Includes Filter)  .........  6.3 Qts. (6.0L)
Man. Transaxle (SAE 75-80/API
 GL-4 Or SAE 75W-90, G50
  Synthetic Gear Oil)  ...............  2.1 Qts. (2.0L)

(1) - Information is not available from manufacturer.

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

         QUICK-SERVICE

         SERVICE INTERVALS & SPECIFICATIONS

REPLACEMENT INTERVALS

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

Component                                         Miles

Air Filter  ...................................  30,000
Coolant  ......................................  30,000
Fuel Filter (1)  ..............................  15,000
Oil & Filter  ...................................  7500

C - SPECIFICATIONS

(1) - Discard mini-fuel filter at 1000-mile maintenance
      interval. Install new copper gaskets.

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

BELT ADJUSTMENT

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

Application                               Specification

Serpentine Belt  .................................  (1)

(1) - Serpentine belt tension is automatically adjusted
      by the tensioner.

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

         MECHANICAL CHECKS

         ENGINE COMPRESSION

COMPRESSION SPECIFICATIONS

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

Application                               Specification

Compression Ratio  ............................  10.0:1
Compression
  Pressure  ...........  157-186 psi (11.0-13.0 kg/cm

ý

)

Minimum Compression Pressure  ...  106 psi (7.5 kg/cm

ý

)

Maximum Variation
  Between Cylinders  .............  43 psi (3.0 kg/cm

ý

)

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

         VALVE CLEARANCE

NOTE:    All models are equipped with hydraulic lifters. No
         adjustments are required.

         IGNITION SYSTEM

         IGNITION COIL

IGNITION COIL RESISTANCE - Ohms @ 68

ø

F (20

ø

C)

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

Application               Primary             Secondary

Corrado SLC (1)  ........  .....  ..............  .....

(1) - Ignition coil pack, new for 1993, is located on
      left side of cylinder head. When ignition coil is
      triggered, spark is supplied to 2 spark plugs at
      one time. One spark plug fires during compression
      stroke and the other plug fires during exhaust
