A/C COMPRESSOR OIL CHECKING

NOTE:    On Mercedes-Benz vehicles with rear A/C, add 2/3 ounce of
         refrigerant oil when replacing rear condenser. When
         replacing rear A/C lines, add 1/3 ounce per line replaced.

         Mitsubishi
         1) On Eclipse, add 2/3 ounce of refrigerant oil when
replacing condenser. Add one ounce when replacing evaporator. When
replacing receiver-drier or hoses, add 1/3 ounce per component
replaced.
         2) On Expo/Expo LRV and Montero, add one ounce of refrigerant
oil when replacing condenser. Add 2 ounces when replacing evaporator.
When replacing receiver-drier or hoses, add 1/3 ounce per component
replaced.

         Volkswagen (Fox)
         1) The use of refrigerant recovery/recycling is recommended
by manufacturer. After refrigerant recovery process is completed, the
amount of compressor oil removed must be measured and the same amount
added to A/C system.
         2) Add 1 1/2 ounce of refrigerant oil when replacing
evaporator. When replacing condenser, add 1 1/3 ounce of refrigerant
oil. Add one ounce of refrigerant oil when replacing receiver-drier (1
1/2 ounces if relief valve on receiver-drier has burst).

         PANASONIC

         ROTARY VANE

         Mazda
         Add 1 1/3 ounce of refrigerant oil when replacing condenser
(1/2 ounce on MX-6 and 626). Add 2 ounces when replacing evaporator.
When replacing receiver-drier or hoses, add 1/3 ounce of refrigerant
oil.

         SANDEN

         SCROLL

         Chrysler/Mitsubishi
         1) On Colt, Galant, Mirage, Pickup, Ram-50 and Summit, add
1/2 ounce of refrigerant oil when replacing condenser. Add 1 1/2
ounces when replacing evaporator. When replacing receiver-drier or
hoses, add 1/3 ounce per component replaced.
         2) On Stealth and 3000GT, add 1/2 ounce of refrigerant oil
when replacing condenser. Add 2 ounces when replacing evaporator. When
replacing receiver-drier or low-pressure hose, add 1/3 ounce per

A/C COMPRESSOR OIL CHECKING

         Honda
         1) Discharge system. See SERVICING PRECAUTIONS. Remove
compressor from vehicle. Drain all oil from NEW compressor and fill
compressor with 4 ounces of clean refrigerant oil.
         2) On Civic and Civic Del Sol, add 1 1/2 ounce of refrigerant
oil when replacing evaporator. Add 2/3 ounce when replacing condenser.
When replacing receiver-drier or hoses, add 1/3 ounce per component
replaced.
         3) On Prelude, add one ounce of refrigerant oil when
replacing evaporator. When replacing other A/C components, add 1/3
ounce per component replaced (including hoses).

         Hyundai
         Add 1 1/2 ounces of refrigerant oil when replacing
evaporator. Add one ounce when replacing condenser. When replacing
receiver-drier, add 1/3 ounce of refrigerant oil.

         5-CYLINDER

         Mazda
         Add one ounce of refrigerant oil when replacing condenser.
Add 1 2/3 ounce when replacing evaporator. When replacing receiver-
drier, add 1/2 ounce of refrigerant oil.

NOTE:    Saab and Volvo (Sanden 5 or 7-cylinder) compressor oil
         checking procedures are not available from manufacturer.

         7-CYLINDER

         Hyundai & Mitsubishi (Excel & Precis)
         1) Before checking and adjusting oil level, operate
compressor at engine idle speed, and set controls at maximum cooling
and high blower motor speed for 20-30 minutes to return oil to
compressor.
         2) Stop engine. Discharge refrigerant and remove compressor
from vehicle. See SERVICING PRECAUTIONS. Remove oil drain plug and
drain oil. Measure amount of oil drained. Install drain plug with new
"O" ring.
         3) If amount drained is 2.3 ounces or more, fill compressor
with same amount using new oil. If amount drained is less than 2.3
ounces, fill with 2.3 ounces. Install filler plug. Install compressor
and recharge system.

COMPONENT REFRIGERANT OIL CAPACITIES (SANDEN 7-CYLINDER)

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

Component                                             Ounces

Condenser  ............................................  1.0
Evaporator  .............................................  3
Receiver-Drier  .........................................  1

A/C COMPRESSOR OIL CHECKING

         Jaguar (XJS)
         1) Operate engine at idle speed for 10 minutes, to return
refrigerant oil to compressor. Stop engine. Discharge refrigerant. See
SERVICING PRECAUTIONS. Clean area around compressor filler plug and
remove plug slowly.
         2) Determine angle at which compressor is mounted. Insert
compressor dipstick diagonally until stop on dipstick contacts filler
plug surface. See Fig. 1. Remove dipstick and note oil fill level.
Each increment on dipstick represents one ounce of oil.
         3) Determine amount of oil needed according to mounting
angle. See COMPRESSOR OIL CAPACITIES (JAGUAR XJS) table for specified
amount.
         4) If necessary, correct compressor oil level. Install
compressor oil plug, and tighten it to 72-108 INCH lbs. (8-12 N.m).
Evacuate and recharge A/C system. Perform leak test.

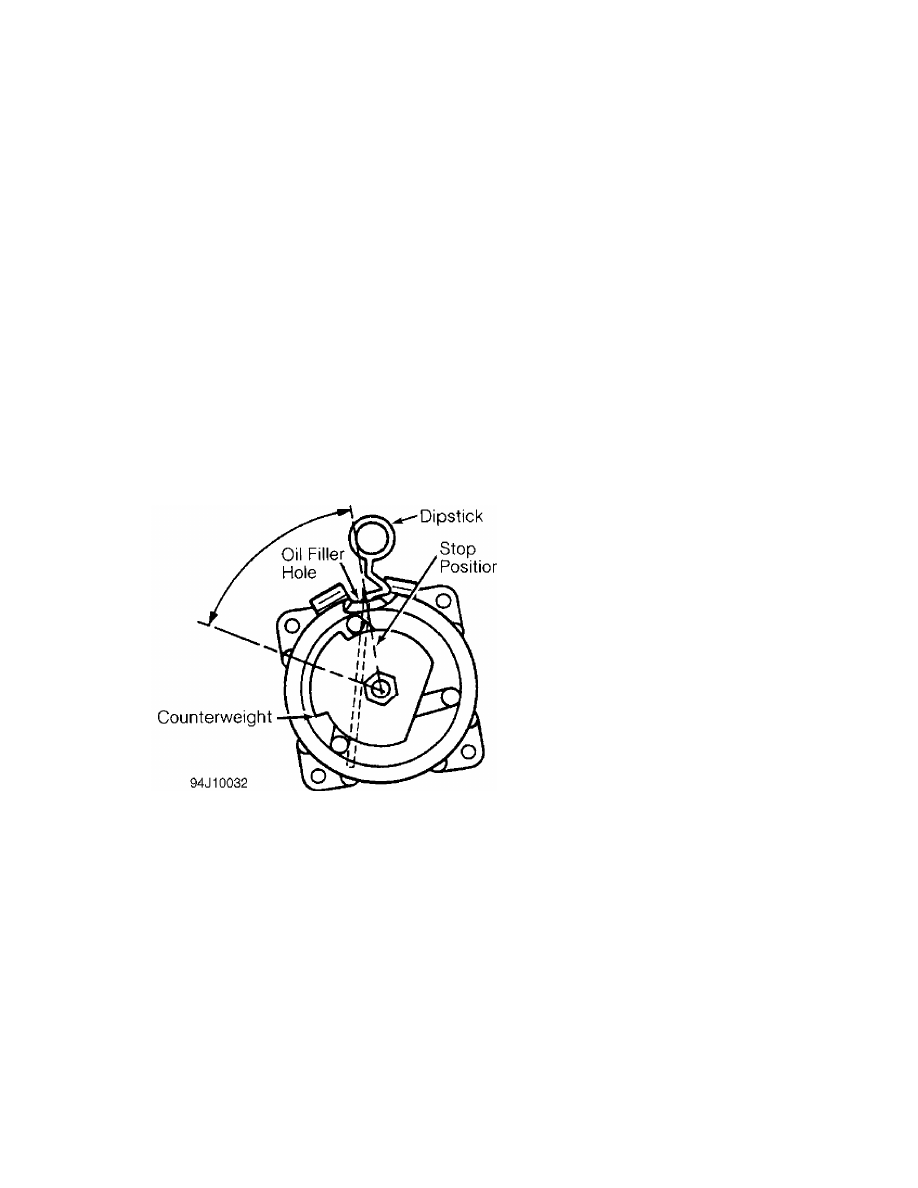

Fig. 1:  Checking Jaguar XJS Compressor Oil Level (Sanden 7-Cylinder)
Courtesy of Jaguar Cars, Inc.

COMPRESSOR OIL CAPACITIES (JAGUAR XJS)

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

Mounting Angle (In Degrees)          Oil Level In Increments

0  ....................................................  3-5
10  ...................................................  4-6
20  ...................................................  5-7
30  ...................................................  6-8
40  ...................................................  7-9
50  ..................................................  8-10
60  ..................................................  9-11
90  .................................................  10-12

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

         Volkswagen
         1) The use of refrigerant recovery/recycling is recommended

A/C COMPRESSOR OIL CHECKING

         SEIKO-SEIKI

         ROTARY VANE

         Saab (9000)
         The A/C system is filled with 6.6 ounces of compressor oil.
The compressor must be topped off with the specified amount. See
COMPONENT REFRIGERANT OIL CAPACITIES (SEIKO-SEIKI ROTARY VANE) table.
Topping off should be carried out on the high pressure side of the
compressor.

COMPONENT REFRIGERANT OIL CAPACITIES (SEIKO-SEIKI ROTARY VANE)

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

Component                                                Ounces

Compressor  ..........................................  (1) 2.3
Condenser  ...............................................  1.3
Expansion Valve  .........................................  0.6
Evaporator  ..............................................  1.3
Receiver-Drier  ..........................................  1.3
Refrigerant Lines  .......................................  0.6

(1) - To avoid an excessive amount of oil in the A/C system, oil
      must be drained from the compressor before it is installed.

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

         ZEXEL

NOTE:    Isuzu and Subaru compressor oil checking procedures are not
         available from manufacturer.

         ROTARY VANE

         Nissan
         1) Before checking and adjusting oil level, operate engine at
1200 RPM. Set controls at maximum cooling and high blower motor speed
for 10 minutes to return oil to compressor.
