2.8L IN-LINE V6 (VR6)

Intake Valve  .................................  1.33 (33.9)
Exhaust Valve  ................................  1.34 (34.1)

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

         3) The difference is maximum refacing allowable for valve and
seat. If valve installed height is too low or too high, lifters will
not work correctly. Replace cylinder head assembly.

         Valves
         Measure valve length, stem diameter and valve margin. If not
within specification, replace valves. Lap valves by hand or replace as
necessary. See VALVES SPECIFICATIONS table under ENGINE SPECIFICATIONS
at end of article.

         CYLINDER BLOCK ASSEMBLY

         Piston & Rod Assembly
         1) Make sure piston, rod and rod caps are marked with
matching cylinder number prior to removal. Ensure arrow on top of
piston points toward pulleys. Ensure marks on rod and cap are
positioned correctly. See Fig. 15. Rod cap bolts and nuts must be
replaced after removing or loosening.

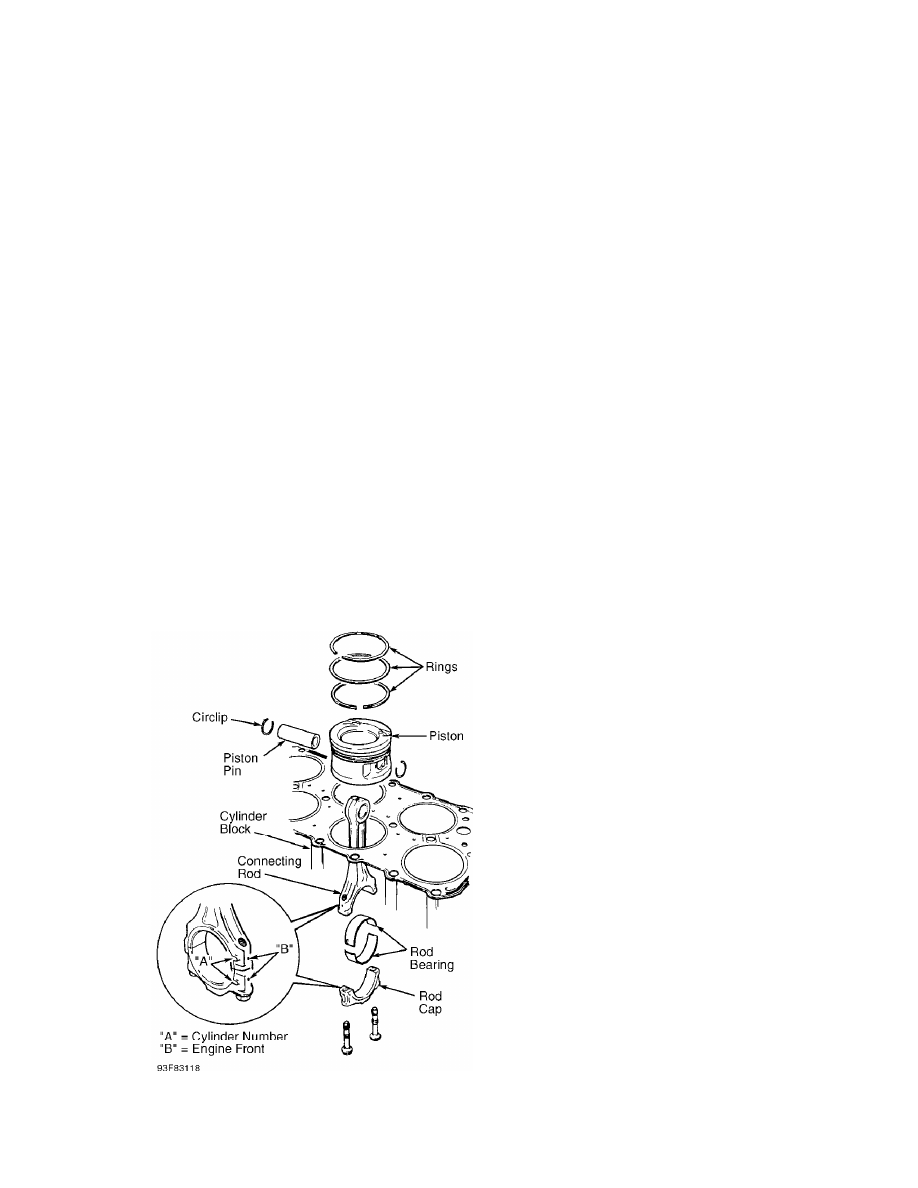

Fig. 15:  Assembling Piston & Rod
Courtesy of Volkswagen United States, Inc.

2.8L IN-LINE V6 (VR6)

ø

F (60

ø

C).

Ensure rod is properly positioned with piston.

         Fitting Pistons
         Measure clearances with cylinder block supported on work
bench. Check clearance of piston-to-cylinder bore. Piston diameter is
stamped on top of piston in millimeters.

PISTON-TO-CYLINDER BORE DIMENSIONS TABLE

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

                     Piston Diameter           Cylinder Bore
Size                     In. (mm)                   In. (mm)

Standard  ..........  3.188 (80.98)  ........  3.189 (81.01)
1st Over  ..........  3.208 (81.49)  ........  3.209 (81.51)
2nd Over  ..........  3.228 (81.98)  ........  3.229 (82.01)

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

         Piston Rings
         1) Measure ring end gap. Measure ring side clearance with
piston. Replace if necessary. See PISTONS, PINS & RINGS SPECIFICATIONS
table under ENGINE SPECIFICATIONS at end of article.
         2) Install rings on piston with OBEN or TOP mark facing
upward. Recessed edge on outside of center ring must face piston pin
(down). Position ring gaps on piston at 120 degree intervals.

         Connecting Rod Bearings
         Mark rod caps for reinstallation. Use Plastigage to measure
bearing clearances. Measure connecting rod side play. Replace or
machine as necessary. See CRANKSHAFT, MAIN & CONNECTING ROD BEARINGS
table under ENGINE SPECIFICATIONS at end of article. Tighten evenly to
specification in several steps. See TORQUE SPECIFICATIONS table at end
of article.

         Crankshaft & Main Bearings
         Main bearing caps are marked with matching journal for

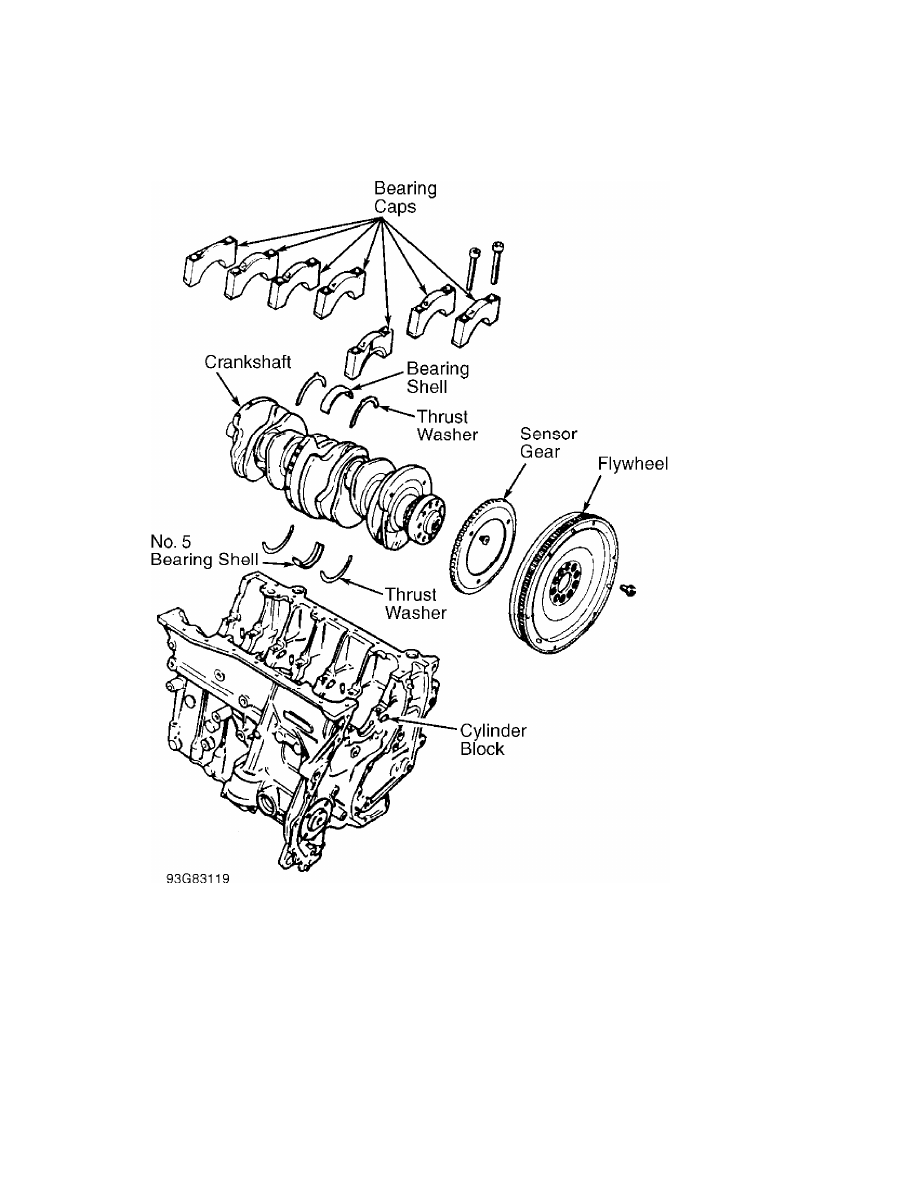

installation in original position. See Fig. 16. Measure crankshaft end
play. See THRUST BEARING.

2.8L IN-LINE V6 (VR6)

         Thrust Bearing
         Insert feeler gauge between No. 5 main bearing and crankshaft
thrust face to measure end play. See Fig. 16. Replace thrust bearing
as necessary. See CRANKSHAFT, MAIN & CONNECTING ROD BEARINGS table
under ENGINE SPECIFICATIONS at end of article.

         Cylinder Block
         Check cylinder bore for wear, out-of-round and taper. Check
cylinder block for warpage. See CYLINDER BLOCK table under ENGINE
SPECIFICATIONS at end of article.

2.8L IN-LINE V6 (VR6)

         ENGINE LUBRICATION SYSTEM

         Crankcase Capacity
         See CRANKCASE CAPACITY table.

CRANKCASE CAPACITY TABLE

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

                       With Filter            Without Filter
Model                  Replacement               Replacement

2.8L  .............  6.3 Qts. (6.0L)  .....  5.3 Qts. (5.0L)

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

         Oil Pressure
         Check oil pressure with engine at warm operating temperature.
Minimum oil pressure at 2000 RPM is 29 psi (2.0 kg/cm

ý

). If oil

pressure is incorrect, check oil pump and oil pressure relief valve.

         OIL PUMP

         Removal & Installation
         Remove oil pan. Remove oil pump attaching bolts and remove
oil pump assembly. To install, reverse removal procedure.

         Inspection
         Check oil pump housing, gears and pressure relief valve for
damage or excessive wear. See Fig. 17. Repair or replace as an
assembly.

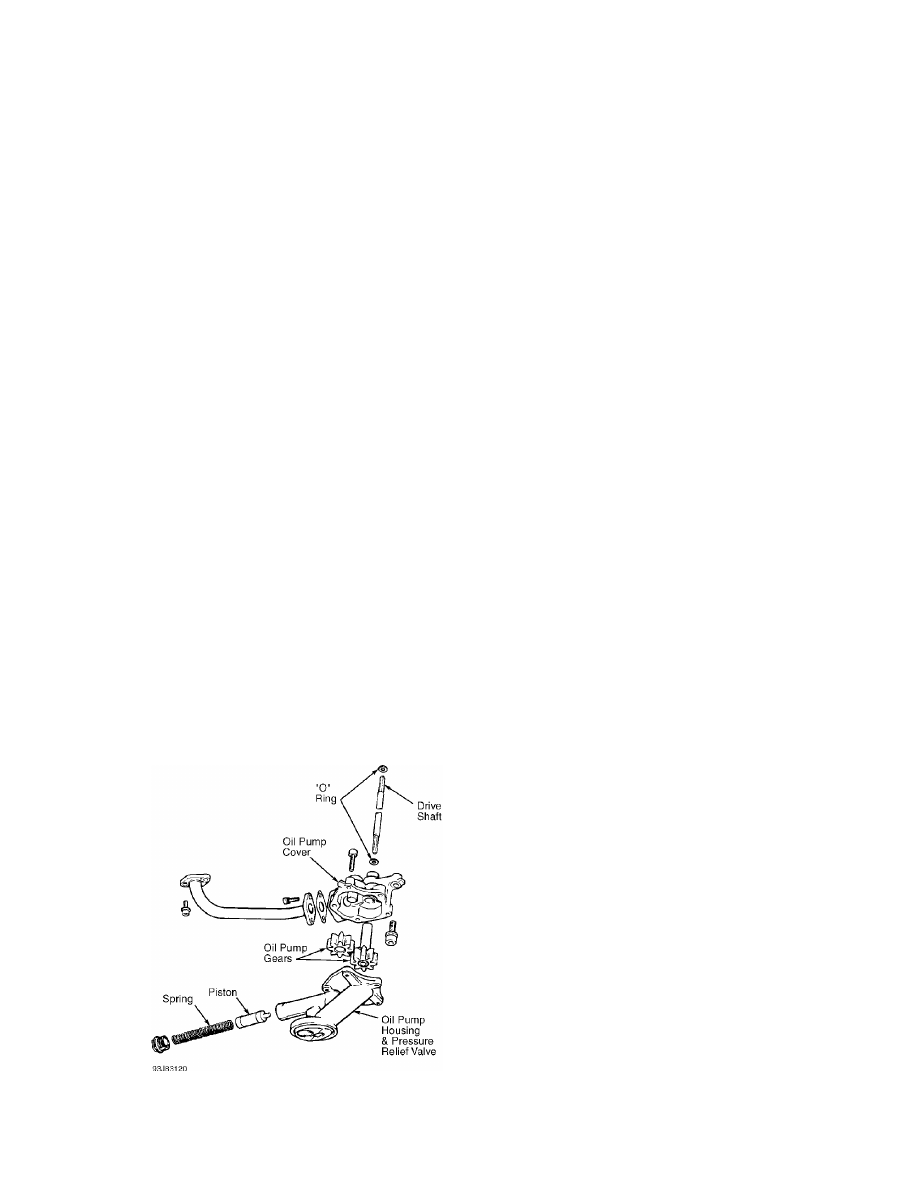

Fig. 17:  Oil Pump Assembly
Courtesy of Volkswagen United States, Inc.
