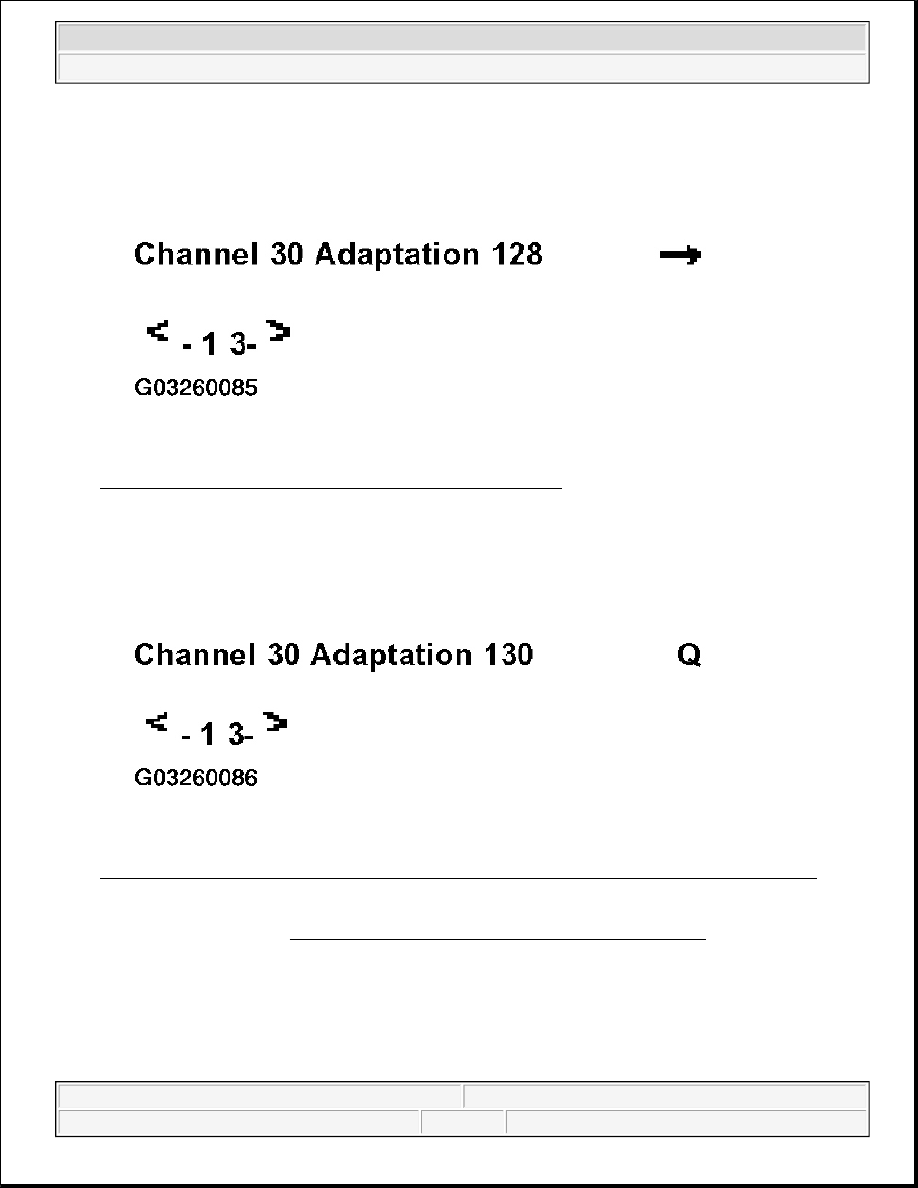

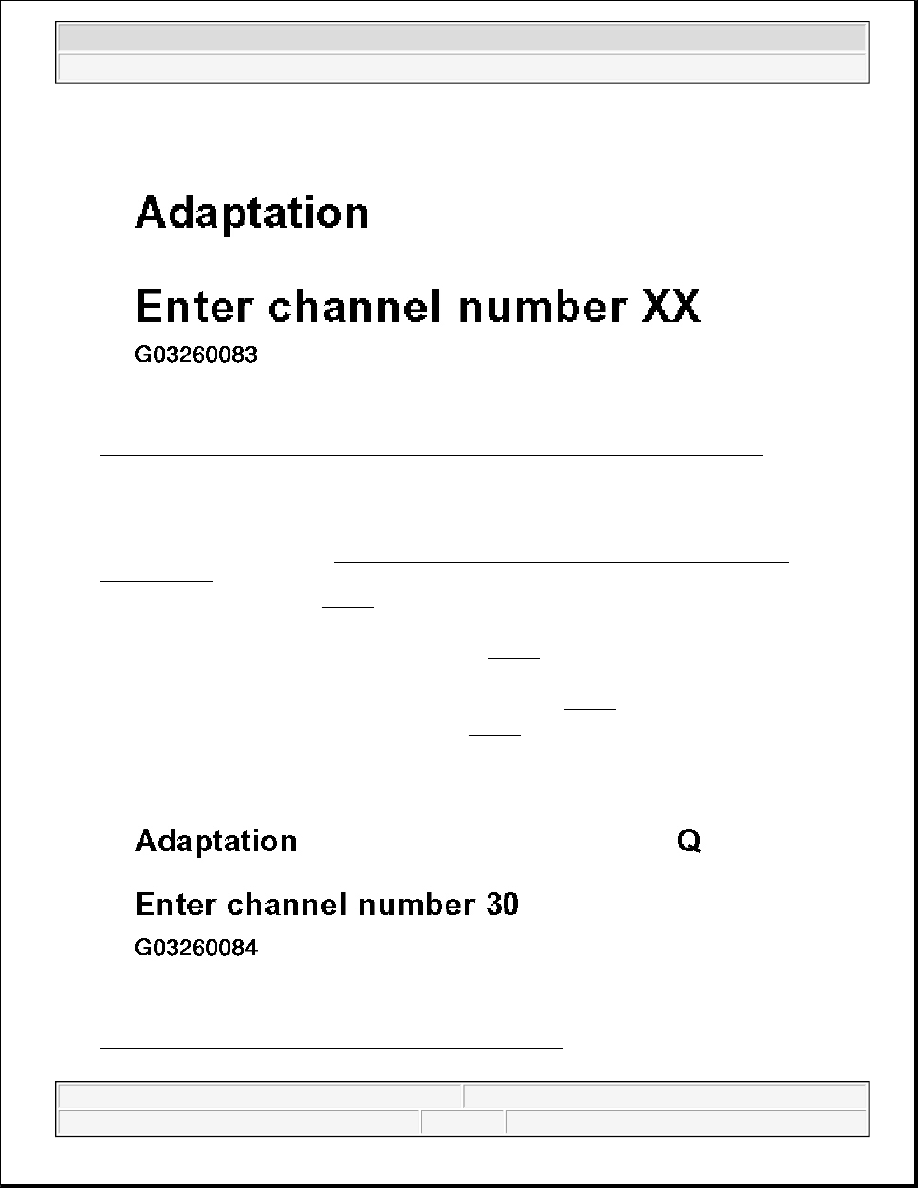

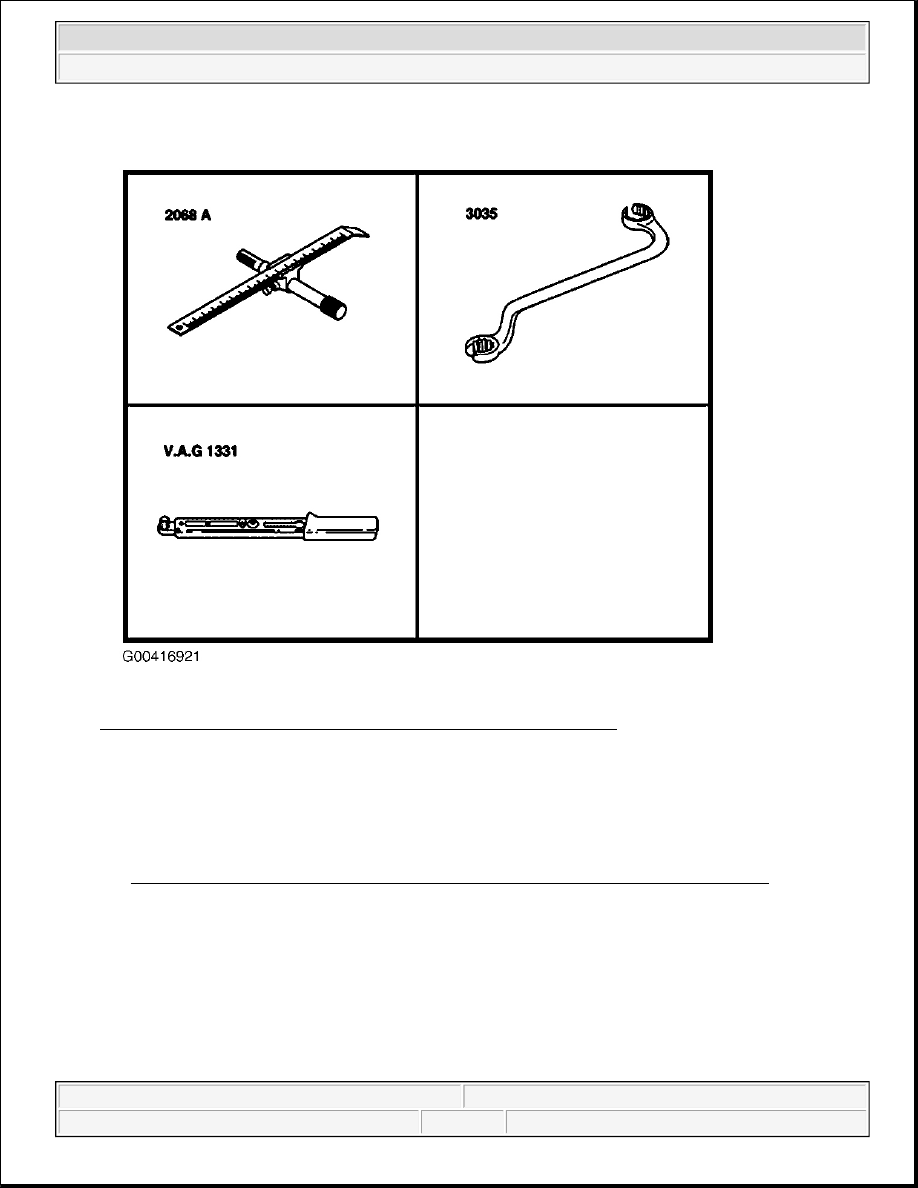

Volkswagen New Beetle. Manual - part 996





z

Check whether a coded radio is installed. If installed obtain anti-theft coding.

z

With ignition switched off disconnect battery Ground (GND) strap.

z

Remove air cleaner housing with intake hose.

z

Drain coolant. See COOLANT, DRAINING AND FILLING .

z

Extract fuel from tandem pump. See TANDEM PUMP, REMOVING AND INSTALLING .

z

Remove/separate connections for glow plugs, fuel temperature sensor, unit injectors (central connector)
and coolant temperature sensor.

z

Remove fuel hoses and coolant hose off lines on cylinder head (arrows).

the engine compartment, pay attention to the following:

z

Route all types of hoses/lines (e.g. for fuel, hydraulics, EVAP system,
coolant, refrigerant, brake fluid and vacuum) as well as electrical
wiring so that the original positions are restored.

z

Ensure sufficient clearance to all moving or hot components.

WARNING:

z

The fuel and the fuel lines in the fuel system can become very
hot (danger of scalding).

z

The fuel system is also under pressure! Before opening the
system, place cloths around the connections. Then carefully
loosen the connection to release pressure.

z

Wear eye and hand protection when performing any type of
repair work on the fuel system!



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Engine Mechanical - New Beetle, 1.9L 4-Cyl. (Engine Code BEW)



Fig. 92: Removing Coolant Hose And Connectors From Line Union
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Remove coolant hose -1- and connectors -2- from line union.

z

Remove hose from vacuum reservoir.

z

Remove plenum chamber cover (outer) and plenum chamber sealing part.

See PLENUM CHAMBER SEALING ASSEMBLY, REMOVING AND INSTALLING .

z

Separate quick-release coupling on right side at heat exchanger (from exhaust gas heat exchanger).

z

Separate hose connections -1- on non-return valve -3- and to vacuum reservoir.

z

Pull union -2- off brake booster.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Engine Mechanical - New Beetle, 1.9L 4-Cyl. (Engine Code BEW)



Fig. 93: Hose Connections On Non-Return Valve, Vacuum Reservoir & Brake Booster
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Separate vacuum hoses for vacuum hoses of bypass flap (AGR cooler), of intake manifold and
turbocharger at unions.

z

Remove front exhaust pipe. See EXHAUST SYSTEM COMPONENTS, REMOVING AND
INSTALLING
 .

z

Disconnect connector -1-. See Fig. 94 .

z

Remove connecting hose -7-.

z

Pull vacuum hose -5- off rear charge air pipe -6-. See Fig. 94 .

z

Separate connecting hose at rear charge air pipe -6- and remove it.

z

Disconnect oil return line -2- from union on cylinder block. See Fig. 94 .

z

Remove bolts -3- and -4- and take off bracket. See Fig. 94 .

Fig. 94: Removing Components Of Cylinder Head Assembly
Courtesy of VOLKSWAGEN OF AMERICA, INC.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Engine Mechanical - New Beetle, 1.9L 4-Cyl. (Engine Code BEW)



z

Disconnect oil supply line at oil filter bracket (arrow) and at coolant pipe.

Fig. 95: Disconnecting Oil Supply Line At Oil Filter Bracket
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Disconnect oil supply line at exhaust gas turbocharger and exhaust manifold (arrows) and move aside.

Fig. 96: Disconnecting Oil Supply Line At Exhaust Gas Turbocharger And Exhaust Manifold
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Remove toothed belt. See TOOTHED BELT, REMOVING AND INSTALLING .

NOTE:

z

Both lifting eyes for the support are located on the cylinder head, an
additional bracket for supporting the engine must be secured on the
cylinder block.

z

Hook spindle -B- onto cylinder head.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Engine Mechanical - New Beetle, 1.9L 4-Cyl. (Engine Code BEW)
