Volkswagen New Beetle. Manual - part 961





Fig. 4: Coolant Hose Connection Diagram (Engine Code AEG Up To Model Year 1998)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Engine codes AEG (from Model Year 1999), AVH, AZG, BDC, BEV, BGD

1. Radiator

2. Oil cooler

3. Coolant pump/coolant thermostat

4. Cylinder head/cylinder block

5. Expansion tank

6. Intake manifold

7. Throttle valve control module

8. Connecting unions

9. Heating system heat exchanger

10. Quick-action coupling

11. Coolant pipe

12. ATF cooler

z

Only models with an automatic transmission

NOTE:

The following list refers to items in Fig. 5 .



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Engine Cooling System - New Beetle, 2.0L (AEG, AVH, AXG, BDC BEV & BGD)





2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Engine Cooling System - New Beetle, 2.0L (AEG, AVH, AXG, BDC BEV & BGD)

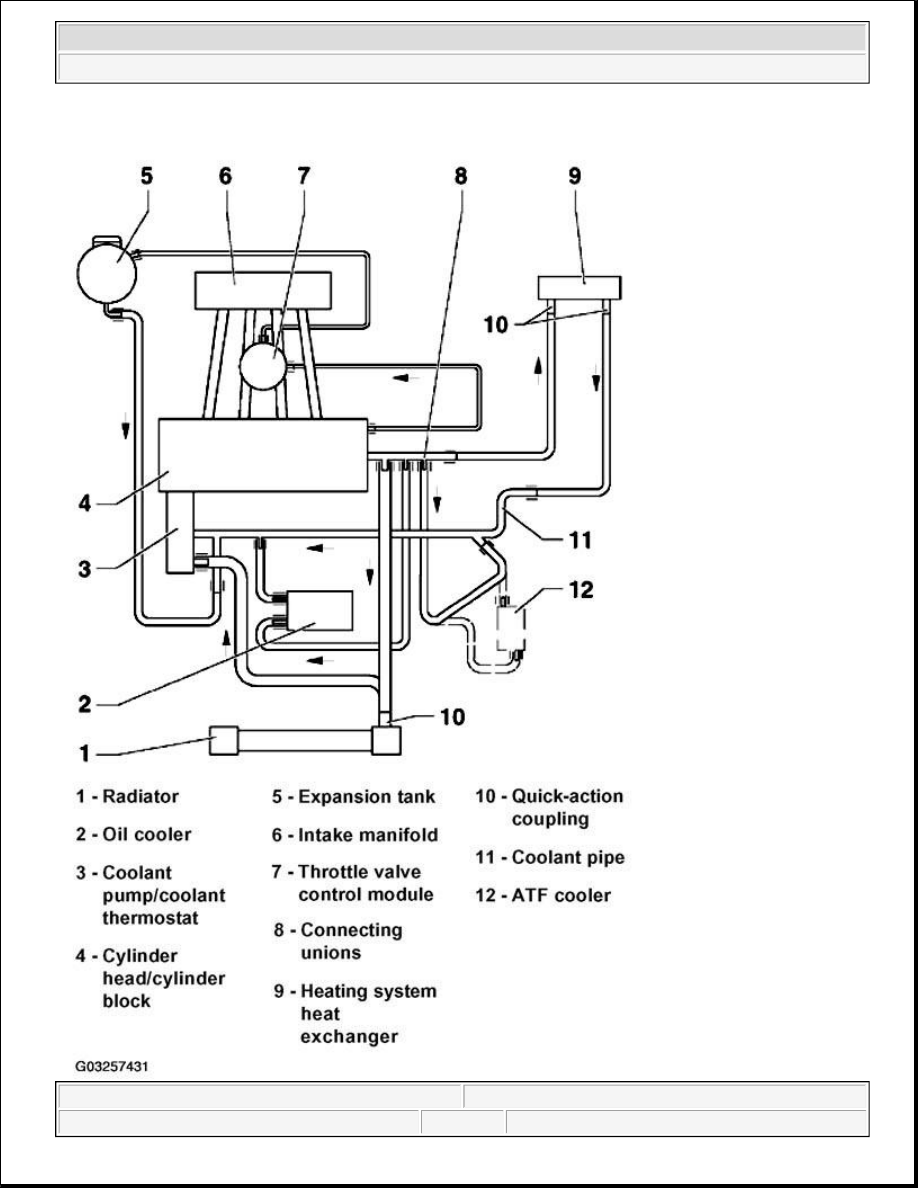

Fig. 5: Coolant Hose Connection Diagram (Engine Codes AEG From Model Year 1999, AVH, AZG,
BDC, BEV, BGD)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

COOLING SYSTEM, DRAINING AND FILLING

Special tools, equipment, testers, measuring instruments and auxiliary items required

z

T10007 Refractometer

z

V.A.G 1306 Drip tray

z

Torque wrench VAG 1331

z

VAS 5024 Assembly tool for spring-type clamps

z

Adapter for expansion tank VAG 1274/8

z

VAS 6096 Coolant system charging unit



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Engine Cooling System - New Beetle, 2.0L (AEG, AVH, AXG, BDC BEV & BGD)

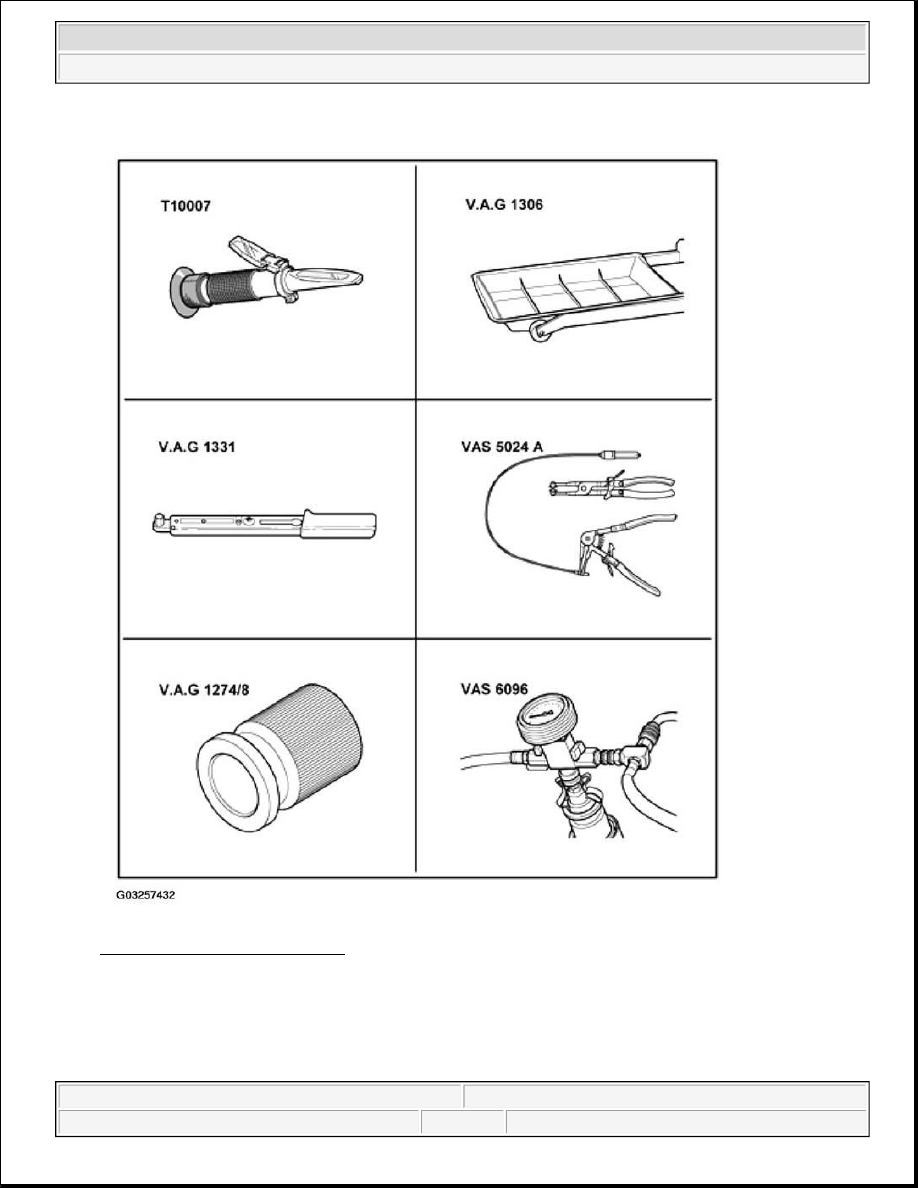

Fig. 6: Identifying Special Tools
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Draining

WARNING:

Steam can be released when removing the cap from the expansion tank.
Cover the cap with a cloth and open carefully.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Engine Cooling System - New Beetle, 2.0L (AEG, AVH, AXG, BDC BEV & BGD)
