ASSEMBLING) .

15. 15 N.m

16. Coolant thermostat

z

Checking: Heat up thermostat in water

z

Starts to open: approx. 86°C

z

Opening stroke: min. 7 mm

z

Removing and installing, See THERMOSTAT, REMOVING AND INSTALLING

17. Toothed belt

z

Mark direction of rotation before removing

z

Check for wear

z

Do not kink

z

Removing, installing and tensioning. See TOOTHED BELTS, REMOVING, INSTALLING
AND TENSIONING
 .

18. Coolant pump

z

Check for ease of movement

z

If damaged or leaking replace complete

z

Removing and installing, See COOLANT PUMP, REMOVING AND INSTALLING

19. Rear toothed belt guard

20. 20 N.m

21. Throttle valve control module

z

Heated by coolant

z

Coolant hose connection diagram, See COOLANT HOSE CONNECTION DIAGRAM

22. To top of expansion tank

z

Coolant hose connection diagram, See COOLANT HOSE CONNECTION DIAGRAM

23. O-ring

z

Replace if damaged



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Engine Cooling System - New Beetle, 2.0L (AEG, AVH, AXG, BDC BEV & BGD)

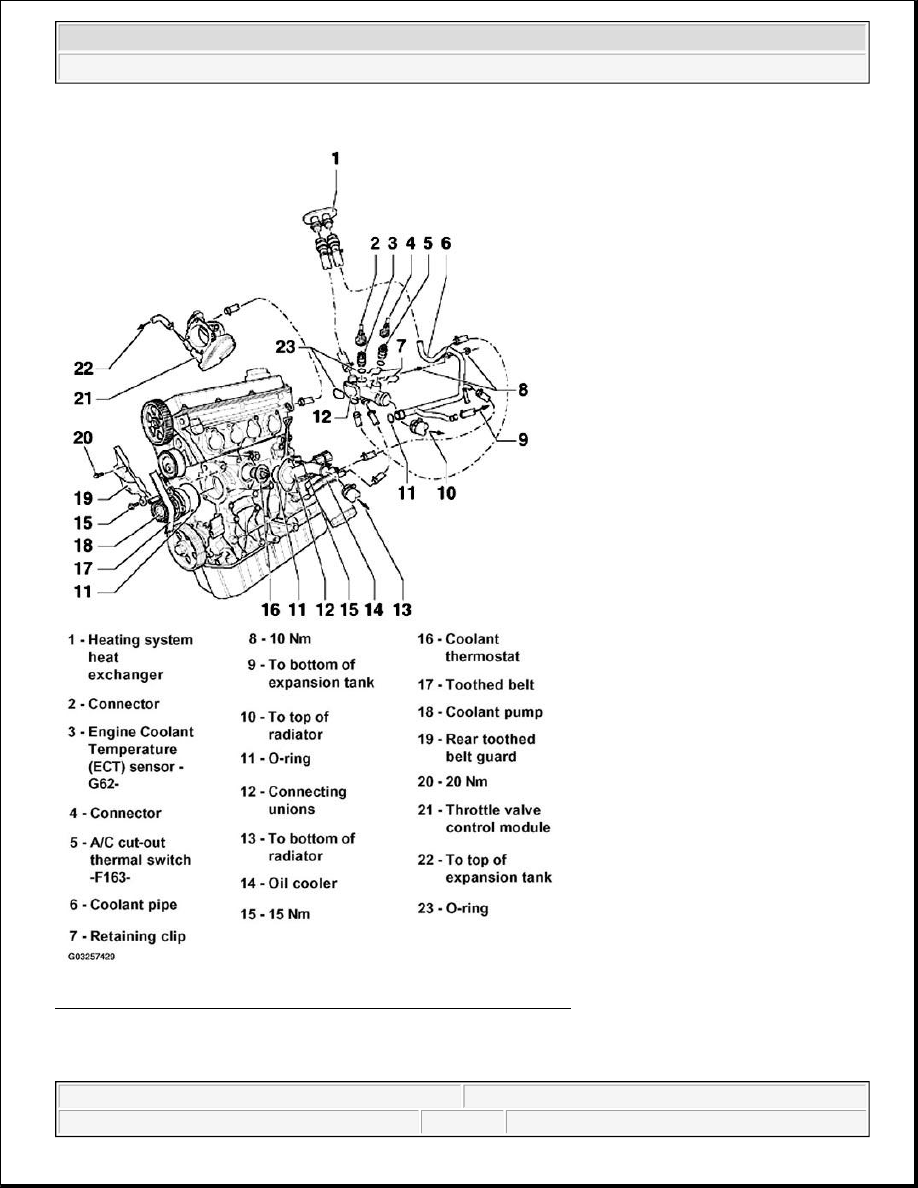

Fig. 3: Exploded View Of Engine Side Cooling System Components
Courtesy of VOLKSWAGEN OF AMERICA, INC.

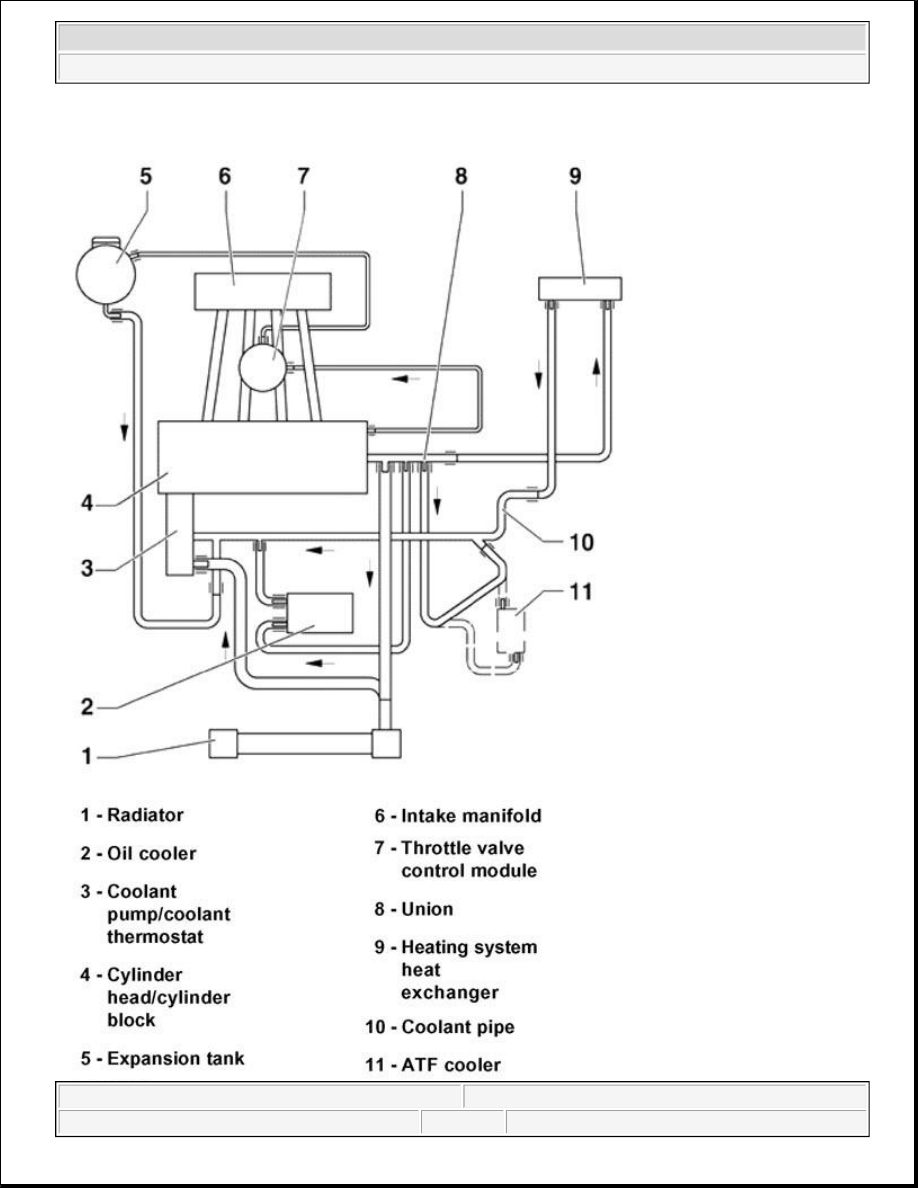

COOLANT HOSE CONNECTION DIAGRAM



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Engine Cooling System - New Beetle, 2.0L (AEG, AVH, AXG, BDC BEV & BGD)



Engine code AEG (up to Model Year 1998)

1. Radiator

2. Oil cooler

3. Coolant pump/coolant thermostat

4. Cylinder head/cylinder block

5. Expansion tank

6. Intake manifold

7. Throttle valve control module

8. Union

9. Heating system heat exchanger

10. Coolant pipe

11. ATF cooler

z

Only models with an automatic transmission

NOTE:

Engine codes AEG (from Model Year 1999), AVH, AZG, BDC, BEV, BGD, see
ENGINE CODES AEG (FROM MODEL YEAR 1999), AVH, AZG, BDC, BEV, BGD .

NOTE:

The following list refers to items in Fig. 4 .
