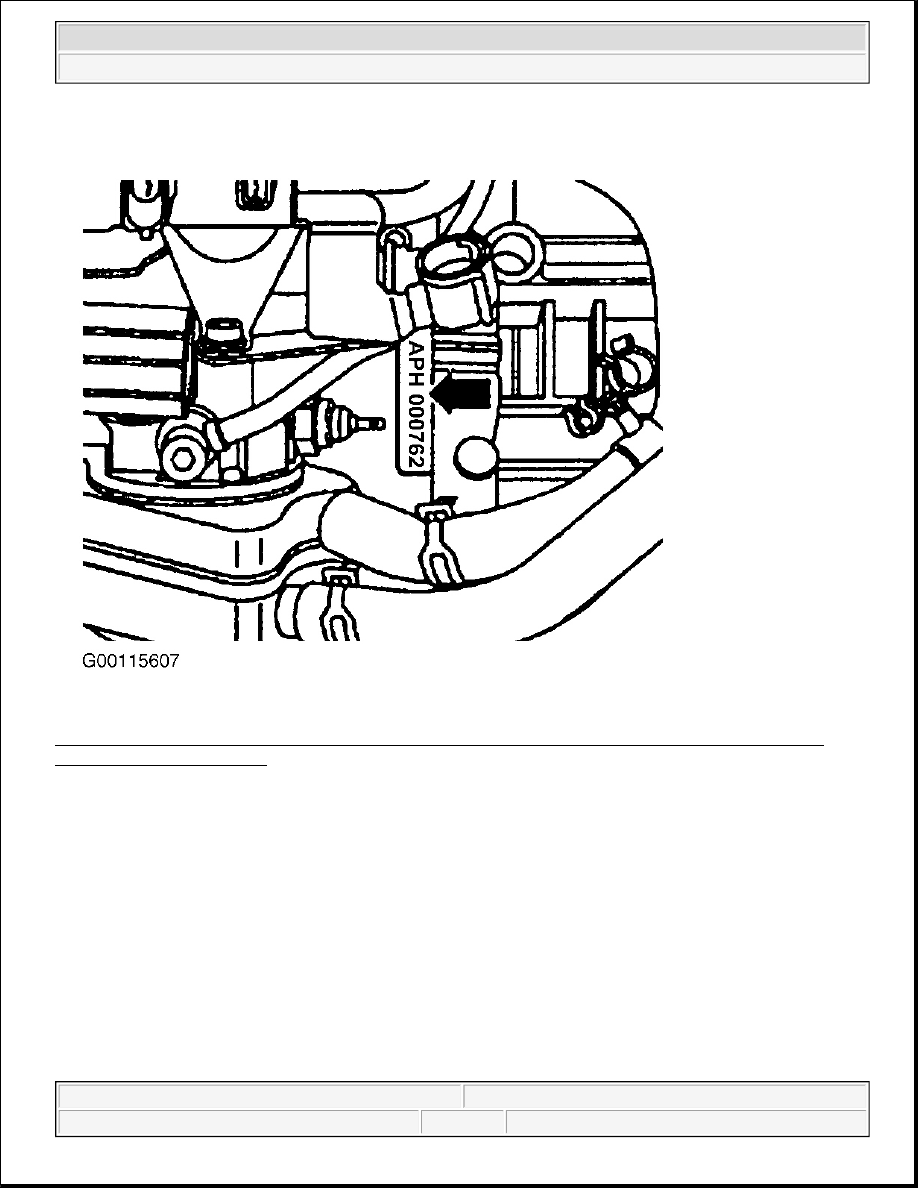

Fig. 2: Locating Engine Code On Machined Surface (1.8L Turbo Engine Code APH Shown, AWP &
AWV Similar - New Beetle)

Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2002-04 ENGINE COOLING Specifications & Drive Belt Routing - 1.8L Turbo (Except Passat)

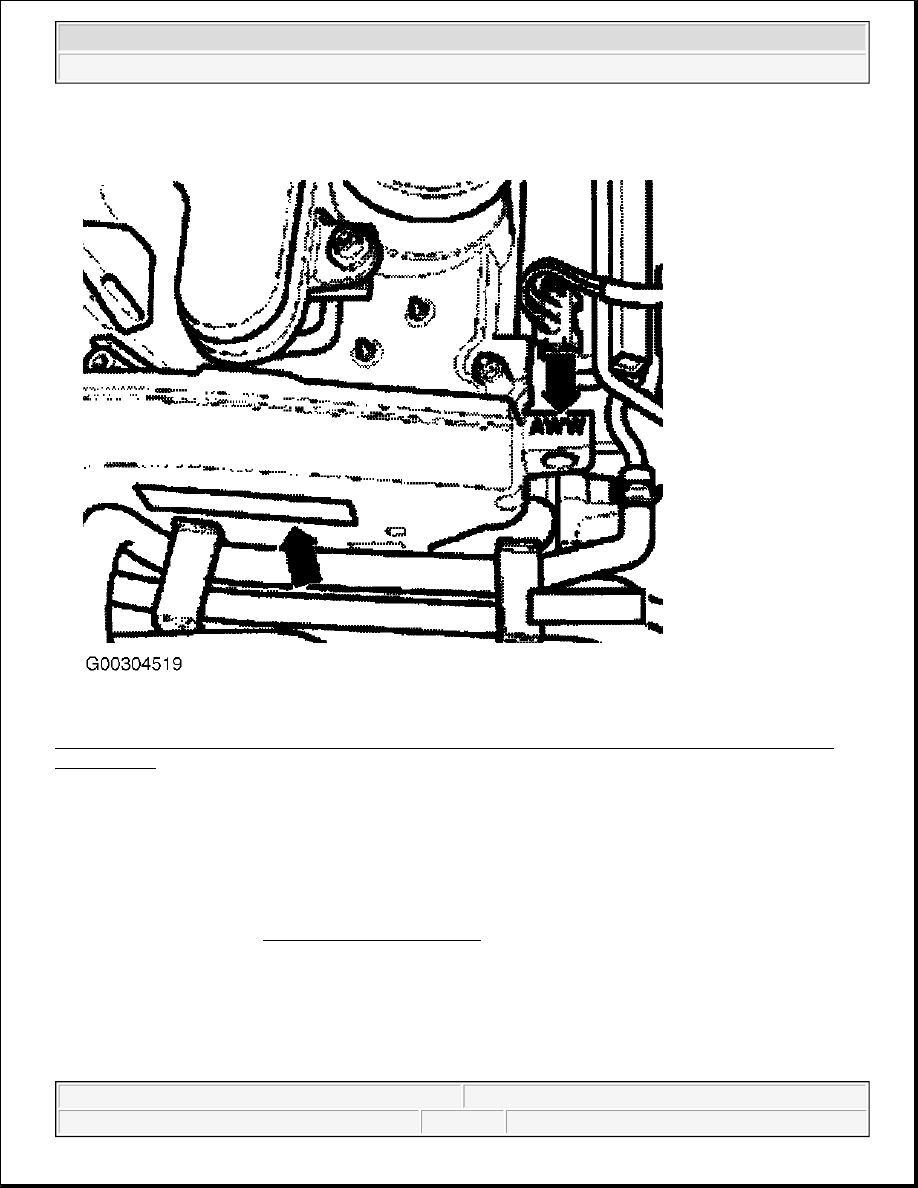

Fig. 3: Locating Engine Code On Timing Belt Guard (1.8L Turbo Engine Code AWP & AWW - Golf,
GTI & Jetta)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

COMPONENT LOCATIONS

COOLING SYSTEM IDENTIFICATION

NOTE:

Three letter code indicates engine identification code. For location of engine
code, see ENGINE IDENTIFICATION .



2003 Volkswagen New Beetle GLS

2002-04 ENGINE COOLING Specifications & Drive Belt Routing - 1.8L Turbo (Except Passat)

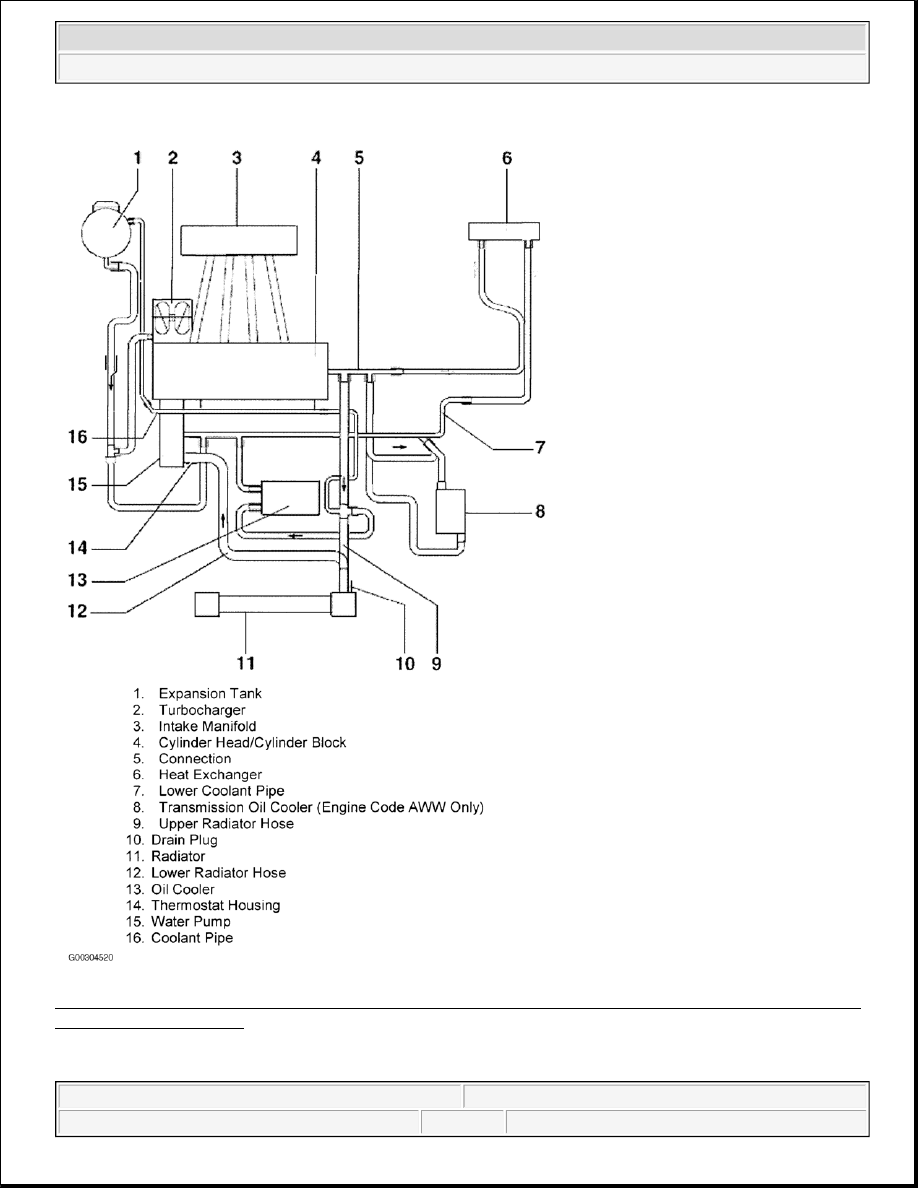

Fig. 4: Identifying Cooling System Components & Coolant Flow (1.8L Turbo AWP M/T & AWW M/T &
A/T - Golf, GTI & Jetta)

Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2002-04 ENGINE COOLING Specifications & Drive Belt Routing - 1.8L Turbo (Except Passat)

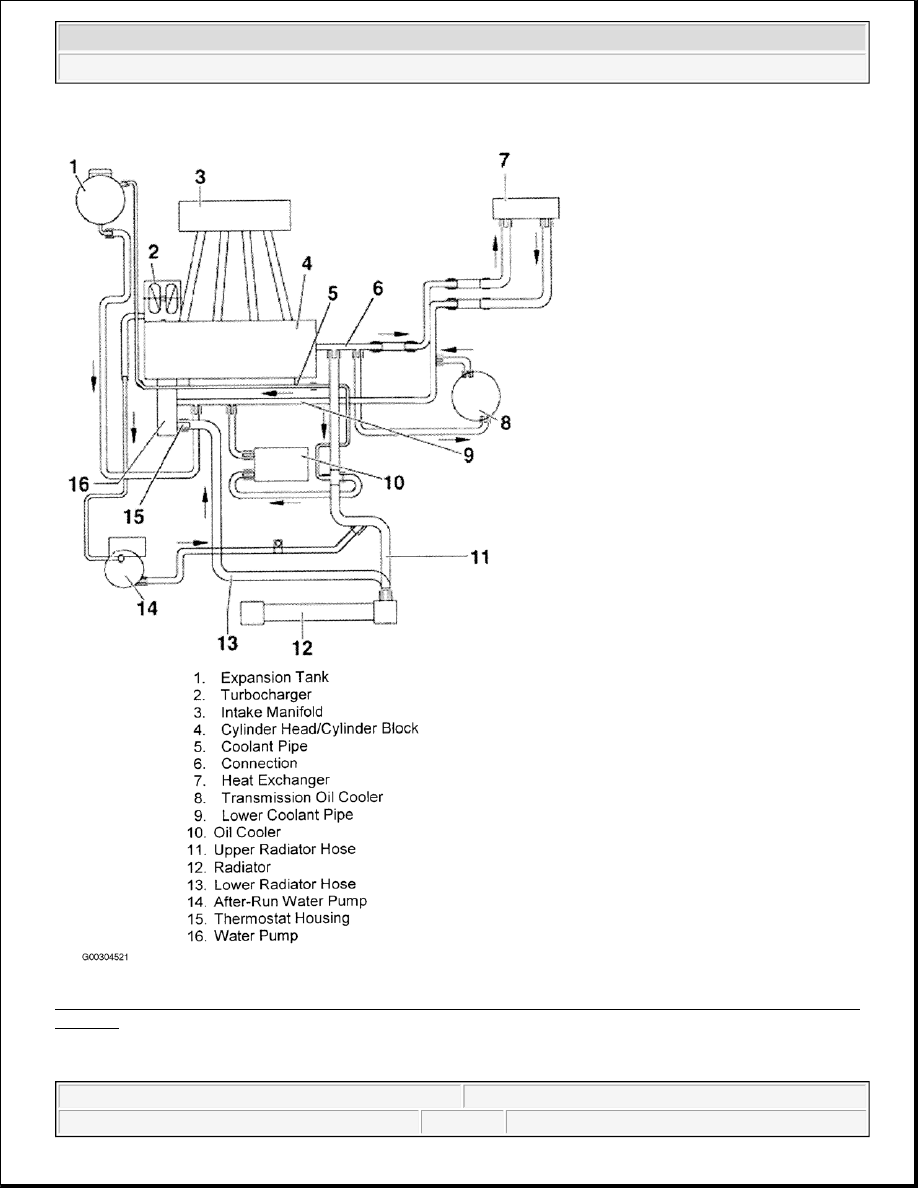

Fig. 5: Identifying Cooling System Components & Coolant Flow (1.8L Turbo AWP A/T Only - Golf, GTI
& Jetta)

Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2002-04 ENGINE COOLING Specifications & Drive Belt Routing - 1.8L Turbo (Except Passat)
