Volkswagen New Beetle. Manual - part 843

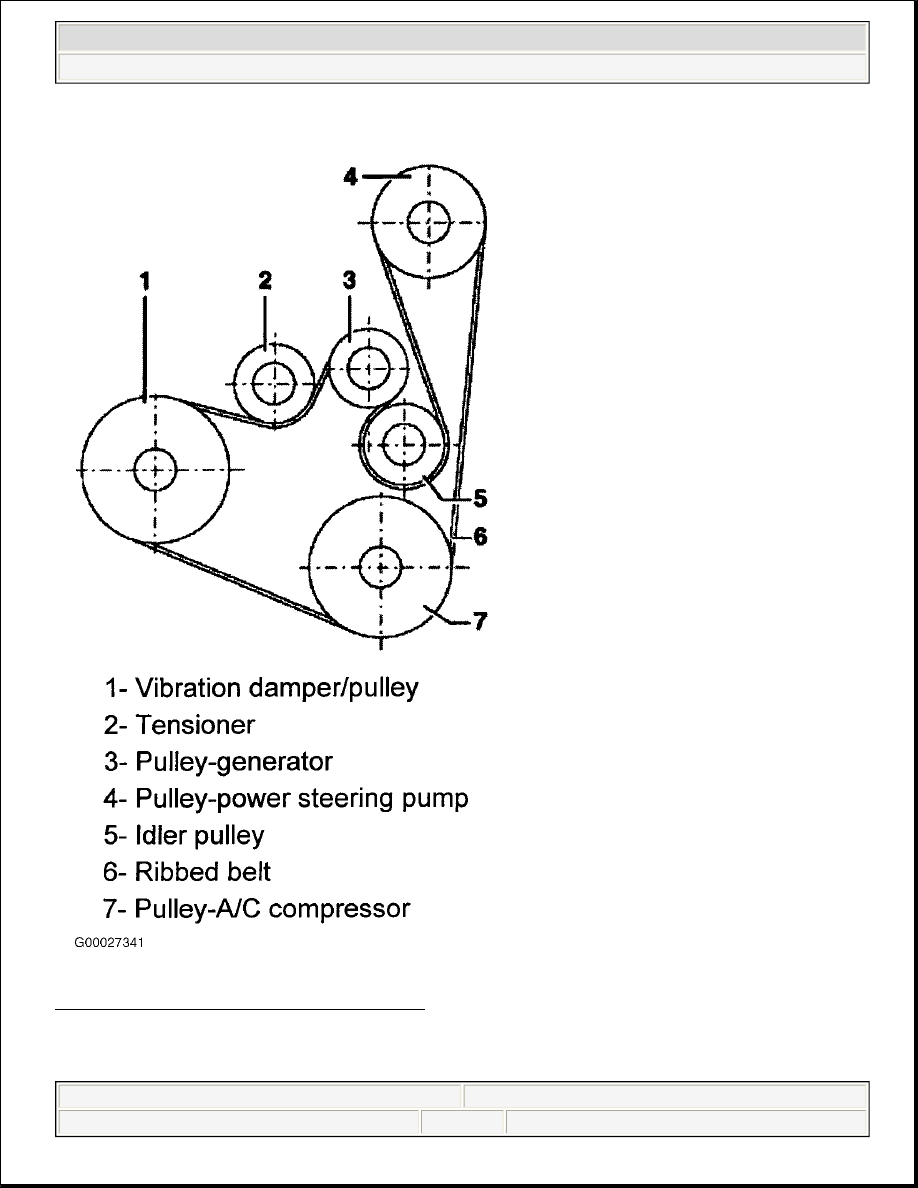

Fig. 1: Drive Belt Routing (Except 1.9L - ALH & BEW)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

1998-2004 CHARGING SYSTEMS Generators & Regulators - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:02:43 AM

Page 2

© 2004 Mitchell Repair Information Company, LLC.

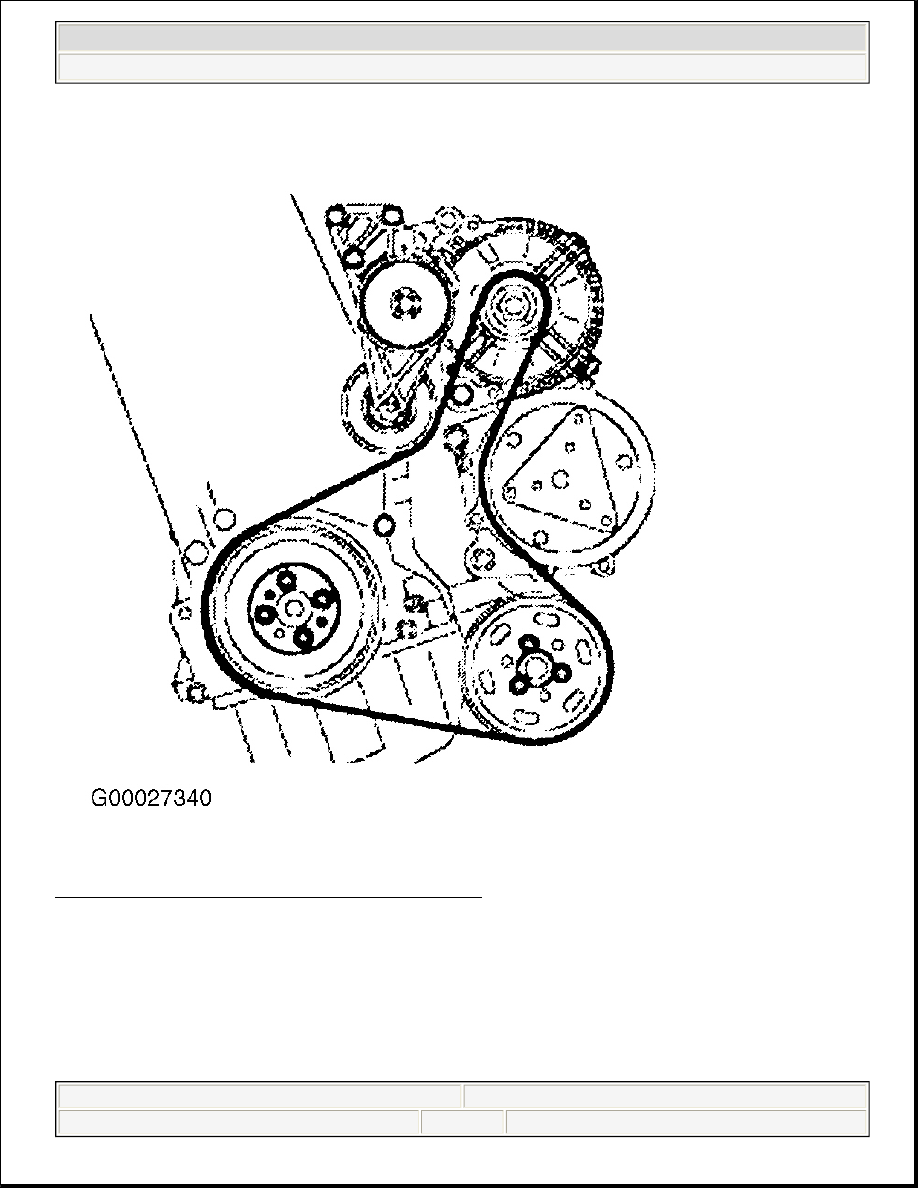

Fig. 2: Drive Belt Routing (1.9L - ALH & BEW)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

TROUBLE SHOOTING



2003 Volkswagen New Beetle GLS

1998-2004 CHARGING SYSTEMS Generators & Regulators - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:02:43 AM

Page 3

© 2004 Mitchell Repair Information Company, LLC.

PRELIMINARY INSPECTION

Verify customer complaint by operating system. Visually inspect for obvious signs of mechanical and electrical
damage. Check generator belt tension and condition. Ensure that battery voltage is within specifications.
Following manufacturers instructions for load tester, load test battery. See LOAD TEST under ON-VEHICLE
TESTING. Inspect for blown fuses and damaged relays. For fuse and/or relay identification, see WIRING
DIAGRAMS
. Verify ground connection integrity between engine, body, battery and generator. Check for
damaged wiring harnesses and/or switches. Check for a broken or partially broken wire inside insulation, which
could cause system malfunction but prove good in a continuity/voltage check with system disconnected. Ensure
any aftermarket electronic equipment is properly installed. If fault is found, repair as necessary. If no fault is
found, check for conditions that might cause an intermittent situation.

SYSTEM TESTS

GENERATOR WARNING LIGHT DOES NOT GO OUT WITH SPEED INCREASE

1. Turn ignition switch to OFF position. Disconnect D+ terminal at generator. Turn ignition switch to ON

position. Observe GEN warning light. If warning light illuminates, go to next step. If warning light does
not illuminate, go to GENERATOR .

2. Turn ignition switch to OFF position. Disconnect Blue wire from instrument cluster terminal T32a/12.

Turn ignition switch to ON position. Observe GEN warning light. If warning light illuminates, replace
faulty instrument cluster. If warning light does not illuminate, repair short to ground in D+ circuit
between generator, ignition switch and instrument cluster. See WIRING DIAGRAMS .

GENERATOR WARNING LIGHT DOES NOT ILLUMINATE WITH IGNITION ON

1. Ensure generator belt tension and battery voltage are okay. Verify ground connection integrity between

engine, body, battery and generator. Repair as necessary.

2. Turn ignition switch to OFF position. Disconnect D+ terminal at generator. Using a jumper wire, ground

D+ terminal. Turn ignition switch to ON position. Observe GEN warning light. If warning light
illuminates, go to next step. If warning light does not illuminate, check wiring using a wiring diagram.
Verify GEN warning light operation in instrument panel. See WIRING DIAGRAMS .

3. Turn ignition switch to OFF position. Remove voltage regulator. See VOLTAGE REGULATOR under

REMOVAL & INSTALLATION. Check condition and length of brushes. See VOLTAGE
REGULATOR BRUSH SPECIFICATIONS
table under BENCH TESTING. If brushes are within
specification, replace generator. See GENERATOR under REMOVAL & INSTALLATION. If brushes
are out of specification, replace brushes or voltage regulator.

ON-VEHICLE TESTING

GENERATOR

1. Ensure generator belt tension and mounting are okay. On vehicles equipped with 1.9L TDI, check

function of generator pulley freewheeling clutch (if equipped). Check ground connection between engine,
body, battery and generator. Repair as necessary.



2003 Volkswagen New Beetle GLS

1998-2004 CHARGING SYSTEMS Generators & Regulators - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:02:43 AM

Page 4

© 2004 Mitchell Repair Information Company, LLC.

2. Turn ignition switch to OFF position. Attach SUN VAT 40 Black lead to battery negative terminal.

Attach SUN VAT 40 Red lead to battery positive terminal. Clamp SUN VAT 40 Green test lead to
battery ground cable.

3. Turn on all electrical components. Start engine, and maintain engine speed of 1500-2000 RPM. Observe

SUN VAT 40 ammeter reading. If charging current is 75 amps or more, generator and voltage regulator
are functioning properly.

4. If charging current is less than 75 amps, check battery fluid specific gravity. If specific gravity is less than

1.22, generator is malfunctioning. Repair or replace as necessary. If battery fluid specific gravity is 1.22
or more, repair as necessary.

LOAD TEST

Connect tester cable clamps to battery terminal. Ensure clamps have a good contact with battery terminals.
Connect battery tester according to tool manufacturer's instructions. Load test battery at approximately one-half
cold-cranking amperage rating for 15 seconds while observing battery voltage. If voltage reading is 9.6 volts or
more, battery is okay. If voltage reading is less than 9.6 volts, charge battery and retest. If loaded battery voltage
is still less than 9.6 volts after charging battery, replace battery. See BATTERY under REMOVAL &
INSTALLATION.

NO LOAD TEST

WARNING:

Dispose of electrolyte (sulfuric acid/water mixture) properly. Waste
electrolyte must only be disposed of in appropriate waste disposal sites.
Refer to local regulations pertaining to electrolyte disposal.

WARNING:

DO NOT load test batteries which are gassing. There is a risk of
explosion.

NOTE:

Manufacturer recommends performing electrolyte specific gravity test, in order
to determine battery overall condition.

NOTE:

It is not necessary to remove battery from vehicle, or disconnect battery
terminals.

CAUTION: Battery cell caps must be bolted in tightly when charging, measuring

voltage or performing load tests.

NOTE:

If no load voltage is to be measured with battery installed in vehicle, first
disconnect ground strap.

NOTE:

Vehicle must not be started or driven with tested battery for at least 2 hours
before taking measurements. During this time, DO NOT allow load or additional
charge to be applied to battery.



2003 Volkswagen New Beetle GLS

1998-2004 CHARGING SYSTEMS Generators & Regulators - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:02:43 AM

Page 5

© 2004 Mitchell Repair Information Company, LLC.
