Using a press, install triple-rotor star onto shaft stop. Install NEW circlip, ensuring it is seated correctly.
Install rollers onto triple-rotor star per markings. See Fig. 32 . Slide joint over rollers and hold.

5. Press specified amount of grease from repair kit, into joint. See TRIPLE ROLLER JOINT (AAR 3300

i) table under LUBRICATION. Slide joint over rollers and hold. Press specified amount of grease from
repair set into axle shaft protective boot. Install axle shaft protective boot.

6. Tighten hose clamp and small clamp with pliers V.A.G. (1275).

7. Install axle shaft. See FRONT AXLE SHAFT under REMOVAL & INSTALLATION.

TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

SPECIAL TOOLS

Application

Ft. Lbs. (N.m)

Axle Shaft Flange-To-Transmission Bolt

M8 X 18

30 (40)

M8 X 28

30 (40)

M8 X 48

30 (40)

Axle Shaft Flange-To-Transmission Bolt (Previous)

M10 X 20

52 (70)

M10 X 48

52 (70)

Axle Shaft Flange-To-Transmission Bolt (NEW)

M10 X 23

52 (70)

M10 X 52

52 (70)

Axle Shaft Wheel Hub 12-Point Nut

Step 1

148 (200)

Step 2

Loosen 180 Degrees

Step 3

Turn Wheel Hub 180 Degrees

Step 4

37 (50)

Step 5

Turn An Additional 60 Degrees

Ball Joint-To-Control Arm Bolt

(1)

Step 1

15 (20)

Step 2

Turn An Additional 90 Degrees

CV Joint Boot Hose Clamp (Large Diameter)

(2)

15 (20)

CV Joint Boot Hose Clamp (Small Diameter)

(2)

18 (25)

Pendulum Support-To-Subframe

18 (25)

Wheel Bolt

89 (120)

(1)

Manufacturer recommends using NEW bolt and nut.

(2)

Torque specification is for use with V.A.G. (1682). See Fig. 24 and Fig. 25 .



2003 Volkswagen New Beetle GLS

1998-04 DRIVE AXLES Axle Shafts - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:01:14 AM

Page 46

© 2004 Mitchell Repair Information Company, LLC.

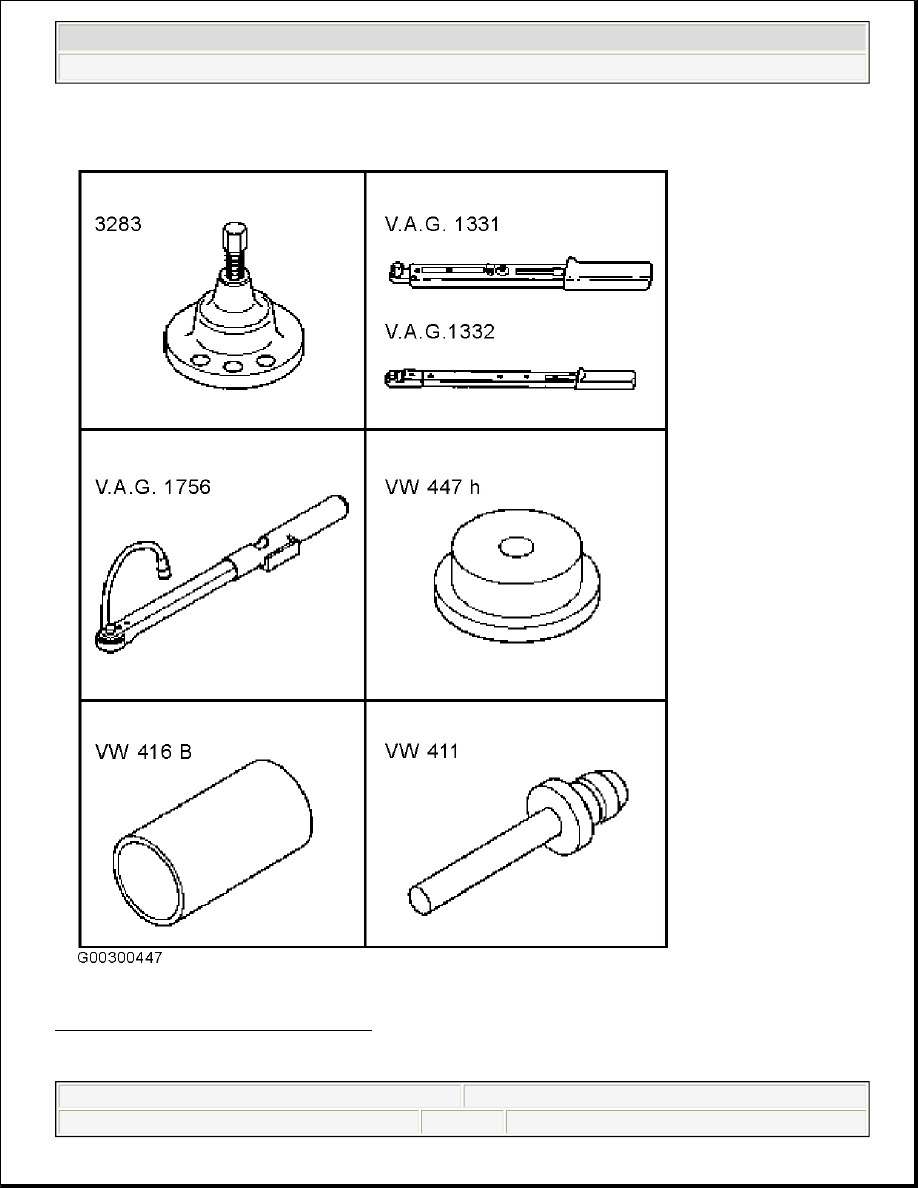

Fig. 38: Identifying Special Tools (1 Of 2)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

1998-04 DRIVE AXLES Axle Shafts - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:01:14 AM

Page 47

© 2004 Mitchell Repair Information Company, LLC.

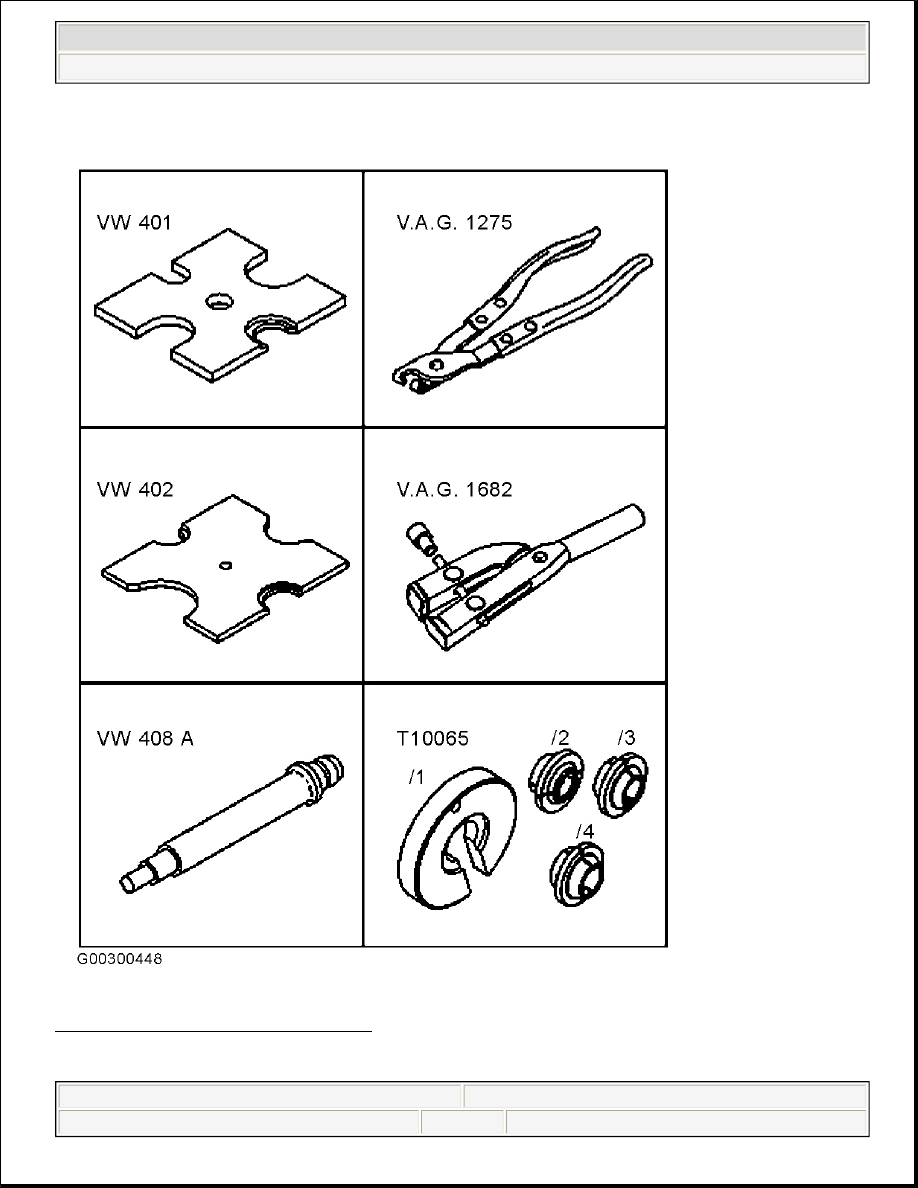

Fig. 39: Identifying Special Tools (2 Of 2)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

1998-04 DRIVE AXLES Axle Shafts - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:01:14 AM

Page 48

© 2004 Mitchell Repair Information Company, LLC.

2003-04 VOLKSWAGEN

New Beetle

BUZZERS, RELAYS & TIMERS

BUZZERS, RELAYS & TIMERS LOCATION

CIRCUIT PROTECTION DEVICES

CIRCUIT PROTECTION DEVICES LOCATION

CONTROL UNITS

CONTROL UNITS LOCATION

Component

Location

Coolant Fan Control Relay (13)

On thirteenfold auxiliary relay panel.

Coolant Preheating Relay (Low Heat Output)

To left of brake fluid reservoir.

Daytime Running Lights Changeover Relay (8)

On thirteenfold auxiliary relay panel.

Dual Horn Relay

On relay panel.

Foglight Relay (1)

On thirteenfold auxiliary relay panel.

Fuel Pump Relay (4)

On relay panel.

Glow Plug Relay (10)

On thirteenfold auxiliary relay panel.

Load Reduction Relay (2)

On relay panel.

Motronic Engine Control Module Power
Supply Relay

To left of brake fluid reservoir.

Park/Neutral Position Relay (11)

On thirteenfold auxiliary relay panel.

Power Supply (Terminal 30, B+) Relay (12)

On thirteen fold auxiliary relay panel.

Radio Speaker Changeover Relay (6)

On thirteenfold auxiliary relay panel.

Remote Rear Lid Unlock Motor Relay (2)

On thirteenfold auxiliary relay panel.

Secondary Air Injection Pump Relay (1.8L)

Inside housing, to left of brake fluid

reservoir.

Secondary Air Injection Pump Relay (2.0L)

Inside housing, to left of brake fluid

reservoir.

Starter Lock Relay (Clutch Pedal Switch) (3)

On thirteenfold auxiliary relay panel.

Wiper/Washer Intermittent Relay (2) (V & VI)

On relay panel.

Component

Location

Fuse Bracket

On battery cover.

Fuse Panel

Behind left side of dash.

Relay Panel

Behind left side of dash.

Thirteenfold Auxiliary Relay Panel

Behind left side of dash, integral to relay panel.
