Volkswagen New Beetle. Manual - part 833

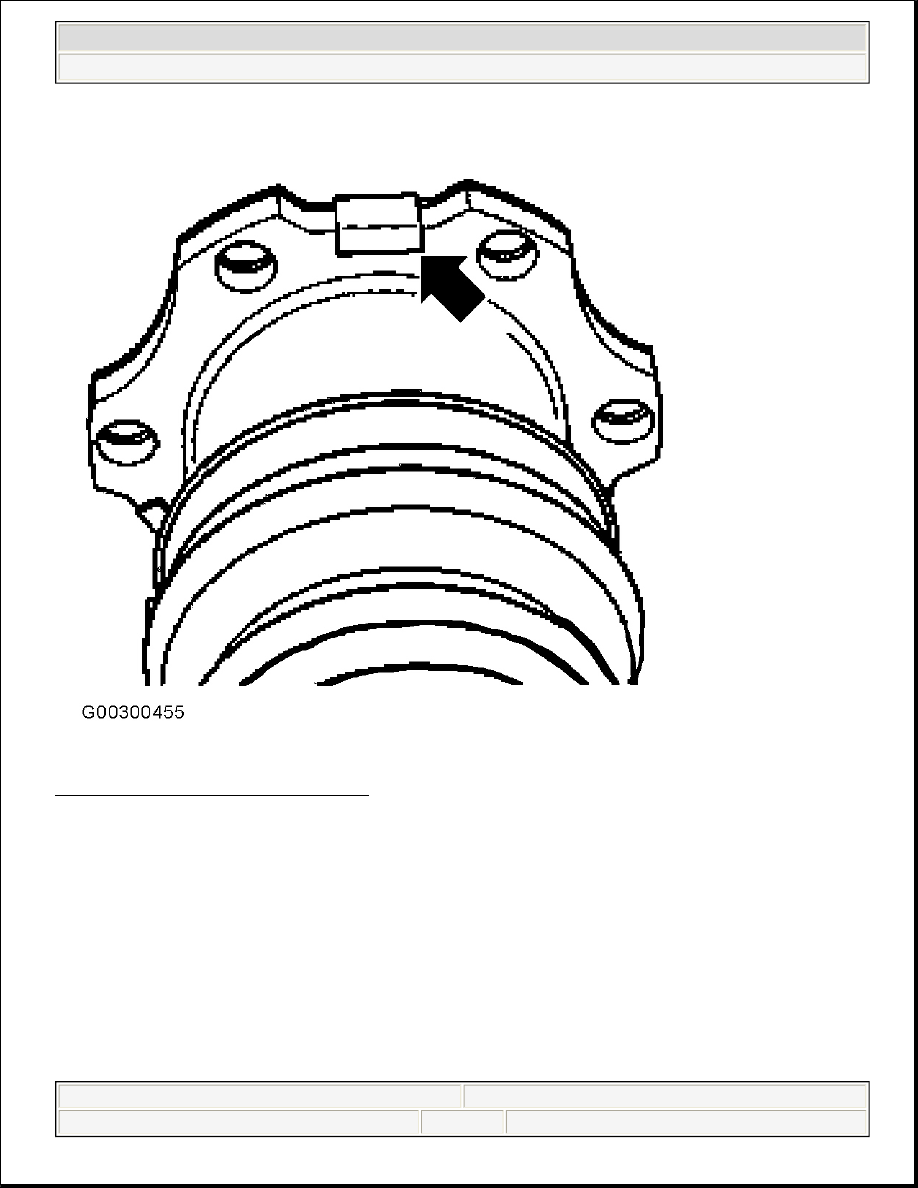

Fig. 31: Locating Tabs On Joint Housing
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

1998-04 DRIVE AXLES Axle Shafts - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:01:13 AM

Page 38

© 2004 Mitchell Repair Information Company, LLC.



2003 Volkswagen New Beetle GLS

1998-04 DRIVE AXLES Axle Shafts - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:01:13 AM

Page 39

© 2004 Mitchell Repair Information Company, LLC.

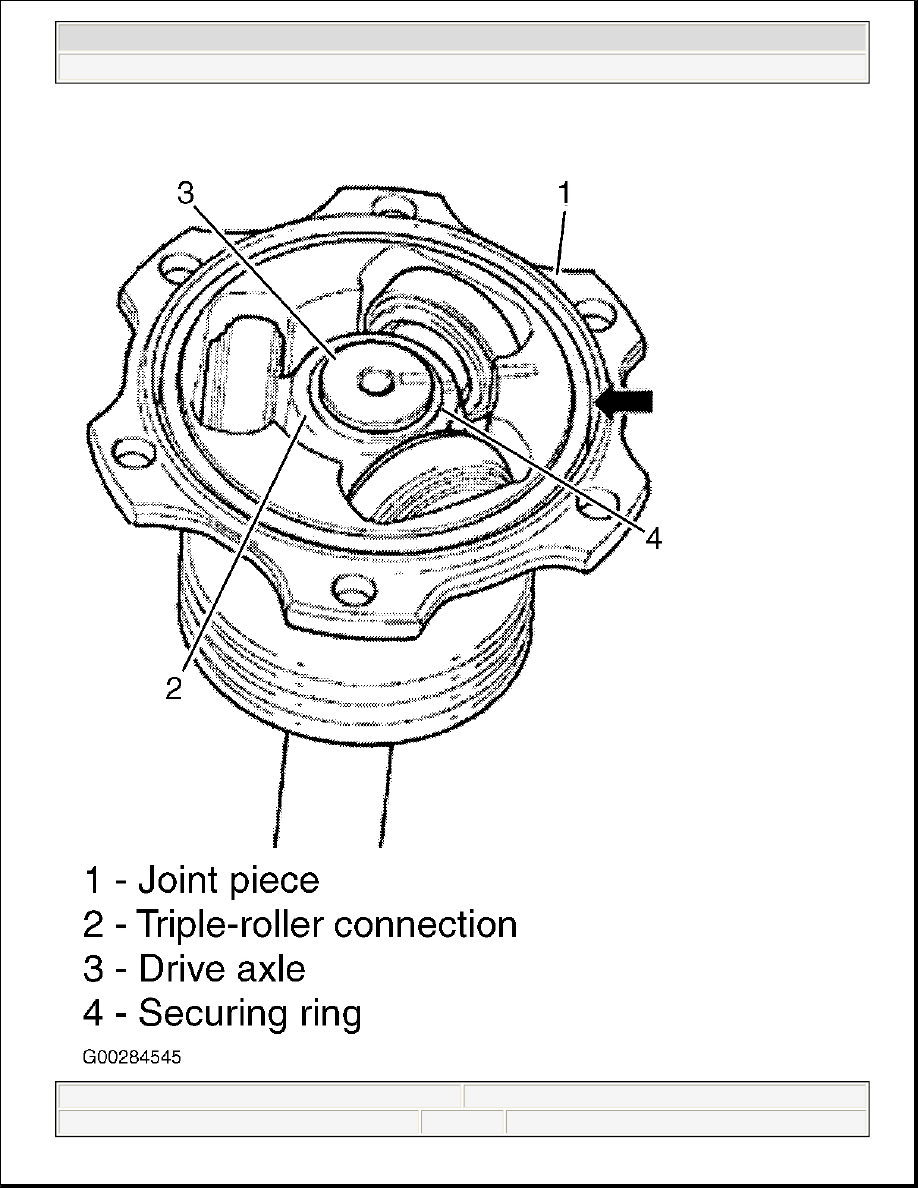

Fig. 32: Marking Inner Joint
Courtesy of AUDI OF AMERICA, INC.

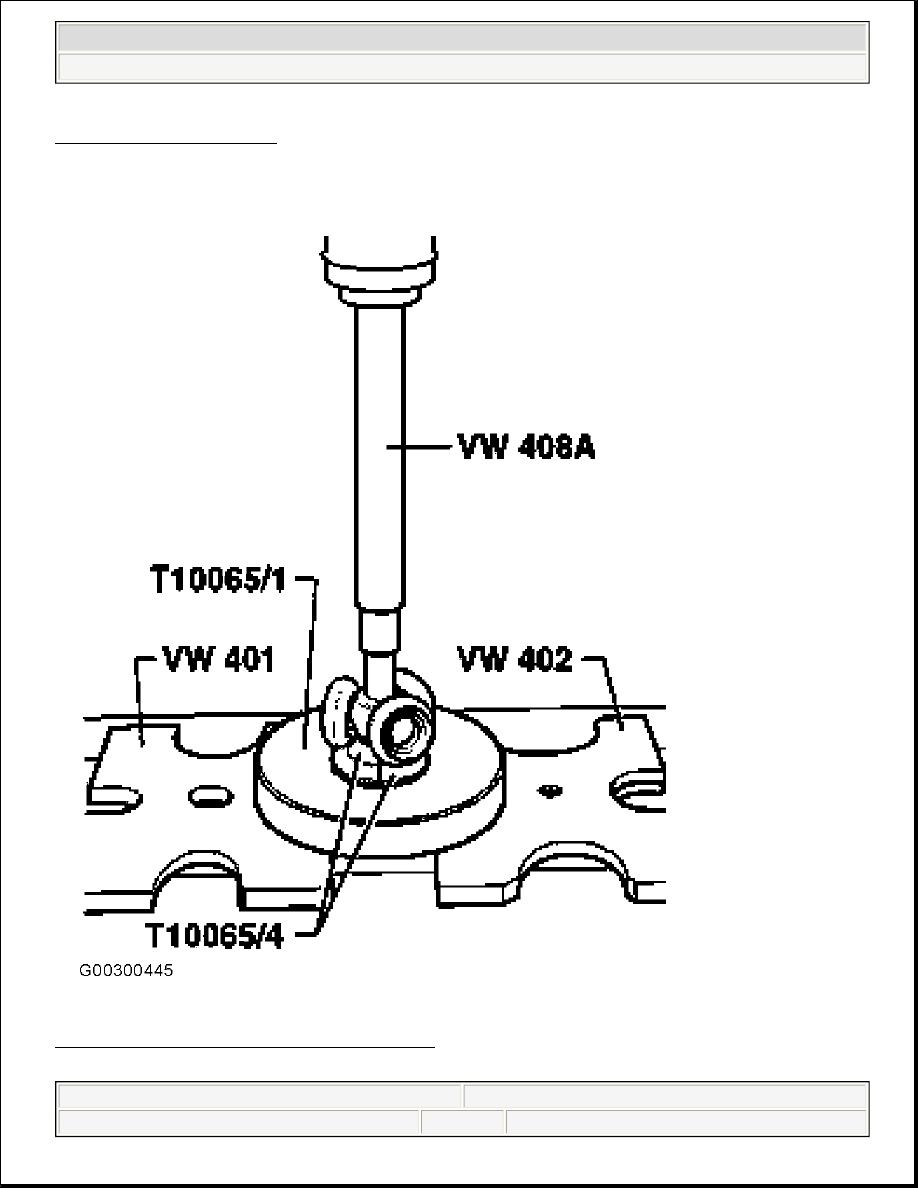

Fig. 33: Identifying Axle Shaft Press Components
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

1998-04 DRIVE AXLES Axle Shafts - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:01:13 AM

Page 40

© 2004 Mitchell Repair Information Company, LLC.

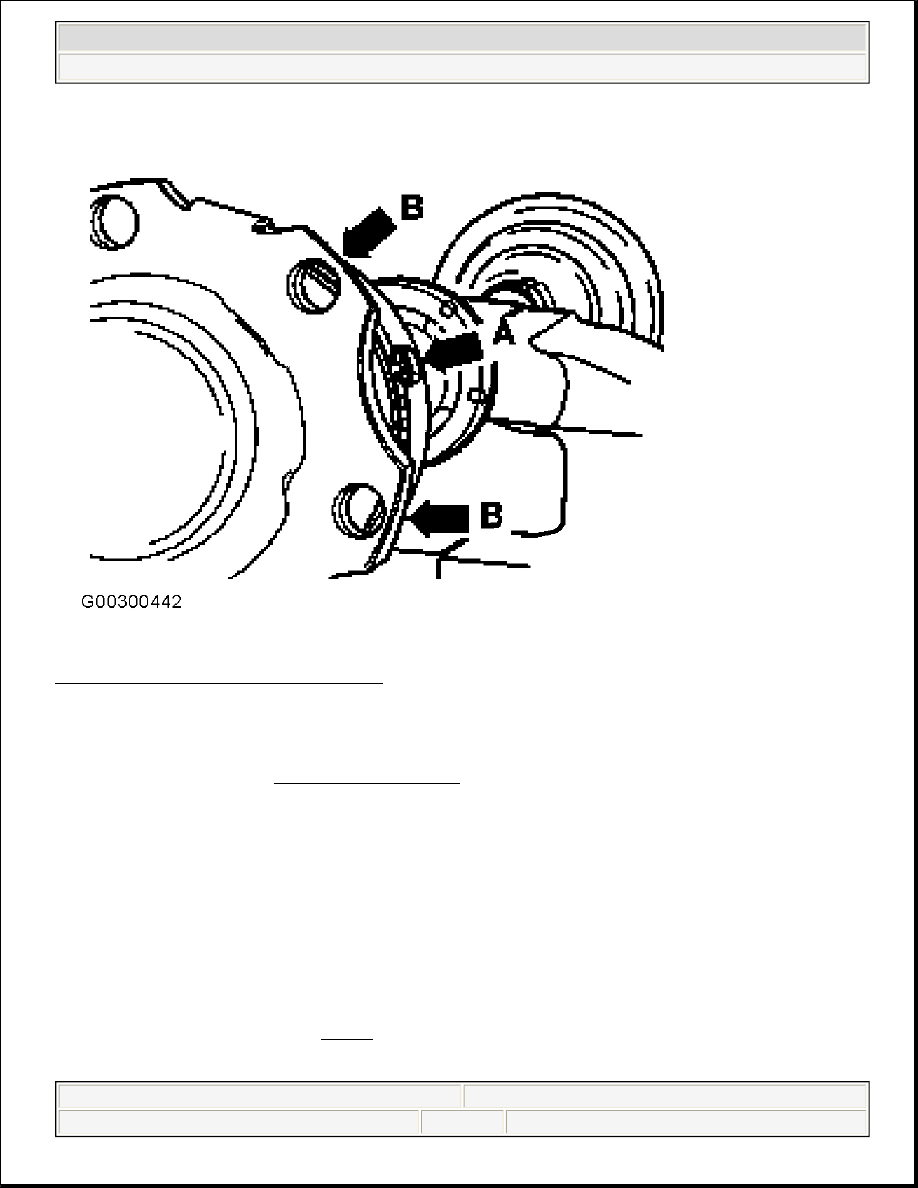

Fig. 34: Locating Crimp In Clip & Flanges
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Disassembly, Inspection & Reassembly (AAR 2900)

1. Remove axle shaft. See FRONT AXLE SHAFT under REMOVAL & INSTALLATION.

2. Open clamp at joint and slide back triple-rotor joint boot. Open clamp on axle shaft and slide back triple-

rotor joint boot. Clamp axle shaft in vice.

3.

Using a screwdriver, pry off cover. Mark relative positions of triple-rotor joint housing (1), triple-rotor
star (2) and axle shaft (3). See Fig. 32 .

4.

CAUTION: If parts are not marked, components are not assembled to their

previous position. This may cause noise while driving.

NOTE:

If cover cannot be pried off, drive screwdriver, or similar, on opposite side,
then pry off cover.



2003 Volkswagen New Beetle GLS

1998-04 DRIVE AXLES Axle Shafts - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:01:14 AM

Page 41

© 2004 Mitchell Repair Information Company, LLC.
