Volkswagen New Beetle. Manual - part 830

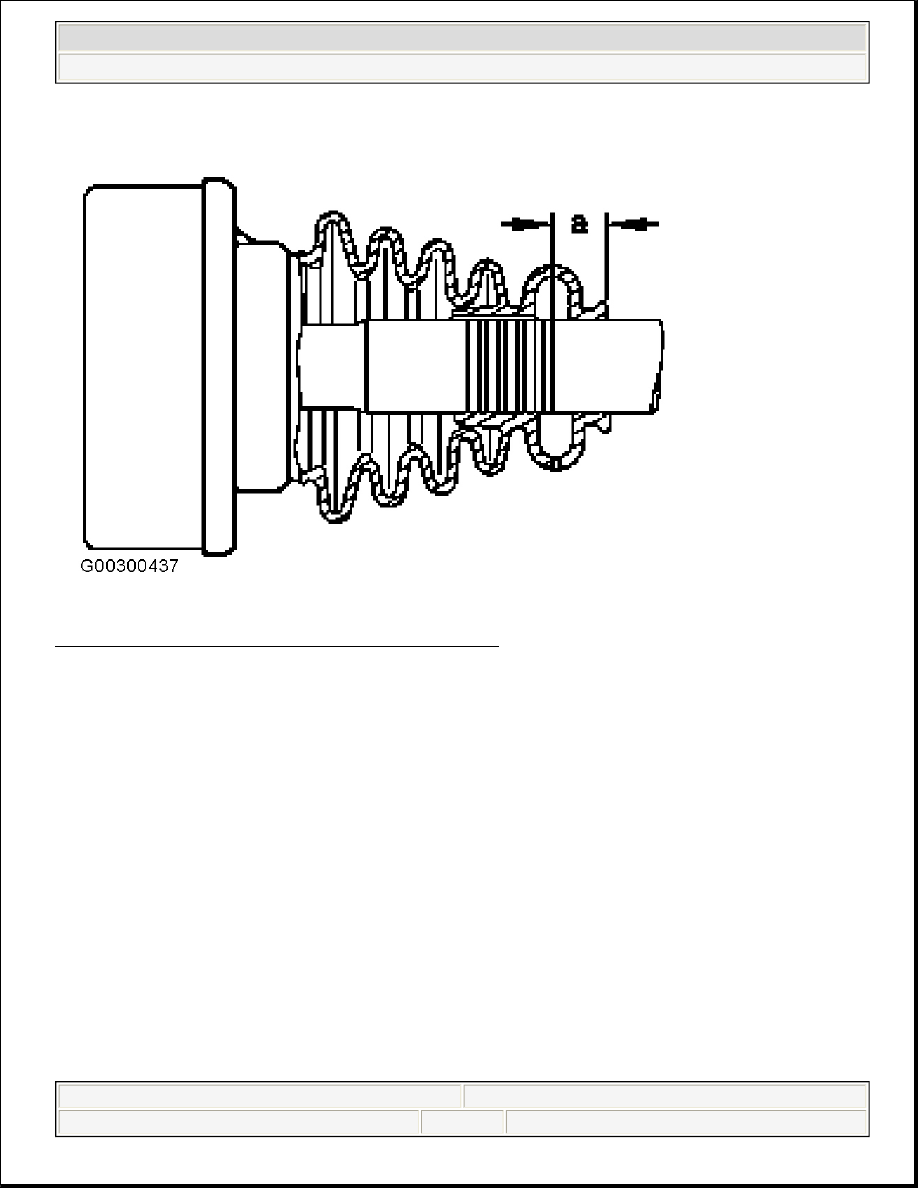

Fig. 22: Installation Position Of CV Joint Boot (Left Axle)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

1998-04 DRIVE AXLES Axle Shafts - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:01:13 AM

Page 26

© 2004 Mitchell Repair Information Company, LLC.

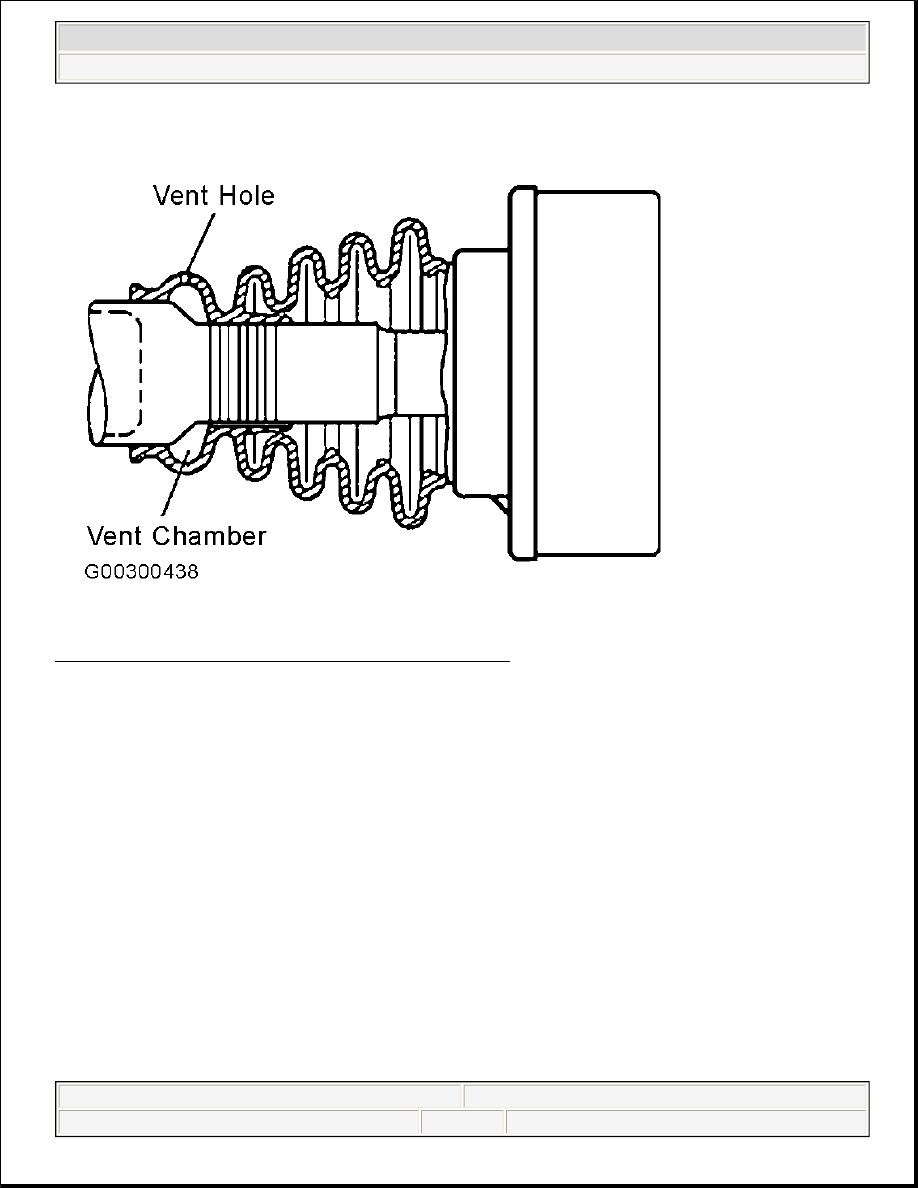

Fig. 23: Installation Position Of CV Joint Boot (Right Axle)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

1998-04 DRIVE AXLES Axle Shafts - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:01:13 AM

Page 27

© 2004 Mitchell Repair Information Company, LLC.

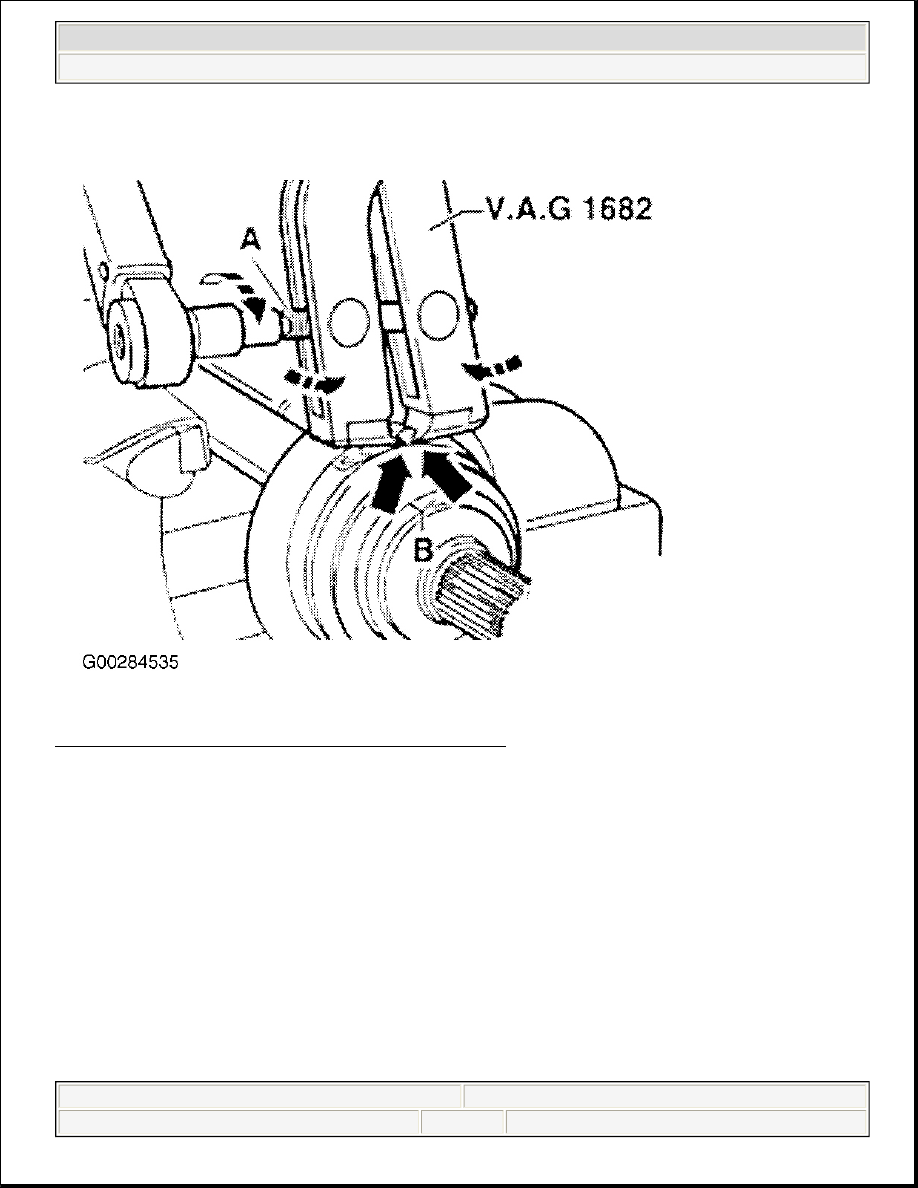

Fig. 24: Applying Tension To Large Diameter Hose Clamp
Courtesy of AUDI OF AMERICA, INC.



2003 Volkswagen New Beetle GLS

1998-04 DRIVE AXLES Axle Shafts - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:01:13 AM

Page 28

© 2004 Mitchell Repair Information Company, LLC.

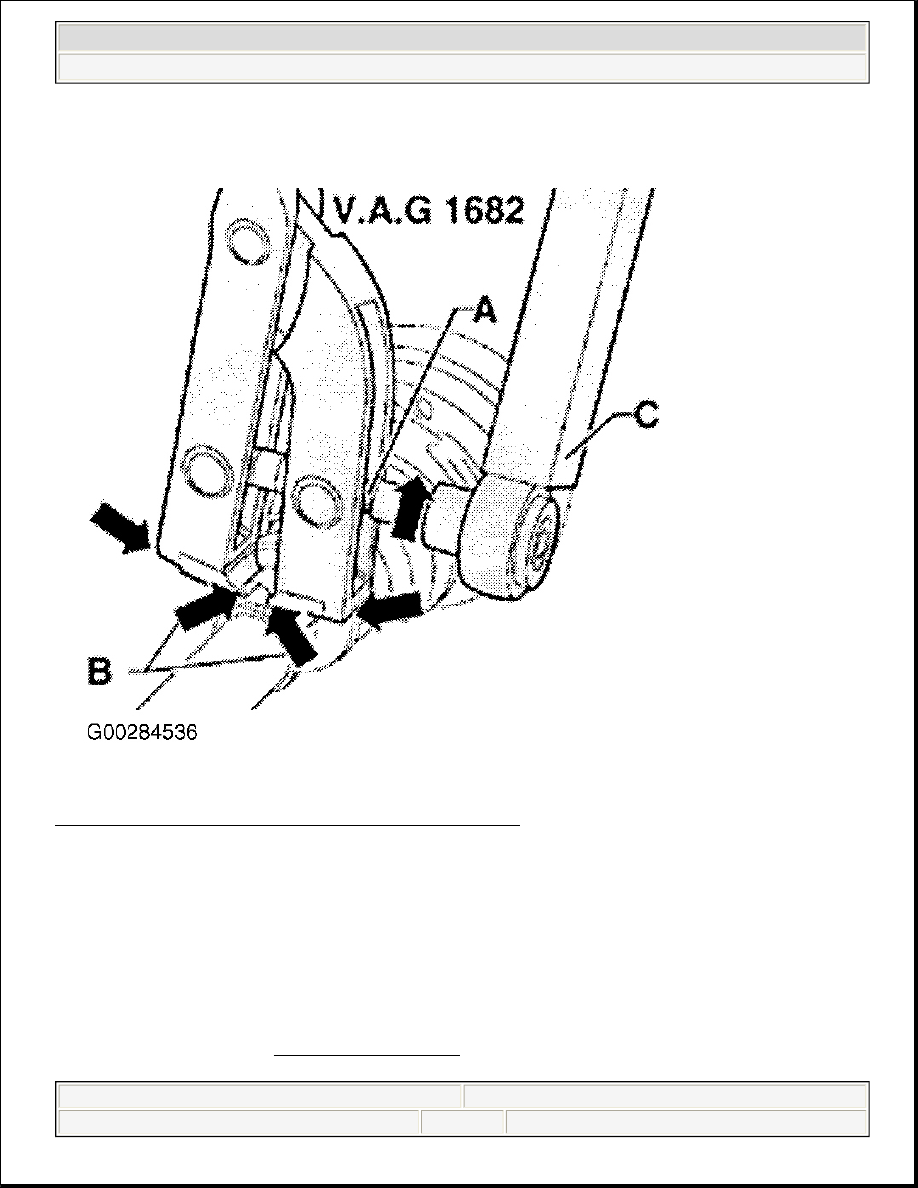

Fig. 25: Applying Tension To Smaller Diameter Hose Clamp
Courtesy of AUDI OF AMERICA, INC.

CONSTANT VELOCITY JOINT (INNER)

Disassembly, Inspection & Reassembly

1. Remove axle shaft. See FRONT AXLE SHAFT under REMOVAL & INSTALLATION.

2. Using drift, remove constant velocity joint. Using special tools (T10065/1, T10065/4, VW 401, VW 402

NOTE:

Excessive backlash in joint will be noticed as a knock when changing from
acceleration to deceleration or vice versa. Replace joint if necessary. Polished
areas and ball track marks are not reasons for replacing joint.



2003 Volkswagen New Beetle GLS

1998-04 DRIVE AXLES Axle Shafts - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:01:13 AM

Page 29

© 2004 Mitchell Repair Information Company, LLC.
