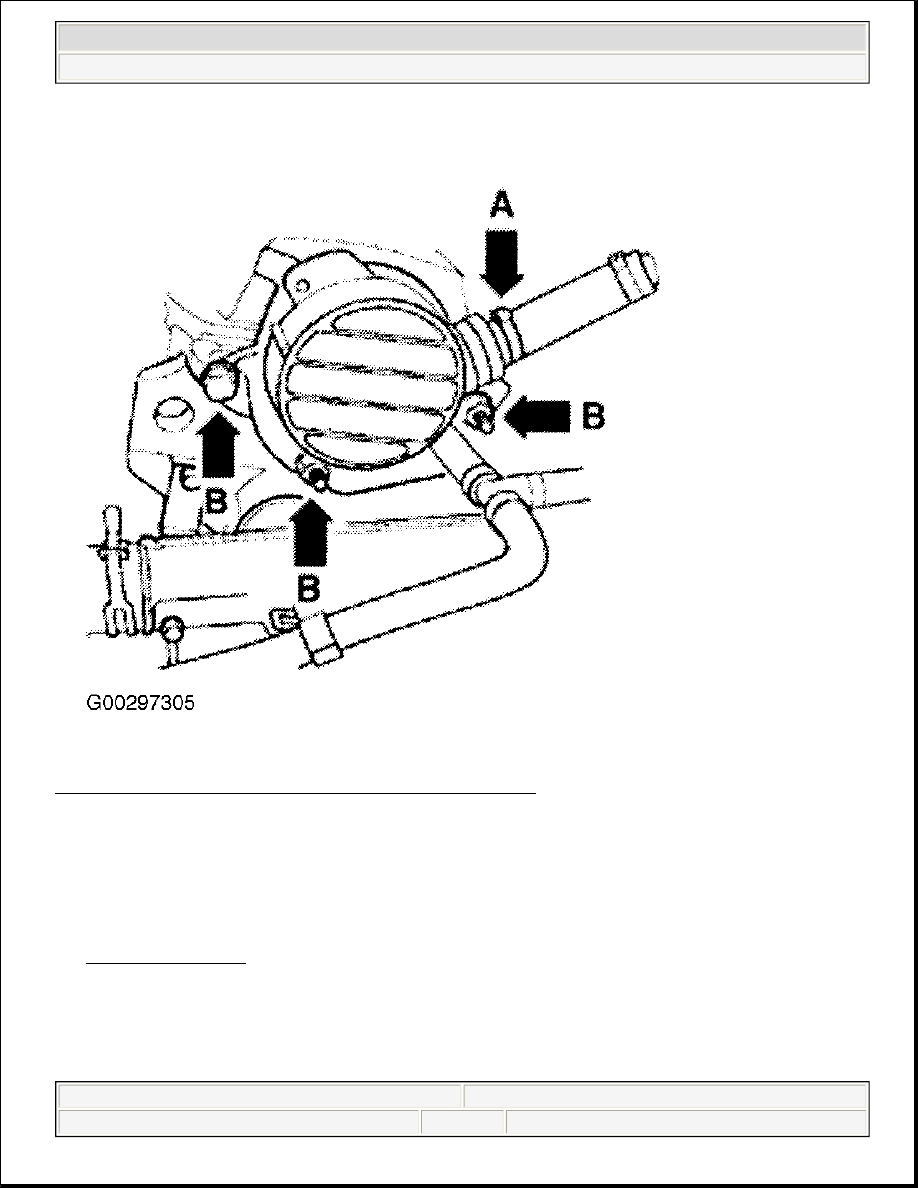

Fig. 41: Removing & Installing Vacuum Pump (Diesel Models)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

OVERHAUL

BRAKE BOOSTER

Manufacturer does not recommend overhaul of brake booster, but recommends replacement if failure occurs.
See BRAKE BOOSTER under REMOVAL & INSTALLATION.

BRAKE CALIPER

NOTE:

Black staining from piston seal wear may show on caliper bore walls and
piston. This staining is normal.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES Disc - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 7:59:18 AM

Page 48

© 2004 Mitchell Repair Information Company, LLC.

Disassembly

Remove brake caliper. See FRONT & REAR BRAKE CALIPER under REMOVAL & INSTALLATION.
Remove caliper from vehicle. Remove pads, and clean exterior surfaces. On front calipers, use a block of wood
between piston and housing to prevent damage to piston. On self-adjusting rear calipers, use Special Tool (VW
3272) along with Collar (3272/1) or equivalent, to help remove piston from housing by turning knurled wheel
counterclockwise. Remove dust seal. Remove piston seal without damaging bore or groove. Use following
illustrations to aid in overhaul. See Fig. 42 -Fig. 44 .

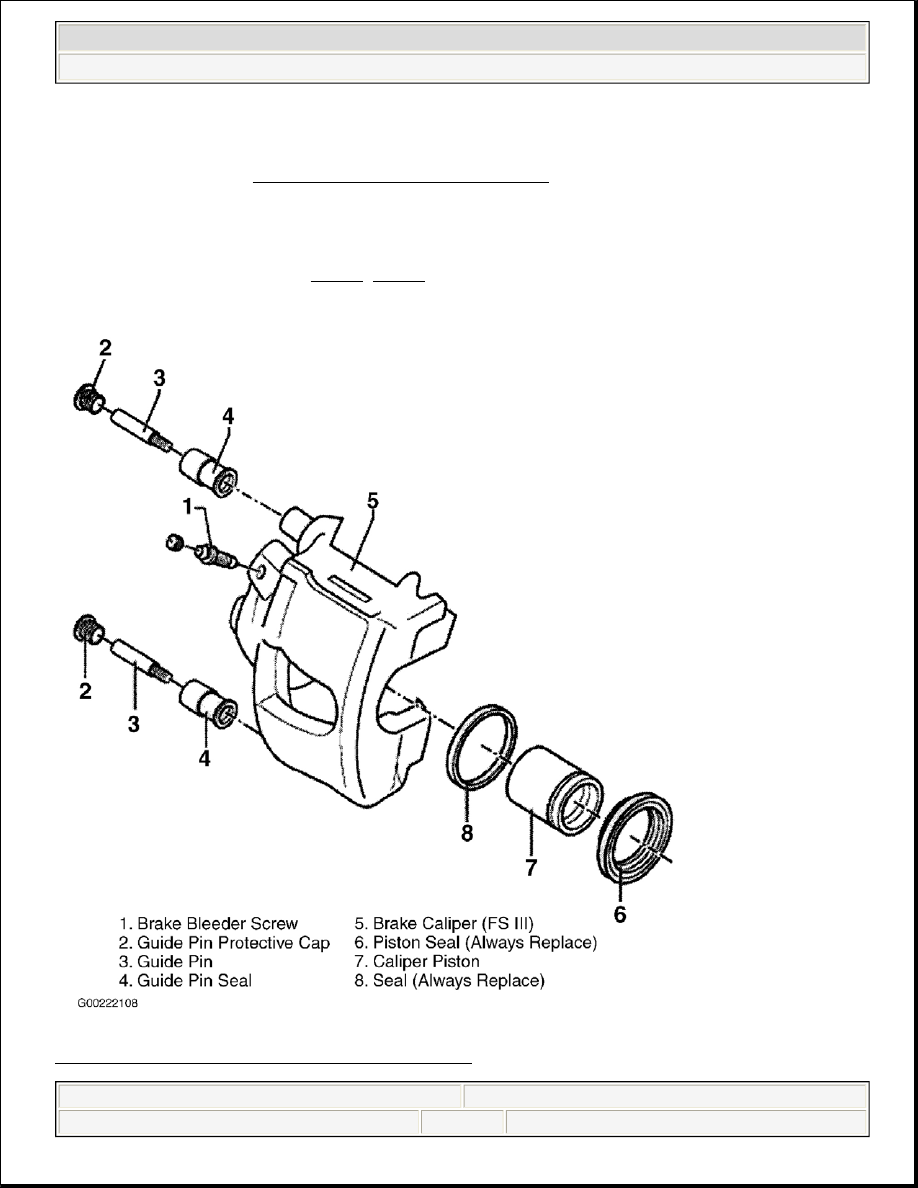

Fig. 42: Exploded View Of FS III Caliper (Front Axle)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES Disc - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 7:59:18 AM

Page 49

© 2004 Mitchell Repair Information Company, LLC.

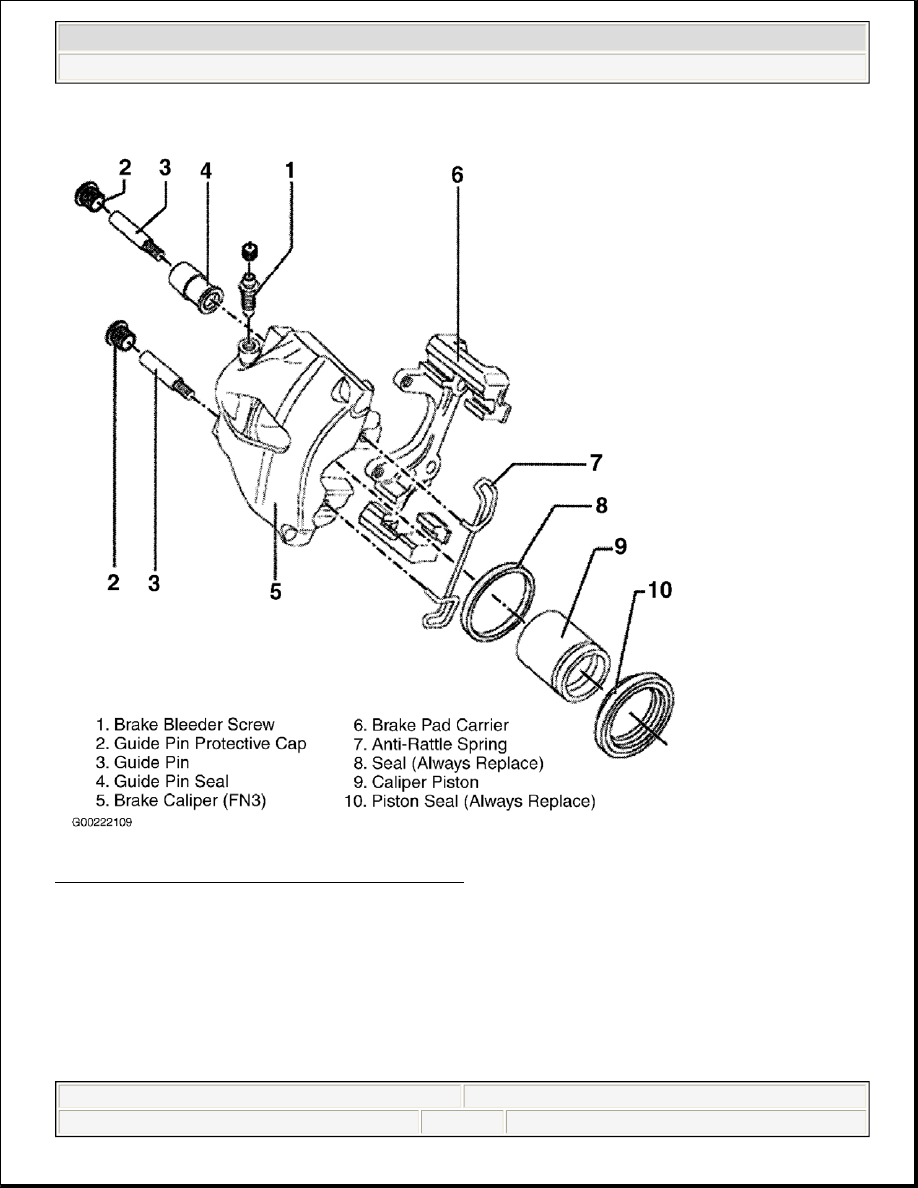

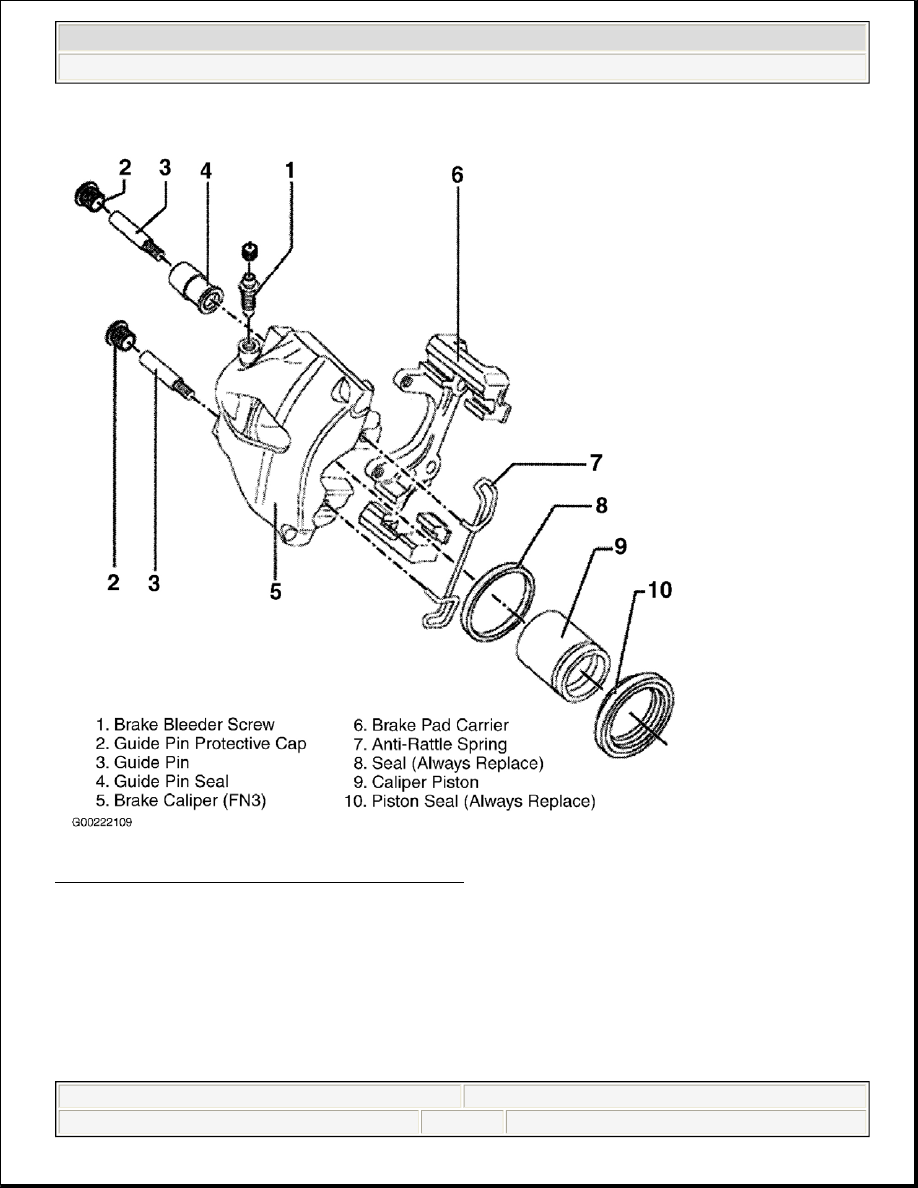

Fig. 43: Exploded View OF FN3 Caliper (Front Axle)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES Disc - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 7:59:19 AM

Page 50

© 2004 Mitchell Repair Information Company, LLC.

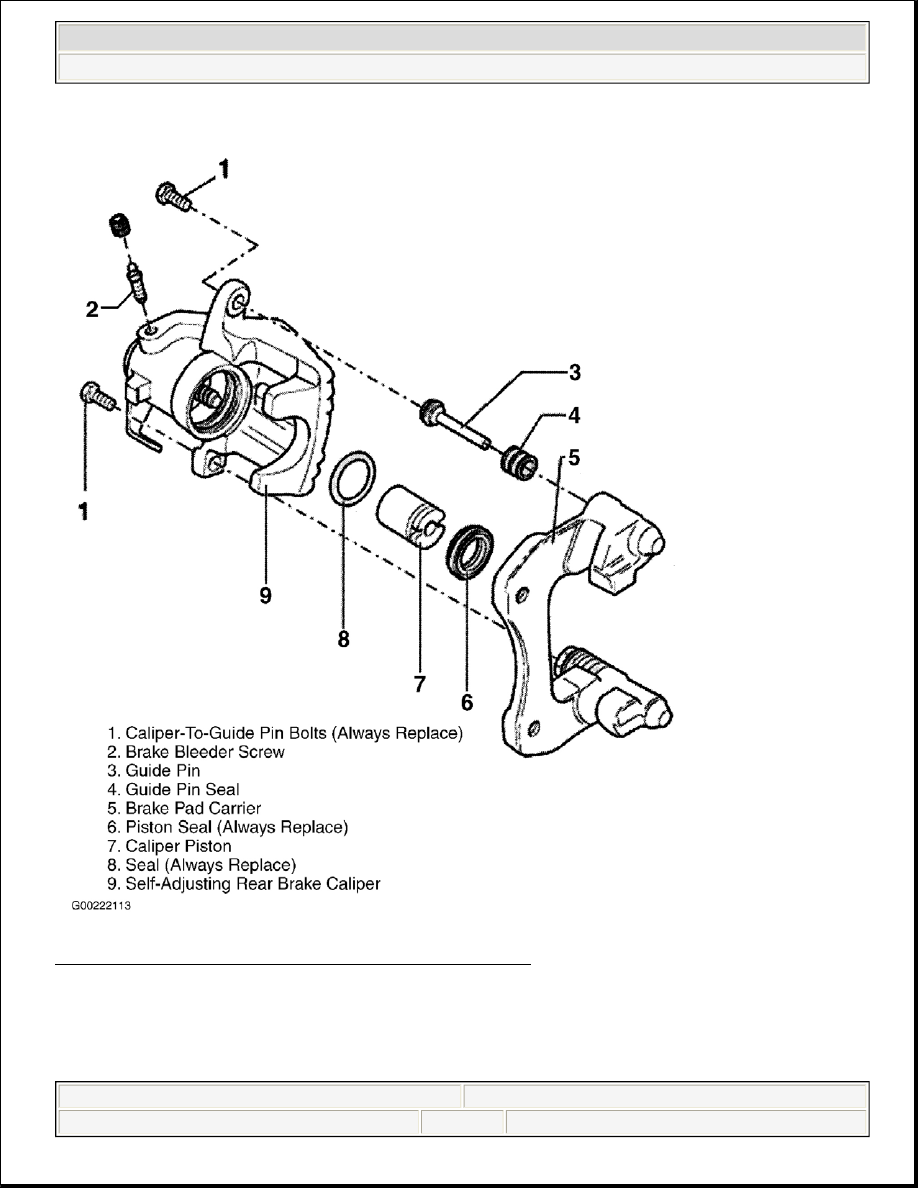

Fig. 44: Exploded View Of Self-Adjusting Rear Brake Caliper
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Cleaning & Inspection

Use alcohol or brake cleaning fluid to clean hydraulic chambers. Check cylinder bore and piston for corrosion
