Volkswagen New Beetle. Manual - part 811





Fig. 2: Exploded View Of Front FN3 Brake Components
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES Disc - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 7:59:16 AM

Page 4

© 2004 Mitchell Repair Information Company, LLC.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES Disc - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 7:59:16 AM

Page 5

© 2004 Mitchell Repair Information Company, LLC.

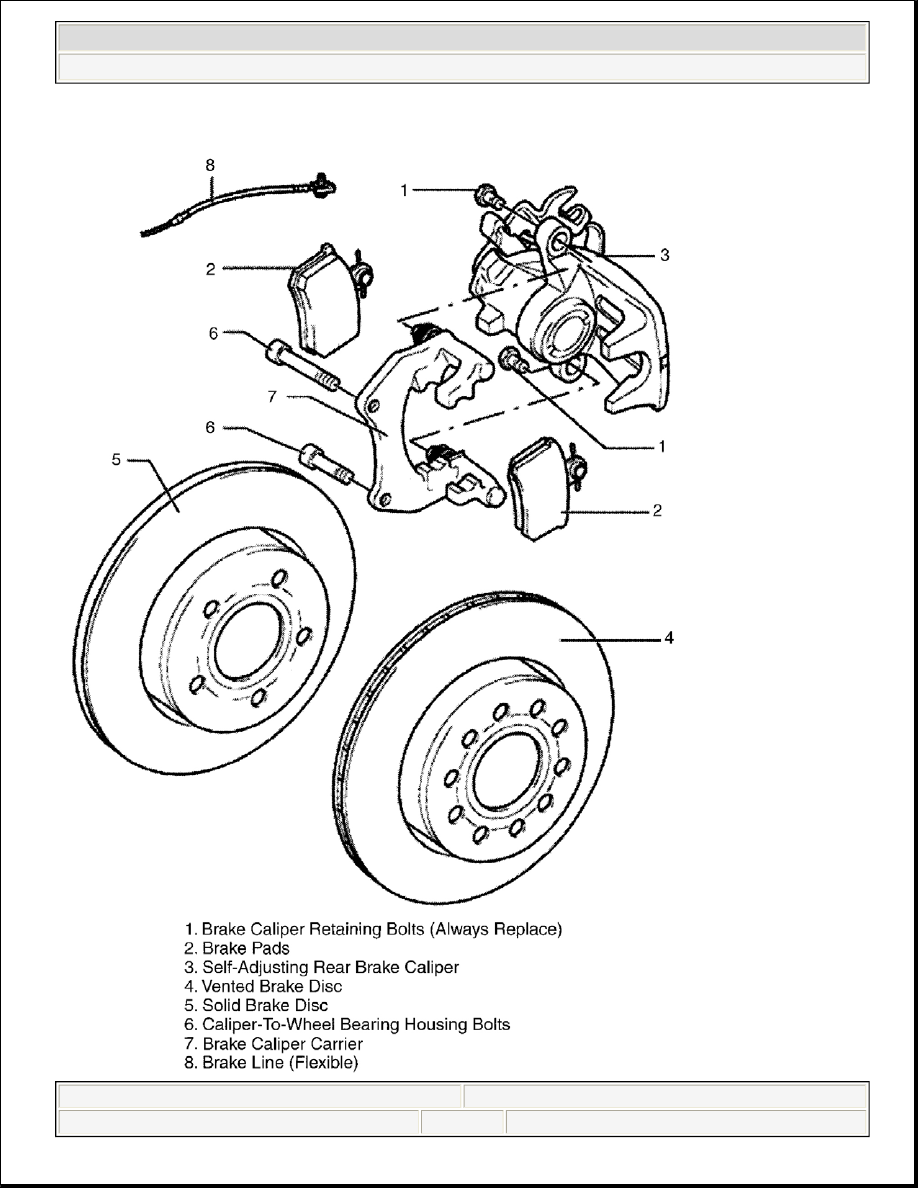

Fig. 3: Exploded View Of Rear C38 Brake Components
Courtesy of VOLKSWAGEN UNITED STATES, INC.

ABS IDENTIFICATION

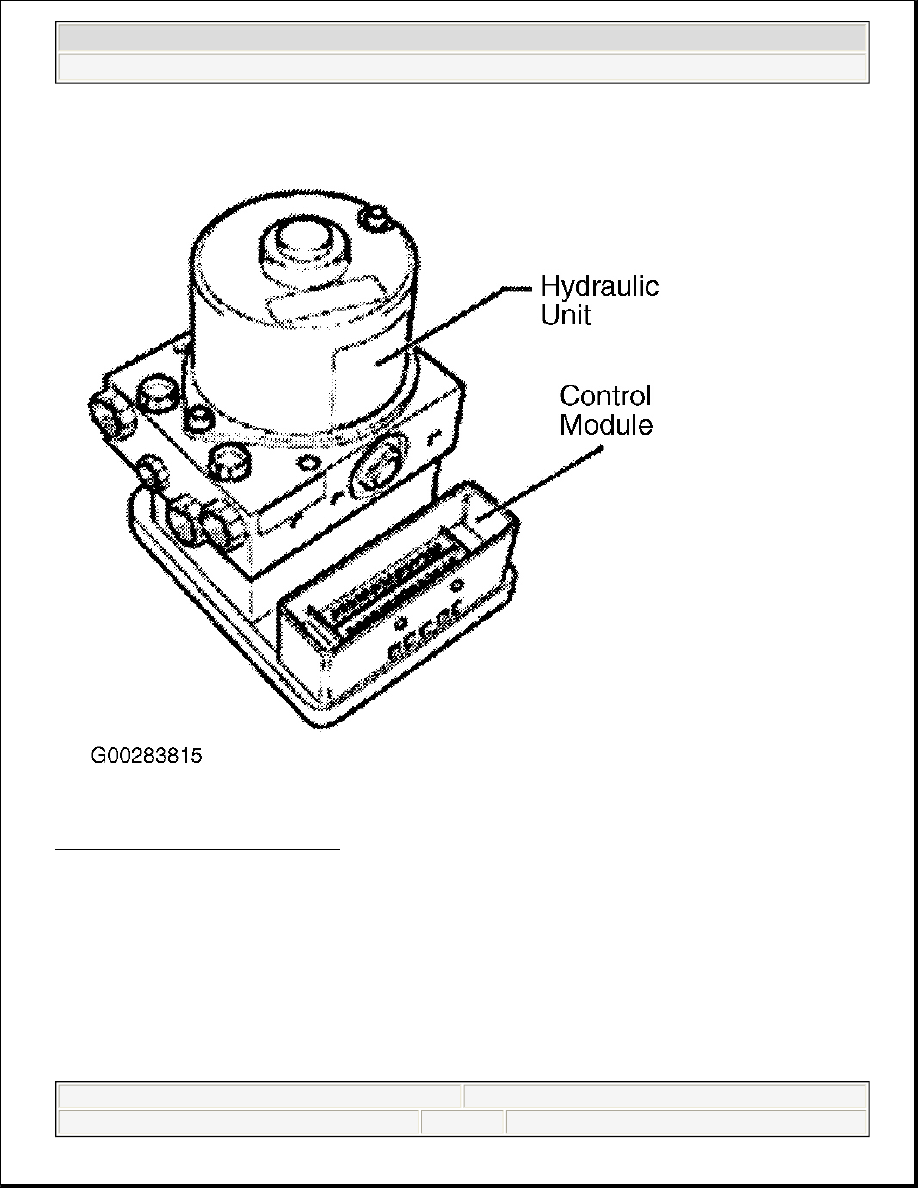

Fig. 4: Identifying ITT Mark 20 IE ABS
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES Disc - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 7:59:16 AM

Page 6

© 2004 Mitchell Repair Information Company, LLC.

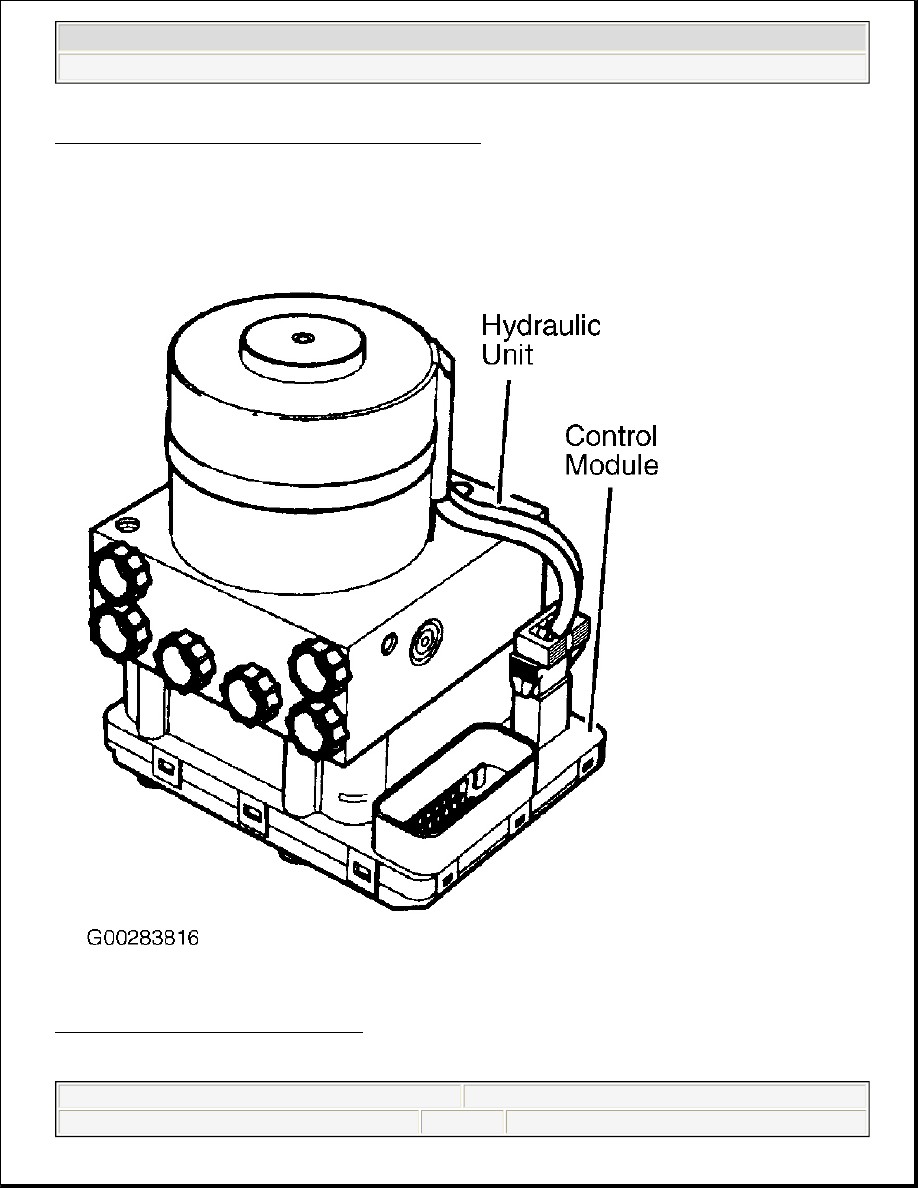

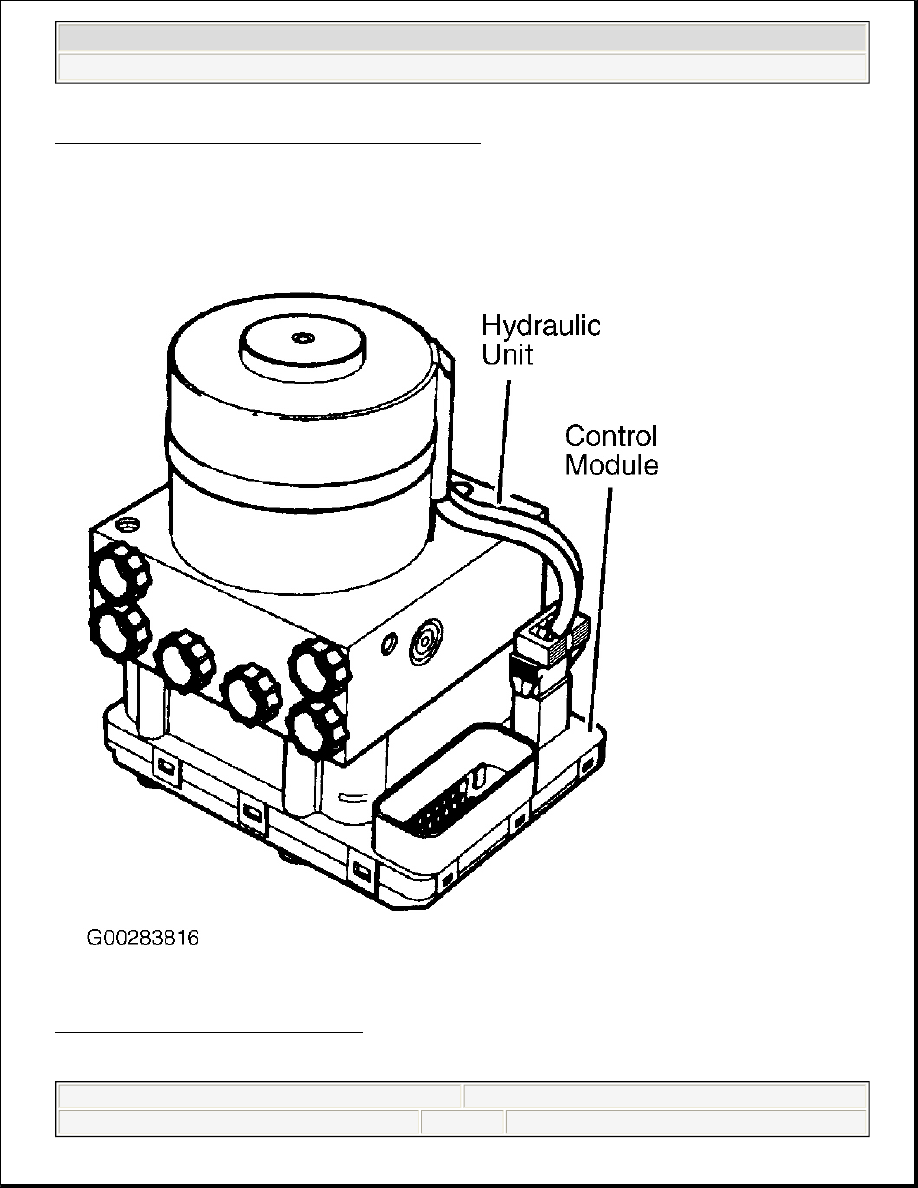

Fig. 5: Identifying ITT Mark 60 ABS
Courtesy of VOLKSWAGEN UNITED STATES, INC.

DESCRIPTION & OPERATION

All models are equipped with front and rear disc brakes. Parking brake acts on rear brakes and is cable-actuated.

Hydraulic brake system uses a tandem master cylinder with vacuum assist. Hydraulic system is diagonally split.
Left front and right rear wheels form one circuit. Right front and left rear wheels form the other circuit.

VACUUM PUMPS



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES Disc - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 7:59:17 AM

Page 7

© 2004 Mitchell Repair Information Company, LLC.
