The brake pressure (booster) solenoid valve is located in the brake booster and is used to provide the pressure
required for the pre-charging (by increasing the suction pressure) for the ABS/ESP pump.

Read measured value block

The control module can transfer a considerable amount of test data. This test data delivers information on the
operational condition of the system and/or sensors connected to it. In many cases the transferred test data
supports fault finding and fault rectification. The test data has been summarized into single display groups
because all the information cannot be evaluated at the same time. The information can be selected via display
group numbers.

EBC

Engine braking control

Program card version

Always use the most up-to-date program card. Further information can be found in the test module operating
instructions.

Sporadic

Happens occasionally

Infinity ohm

The resistance is infinite, open circuit.

"INFINITY" Ohms



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



1998-2004 BRAKES

Disc - New Beetle

MODEL IDENTIFICATION

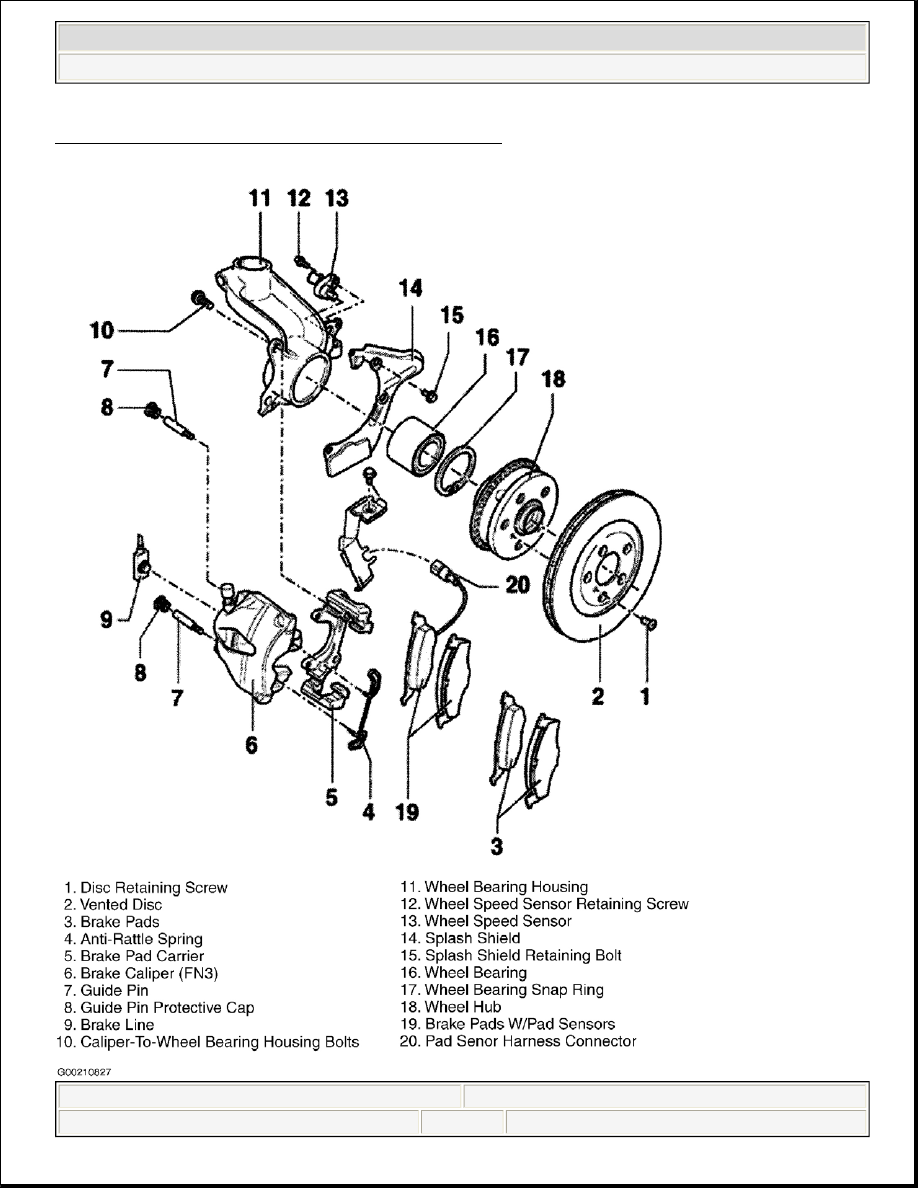

New Beetle is equipped with one of two brake systems on the front of the vehicle. To identify brake system
installed on a particular model, see BRAKE SYSTEM IDENTIFICATION table. For visual identification,
see Fig. 1 -Fig. 3 .

BRAKE SYSTEM IDENTIFICATION (NEW BEETLE)

Engine Size

Brake System

Axle

1.8L

FN3

Front

1.9L & 2.0L

FS III

Front

1.8L, 1.9L & 2.0L

C38

Rear



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES Disc - New Beetle





2003 Volkswagen New Beetle GLS

1998-2004 BRAKES Disc - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 7:59:16 AM

Page 1

© 2004 Mitchell Repair Information Company, LLC.

Helpmelearn Repair Manuals



Wednesday, December 14, 2005 7:59:26 AM

Page 1

© 2004 Mitchell Repair Information Company, LLC.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES Disc - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 7:59:16 AM

Page 2

© 2004 Mitchell Repair Information Company, LLC.

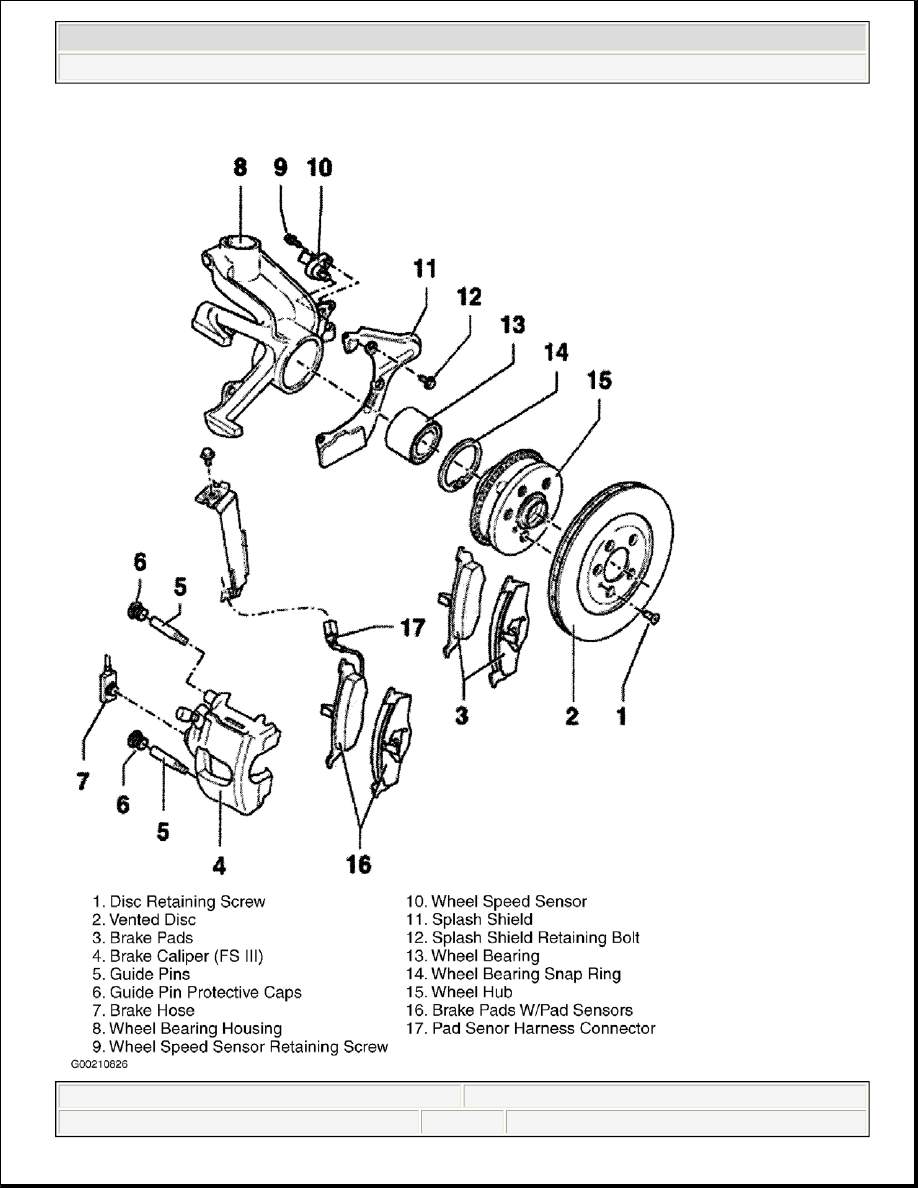

Fig. 1: Exploded View Of Front FS III Brake Components
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES Disc - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 7:59:16 AM

Page 3

© 2004 Mitchell Repair Information Company, LLC.
