Volkswagen New Beetle. Manual - part 739

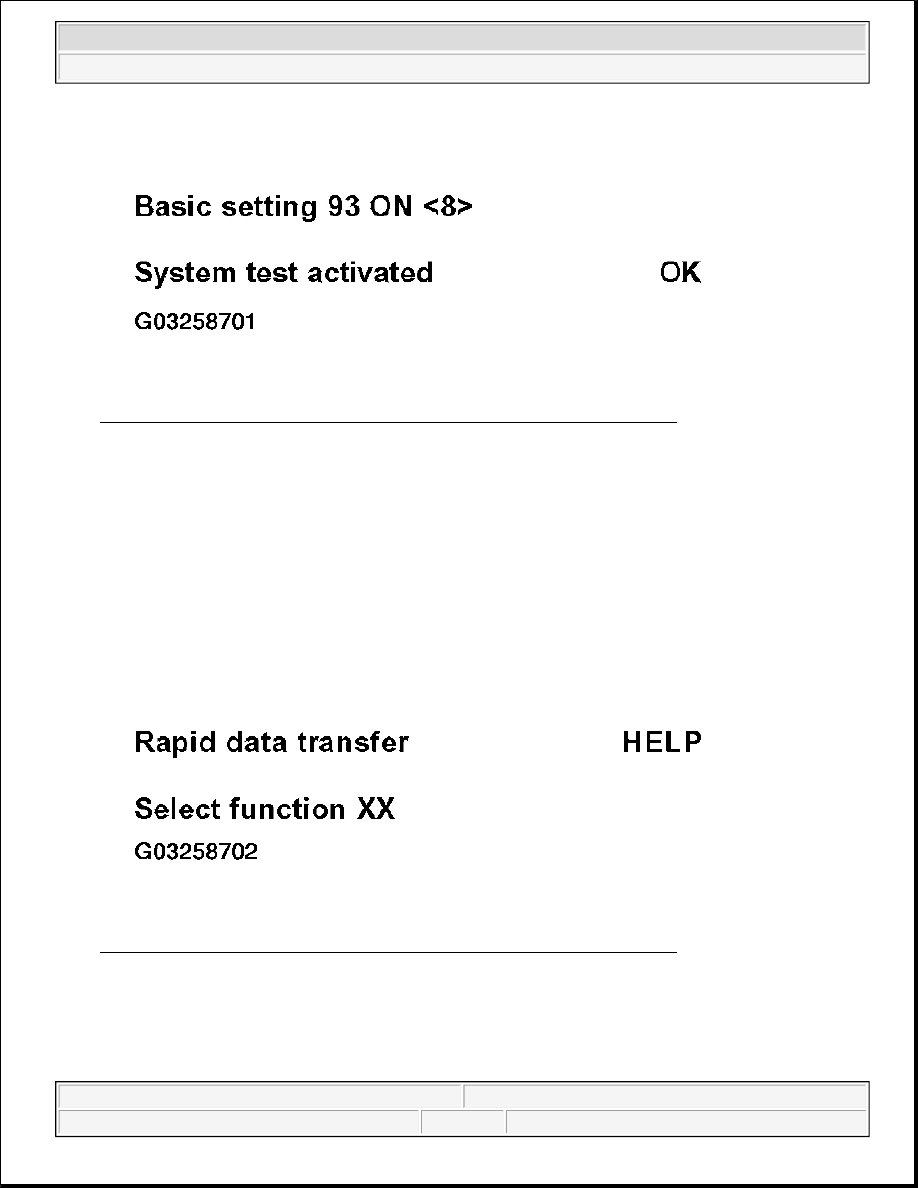

Fig. 278: V.A.G 1551 Scan Tool Display - Initiating Basic Setting (39 Of 40)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Disconnect diagnostic connectors.

z

Start engine.

z

Depress brake pedal with substantial foot pressure (brake pressure more than 35 bar) until the ESP control
lamp -K155- flashes.

This completes the stationary comparison test.

Fig. 279: V.A.G 1551 Scan Tool Display - Initiating Basic Setting (40 Of 40)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Now perform test drive for maximum 50 seconds at a speed of 15km/h to 30km/h:

WARNING:

Always comply with road traffic regulations and drive according to the
traffic conditions.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



z

The test must be driven so that no ABS, EDL, ASR or ESP regulation is performed.

z

Drive through a curve (turn) which is at least a 90° turn.

The ABS warning light -K47- and the ESP Control Lamp -K155- go out, this successfully completes the
ESP driving test.

If the ABS warning light -K47- does not go out, then the ESP driving test has not been performed
correctly.

z

If the ABS warning light -K47- does not go out and the ESP Control Lamp -K155- lights up again, check
DTC memory, see DIAGNOSTIC TROUBLE CODE (DTC) MEMORY, CHECKING .

LOGIN PROCEDURE

z

All functions that have so far been carried out with V.A.G 1551 can now also be carried out with the
tester VAS 5051.

z

The login procedure can only be performed once per calibration.

Coding is only possible after the workshop code (WSC) has been introduced into V.A.G 1551 or the new tester
VAS 5051.


Test sequence

z

Connect V.A.G 1551 scan tool and select (address word 03) brake electronics control module with
ignition switched on; see LIST OF SELECTABLE FUNCTIONS .

Indicated on display:

z

Press key 1 and 1 (Function "Login procedure" is introduced with 11).

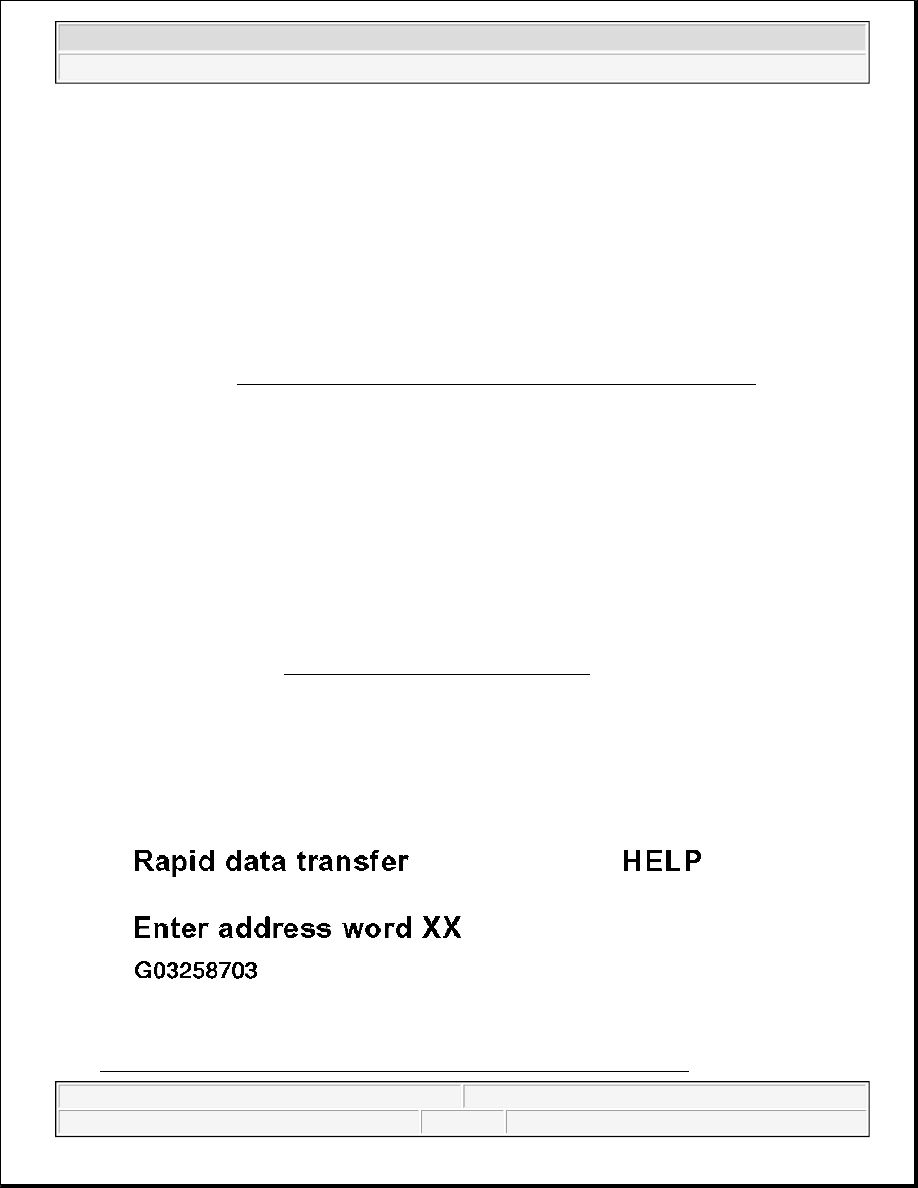

Fig. 280: V.A.G 1551 Scan Tool Display - Initiating Login Procedure (1 Of 4)



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Confirm entry with key Q.

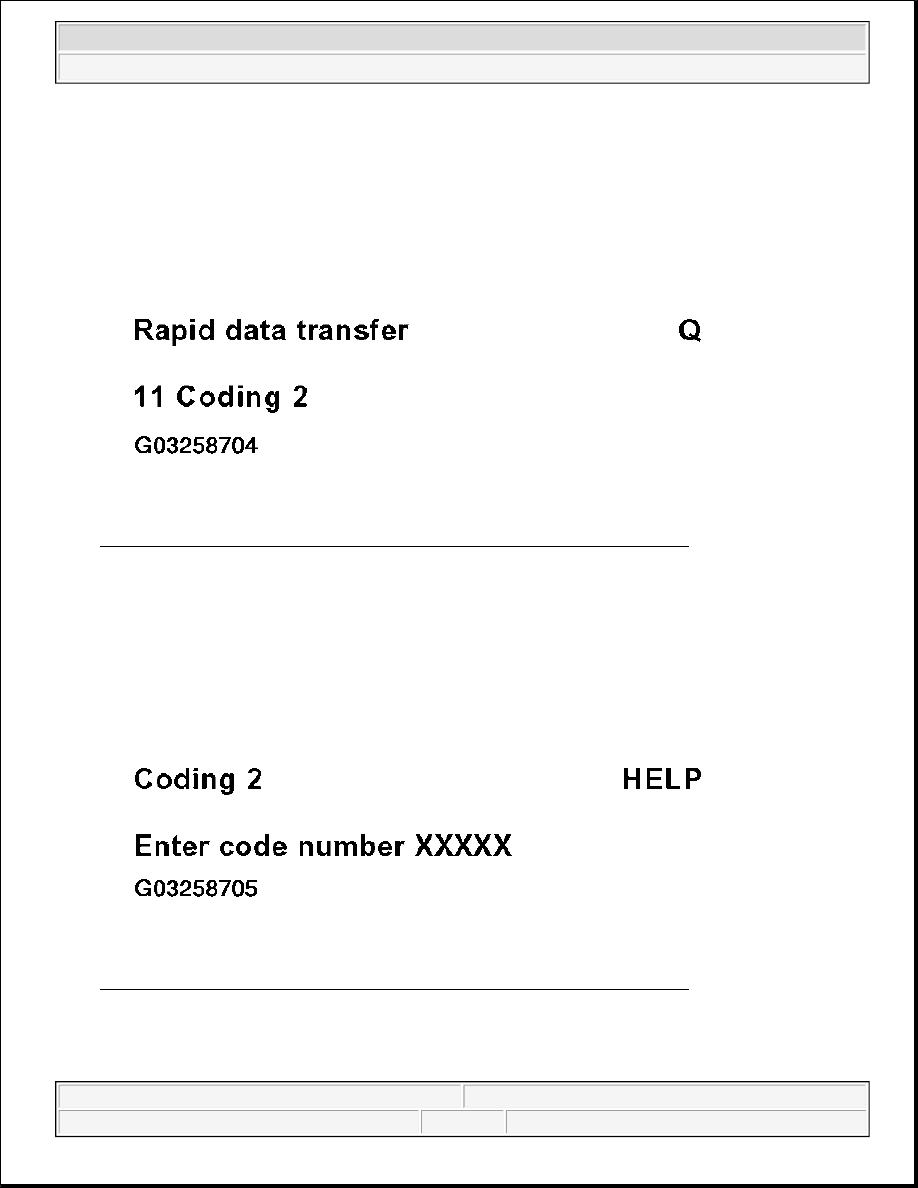

Fig. 281: V.A.G 1551 Scan Tool Display - Initiating Login Procedure (2 Of 4)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Enter code number 40168.

z

Confirm entry with key Q.

Fig. 282: V.A.G 1551 Scan Tool Display - Initiating Login Procedure (3 Of 4)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle

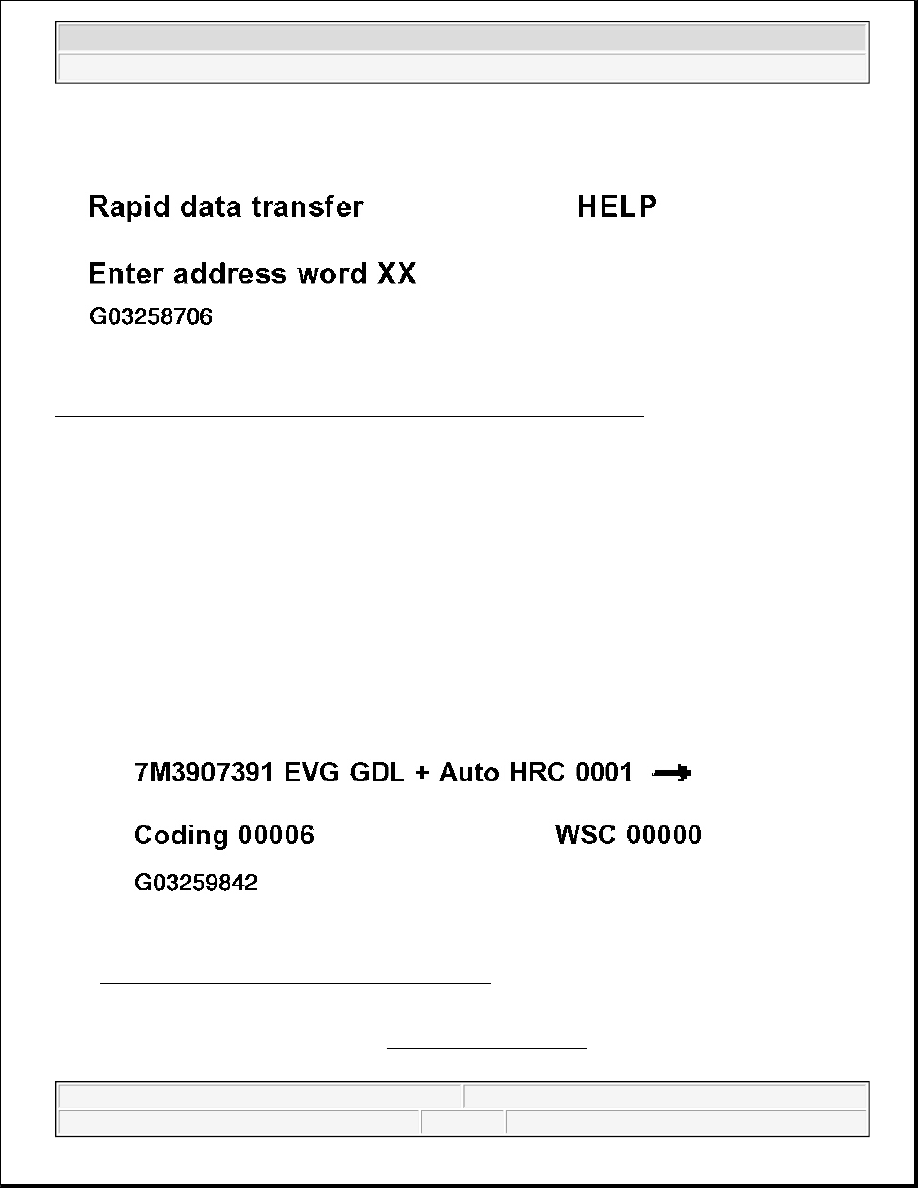

Fig. 283: V.A.G 1551 Scan Tool Display - Initiating Login Procedure (4 Of 4)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

ELECTRICAL TEST OF MARK 60, VEHICLES FROM M.Y. 10.00

SPECIAL TOOLS AND EQUIPMENT

z

VAG 1598/36 Adapter

z

VAG 1594 A Adapter set

z

VAG 1526 A Hand multimeter

z

VAG 1921 Pliers

z

VAG 1598 A Test box

Fig. 284: Identifying Special Tools And Equipment
Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE:

The test steps from, see TEST STEP OVERVIEW apply only to vehicles with
ABS/EDL/ASR/ESP.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle
