Volkswagen New Beetle. Manual - part 737

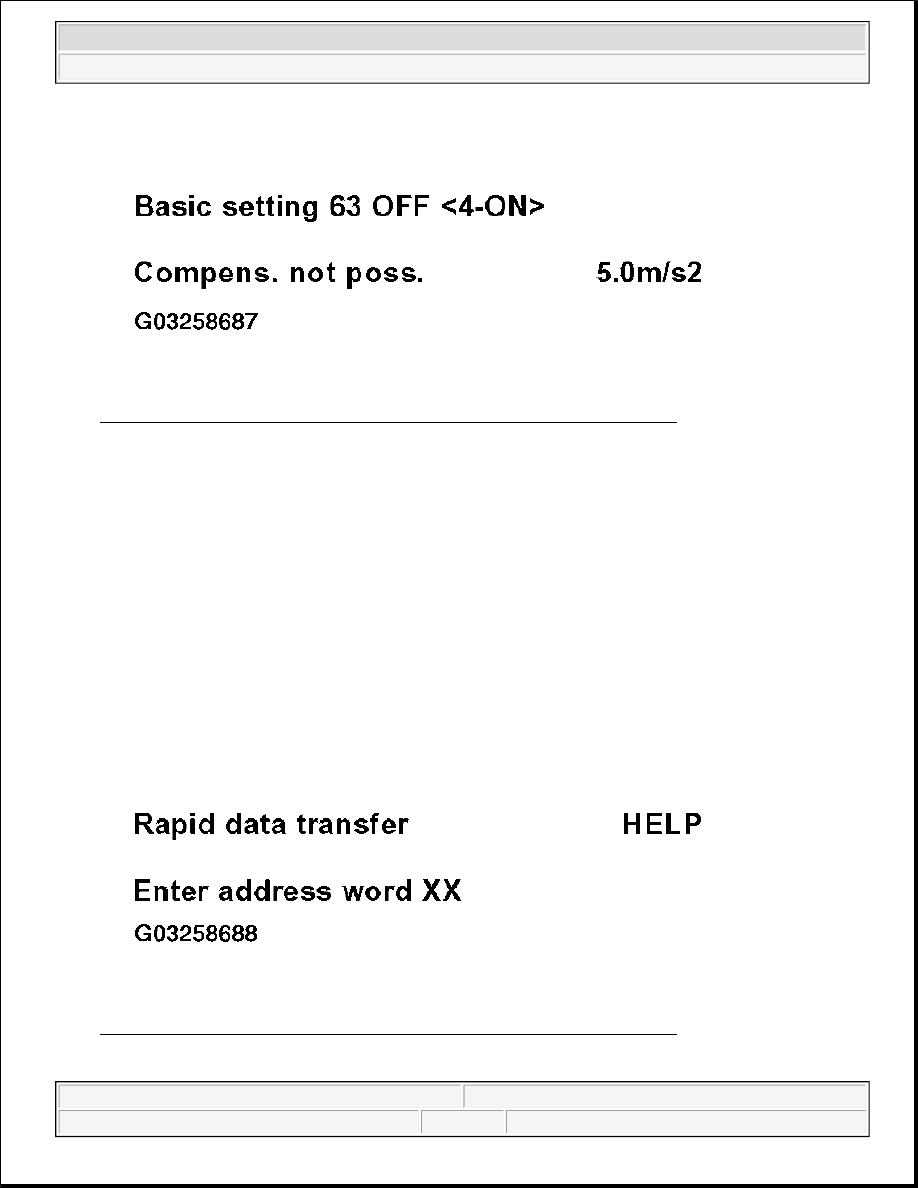

Fig. 264: V.A.G 1551 Scan Tool Display - Initiating Basic Setting (25 Of 40)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

1. Check DTC memory (Function 02)

2. Erase DTC memory (Function 05)

3. End output (Function 06)

4. Switch off ignition.

5. Switch on ignition.

6. Perform zero compensation again.

z

Press --> key.

Indicated on display:

z

Press keys 0 and 6, this ends the output.

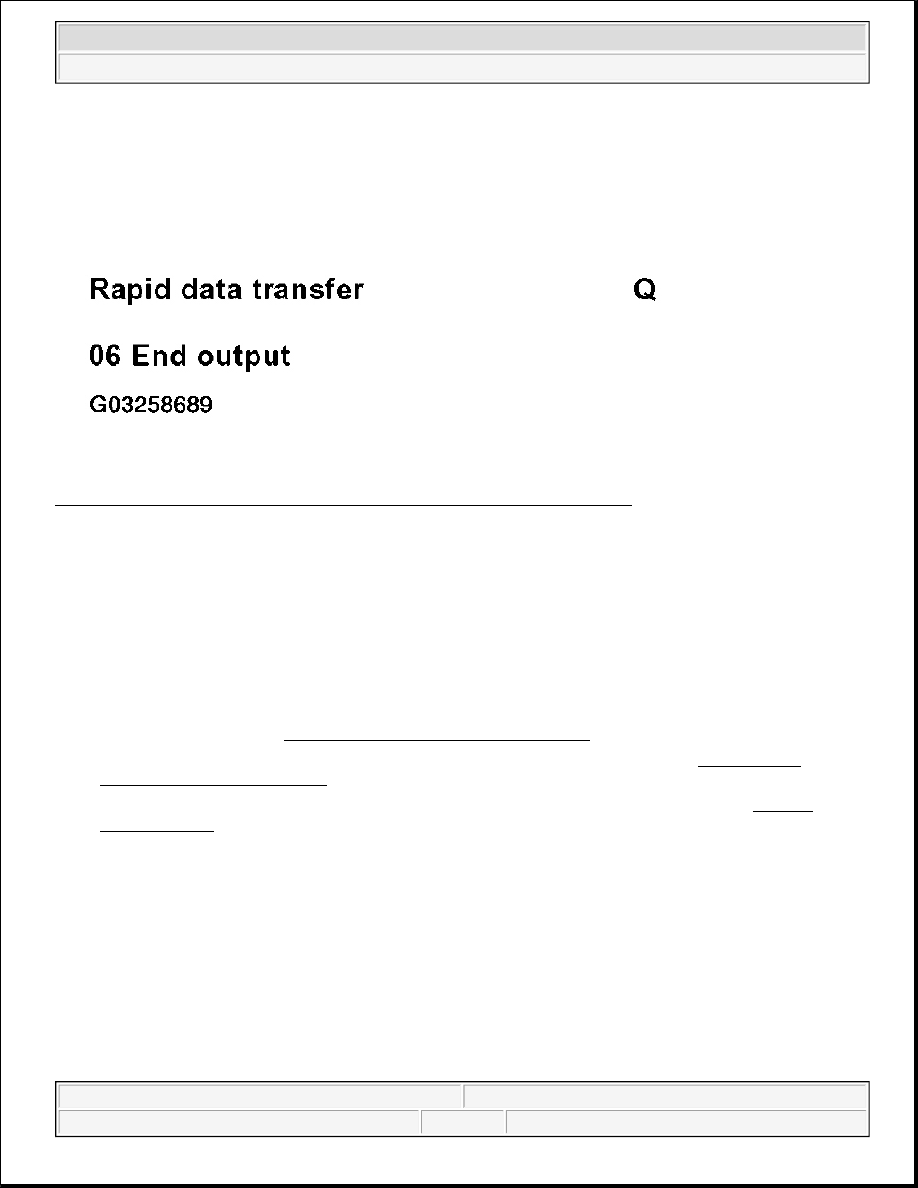

Fig. 265: V.A.G 1551 Scan Tool Display - Initiating Basic Setting (26 Of 40)
Courtesy of VOLKSWAGEN OF AMERICA, INC.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



Indicated on display:

ABS and ESP warning lights light up for approx. 2 seconds.

Fig. 266: V.A.G 1551 Scan Tool Display - Initiating Basic Setting (27 Of 40)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Display group number 66: zero compensation for brake pressure sender 1 -G201-

Do not depress brake pedal

z

Connect V.A.G 1551 scan tool and select (address word 03) brake electronics control module with
ignition switched on; see LIST OF SELECTABLE FUNCTIONS .

z

Check measured values with help of function 08 "Read measured value block" see MEASURED
VALUE BLOCK, READING
 , Display group number 005.

z

Perform function 11 "Login procedure" successfully first using V.A.G 1551 scan tool, see LOGIN
PROCEDURE
 .

Indicated on display:

z

Press keys 0 and 4. (The function "Initiating basic setting" is selected with 04).

NOTE:

z

All functions which could previously be performed with V.A.G 1551 can
now also be carried out with the tester VAS 5051.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle

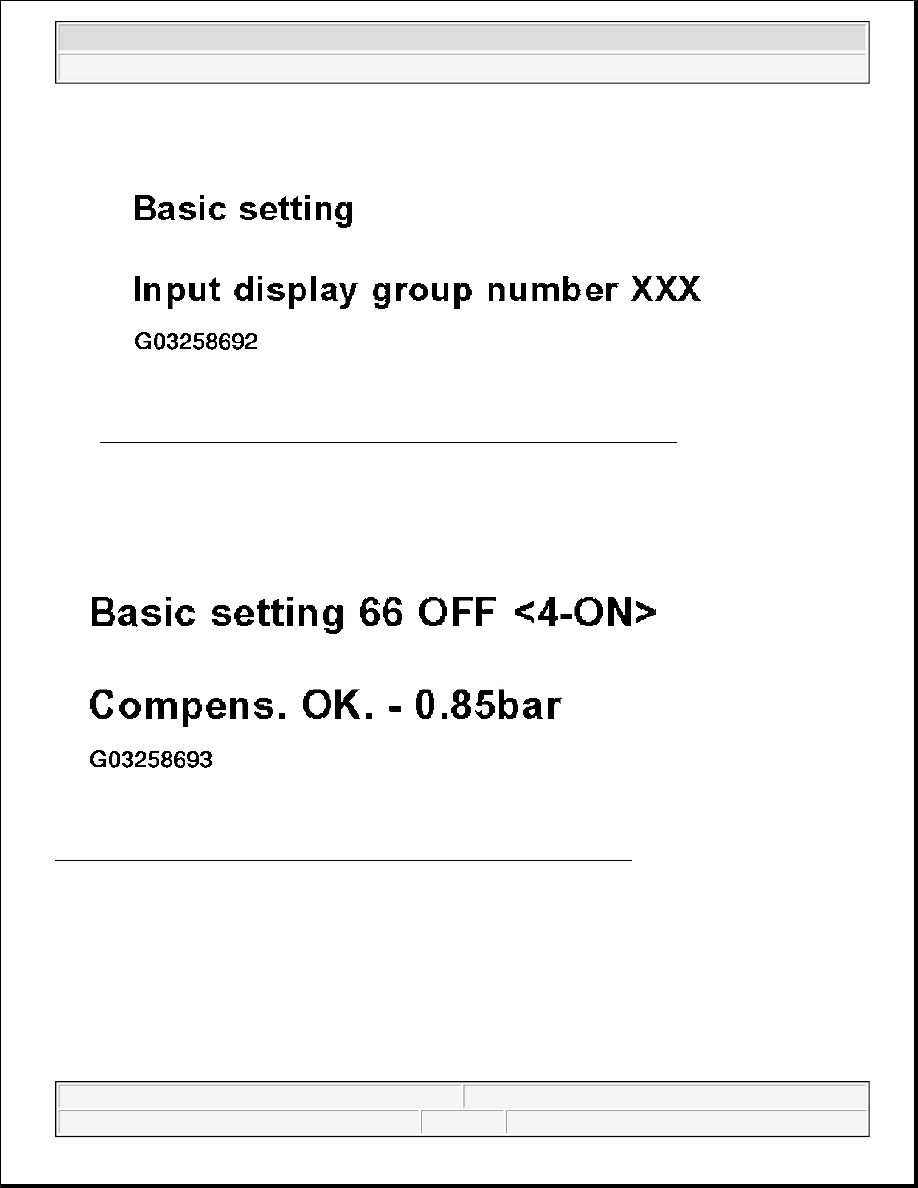

Fig. 267: V.A.G 1551 Scan Tool Display - Initiating Basic Setting (28 Of 40)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Confirm entry with key Q.

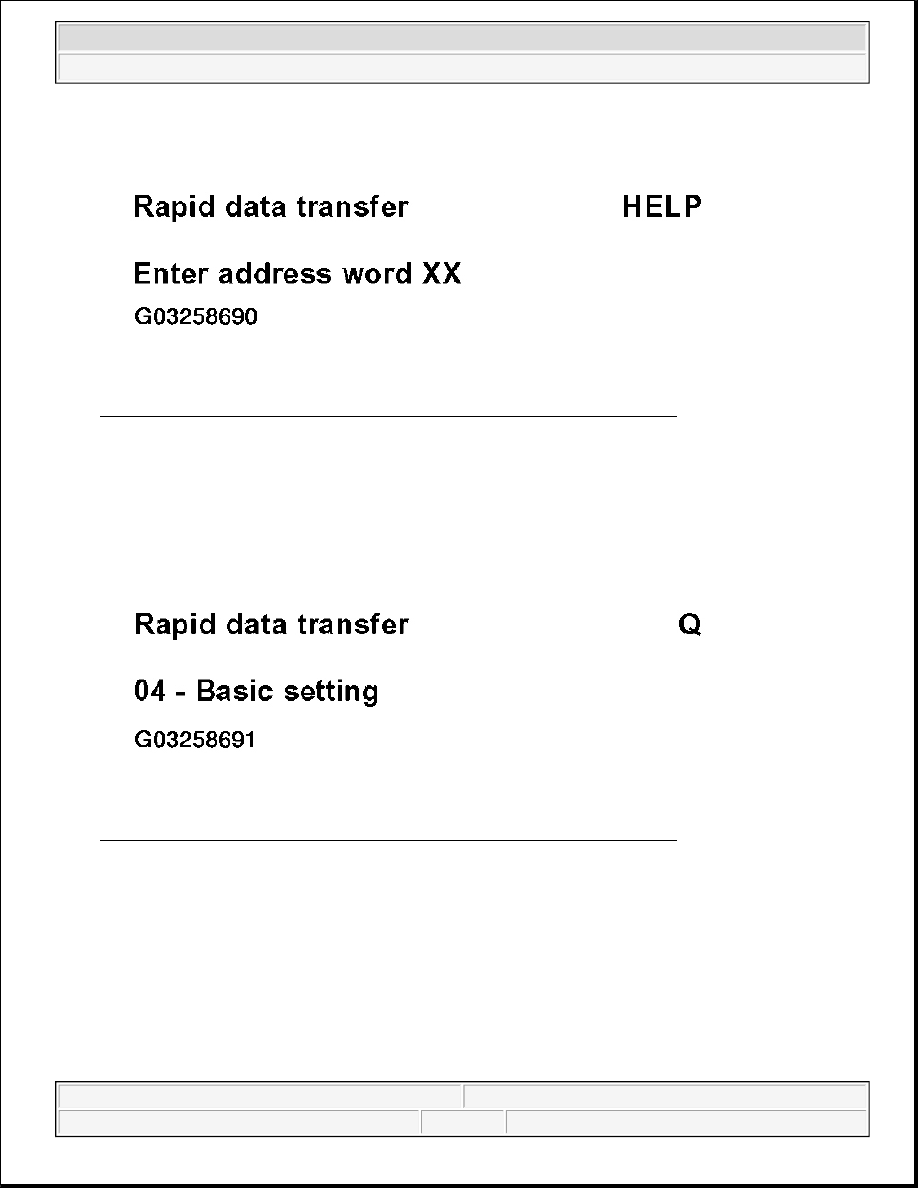

Fig. 268: V.A.G 1551 Scan Tool Display - Initiating Basic Setting (29 Of 40)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Press keys 0, 6 and 6

z

Confirm entry with key Q.

ABS warning lamp flashes.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



Fig. 269: V.A.G 1551 Scan Tool Display - Initiating Basic Setting (30 Of 40)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

And then the display shows e.g.:

Fig. 270: V.A.G 1551 Scan Tool Display - Initiating Basic Setting (31 Of 40)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

If this display appears the login procedure has not been performed successfully.

z

or:
