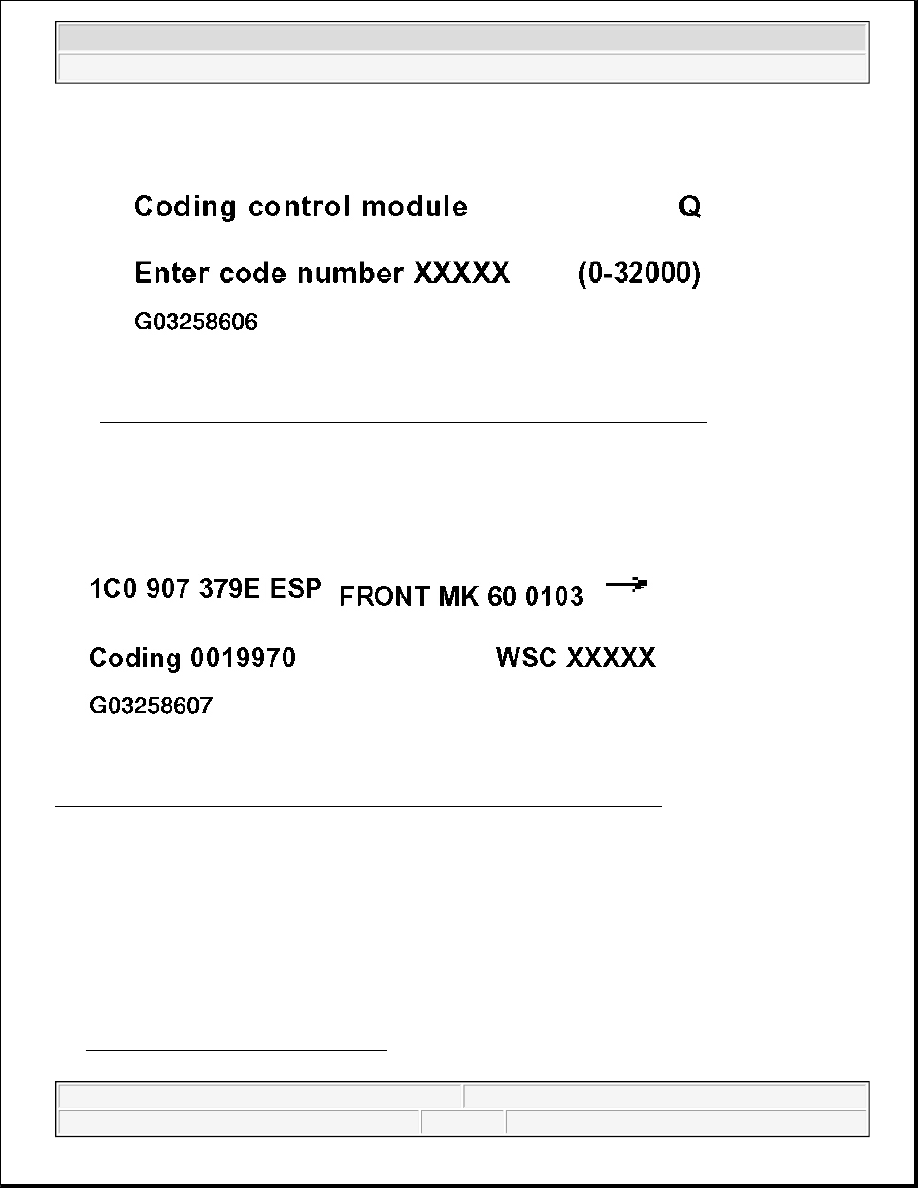

Fig. 183: V.A.G 1551 Scan Tool Display - Coding ABS Control Module (3 Of 4)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Control module identification is displayed on display of V.A.G 1551 scan tool, e.g.:

Fig. 184: V.A.G 1551 Scan Tool Display - Coding ABS Control Module (4 Of 4)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

VEHICLE DATA LABEL

Explanation of the PR. numbers on vehicle data label

Various wheels are installed depending on engine and equipment level. These are identified by the PR.
numbers.

The wheel installed in the vehicle is documented on the vehicle data label with the relevant PR number.

See SPECIFICATIONS & PROCEDURES .



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



Fig. 185: Identifying Location Of Optional Equipment Number (PR No.) On Vehicle Data Plate
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Depending on equipment level, the PR number is printed in different locations on the vehicle data label.

In this example the vehicle is equipped with the standard wheel 1ZM -arrow-.

The PR numbers are critical for the assignment of coding.

PR NUMBER (1 Of 2)

PR NUMBER (1 OF 3)

Coding table for ABS

z

Note: the control module must be coded with the same code number as the previous control module
installed in the vehicle


With control unit identification number 1C0 907 379 C/J/L for vehicles from m.y. 10.00

CODING

PR number

Brakes

1LS

FS III Brakes

1LQ

FS III Brakes

1ZM

FS III Brakes

1ZF

FS III Brakes

PR number

Brakes

1LE

FN 3 Brakes

1LJ

FN 3 Brakes

1ZE

FN 3 Brakes

Engine

Engine code

Vehicle type

Code number



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



Table for ABS/EDL, coding

z

Note: the control module must be coded with the same code number as the previous control module
installed in the vehicle

With control unit identification number 1C0 907 379 E for vehicles up to m.y. 09.2000

CODING

Table for ABS/EDL/ASR, coding

z

Note: the control module must be coded with the same code number as the previous control module
installed in the vehicle

With control unit identification number 1C0 907 379 D/K for vehicles from m.y. 10.00

ABS/EDL/ASR CODING

Table for ABS/EDL/ASR/ESP, coding

z

Note: the control module must be coded with the same code number as the previous control module
installed in the vehicle


With control unit identification number 1C0 907 379 for vehicles up to m.y. 09.00

ABS/EDL/ASR/ESP CODING

Table for ABS/EDL/ASR/ESP, coding

z

Note: the control module must be coded with the same code number as the previous control module
installed in the vehicle

1.8 ltr.

APH; AWV; AWP

Front wheel drive

04097

1.9 ltr. TDI

ALH; BEW

Front wheel drive

04097

2.0 ltr.

AEG;AVH;AZG;BBW, BEV

Front wheel drive

04097

Engine

Engine code

Vehicle type

Code number

1.8 ltr.

APH; AWV

Front wheel drive

13504

1.9 ltr. TDI

ALH

Front wheel drive

13504

2.0 ltr.

AEG

Front wheel drive

13504

Engine

Engine code

Vehicle type

Code number

1.8 ltr.

APH; AWV; AWP

Front wheel drive

18945

Engine

Engine code

Vehicle type

Code number

1.8 ltr.

APH; AWV

Front wheel drive

18945

1.9 ltr. TDI

ALH

Front wheel drive

18945

2.0 ltr.

AEG; AVH; AZG

Front wheel drive

18433



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



with control unit identification number 1C0 907 379 E/G/M for vehicles from m.y. 10.00

ABS/EDL/ASR/ESP CODING

See

MEASURED VALUE BLOCK, READING

The control module can transfer a considerable amount of test data. This test data delivers information on the
operational condition of the system and/or sensor connected to it. In many cases the transferred test data
supports troubleshooting and repair. The test data has been summarized into single display groups because all
the information cannot be evaluated at the same time. The information can be selected via display group
numbers.

Safety measures

z

Connect V.A.G 1551 scan tool and select (address word 03) brake electronics control module with
ignition switched on; see LIST OF SELECTABLE FUNCTIONS .

Indicated on display:

z

Press keys 0 and 8. (The function "Read measured value block" is initiated with 08.)

Engine

Engine code

Brake versions

(1)

Heavy-duty package

(2)

Coding

1.8ltr.

APH; AWV; AWP

FN3

sin

19970







con

20098



2.0 ltr.

AEG; AVH; AZG; BBW, BEV

FS III

without

22530







with

22658



1.9 ltr. TDI

ALH; BEW

FS III

without

19458







with

19586



(1)

Overview of types of brakes (PR No.), see VEHICLE DATA LABEL .

(2)

Overview of types of vehicle.

NOTE:

All functions which could previously be performed with V.A.G 1551 can now
also be carried out with the tester VAS 5051.

WARNING:

z

If the use of test and information devices during a test drive is
necessary, observe the following:

z

You must always secure testing and measuring equipment on the
rear seat.

z

When vehicle is being driven, a second technician must operate this
equipment.
