Volkswagen New Beetle. Manual - part 722





Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

{

Press --> key.

Fig. 176: V.A.G 1551 Scan Tool Display - Erasing DTC Memory (3 Of 7)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

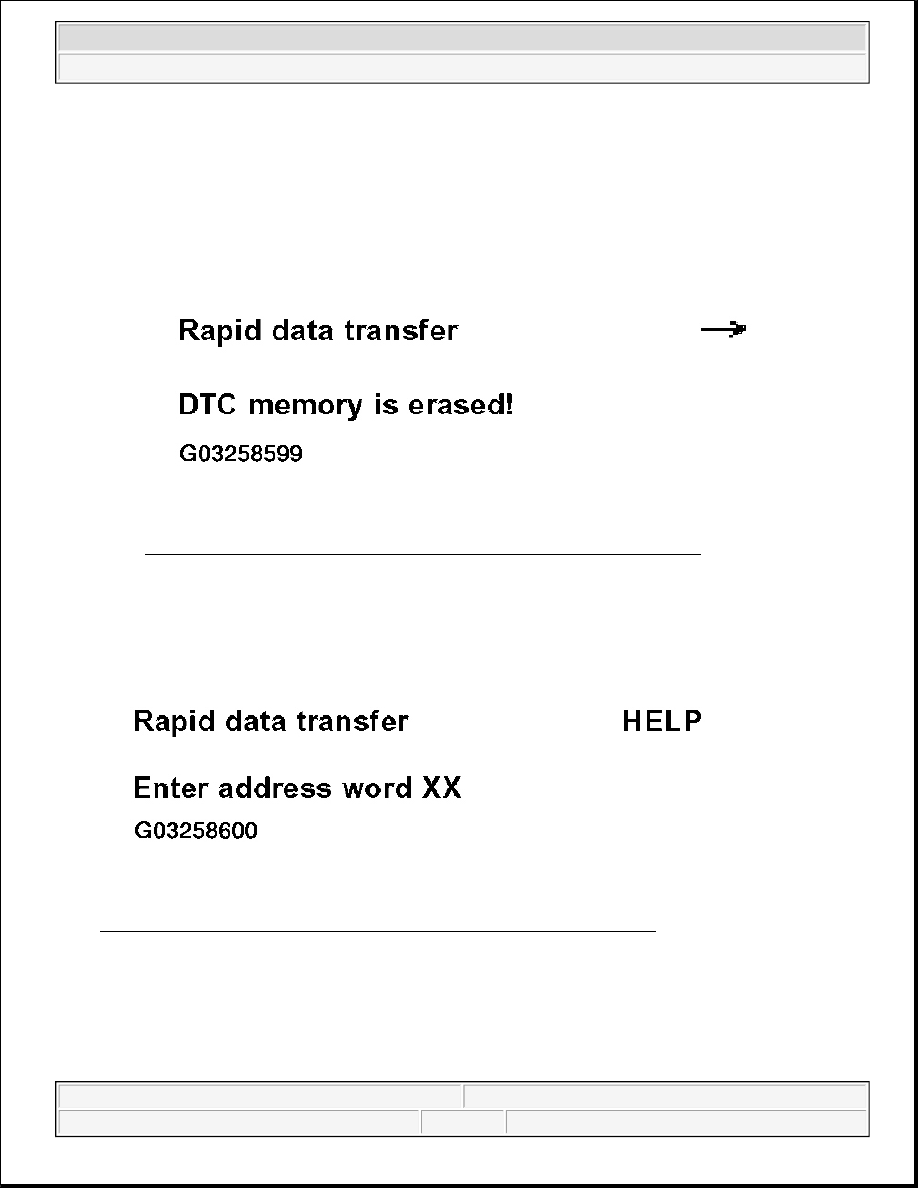

Fig. 177: V.A.G 1551 Scan Tool Display - Erasing DTC Memory (4 Of 7)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

NOTE:

Adhere exactly to test sequence: First check DTC memory, then erase



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle

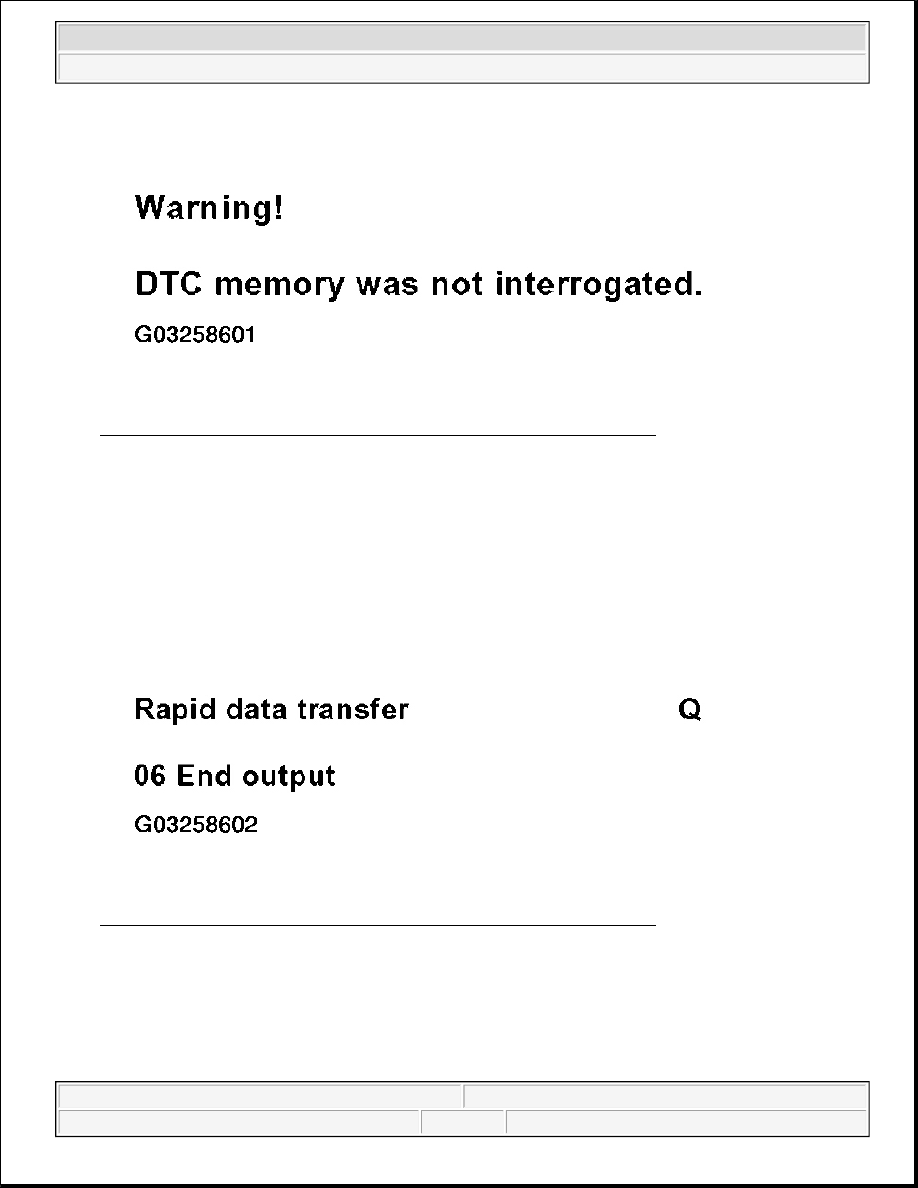

Fig. 178: V.A.G 1551 Scan Tool Display - Erasing DTC Memory (5 Of 7)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

2. Ending output

{

Press keys -0- and -6-, this ends the output.

Indicated on display:

z

Confirm input with Q key.

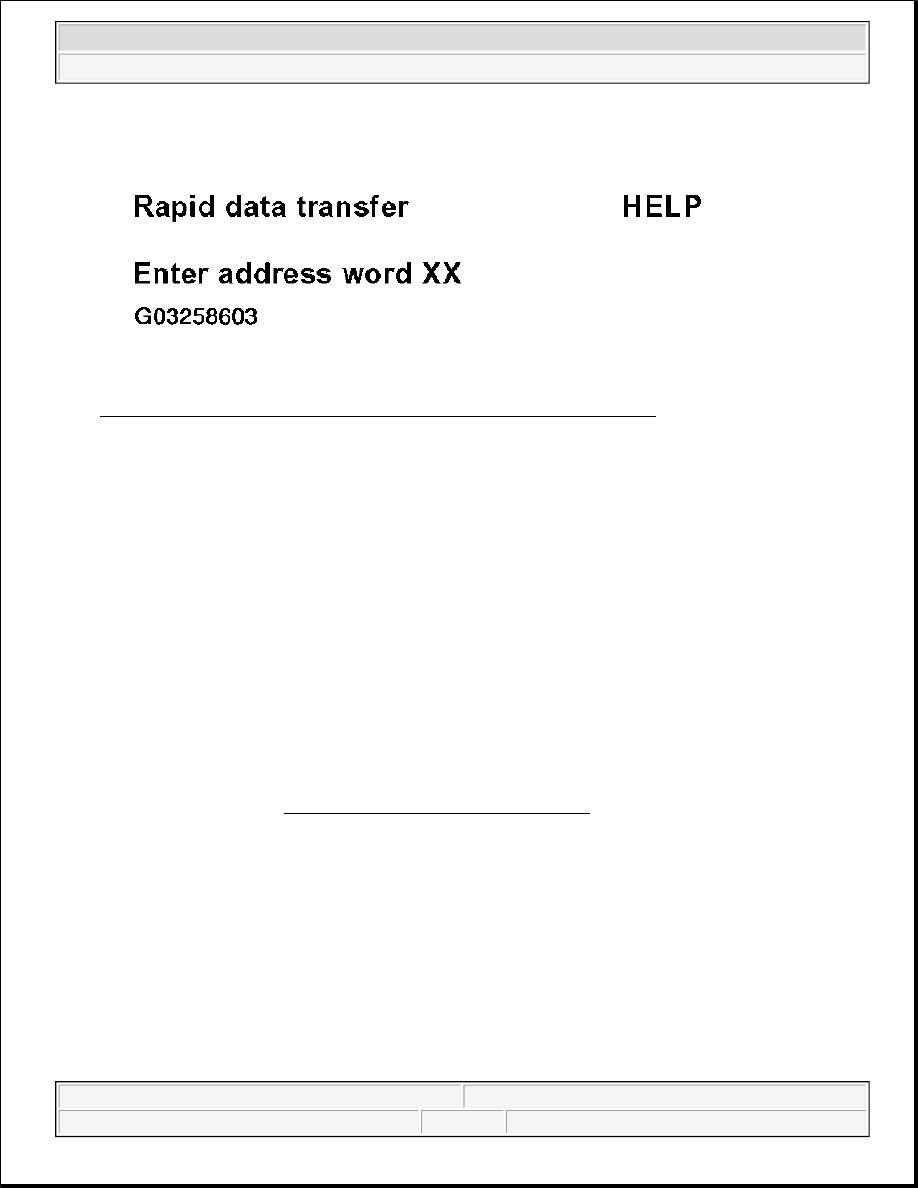

Fig. 179: V.A.G 1551 Scan Tool Display - Erasing DTC Memory (6 Of 7)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Switch off ignition.

z

Disconnect connection to V.A.G 1551 scan tool.

z

Switch on ignition.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



Fig. 180: V.A.G 1551 Scan Tool Display - Erasing DTC Memory (7 Of 7)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

ABS warning light -K47- must go out after approx. 2 seconds.

ABS CONTROL MODULE, CODING

z

All functions which could previously be performed with V.A.G 1551 can also be carried out with the
tester VAS 5051.

z

When ABS control module (w/EDL) -J104- is coded with 00000, ABS warning light -K47- and warning
light for brake system -K118- flash. An entry is not made in the DTC memory.

z

The ABS control module (w/EDL) -J104- must be recoded if the vehicle relevant coding is not displayed
or the control module has been replaced.

Coding is only possible after the workshop code (WSC) has been introduced into V.A.G 1551.

Test sequence

z

Connect V.A.G 1551 scan tool and select (address word 03) brake electronics control module with
ignition switched on; see LIST OF SELECTABLE FUNCTIONS .

z

Establish engine code.

Indicated on display:

z

Input 07 for the function "Code control module" and confirm with Q key.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle

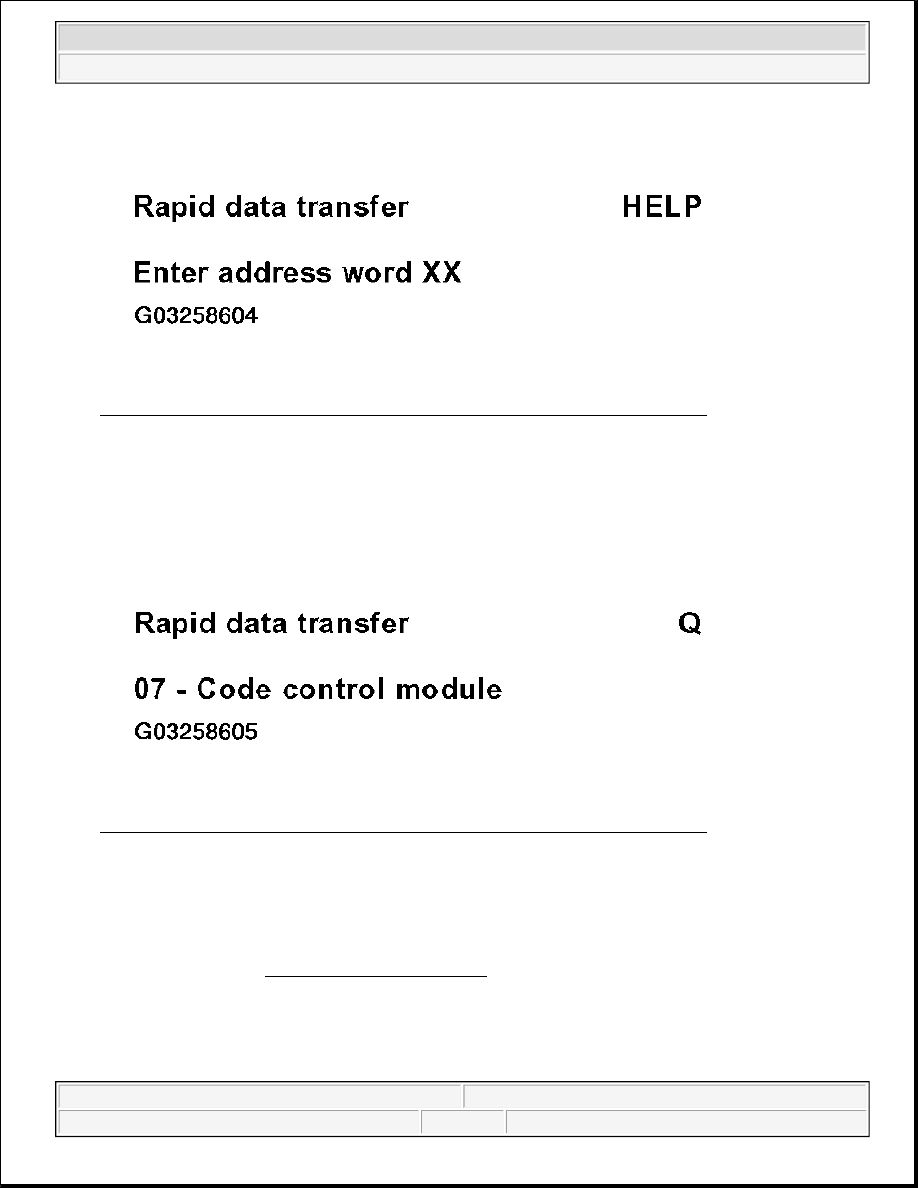

Fig. 181: V.A.G 1551 Scan Tool Display - Coding ABS Control Module (1 Of 4)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Confirm input with Q key.

Fig. 182: V.A.G 1551 Scan Tool Display - Coding ABS Control Module (2 Of 4)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Enter the relevant code number for this vehicle and confirm with Q key.

Coding variations, see CODING TABLE FOR ABS .



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle
