Volkswagen New Beetle. Manual - part 715





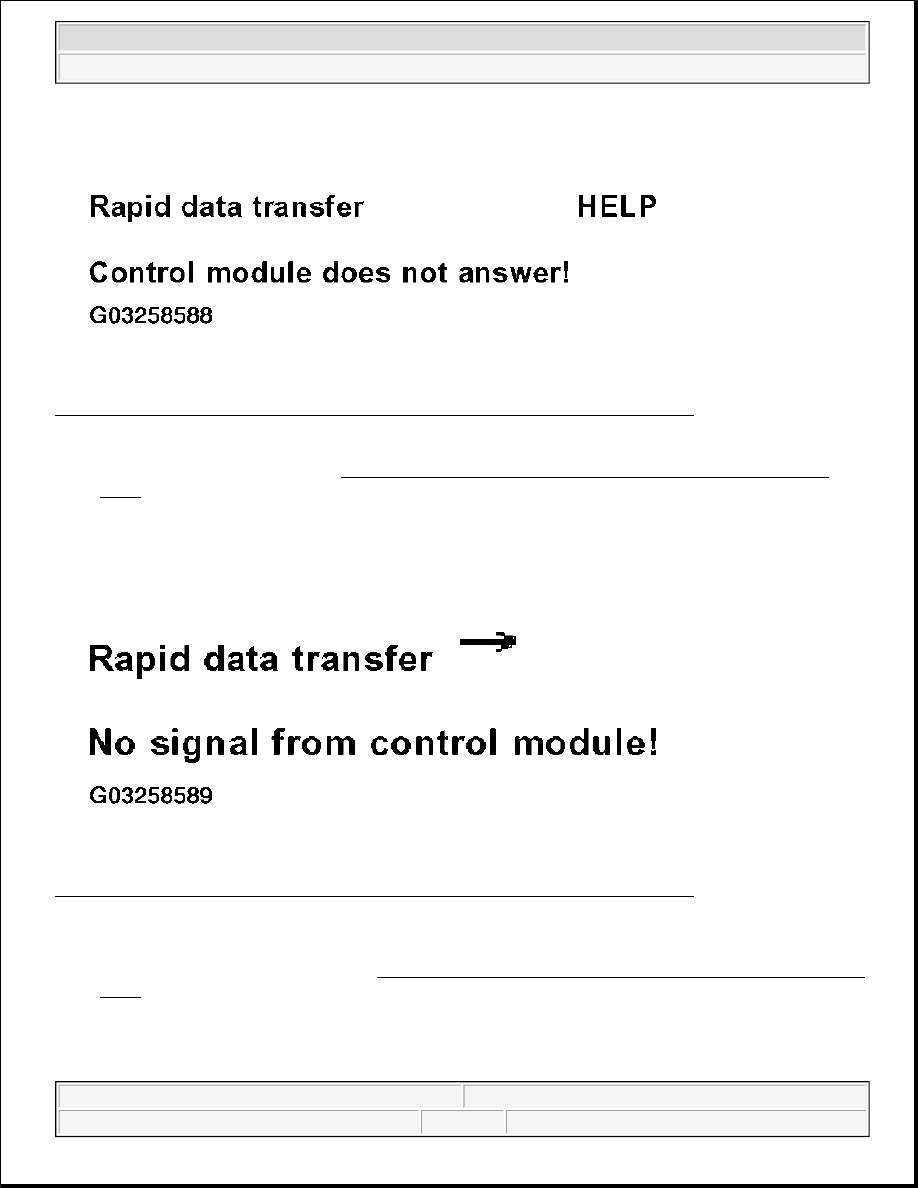

Fig. 165: V.A.G 1551 Scan Tool Display - Performing On Board Diagnostic (7 Of 8)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Perform test steps 1, 2 and 3, see ELECTRICAL TEST OF MARK 60, VEHICLES FROM M.Y.
10.00
 , Electrical check.

Control module identification influenced during checking (possibly influenced from external sources?)

Fig. 166: V.A.G 1551 Scan Tool Display - Performing On Board Diagnostic (8 Of 8)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Check diagnostic wire as well as voltage supply and ground connection for ABS Control Module
(w/EDL) -J104-, Electrical check, see ELECTRICAL TEST OF MARK 60, VEHICLES FROM M.Y.
10.00
 .

z

After repairing the possible causes of the malfunction, again enter the address word 03 for "Brake
electronics" and confirm with Q key.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



LIST OF SELECTABLE FUNCTIONS

SELECTABLE FUNCTIONS LIST

AUTOMATIC TEST SEQUENCE

The automatic test sequence checks all the Diagnostic Trouble Codes (DTC) memories of the control modules.

z

Switch on ignition.

Indicated on display:





page

00
-

Automatic test sequence

See AUTOMATIC TEST SEQUENCE

01
-

Check control module version

See connecting V.A.G 5051 scan tool

and selecting function

See ON BOARD DIAGNOSTIC (OBD), PERFORMING

02
-

Check Diagnostic Trouble Code

(DTC) memory

See DIAGNOSTIC TROUBLE CODE (DTC)

MEMORY, CHECKING

03
-

Output Diagnostic Test Mode (DTM)

See OUTPUT DIAGNOSTIC TEST MODE (DTM)

04
-

Initiate basic setting

See INITIATING BASIC SETTING

05
-

Erase DTC memory

See DIAGNOSTIC TROUBLE CODE (DTC) ERASING

MEMORY, ENDING OUTPUT

06
-

End output

See DIAGNOSTIC TROUBLE CODE (DTC) ERASING

MEMORY, ENDING OUTPUT

07
-

Code control module

See ABS CONTROL MODULE, CODING

08
-

Read measured value block

See MEASURED VALUE BLOCK, READING

11
-

Login procedure

See LOGIN PROCEDURE



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle

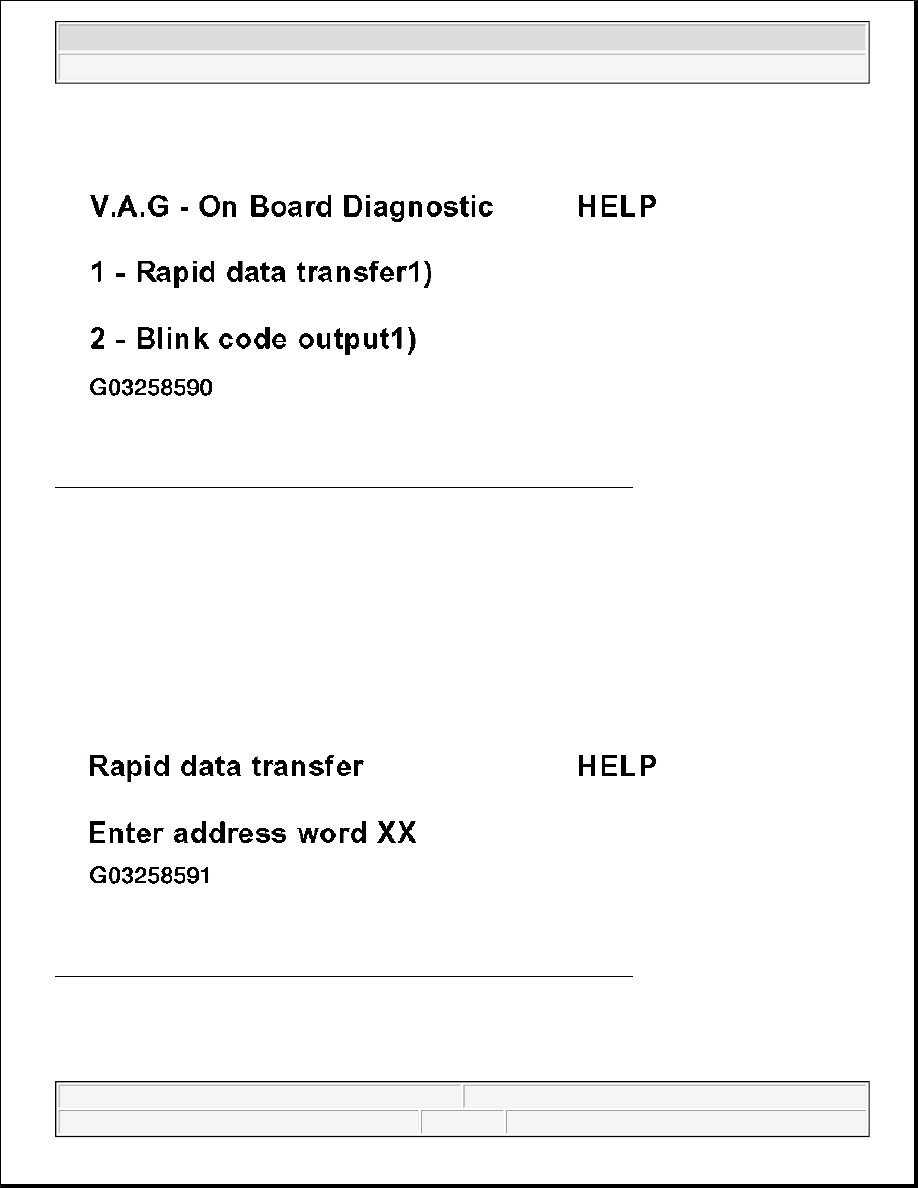

Fig. 167: V.A.G 1551 Scan Tool Display - Automatic Test Sequence (1 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

1)

 Is displayed alternately



z

Press key -1- for "Rapid data transfer" operating mode.

z

Switch on printer with the Print key (indicator lamp in key lights up).

Indicated on display:

Fig. 168: V.A.G 1551 Scan Tool Display - Automatic Test Sequence (2 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press key -0- twice; 00 to enter "Check automatic test sequence" function.

z

Confirm entry with Q key.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



On display of V.A.G 1551 scan tool the engine control module identification will appear first e.g.

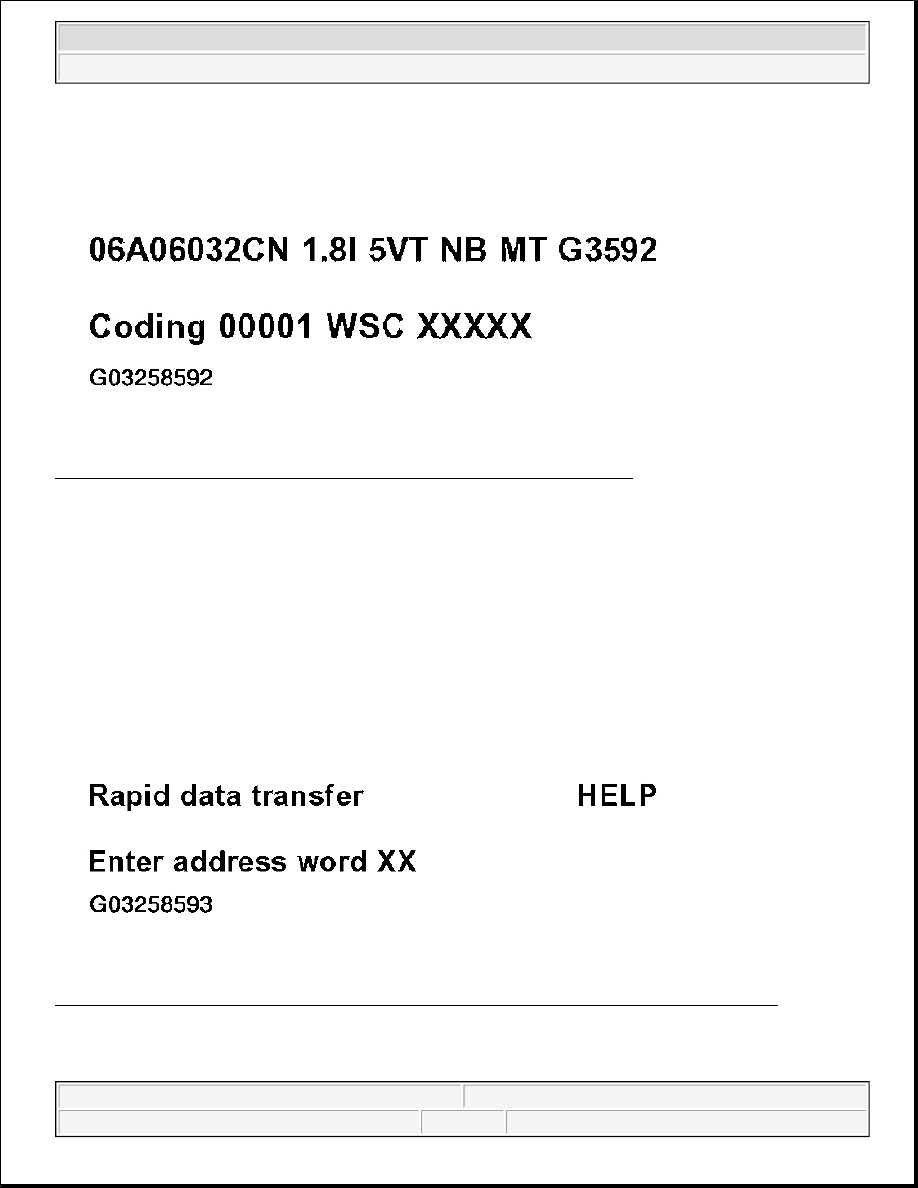

Fig. 169: V.A.G 1551 Scan Tool Display - Automatic Test Sequence (3 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Thereafter all control module identifications with eventual DTC memory entries are displayed.

DIAGNOSTIC TROUBLE CODE (DTC) MEMORY, CHECKING

Indicated on display:

Fig. 170: V.A.G 1551 Scan Tool Display - Checking Diagnostic Trouble Code Memory (1 Of 4)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press keys -0- and -2-; 02 enters the "Check DTC memory" function.

NOTE:

All functions which could previously be performed with V.A.G 1551 can now
also be carried out with the tester VAS 5051.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle
