Volkswagen New Beetle. Manual - part 714





If the display remains blank, check Data Link Connector connection, Electrical check, see
ELECTRICAL TEST OF MARK 60, VEHICLES FROM M.Y. 10.00 , test steps 21 and 22.

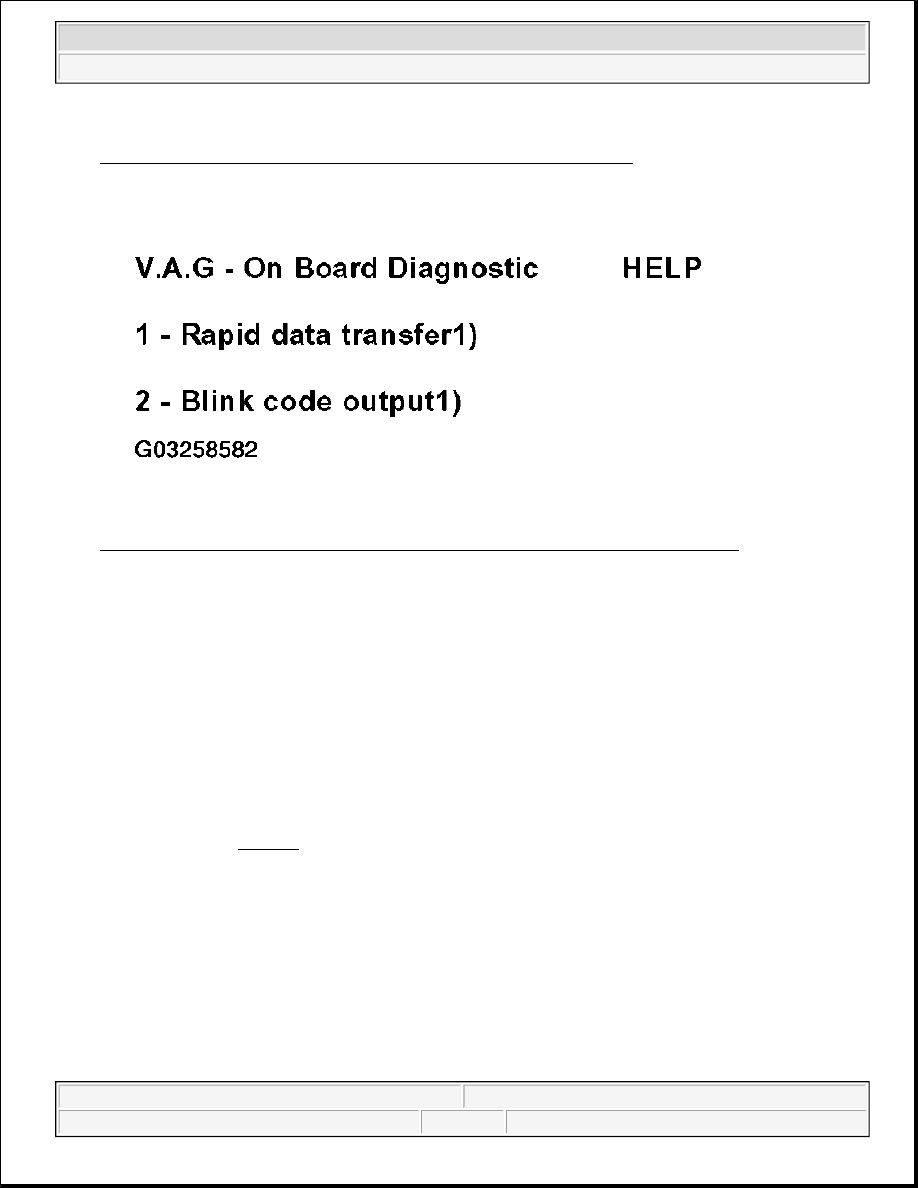

Fig. 159: V.A.G 1551 Scan Tool Display - Performing On Board Diagnostic (1 Of 8)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Switch on ignition.

z

Switch on printer with the Print key (indicator lamp in key lights up).

z

Press key -1- for "Rapid data transfer" operating mode.

Indicated on display, see Fig. 160 .

NOTE:

z

Depending on the program, additional operating information can be
printed out by pressing the HELP key of V.A.G 1551.

z

The --> key is used for moving forward within the program

z

The PRINT key is used for switching on the printer (warning lamp in
key comes on).



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle

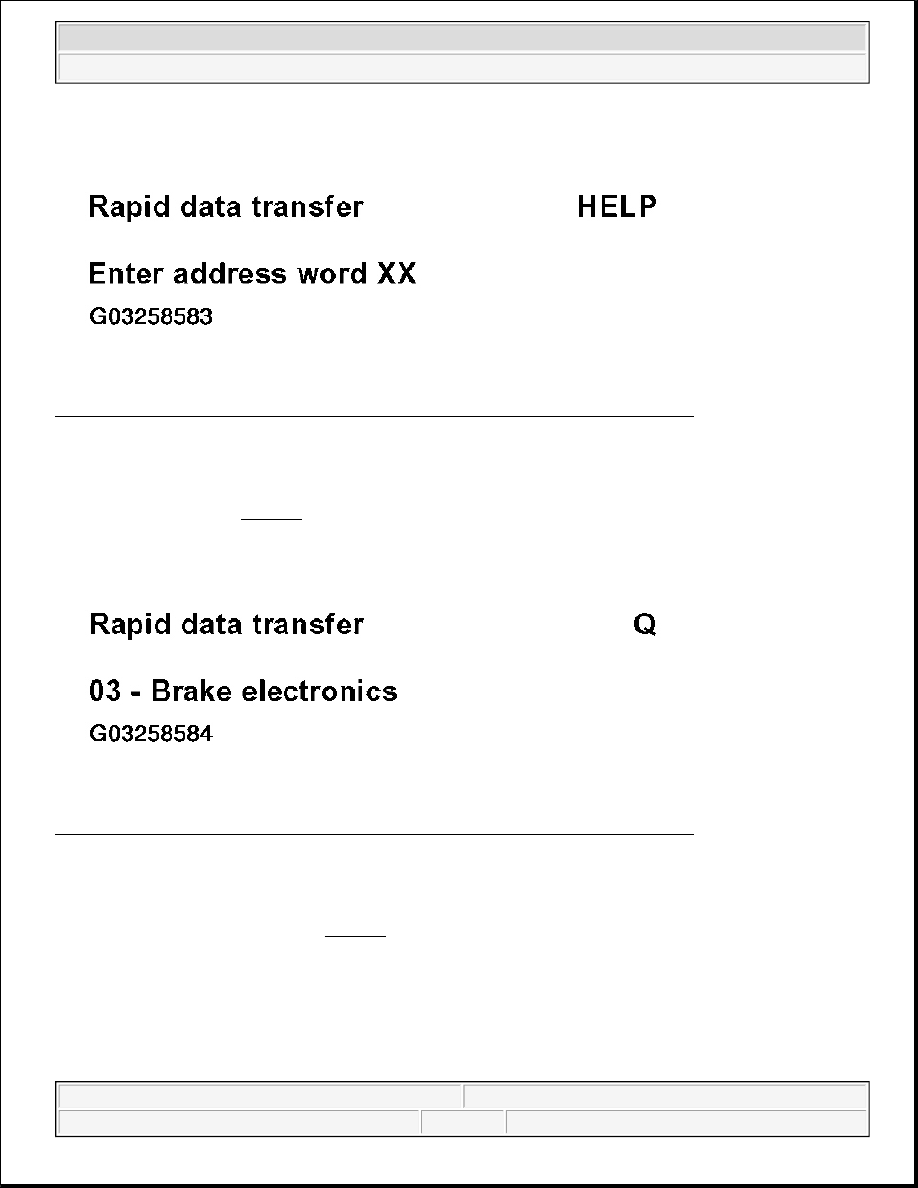

Fig. 160: V.A.G 1551 Scan Tool Display - Performing On Board Diagnostic (2 Of 8)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press keys -0- and -3-; 03 to input address word of vehicle system to be tested: "Brake electronics".

Indicated on display: See Fig. 161 .

Fig. 161: V.A.G 1551 Scan Tool Display - Performing On Board Diagnostic (3 Of 8)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Confirm input with Q key.

And then the display shows e.g.: See Fig. 162 .



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle

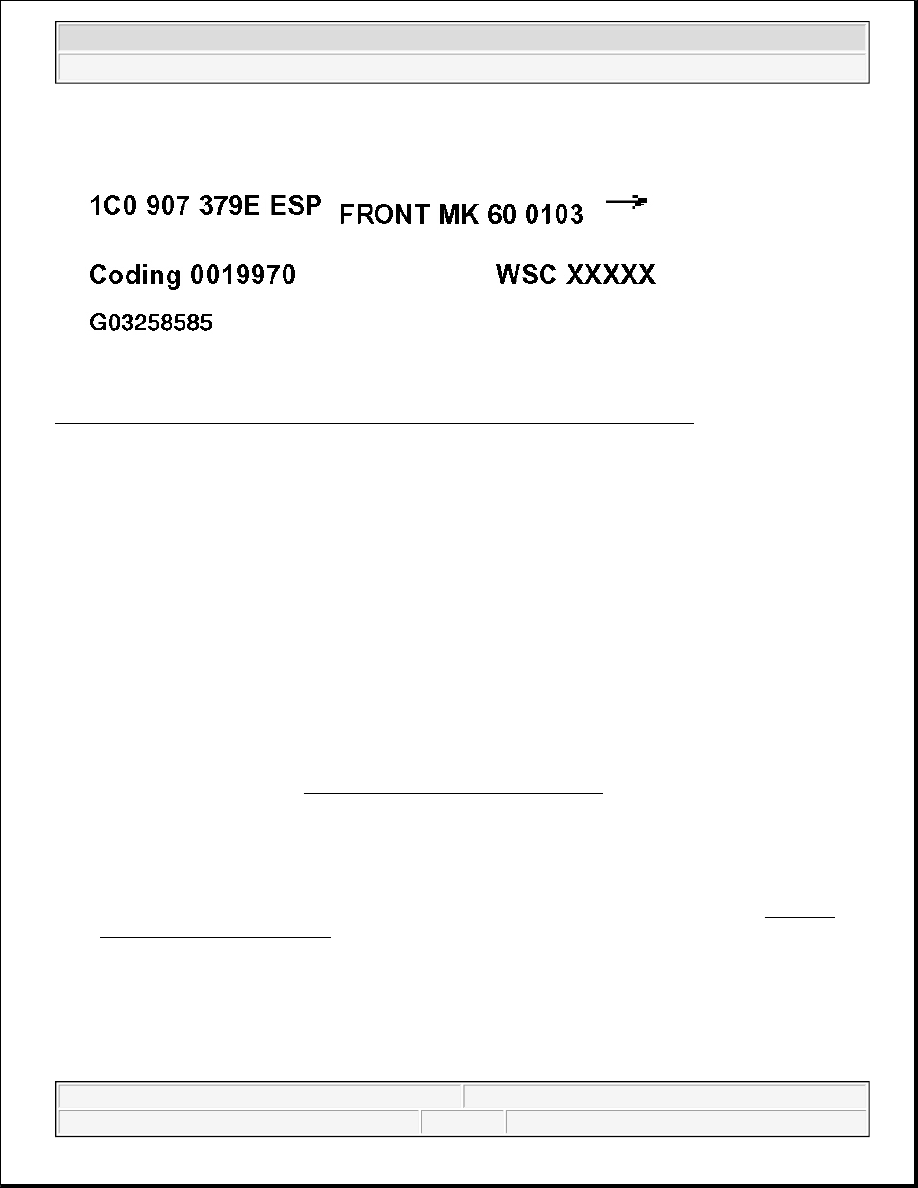

Fig. 162: V.A.G 1551 Scan Tool Display - Performing On Board Diagnostic (4 Of 8)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Displayed is:

z

The control module identification number.

e.g. (1 C0 907 379 E)

Application of control module

z

See Parts catalog

z

System designation (ESP).

z

Type of drive (front wheel).

z

ABS (Mark 60).

z

Current coding of control module (0019970).

Coding control module, see ABS CONTROL MODULE, CODING .

z

Workshop code

See V.A.G 1551 scan tool operating instructions

If the control module identification number does not appear; see Summary of functions, see LIST OF
SELECTABLE FUNCTIONS
 .

z

Press --> key.

Indicated on display (Enter address word, e.g. 02 -Check DTC memory).



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle

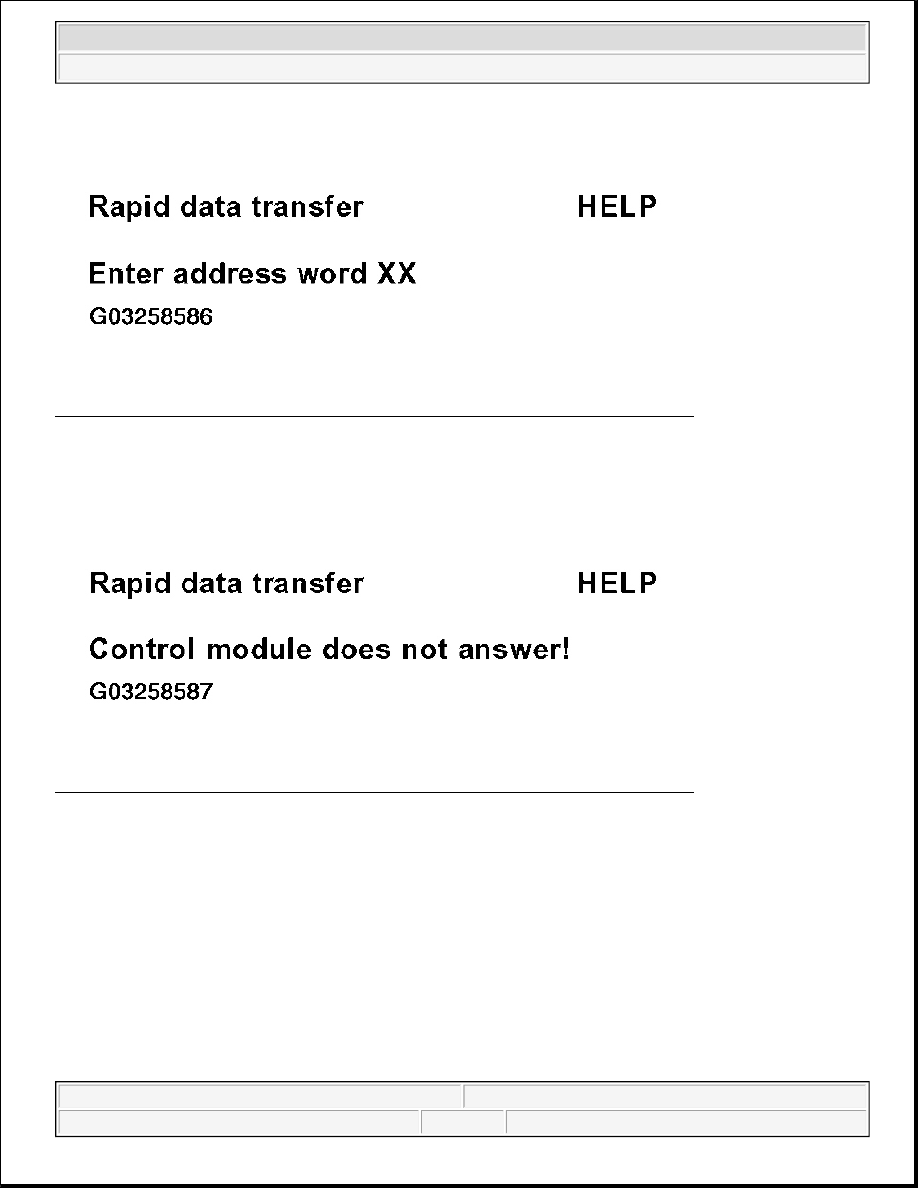

Fig. 163: V.A.G 1551 Scan Tool Display - Performing On Board Diagnostic (5 Of 8)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

Fig. 164: V.A.G 1551 Scan Tool Display - Performing On Board Diagnostic (6 Of 8)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

By pressing the HELP key, a list of possible fault causes is printed out.

z

After eliminating the possible causes of malfunctions, enter the address word 03 for "Brake electronics"
again and confirm.

If "control module does not answer!" again appears:

Indicated on display:



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle
