Volkswagen New Beetle. Manual - part 691





END OUTPUT (FUNCTION 06)

Indicated on display

z

Press buttons -0- and -6- to select "End Output" function 06.

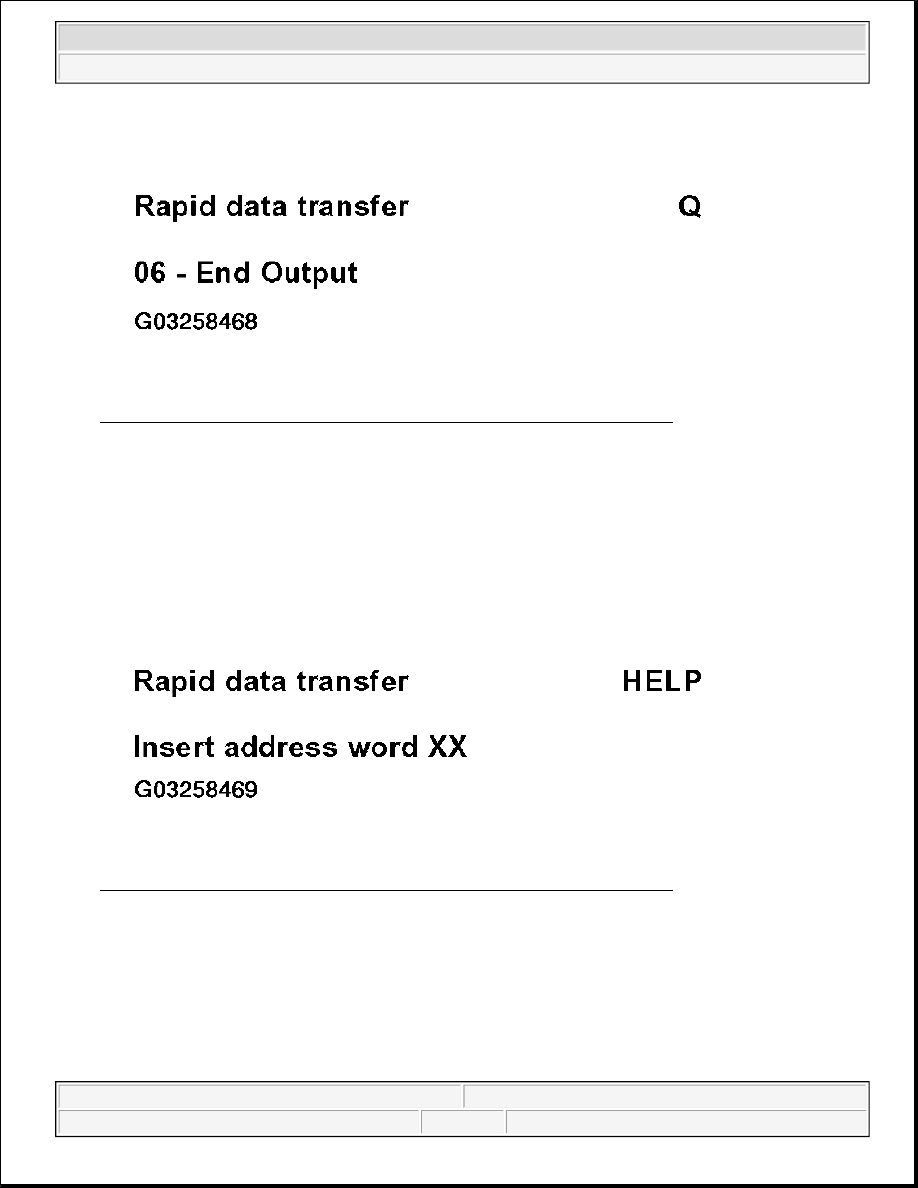

Fig. 44: V.A.G 1551 Scan Tool Display - End Output - Function 06 (1 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Press -Q- button to confirm input.

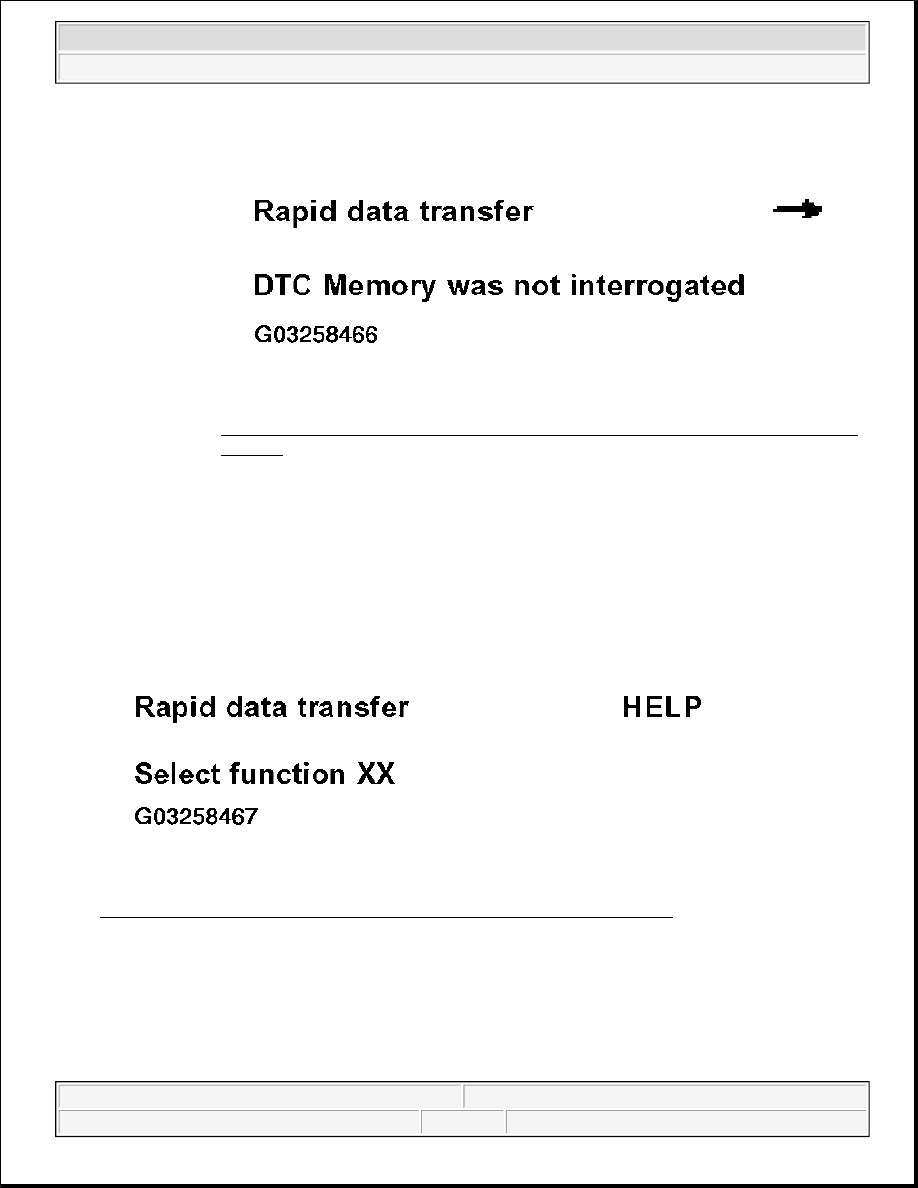

Fig. 43: V.A.G 1551 Scan Tool Display - Erasing DTC Memory - Function 05
(6 Of 6)
Courtesy of VOLKSWAGEN OF AMERICA, INC.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



Fig. 45: V.A.G 1551 Scan Tool Display - End Output - Function 06 (2 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Switch ignition off.

z

Disconnect VAG1551 scan tool from Data Link Connector (DLC).

z

Switch ignition on.

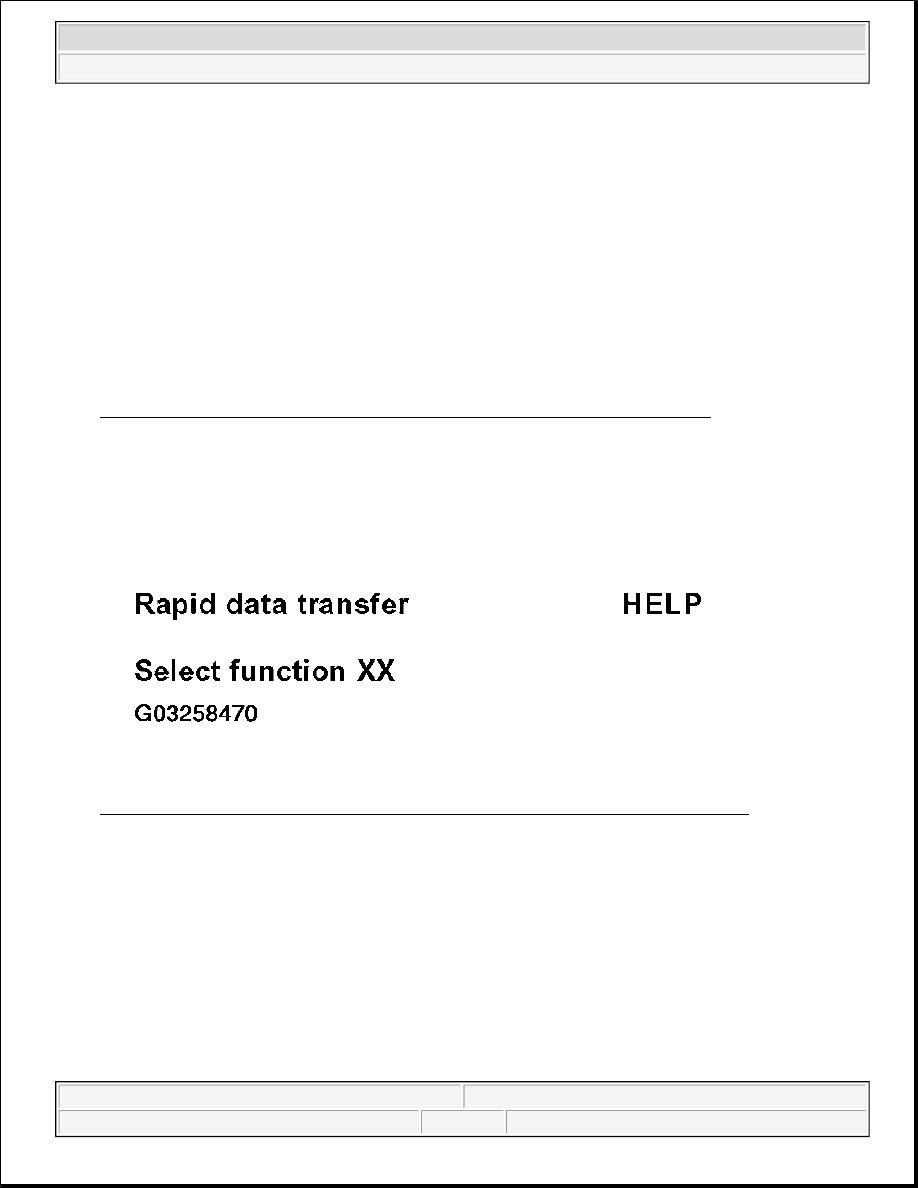

Fig. 46: V.A.G 1551 Scan Tool Display - End Output - Function 06 (3 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

ABS warning light -K47- and warning light for brake system -K118- must go out after approx. 2 seconds.

CODE CONTROL MODULE (FUNCTION 07)

z

All functions which could previously be performed with V.A.G 1551 can also be performed with the
tester VAS 5051.

z

ABS warning light -K47- and warning light for brake system -K118- flash when control module is coded



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



with 00000. An entry is not set in the DTC memory.

z

The control module (w/EDL) -J104- must be recoded if the vehicle relevant coding is not displayed or the
control module has been replaced.

The control module in the vehicle is coded. New control modules are not coded and must be coded after
installation.

Coding is only possible after the dealership code has been entered into the VAG1551 scan tool.

Test sequence

z

Determine engine code and type of ABS hydraulic control module installed in vehicle.

z

Connect VAG1551 scan tool and insert "Brake Electronics" address word 03 with ignition switched on
VAG1551 SCAN TOOL (ST), CONNECTING AND SELECTING FUNCTION .

Indicated on display

z

Press buttons -0- and -7- to select "Code Control Module" function 07.

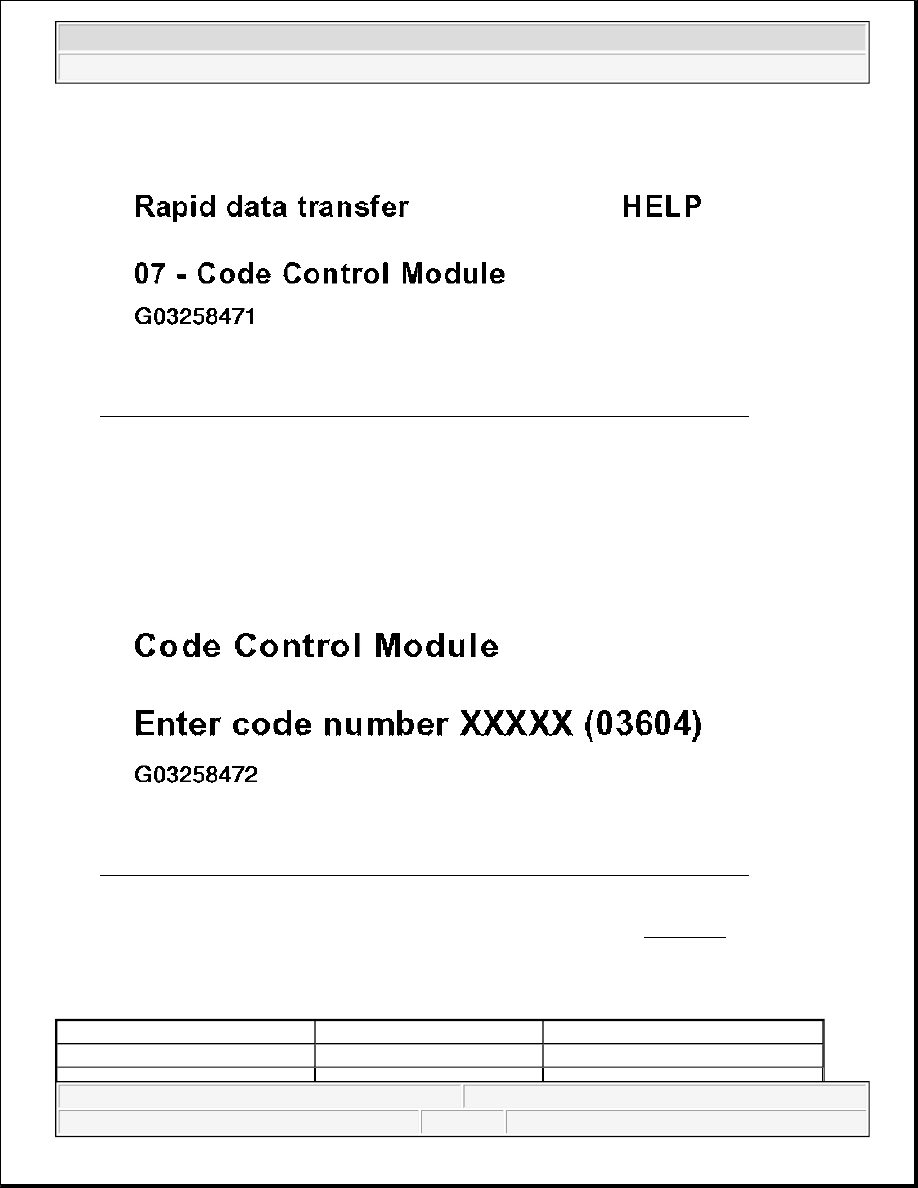

Fig. 47: V.A.G 1551 Scan Tool Display - Code Control Module - Function 07 (1 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Press -Q- button to confirm input.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



Fig. 48: V.A.G 1551 Scan Tool Display - Code Control Module - Function 07 (2 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Enter relevant code number for vehicle and press -Q- button to confirm input, see VAG1551 Scan Tool
(ST) operating instructions.

Fig. 49: V.A.G 1551 Scan Tool Display - Code Control Module - Function 07 (3 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

The VAG1551 scan tool display will show the control module identification. See Code table .

Code table

CONTROL MODULE & ENGINE CODE IDENTIFICATION

Code number

Engine code

Variant

03504

AGU

ABS



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle
