Volkswagen New Beetle. Manual - part 690





DIAGNOSTIC TROUBLE CODE (DTC) - ITT MARK 20 IE (19 OF 20)

DIAGNOSTIC TROUBLE CODE (DTC) - ITT MARK 20 IE (20 OF 20)

out

Possible cause

Corrective action

01314
Engine control
module
No communication



z

Read measured value block, see READ

MEASURING VALUE BLOCK

(FUNCTION 08) display group number 125



z

Open circuit, short to

positive or Ground in

data bus wiring

z

Check wiring and connections of data bus

wiring using wiring diagram





z

Perform electrical checks, see

ELECTRICAL TESTING

01315
Transmission Control
Module (TCM)

(1)



No communication



z

Read measured value block, see READ

MEASURING VALUE BLOCK

(FUNCTION 08) display group number 125



z

Open circuit, short to

positive or Ground in

data bus wiring

z

Check wiring and connections of data bus

wiring using wiring diagram





z

Perform electrical checks, see

ELECTRICAL TESTING

(1)

Vehicles with automatic transmission only.

V.A.G 1551
printout

Possible cause

Corrective action

01316
Brake control
module
No
communication

z

Open circuit, short circuit to

positive or Ground in data bus

wiring

z

Check data bus wiring and

connection using wiring diagram





z

Perform electrical checks, see

ELECTRICAL TESTING

V.A.G 1551
printout

Possible cause

Corrective action

18256
Check Engine
Control Module
(ECM) memory

z

DTC in

ECM

z

Check engine control module DTC memory

See for relevant engine code

65535
Control module

ABS control

z

Replace control module (w/EDL) -J104-



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



ERASE DTC MEMORY (FUNCTION 05)

Requirements

z

DTC memory has been checked

z

Press --> button.

Indicated on display

z

Press buttons -0- and -5- to select "Erase DTC Memory" function 05.

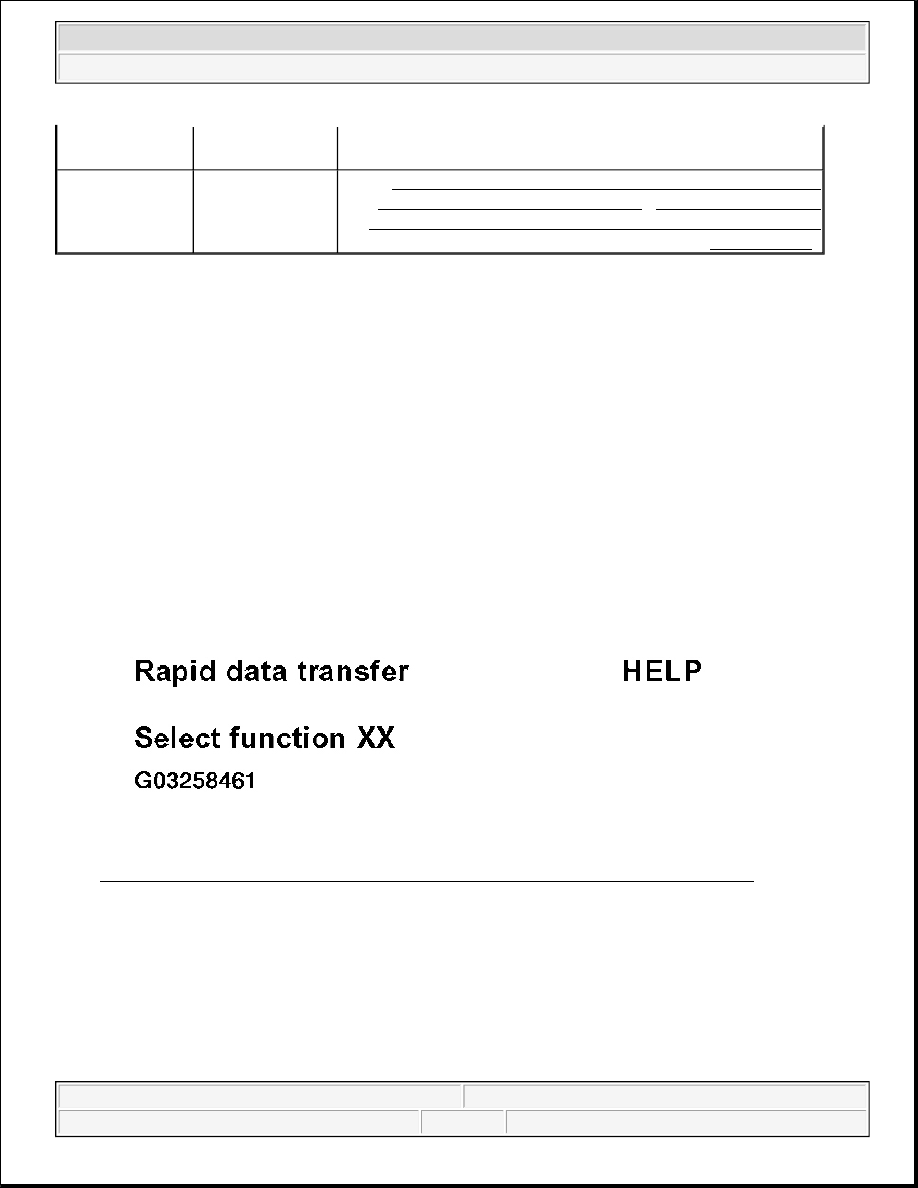

Fig. 38: V.A.G 1551 Scan Tool Display - Erasing DTC Memory - Function 05 (1 Of 6)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Press -Q- button to confirm input.

faulty

module (w/EDL) -

J104- faulty





See ABS CONTROL MODULE AND HYDRAULIC UNIT,

REMOVING AND INSTALLING ; HYDRAULIC UNIT,

BRAKE BOOSTER/MASTER CYLINDER - ASSEMBLY

OVERVIEW .

NOTE:

All functions which could previously be performed with V.A.G 1551 can also be
performed with the tester VAS 5051.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle

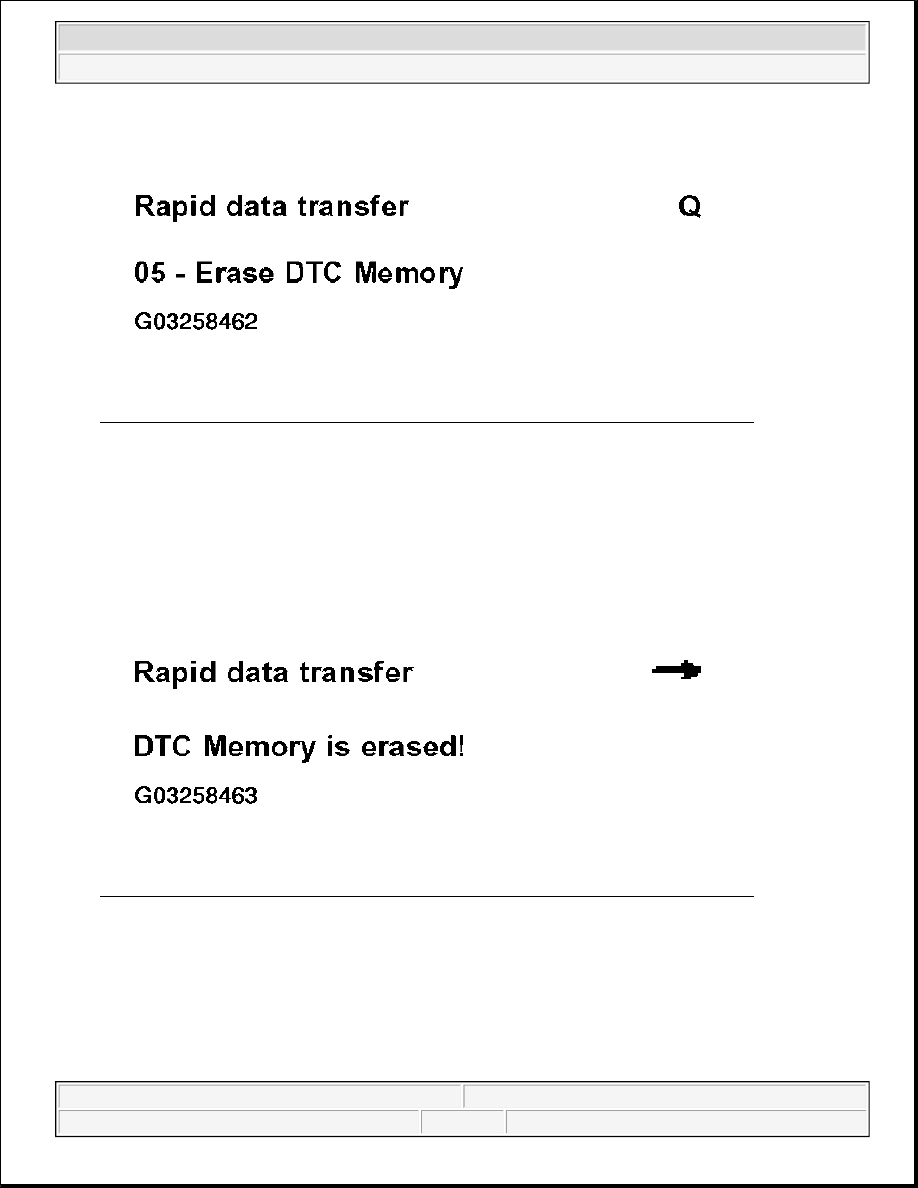

Fig. 39: V.A.G 1551 Scan Tool Display - Erasing DTC Memory - Function 05 (2 Of 6)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

DTC memory is now erased.

z

Press --> button.

Fig. 40: V.A.G 1551 Scan Tool Display - Erasing DTC Memory - Function 05 (3 Of 6)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle

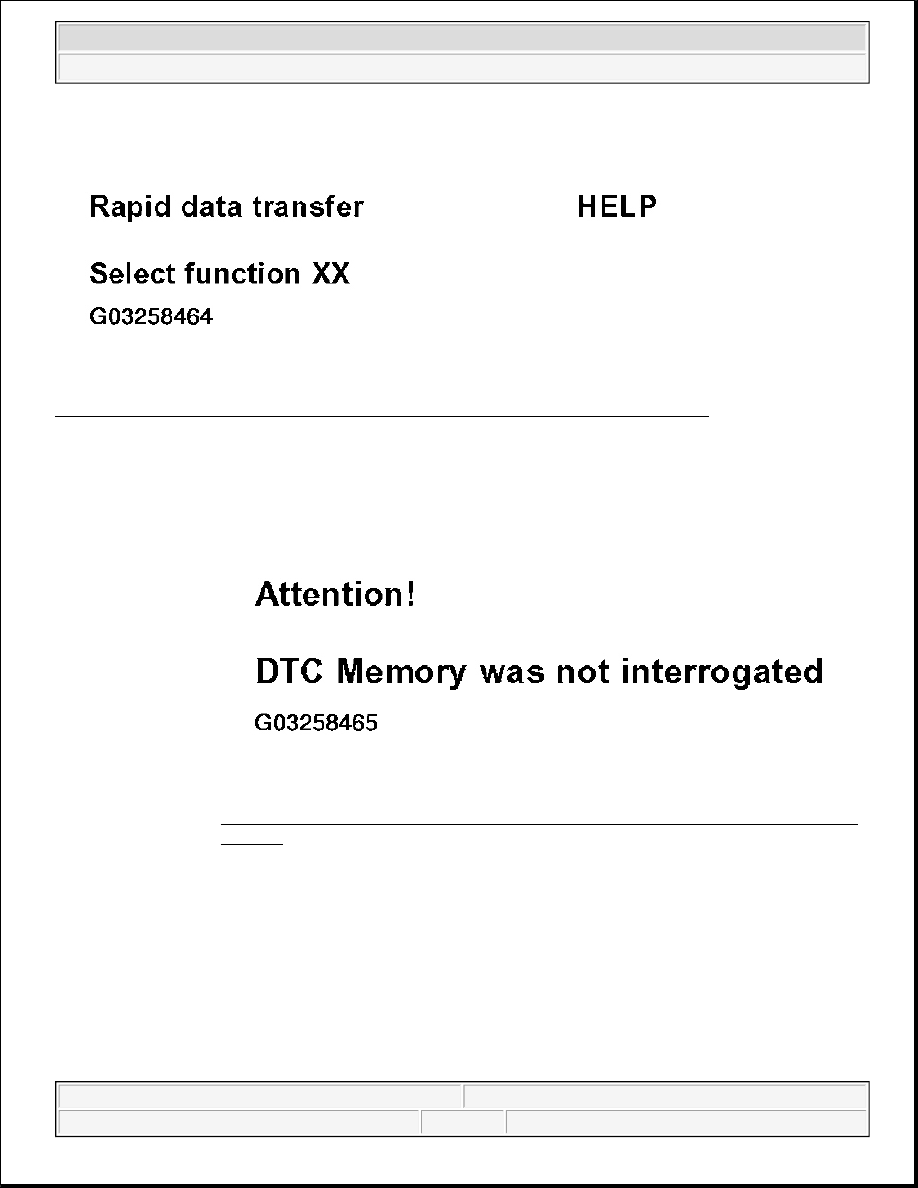

Fig. 41: V.A.G 1551 Scan Tool Display - Erasing DTC Memory - Function 05 (4 Of 6)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE:

z

This message indicates an error in the test sequence.

Fig. 42: V.A.G 1551 Scan Tool Display - Erasing DTC Memory - Function 05
(5 Of 6)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

This message indicates an error in the test sequence.

z

Adhere exactly to the test sequence: first check DTC memory, and if
necessary, repair malfunctions, then erase DTC memory.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle
