Cover control module magnetic coils with a lint-free cloth.

After separating control module and hydraulic unit use transportation protection device for contact pin.

The electrical contact pin supplied as a spare part for the control module can only be clipped in once and
thereafter never removed again.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES Anti-Lock Brake System - New Beetle

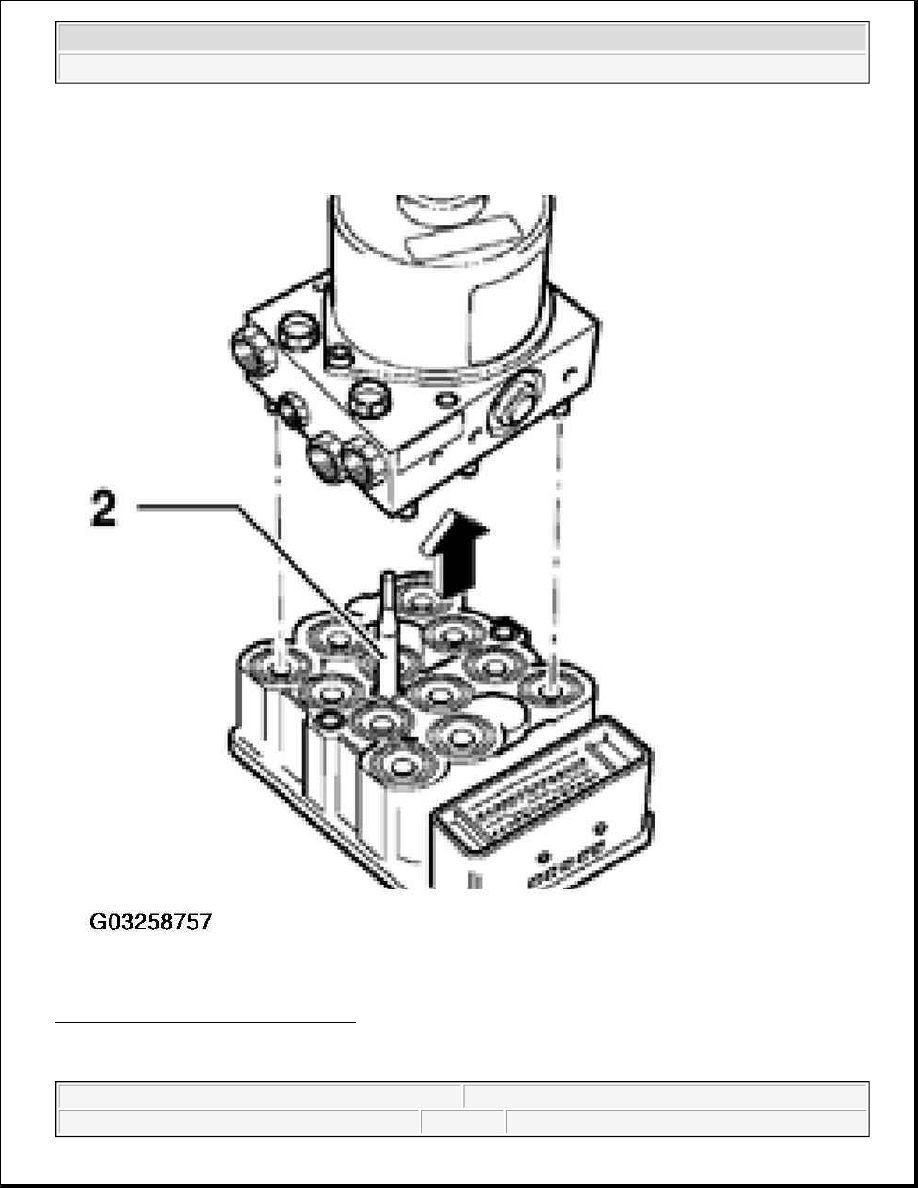

Fig. 45: Pulling Off Of Control Module
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Installing



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES Anti-Lock Brake System - New Beetle



When assembling the control module to the hydraulic unit, make sure that the hydraulic unit electrical contact
pin is not tilted against the control module solenoid valves.

z

Using new bolts, install control module to hydraulic unit. Observe max. tightening torque of 4 N.m (35
in. lb).

z

Bolt ABS module to bracket.

Do not tighten bolts completely. Attaching the individual brake lines is made easier.

z

After tightening brake lines, tighten hydraulic unit.

z

Further installation is carried out in the reverse sequence.

z

Remove brake pedal depressor VAG 1869/2.

z

Bleed brake system, see Page 47-24

z

Enter radio code.

z

Coding control module.

See ABS CONTROL MODULE, CODING .

Tightening torques:

Control module to hydraulic unit : max.

4 N.m (35 in. lb

Hydraulic unit hex bolt to bracket 8 N.m (71 in. lb)

Tandem brake master cylinder to brake booster : 20 N.m (15 ft. lb)

Brake line to ABS assembly:

Thread M 10 x 1 : 14 N.m (10.33 ft. lb)

Thread M 12 x 1 : 14 N.m (10.33 ft. lb)

Hex nut to body : 20 N.m (15 ft. lb)

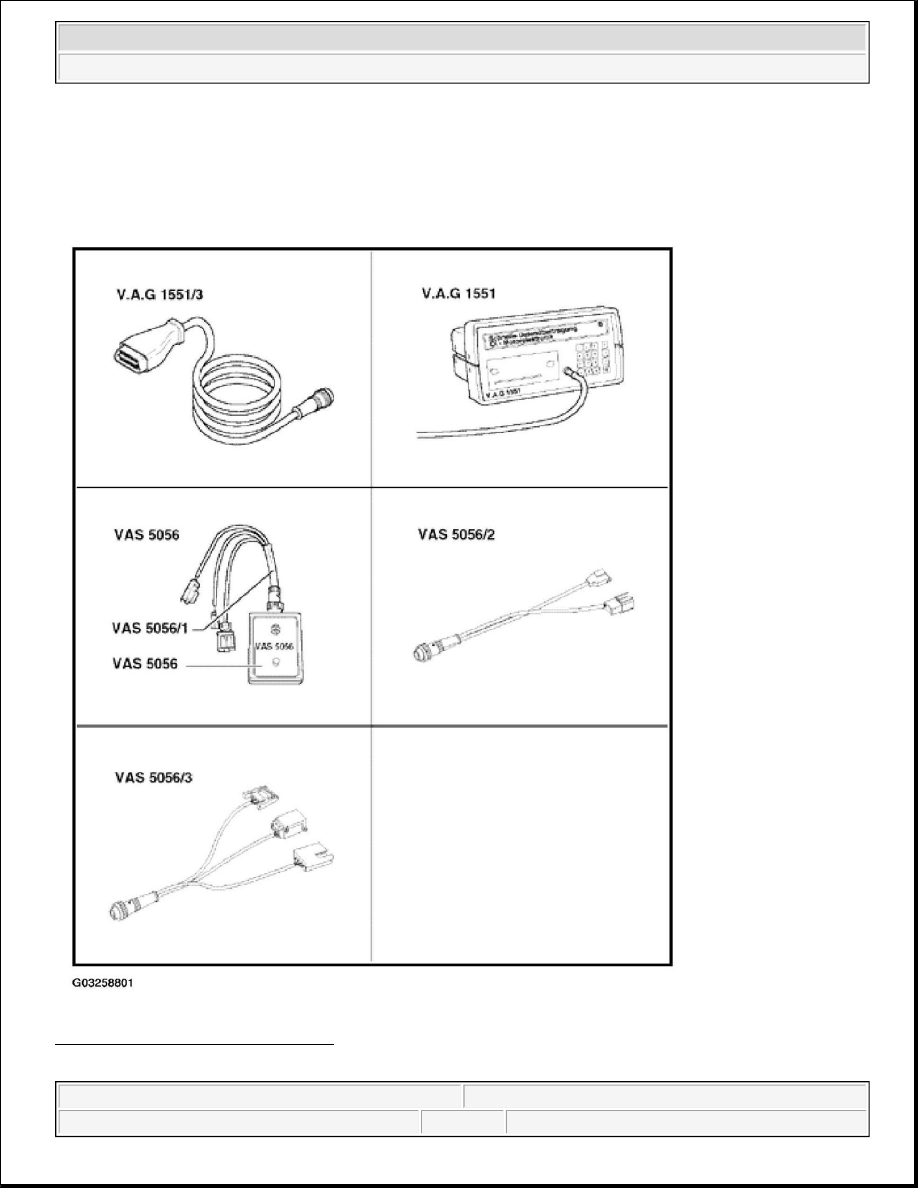

DTCS DISPLAYED BY (ABS) MARK 60 WARNING LAMPS -K32-, -K47-, -

NOTE:

z

Only remove sealing plugs on the new hydraulic unit when the
corresponding brake line is going to be installed.

z

If the sealing plugs are removed from the hydraulic unit too early, brake
fluid can escape, it can no longer be guaranteed that the unit is sufficiently
filled or adequately bled.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES Anti-Lock Brake System - New Beetle



K118-, AND -K155-

WARNING LAMPS

Fig. 46: Identifying Warning Lamps
Courtesy of VOLKSWAGEN OF AMERICA, INC.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES Anti-Lock Brake System - New Beetle
